Belimo R325BL 3-Way Threaded Ball Valve & LR230A Rotary Actuator, 5 Nm, AC 100–240 V, On-Off K18/443
- A few left in stock!

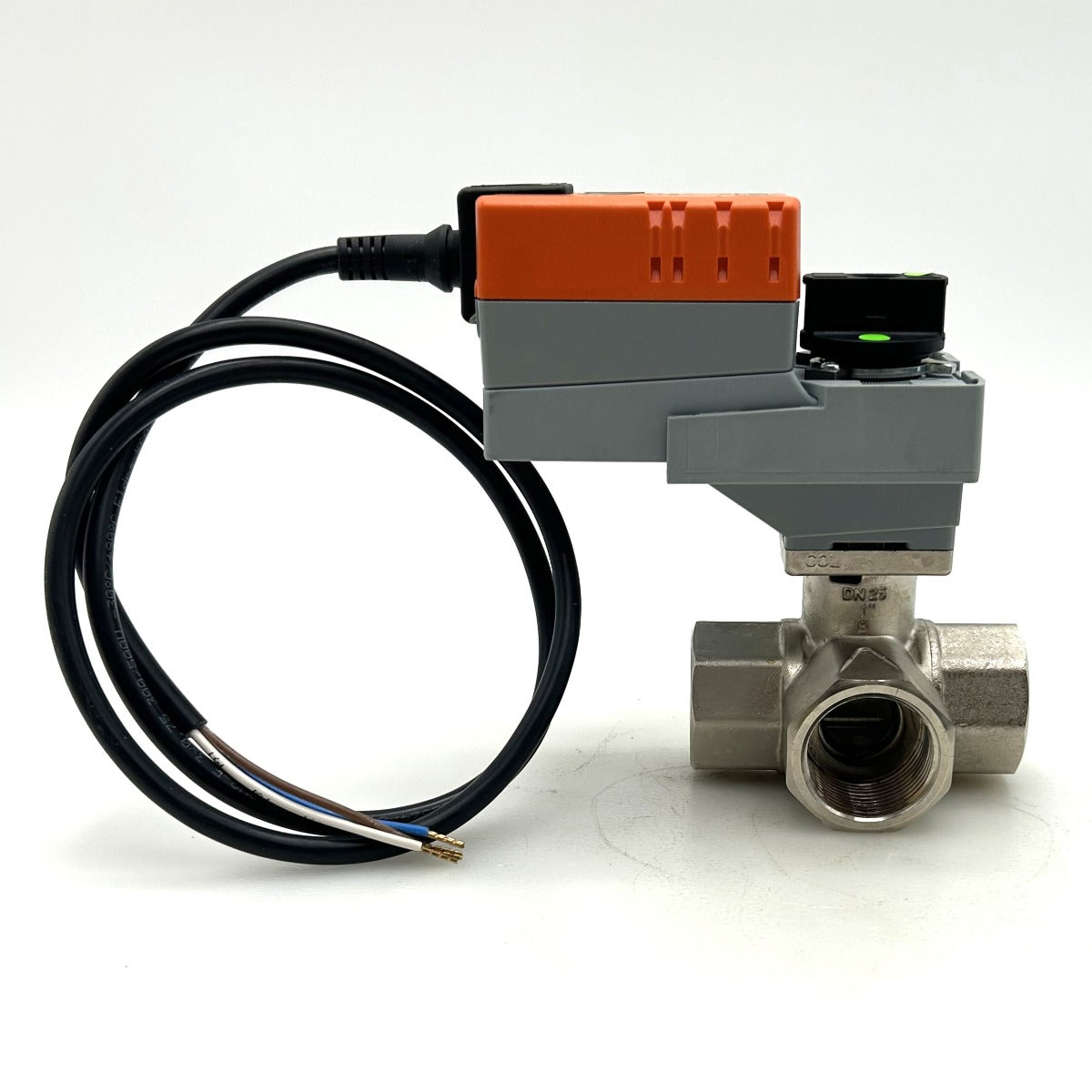

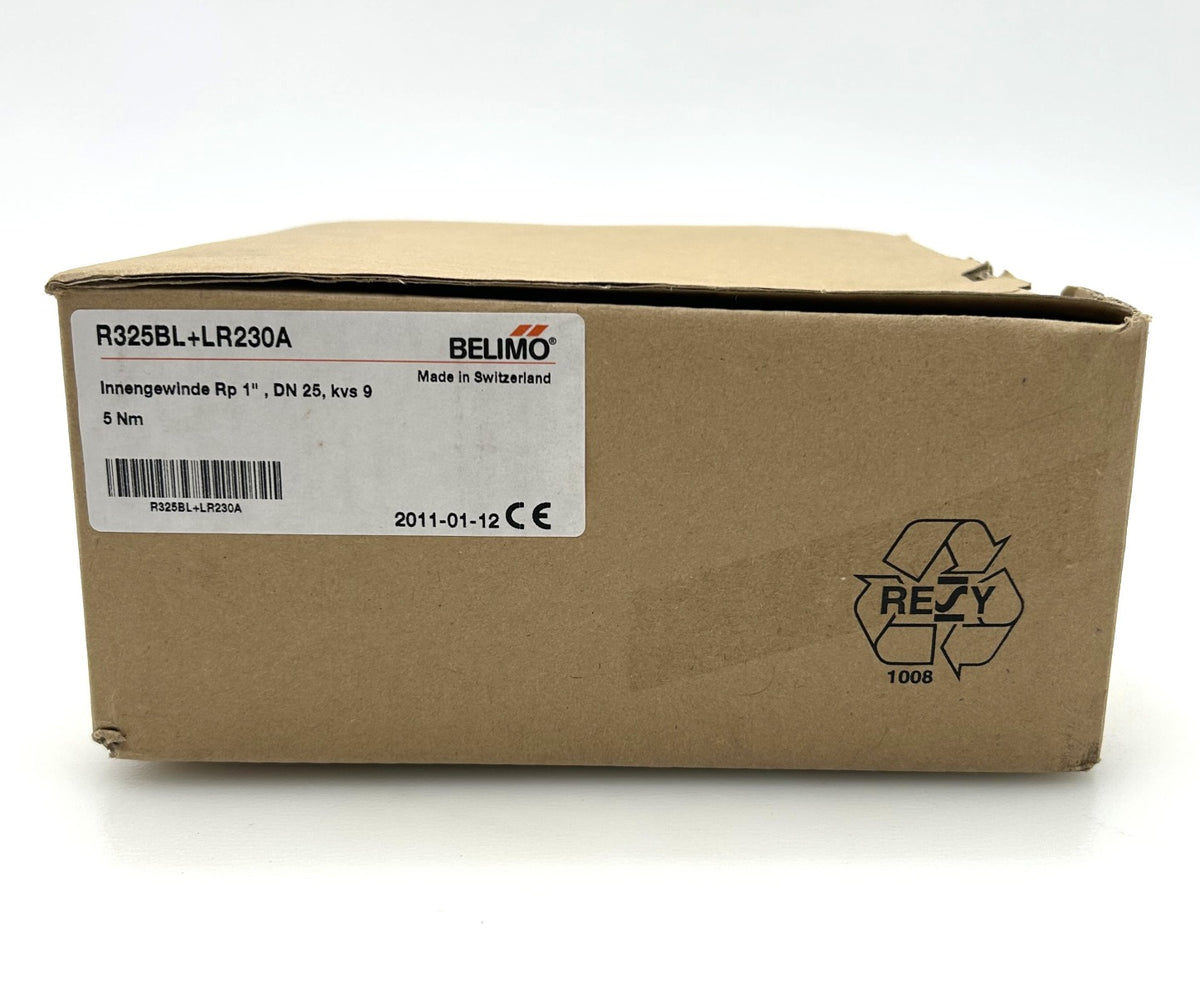

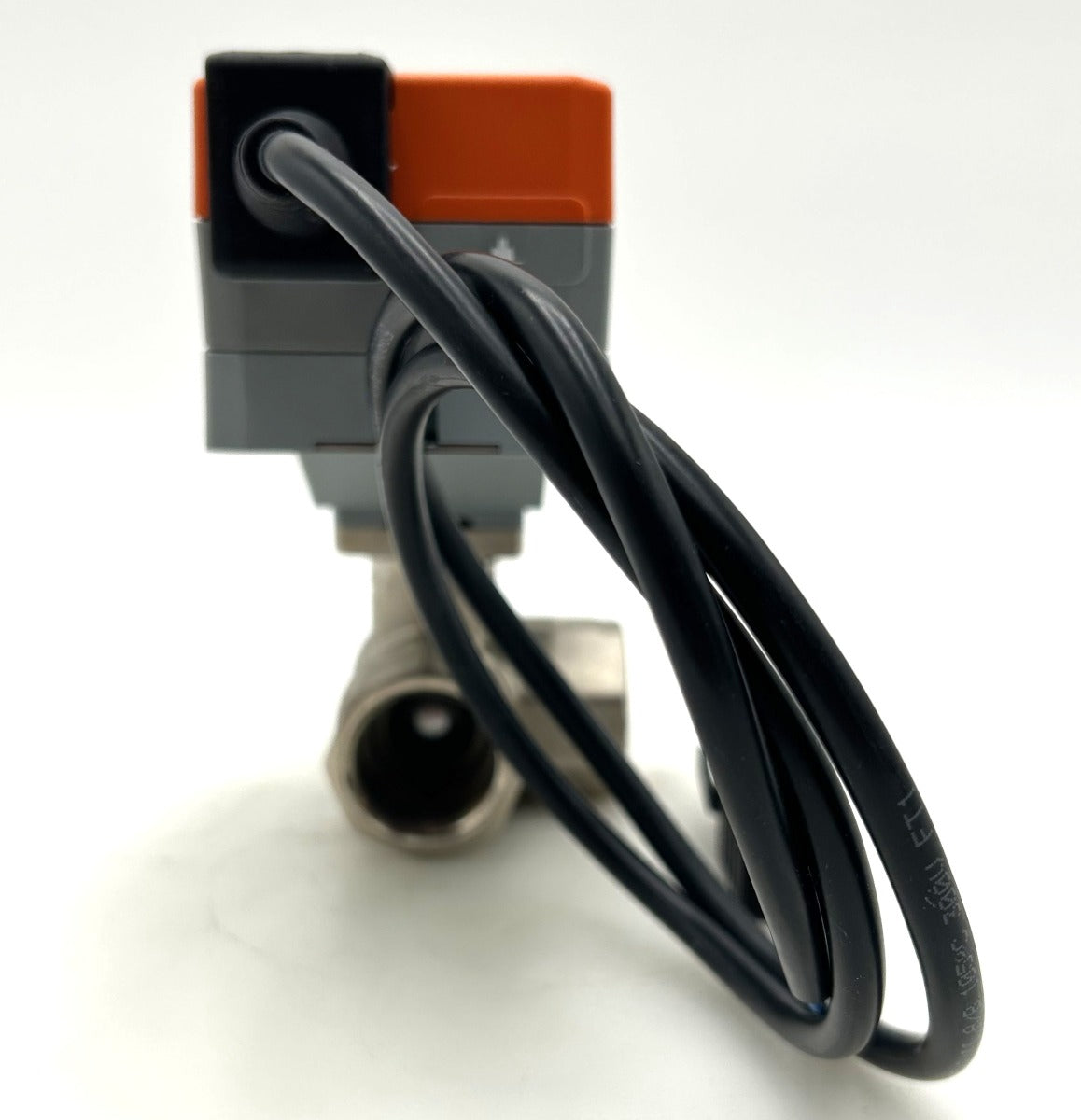

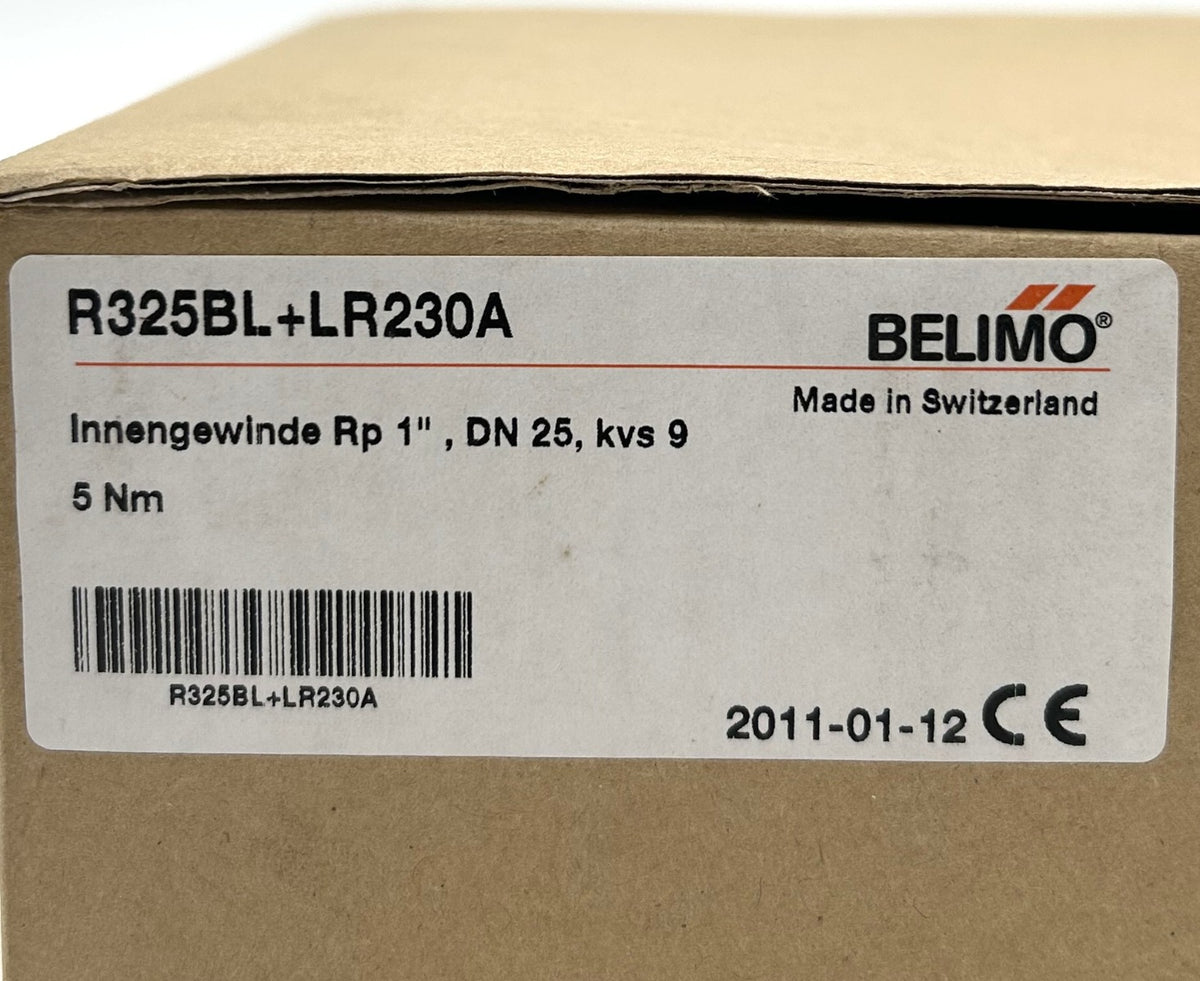

Belimo R325BL 3-Way Ball Valve with Internal Thread & LR230A Rotary Actuator, 5 Nm, AC 100–240 V, On-Off
The Belimo complete system R325BL + LR230A combines a high-quality 3-way ball valve with internal thread and a precise rotary actuator for on-off functions in heating, ventilation, and air conditioning (HVAC) systems. This set is suitable for open and closed cold and hot water systems as well as for 2-point control and water-side changeover functions.

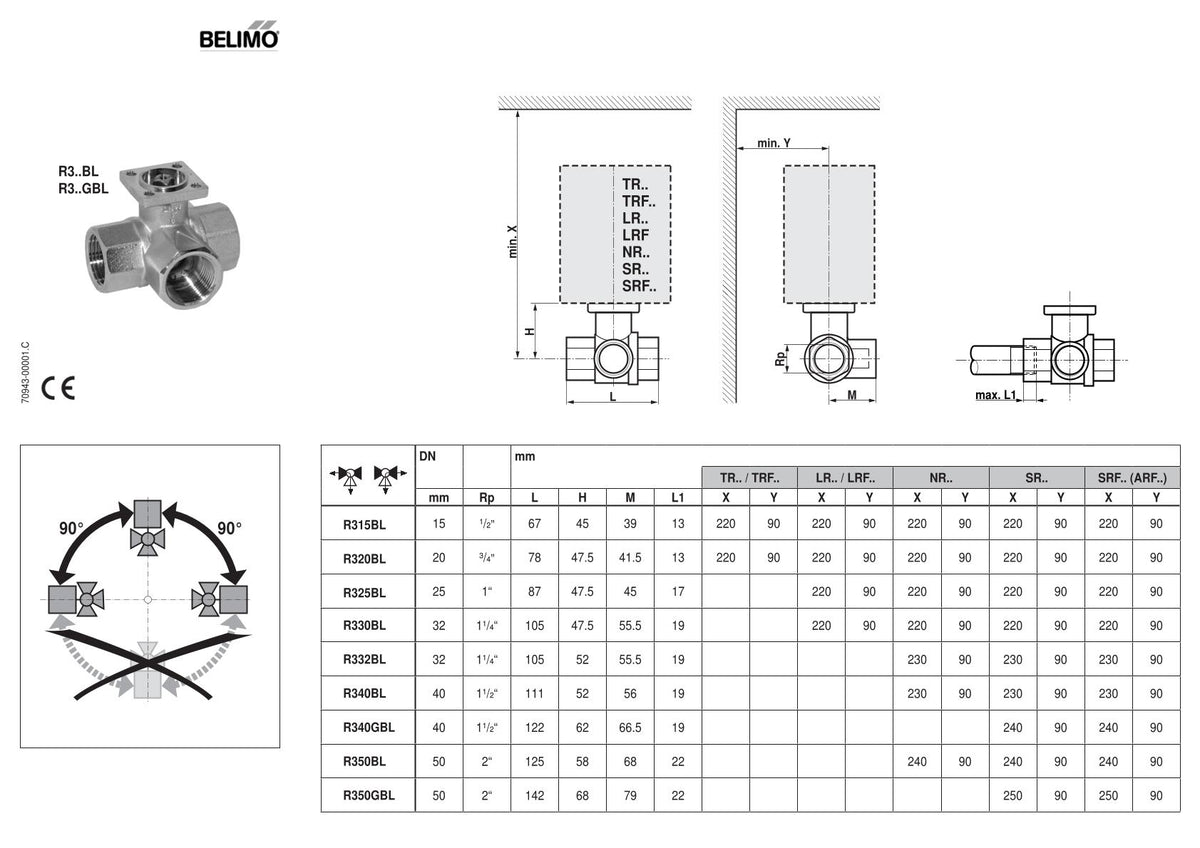

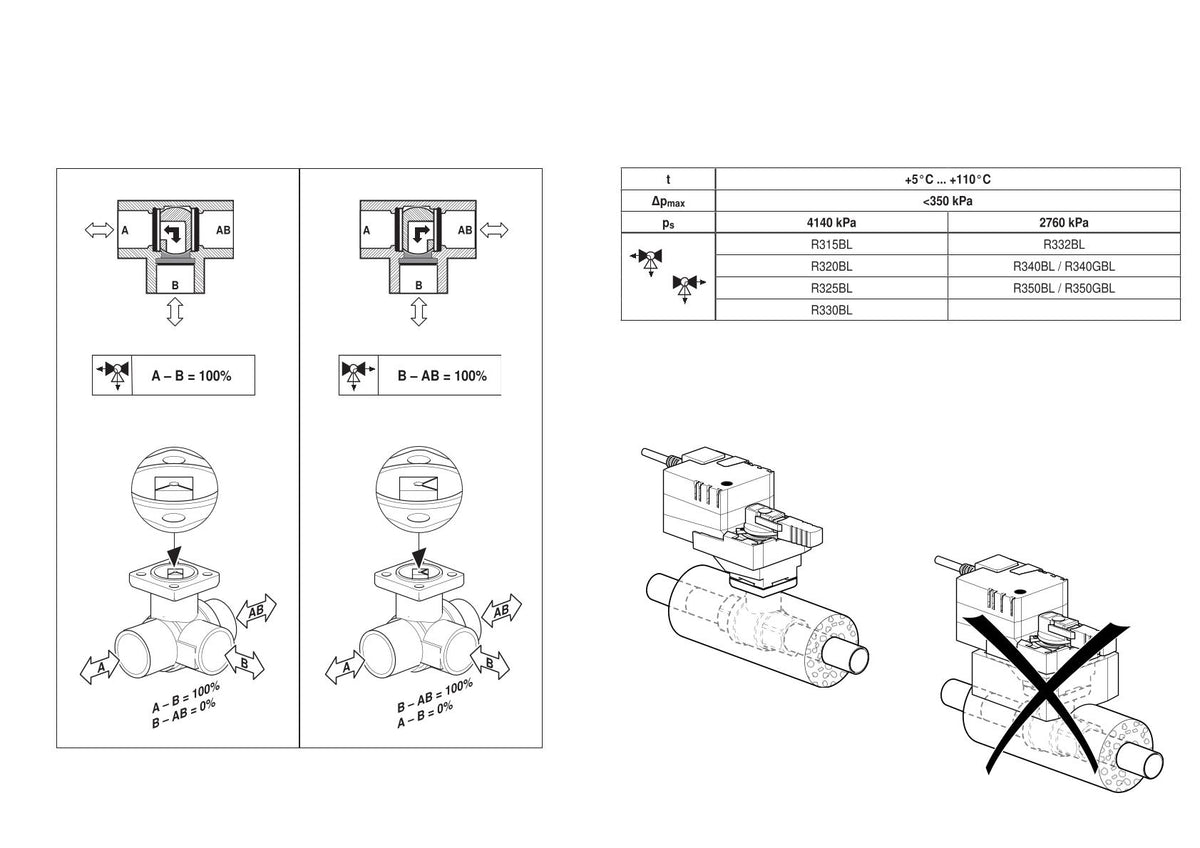

- Ball Valve R325BL – Key Features:
- Type: 3-way ball valve, on-off
- DN: 25 mm
- Connection: Internal thread 1”
- Media: Cold and hot water, water-glycol mixtures up to 50%
- Medium temperature: +5°C … +110°C (depending on actuator)
- Rotation angle: 90° (working range 15…90°)
- Installation position: upright to horizontal (relative to spindle)
- Materials: Nickel-plated brass, closing body & spindle stainless steel, spindle seal O-ring EPDM, ball seat PTFE
- Bubble-tight: Passage A–AB

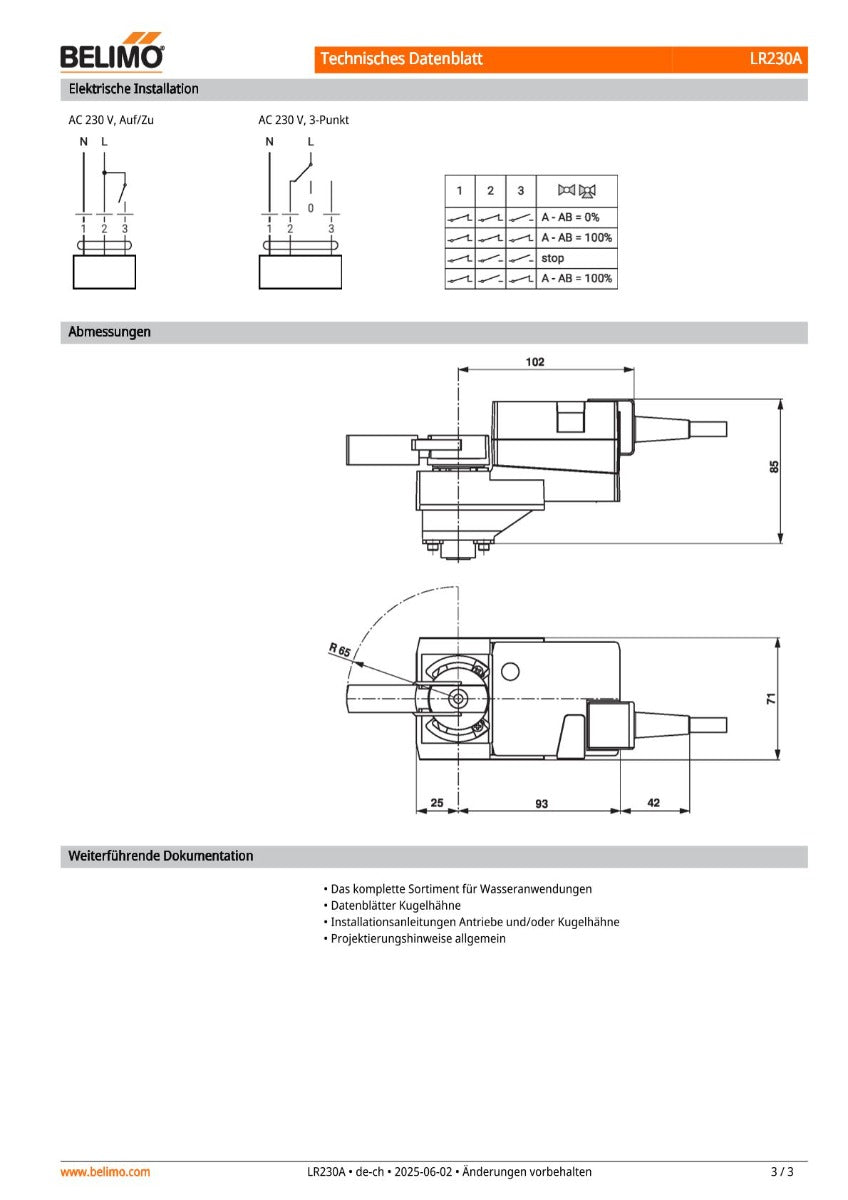

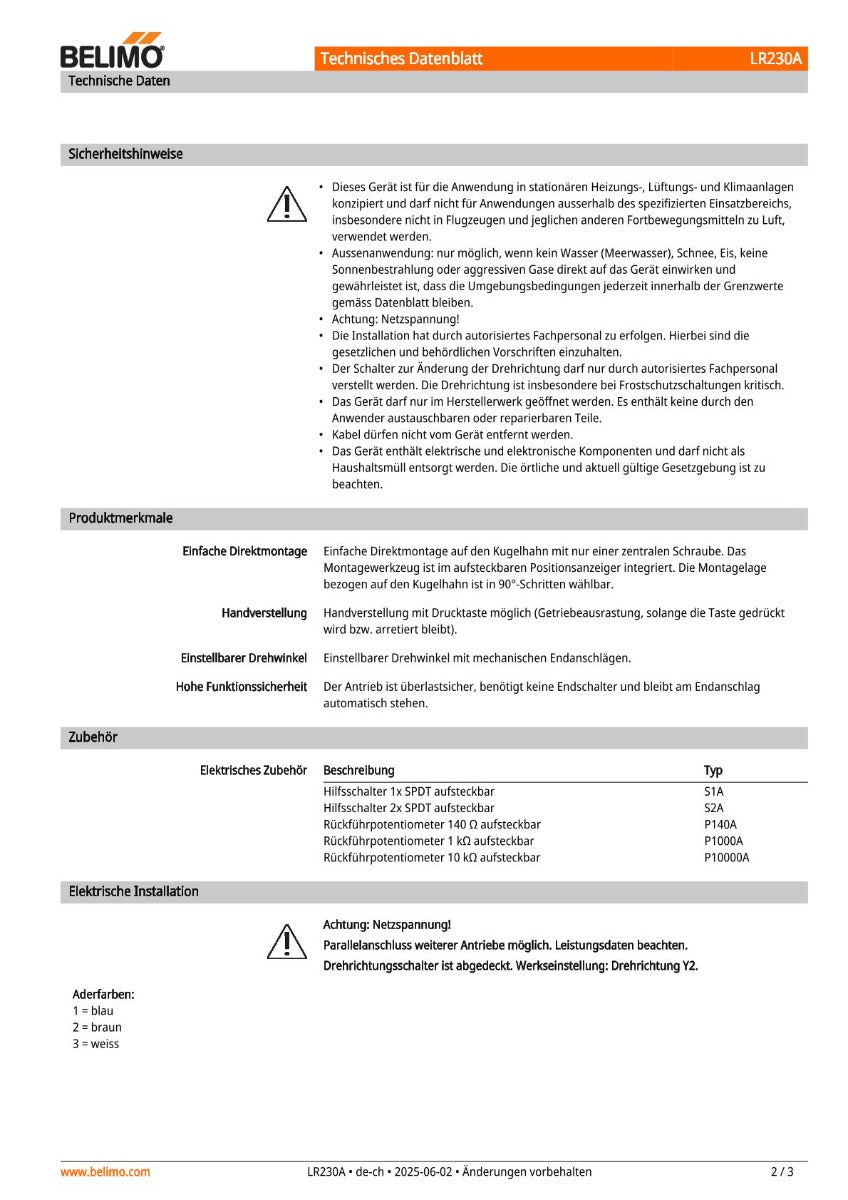

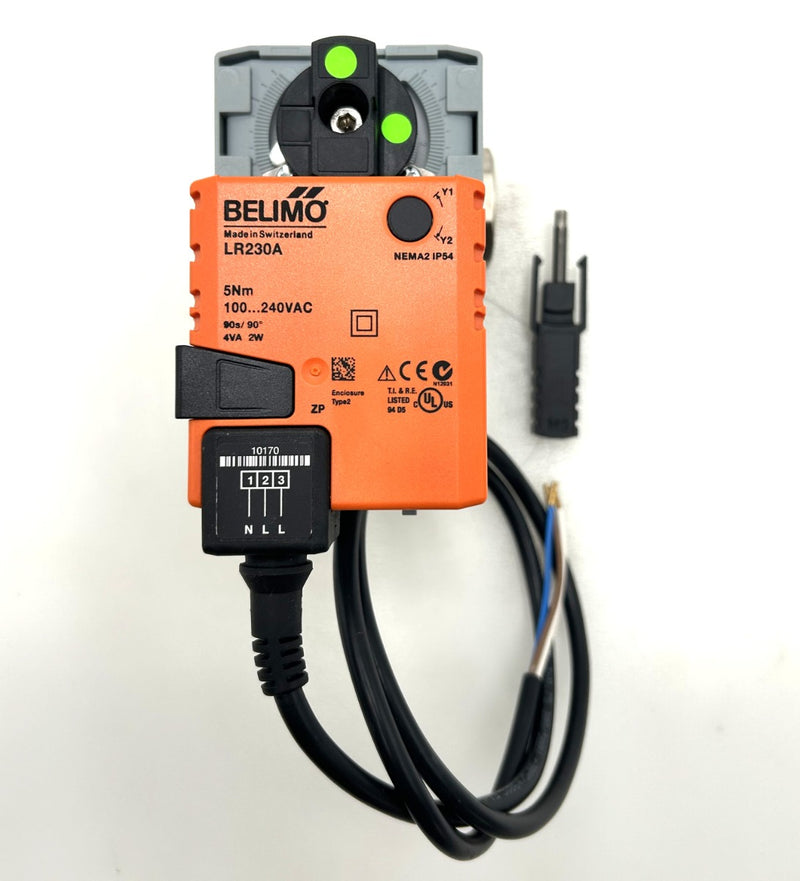

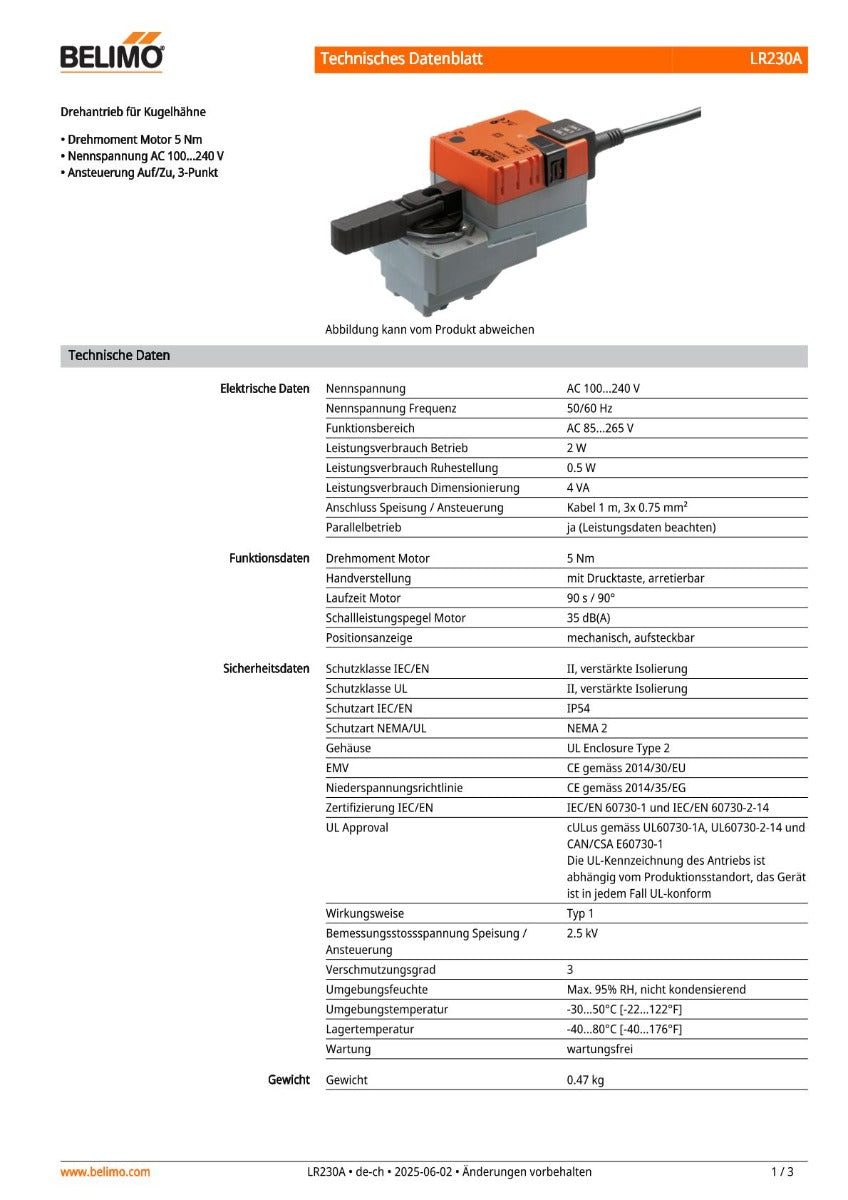

- Rotary Actuator LR230A – Key Features:
- Torque: 5 Nm
- Nominal voltage: AC 100–240 V
- Control: On/Off, 3-point
- Motor running time: 90 s / 90°
- Manual override: Push button, lockable
- Position indication: mechanical, attachable
- Sound power level motor: 35 dB(A)
- Protection class: IP54 (IEC/EN), NEMA 2 (UL)
- EMC & Certification: CE, UL compliant, IEC/EN 60730
- Maintenance: maintenance-free
- Weight: 0.47 kg
- Advantages of the combined system:
- Ready for immediate use in HVAC applications
- High functional reliability: Overload-proof, no limit switches required
- Easy installation: Direct on ball valve, rotation angle selectable
- Low noise, durable, and maintenance-free
- Optional accessories available: Auxiliary switches, feedback potentiometers
- Condition: New
- Our item number: K18/443
Couldn't load pickup availability
Further information
- Manufacturer: Belimo
- Installation length:
- Condition: new
- Pipe connection: G 1" (33.3mm)
