Belimo R350 3-way threaded ball valve & SR230A rotary actuator, 20 Nm, AC 100–240 V K18/433

€395,00 EUR
€395,00 EUR
Shipping calculated at checkout.
  • A few left in stock!
  • Inventory on the way

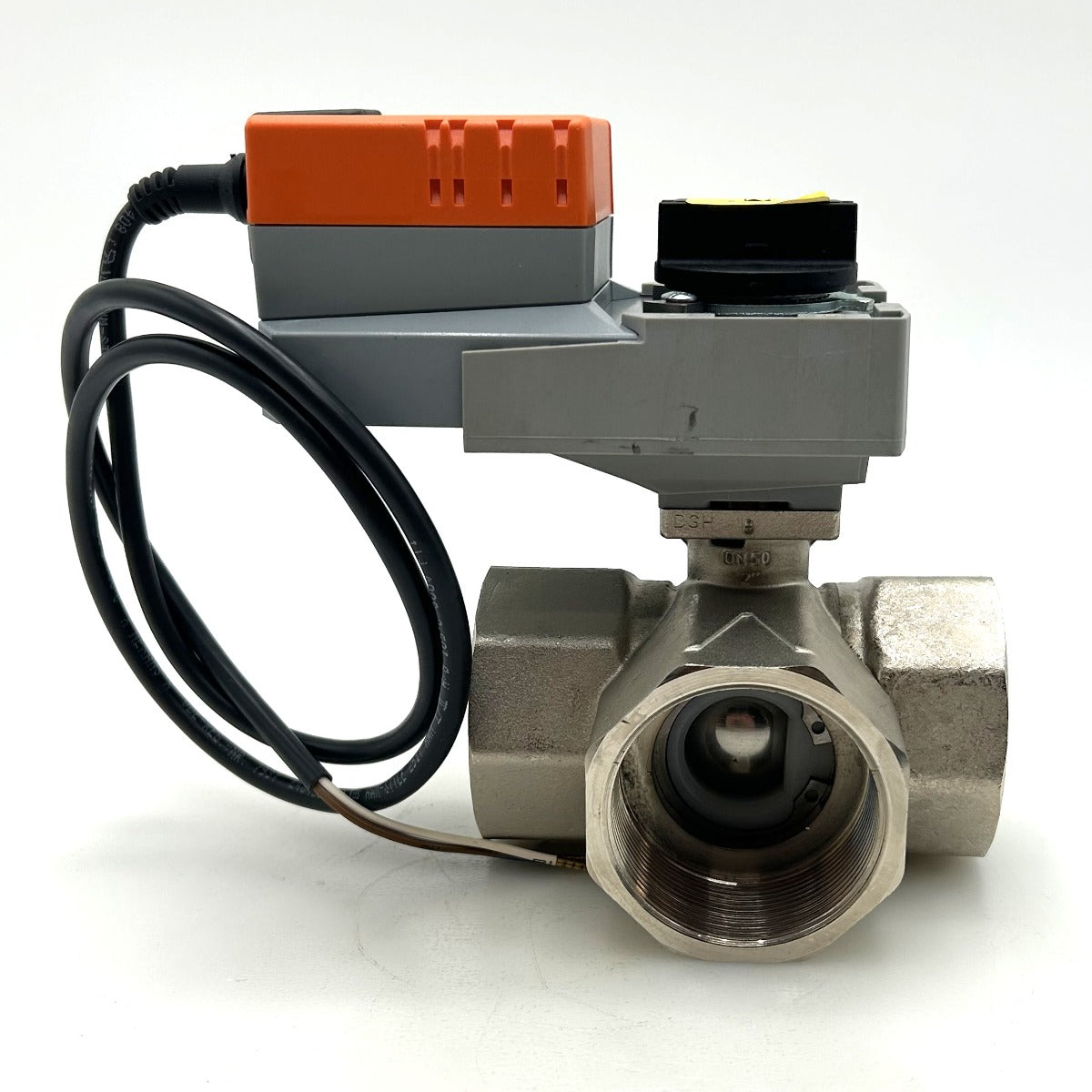

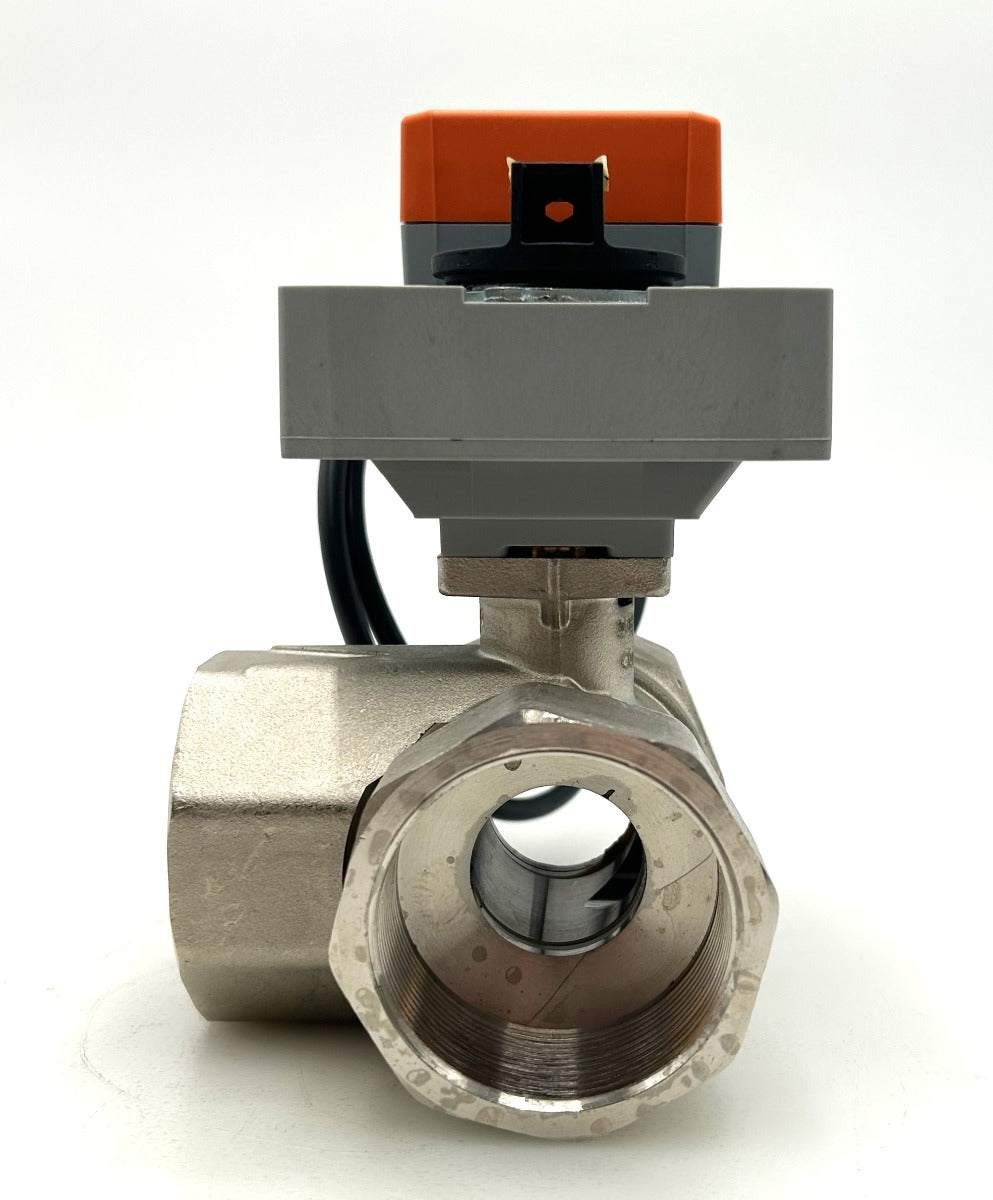

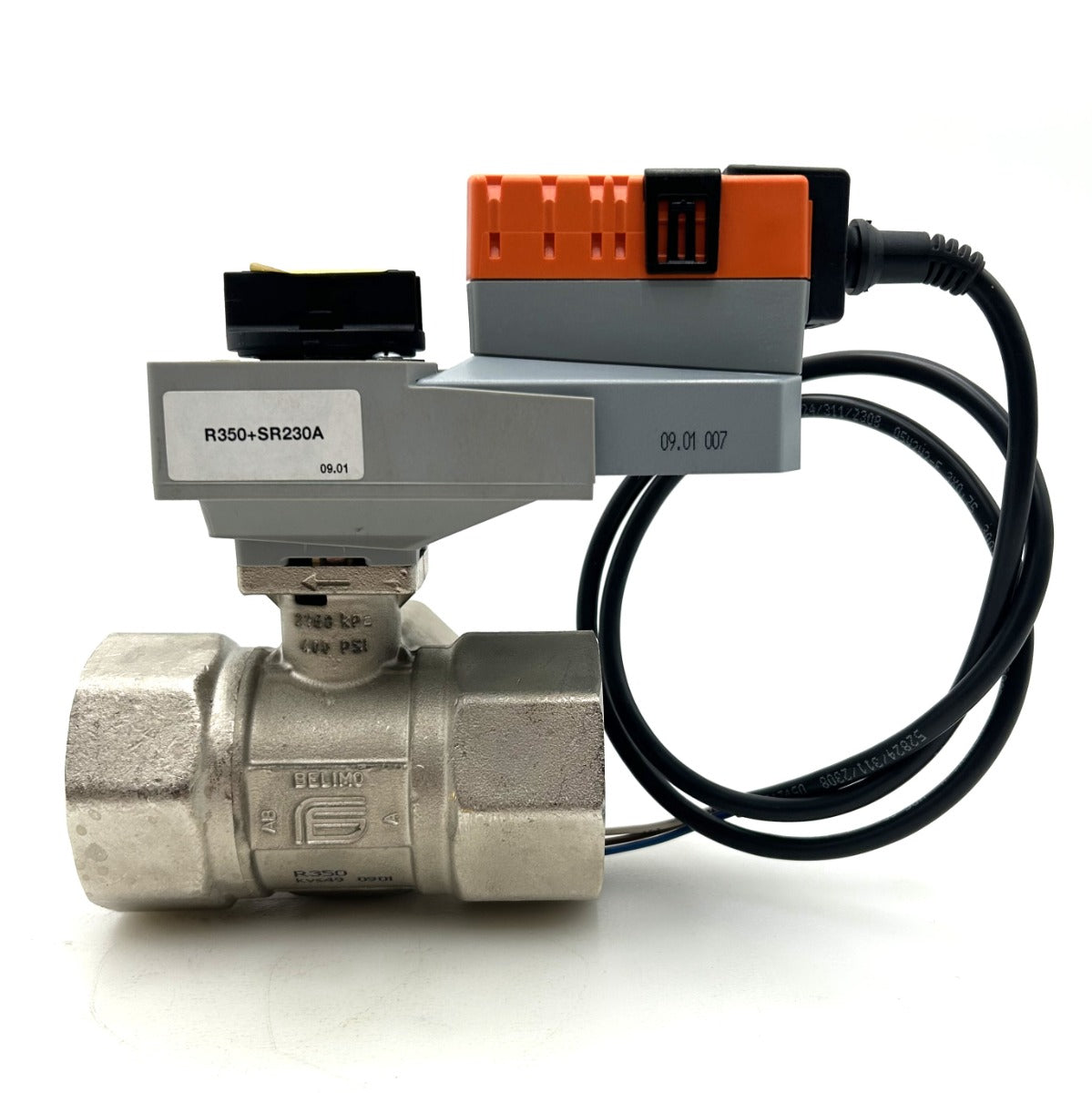

Belimo R350 3-Way Ball Valve with Internal Thread & SR230A Rotary Actuator, 20 Nm, AC 100–240 V, On-Off

The Belimo complete system R350 + SR230A combines a high-quality 3-way ball valve with internal thread and a reliable rotary actuator, ideal for on-off functions in heating, ventilation, and air conditioning systems (HVAC). This set is suitable for open and closed cold and hot water systems, as well as for 2-point control and water-side changeover functions.

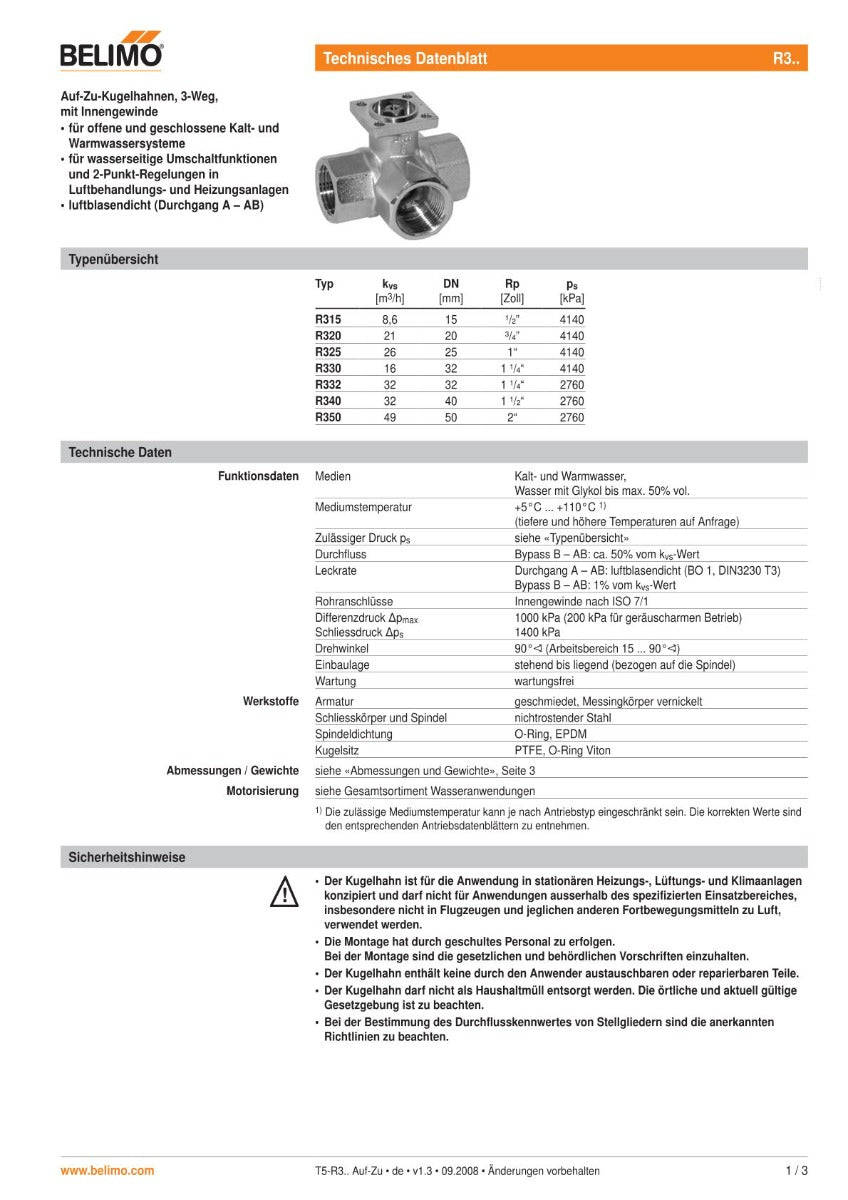

  • Ball Valve R350 – Key Features:
  • Type: 3-way ball valve, on-off
  • Connection: Internal thread according to ISO 7/1
  • Media: Cold and hot water, water-glycol mixtures up to 50%
  • Medium temperature: +5°C … +110°C (depending on actuator)
  • Permissible pressure: Δpmax 1000 kPa (low noise 200 kPa), closing pressure Δps 1400 kPa
  • Rotation angle: 90° (working range 15…90°)

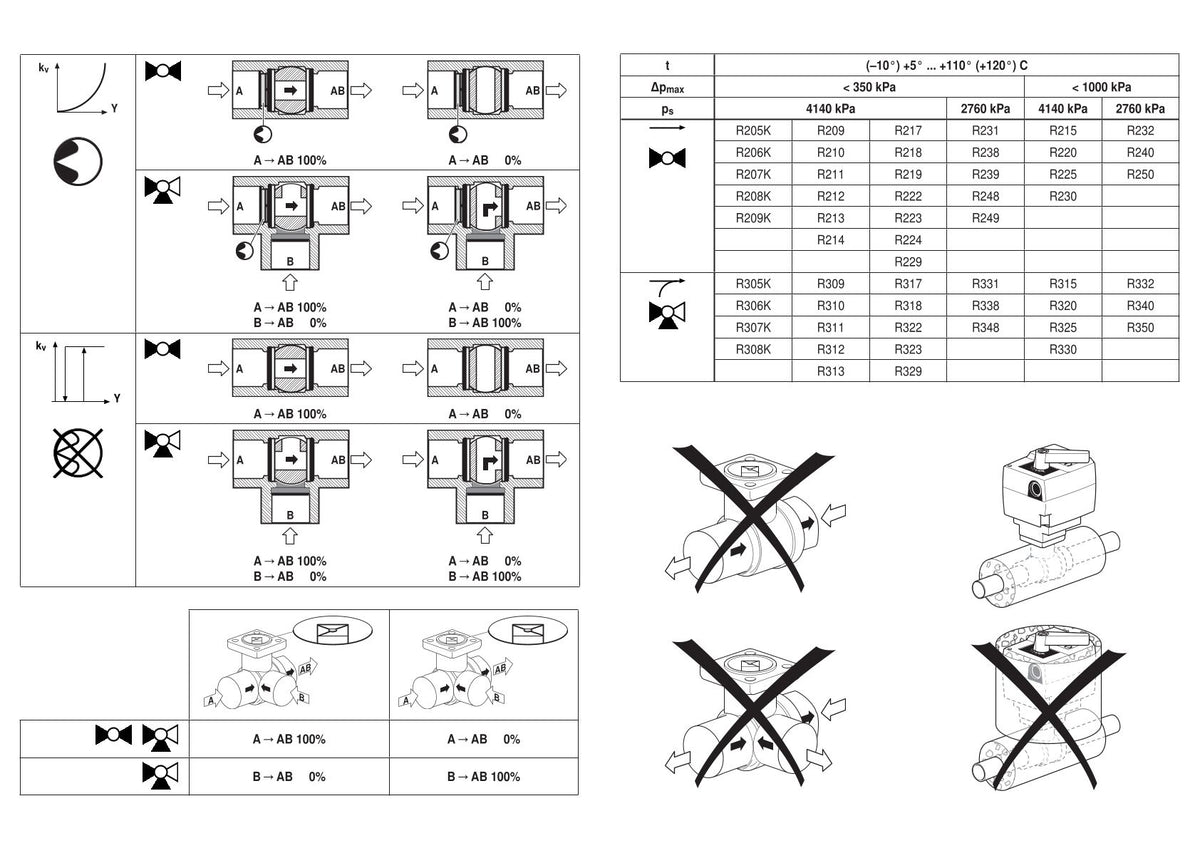

  • Bypass B–AB: approx. 50% of kvs value, leakage rate 1%
  • Installation position: upright to horizontal (relative to spindle)
  • Materials: Nickel-plated brass, closing body & spindle stainless steel, spindle seal O-ring EPDM, ball seat PTFE
  • Bubble-tight: Passage A–AB
  • Application area: stationary HVAC systems, not for mobile applications

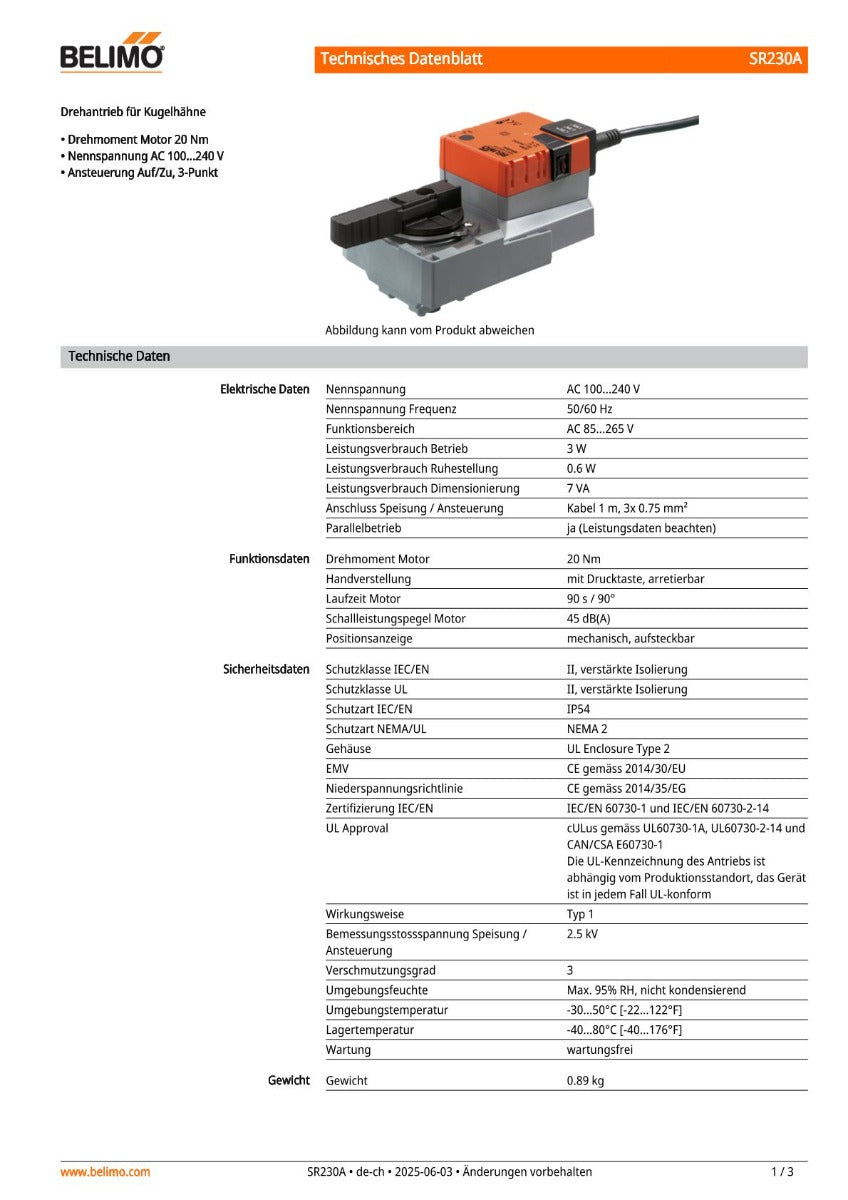

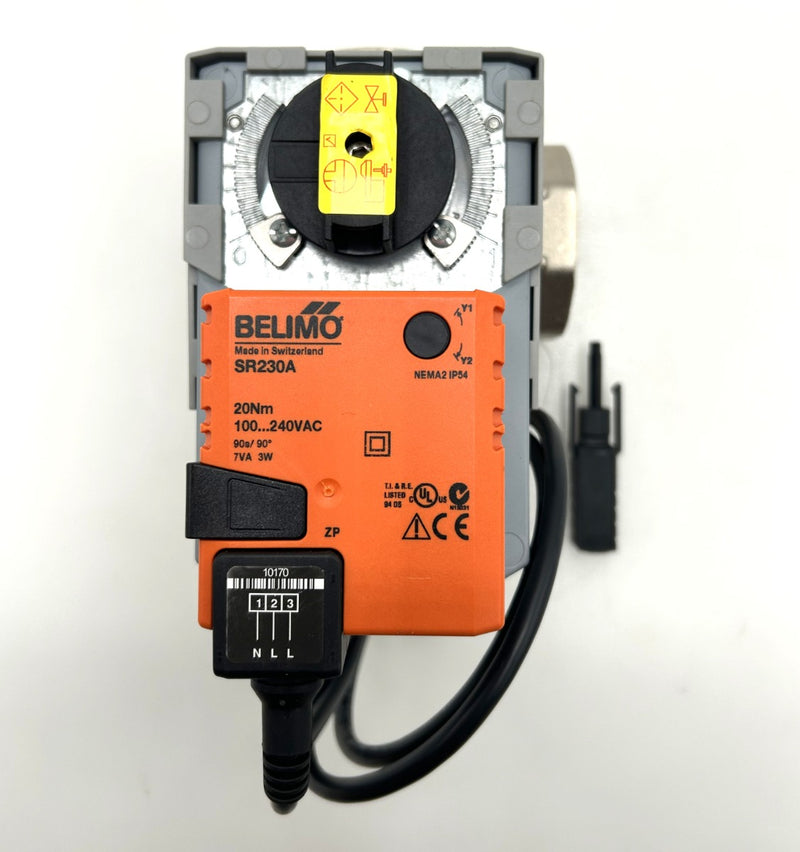

  • Rotary Actuator SR230A – Key Features:
  • Torque: 20 Nm
  • Nominal voltage: AC 100–240 V
  • Control: On/Off, 3-point
  • Running time motor: 90 s / 90°
  • Manual override: Push button, lockable
  • Position indicator: mechanical, attachable
  • Protection class: IP54 (IEC/EN), NEMA 2 (UL)
  • EMC & Certification: CE, UL compliant, IEC/EN 60730
  • Maintenance: maintenance-free
  • Weight: 0.89 kg
  • Advantages of the combined system:
  • Ready for immediate use in HVAC applications
  • High functional reliability: Overload protected, no limit switches required
  • Easy installation: Directly on ball valve, selectable rotation angle
  • Low noise, durable and maintenance-free
  • Optional accessories available: Auxiliary switches, feedback potentiometer
  • Condition: new
  • Our item number: K18/433
Further information
  • Manufacturer: Belimo
  • Installation length:
  • Condition: new
  • Pipe connection: G 2" (59.6mm)
