Belimo R340BL 3-way threaded ball valve & SR230A rotary actuator, 20 Nm, AC 100–240 V K18/442

€265,00 EUR
€265,00 EUR
Shipping calculated at checkout.
  • A few left in stock!
  • Inventory on the way

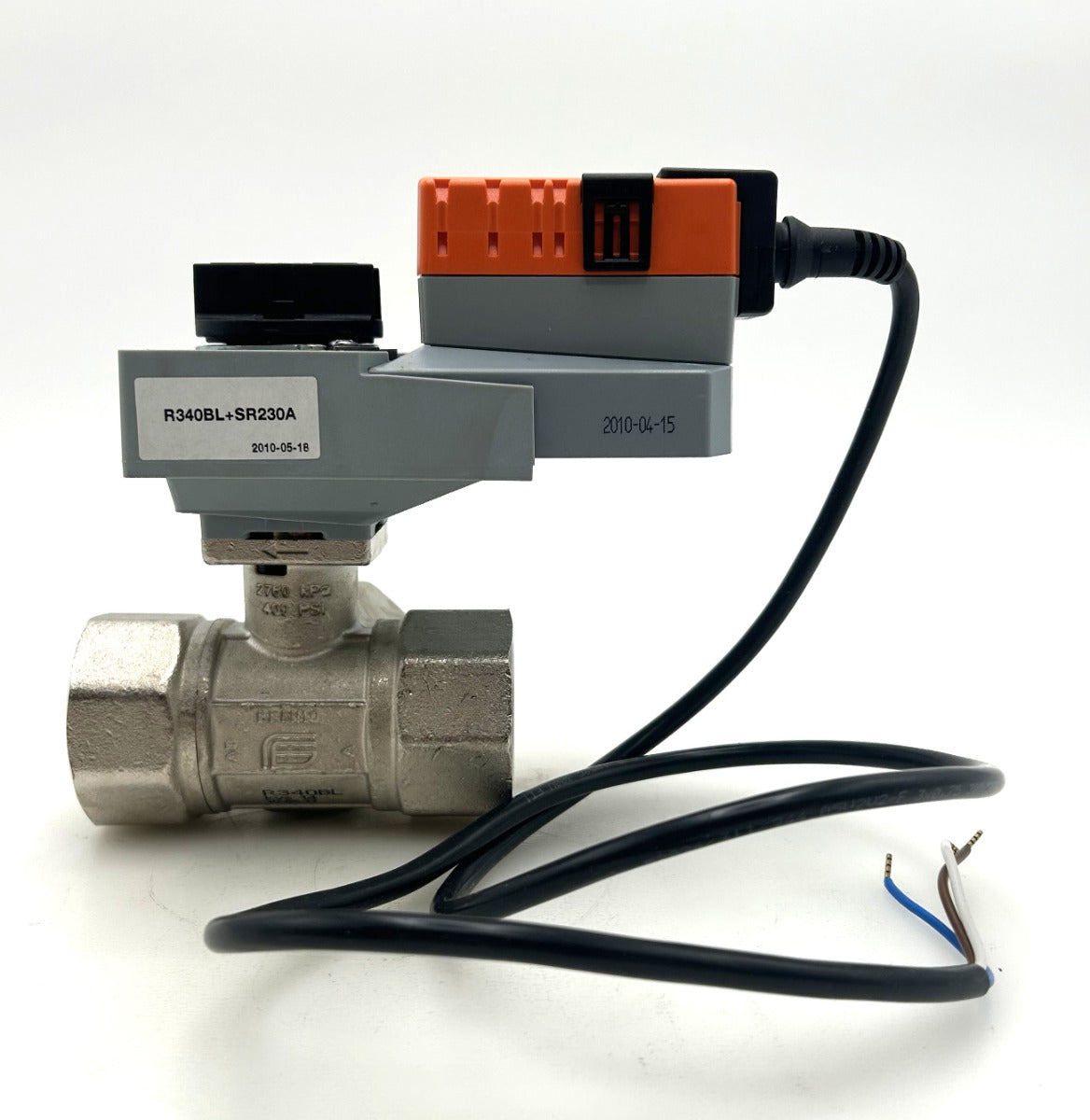

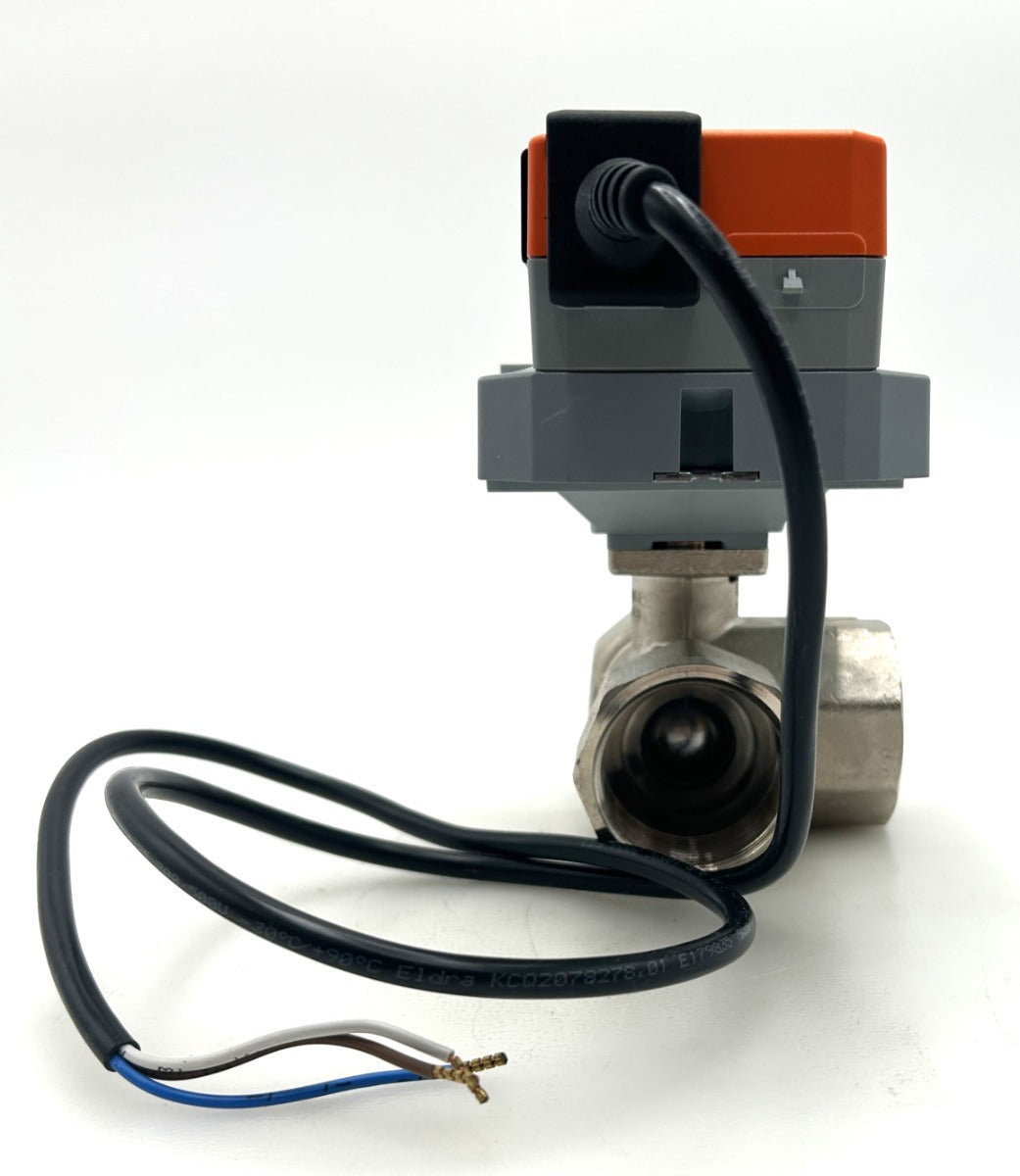

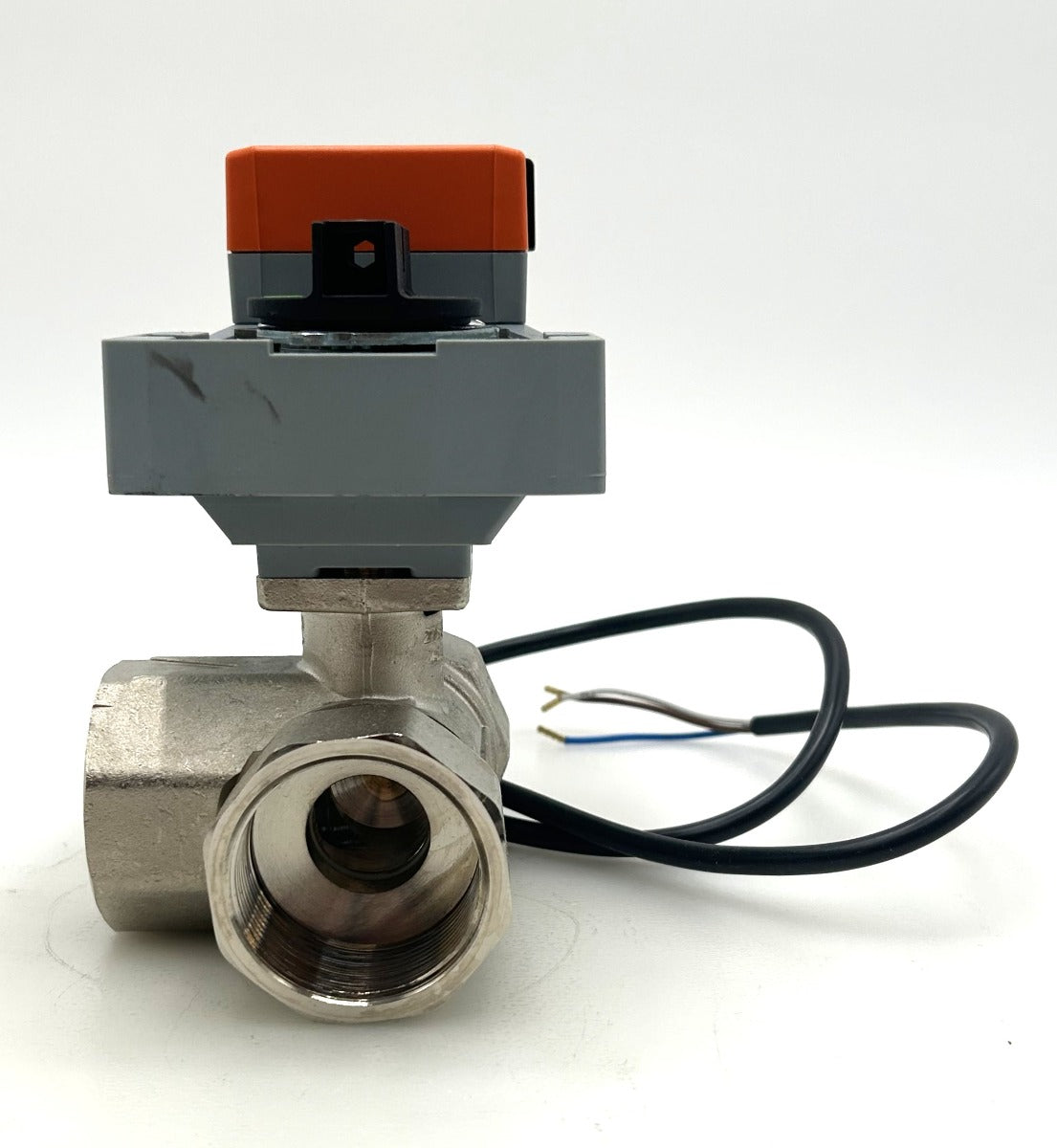

Belimo R340BL 3-Way Internal Thread Ball Valve & SR230A Rotary Actuator, 20 Nm, AC 100–240 V, On-Off

The Belimo complete system R340BL + SR230A combines a high-quality 3-way internal thread ball valve and a precise rotary actuator, ideal for on-off control in heating, ventilation, and air conditioning (HVAC) systems. This set is suitable for open and closed cold and hot water systems and ensures efficient 2-point control and water-side changeover functions.

  • Ball Valve R340BL – Key Features:
  • Type: 3-way ball valve, on-off
  • Connection: Internal thread according to ISO 7/1
  • Media: Cold and hot water, water-glycol mixtures up to 50%
  • Medium temperature: +5°C … +110°C (depending on the actuator)
  • Rotation angle: 90° (working range 15…90°)
  • Mounting position: vertical to horizontal (relative to spindle)
  • Materials: Brass nickel-plated, closing body & spindle stainless steel, spindle seal O-ring EPDM, ball seat PTFE

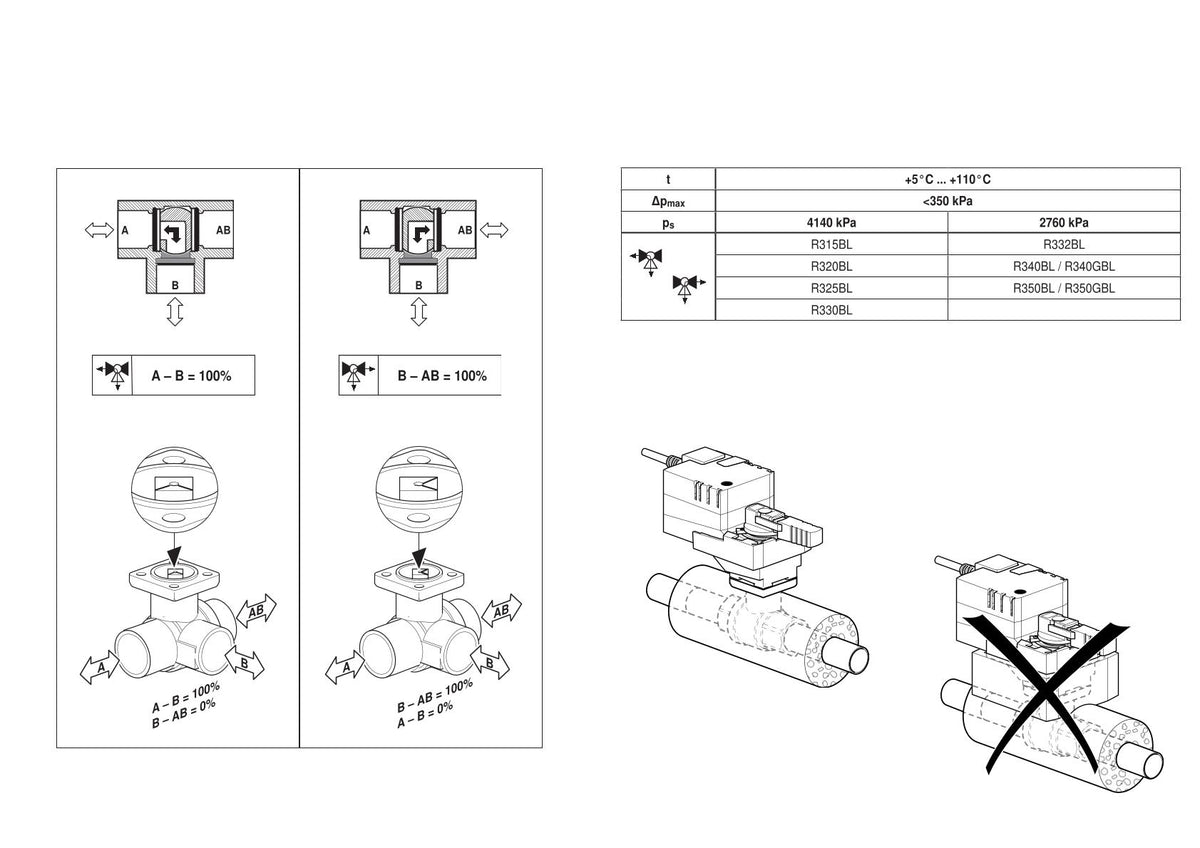

  • Bubble-tight: Passage A–AB

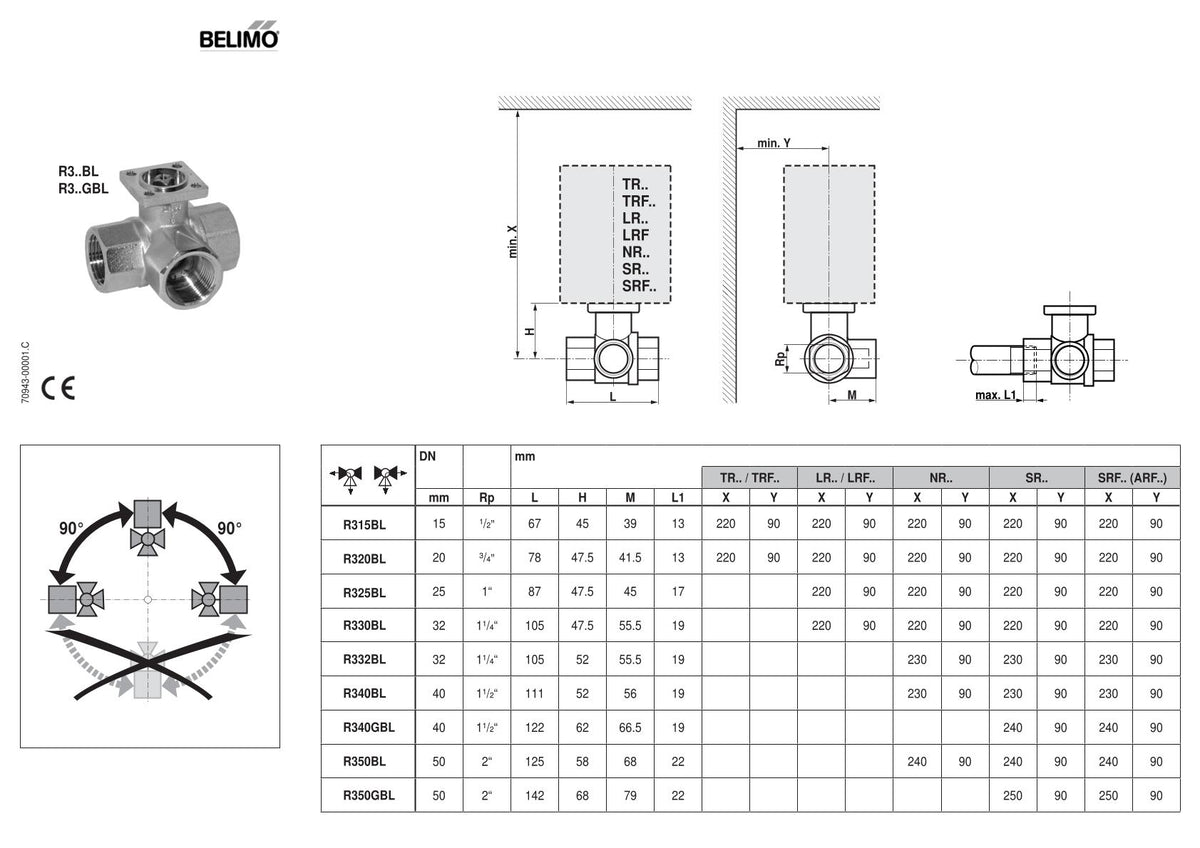

  • Technical Type Overview for R340BL:
Typekvs [m³/h] DN [mm] Rp [inch] ps [kPa]
  • R340
  • 32
  • 40
  • 1 ½”
  • 2760

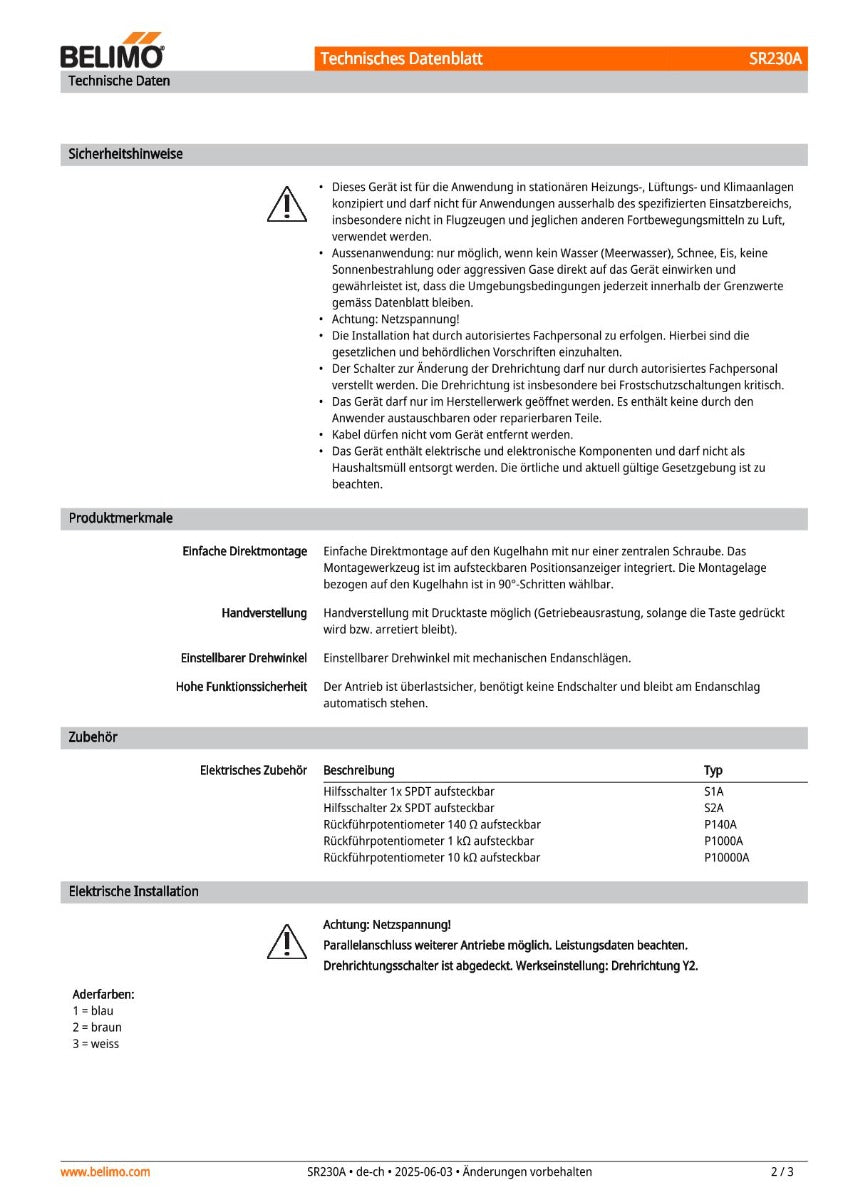

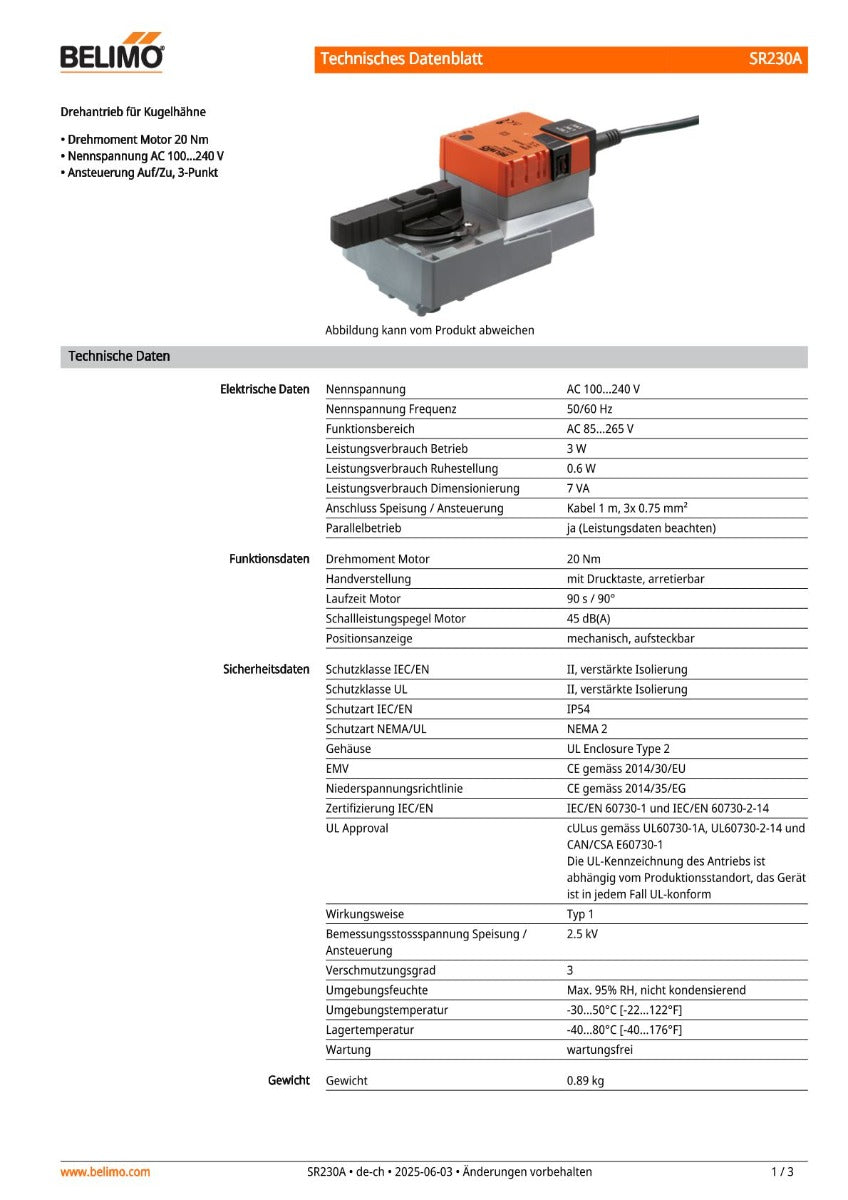

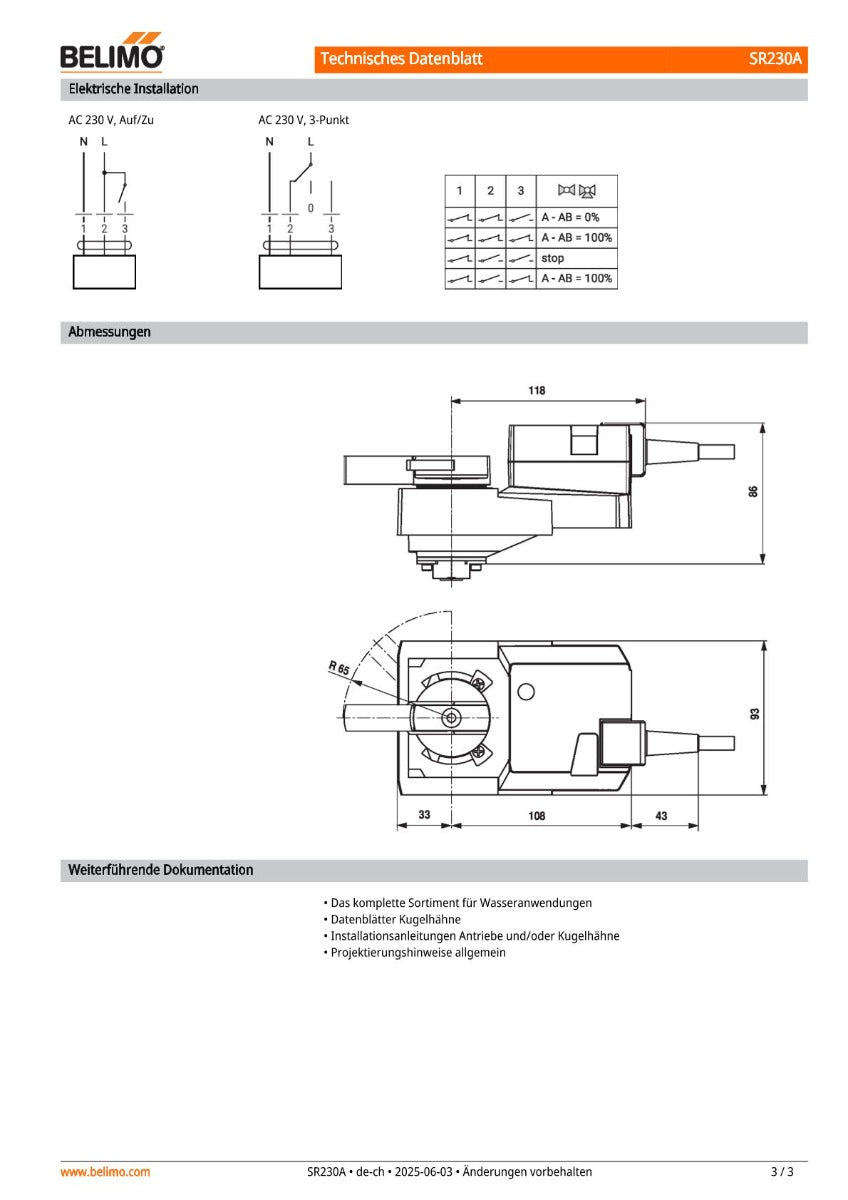

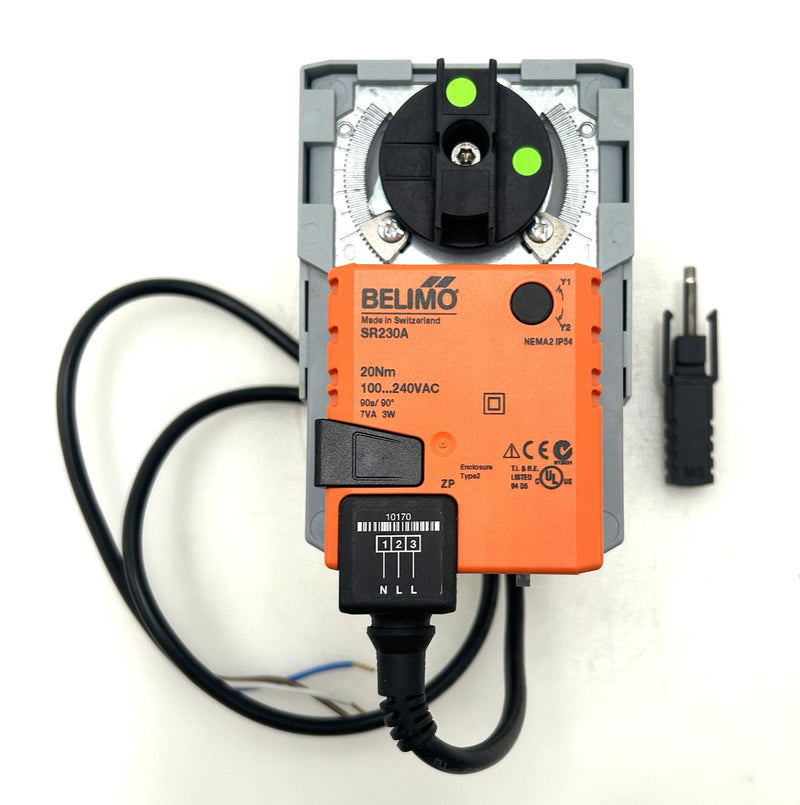

  • Rotary Actuator SR230A – Key Features:
  • Torque: 20 Nm
  • Nominal voltage: AC 100–240 V
  • Control: On/Off, 3-point
  • Motor running time: 90 s / 90°
  • Manual override: Push button, lockable
  • Position indication: mechanical, attachable
  • Protection class: IP54 (IEC/EN), NEMA 2 (UL)
  • EMC & Certification: CE, UL compliant, IEC/EN 60730
  • Maintenance: maintenance-free
  • Weight: 0.89 kg
  • Advantages of the combined system:
  • Immediately ready for use in HVAC applications
  • High functional reliability: Overload-proof, no limit switches required
  • Easy mounting: Directly on ball valve, selectable rotation angle
  • Low noise, durable and maintenance-free
  • Optional accessories available: Auxiliary switches, feedback potentiometer
  • Condition: new
  • Our item number: K18/442
Further information
  • Manufacturer: Belimo
  • Installation length:
  • Condition: new
  • Pipe connection: G 1 1/2" (47.8mm)
