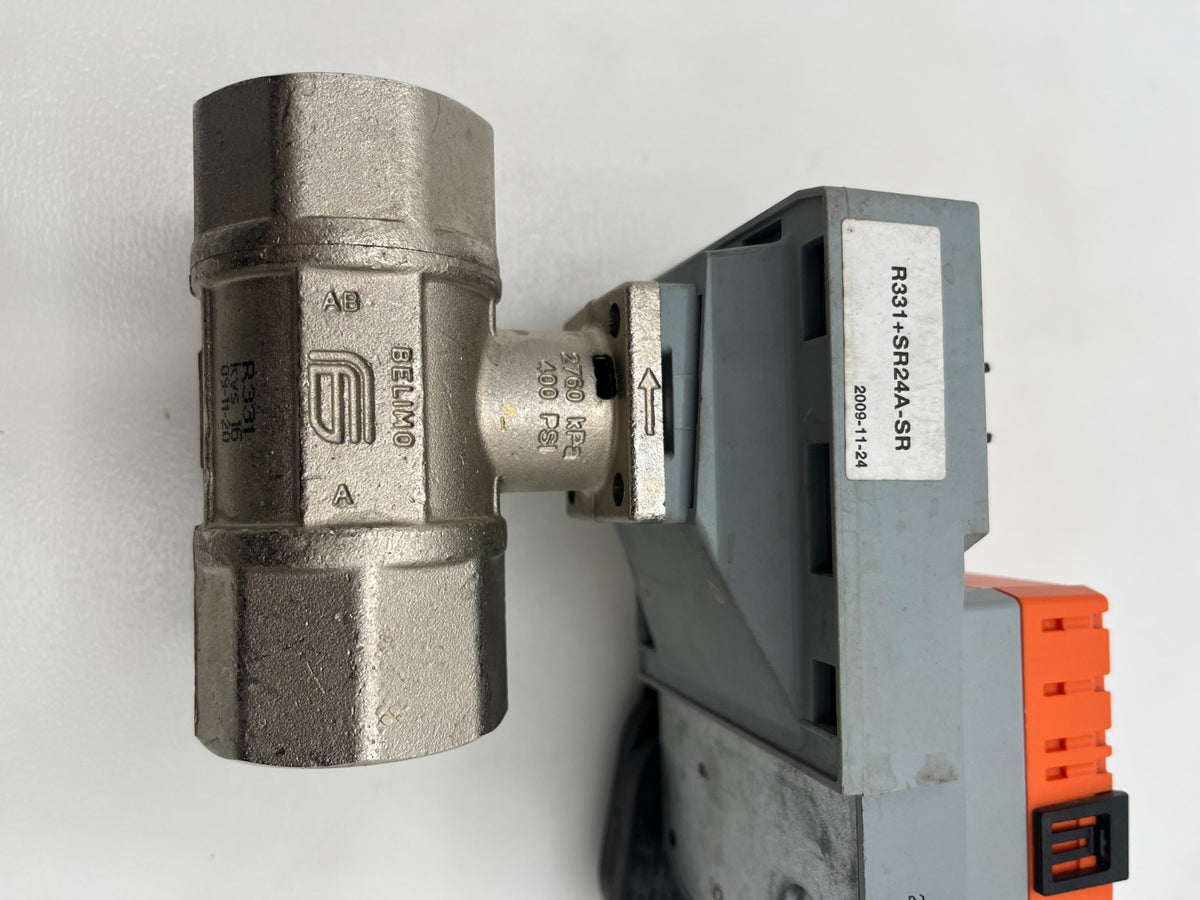

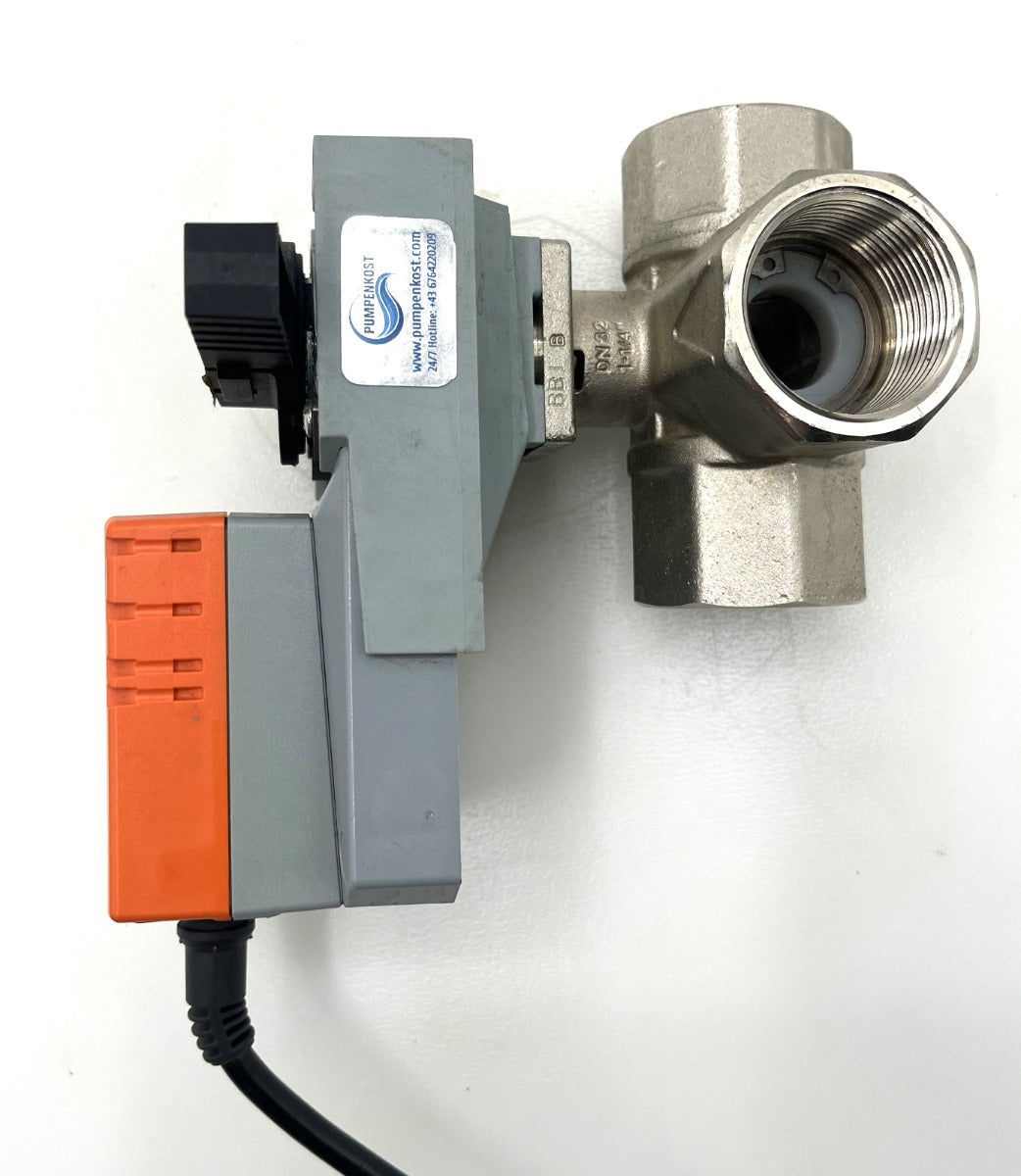

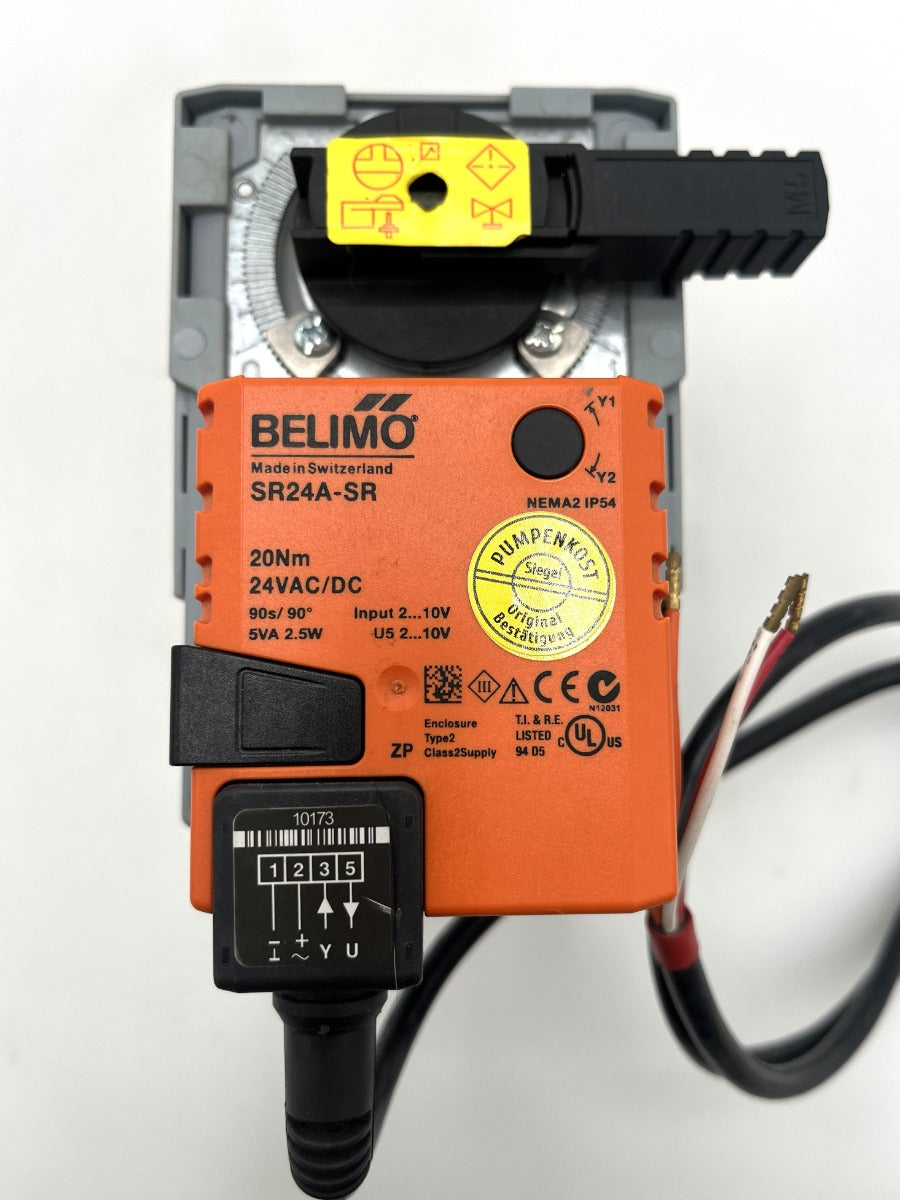

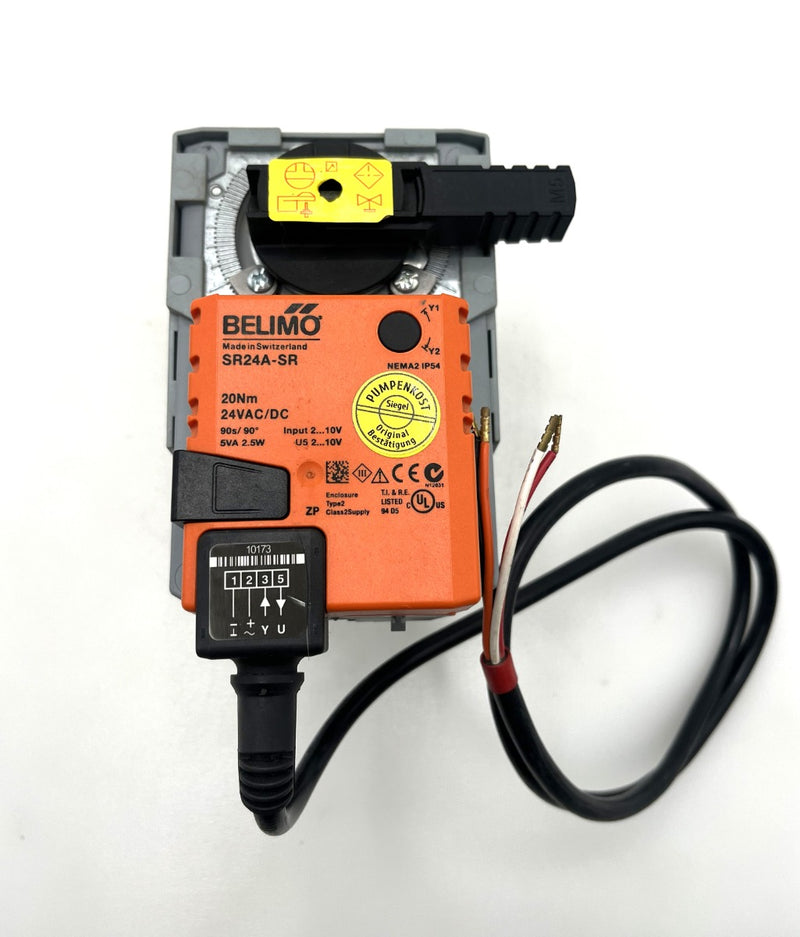

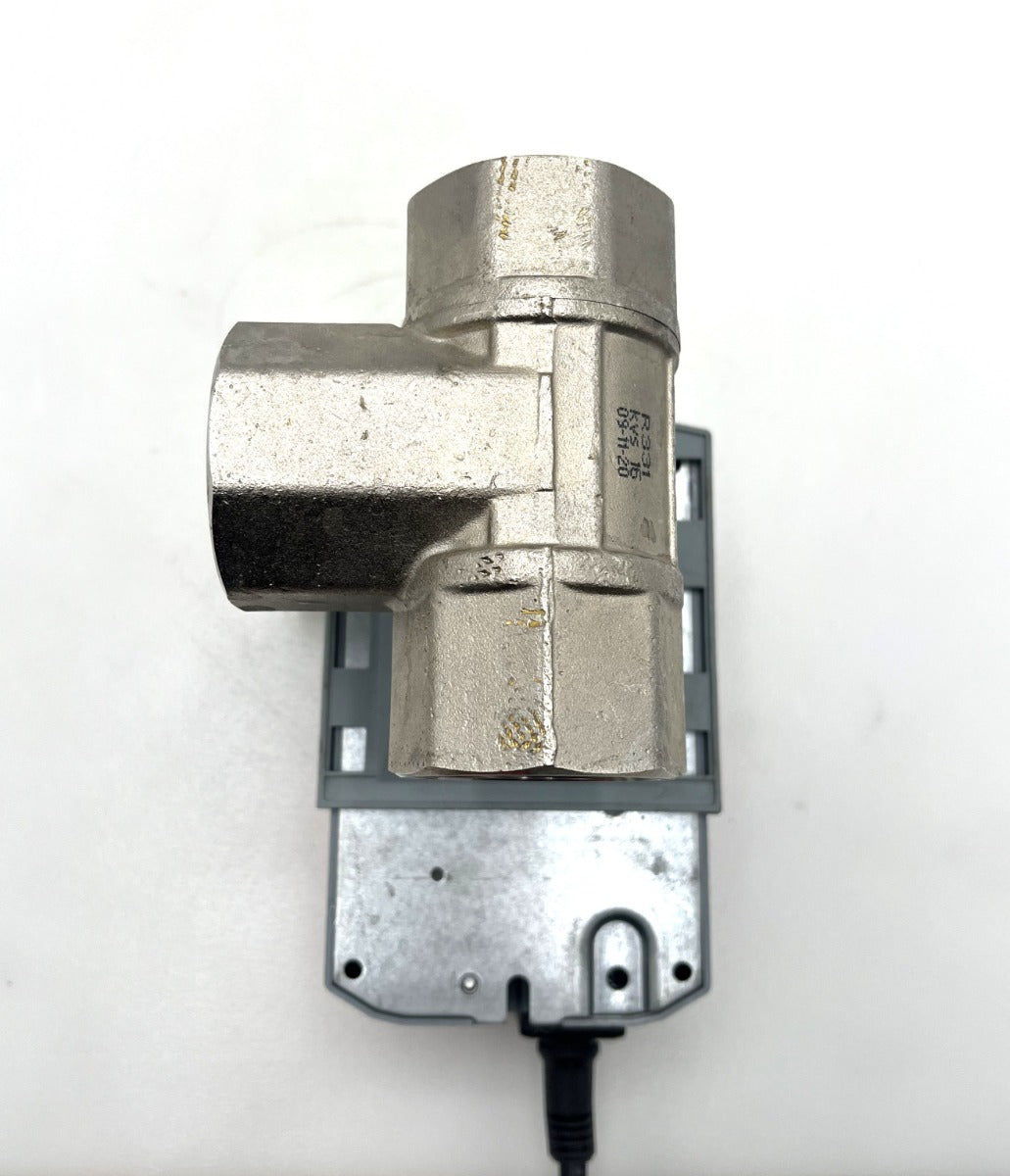

Belimo SR24A-SR Continuous Rotary Actuator for Ball Valves, 20 Nm, AC/DC 24 V, 2–10 V K18/503

€199,00 EUR
€199,00 EUR
Shipping calculated at checkout.
  • A few left in stock!
  • Inventory on the way

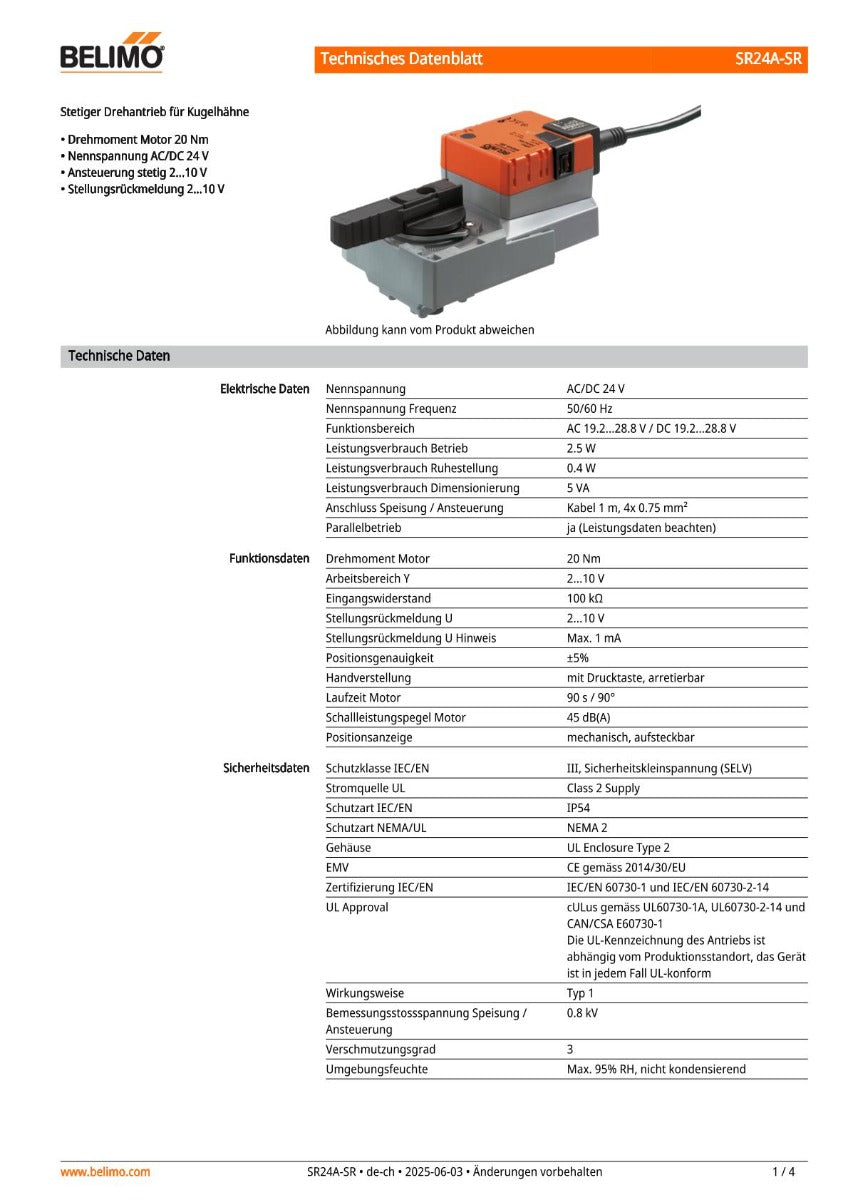

Technical data – Belimo SR24A-SR

  • General
  • Continuous rotary actuator for ball valves with analog control and feedback – specially developed for HVAC control systems.

Electrical data

  • Nominal voltage: AC/DC 24 V
  • Frequency range: 50/60 Hz
  • Operating range: AC 19.2…28.8 V / DC 19.2…28.8 V
  • Power consumption (operation): 2.5 W
  • Power consumption (idle): 0.4 W
  • Power consumption (sizing): 5 VA
  • Connection: Cable 1 m, 4×0.75 mm²
  • Parallel operation: possible (observe power data)

Control/Function data

  • Motor torque: 20 Nm
  • Control: continuous 2…10 V
  • Input impedance control: 100 kΩ
  • Position feedback: 2…10 V (max. 1 mA)
  • Position accuracy: ±5 %
  • Manual override: via push button, lockable
  • Motor running time: 90 s / 90°
  • Sound power level motor: 45 dB(A)
  • Position indicator: mechanical, attachable

Safety and EMC data

  • Protection class: IEC/EN III, Safety extra-low voltage (SELV)
  • UL power source: Class 2 Supply
  • Degree of protection: IP54 (IEC/EN) / NEMA 2 (UL)
  • Enclosure: UL Enclosure Type 2
  • EMC: CE according to 2014/30/EU
  • Certifications:
    • IEC/EN 60730-1
    • IEC/EN 60730-2-14
      • cULus UL60730-1A, UL60730-2-14, CAN/CSA E60730-1
      • UL marking depends on production location – device is UL compliant in any case

Environmental and operating conditions

  • Operating temperature: –30…50 °C
  • Storage temperature: –40…80 °C
  • Pollution degree: 3
  • Rated impulse voltage (supply/control): 0.8 kV
  • Ambient humidity: max. 95 % RH, non-condensing

Mechanical / Weight

  • Maintenance: maintenance-free
  • Weight: approx. 0.91 kg
  • Condition: used - top condition
  • Our item number: K18/503
Further information
  • Manufacturer: Belimo
  • Installation length:
  • Condition: used
  • Pipe connection:
