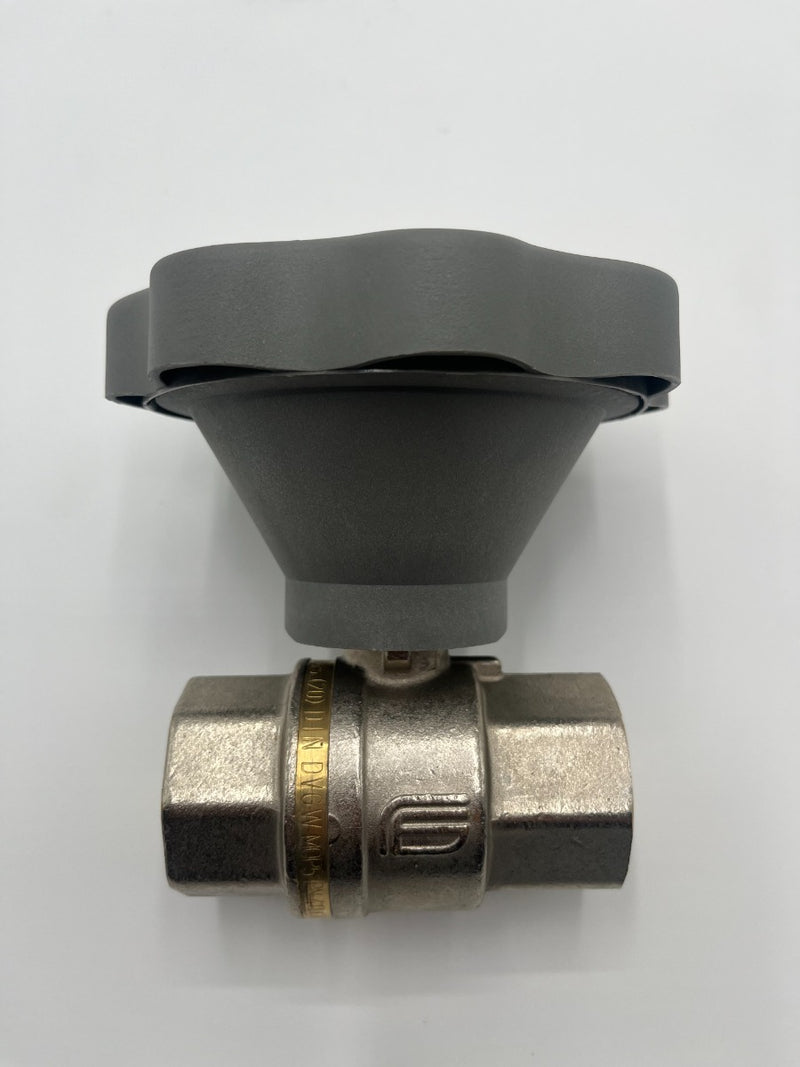

EFFEBI Ball Valve - Brass - Soft Close - Female Thread 1 1/4 inch K17/196
- A few left in stock!
- EFFEBI Ball Valve DN32 RP 1 1/4 inch
- Connection thread: 1 1/4 inch
- Nominal diameter: DN32
- Body length: 96mm
- Manuf. No.: 851110851001
- Area of application
- The ball valve is ideally suited as a shut-off valve for water, oils, and air.
- The shut-off valve is also suitable for drinking water up to PN 10 and for gases according to DVGW worksheet, for example, natural gas, town gas, and liquid gas up to PN 5.
- Application

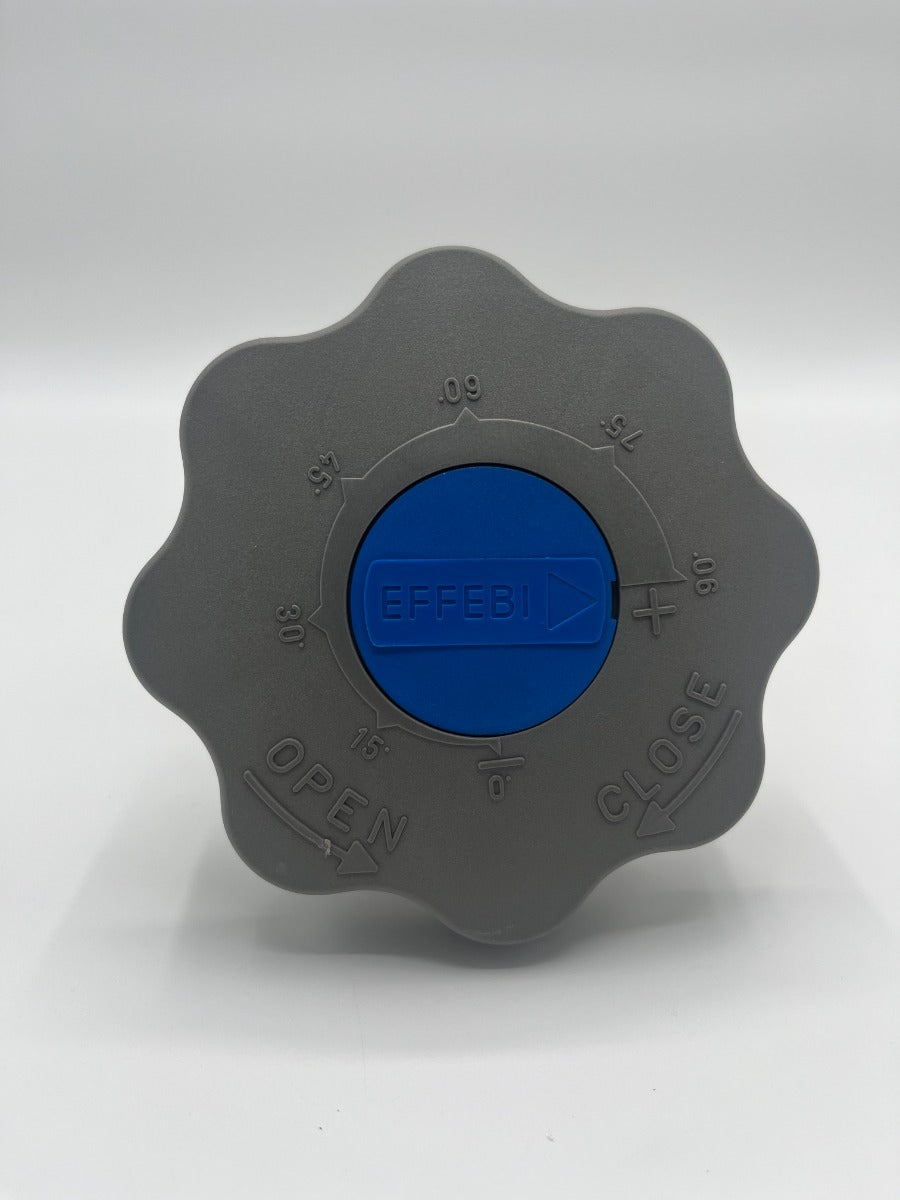

- The body of the 2-way ball valve is made of nickel-plated brass, the ball itself is made of hard chrome-plated brass. The GRP handle can be rotated 360 degrees, allowing for slow opening and closing.
- The seal is made of Teflon.
Technical Data
- Body material - Nickel-plated brass
- Ball material - Hard chrome-plated brass
- Seal material - PTFE
- Handle material - GRP
- Nominal diameter - 10 to 50
- Operating pressure - 0 to 50 bar
- Temperature range - -15 to max. +120 °C
- Condition: new
- Item No.: K17/196
Couldn't load pickup availability
Further information
- Manufacturer: EFFEBI
- Installation length:
- Condition: new
- Pipe connection: G 1 1/4" (41.9mm)
