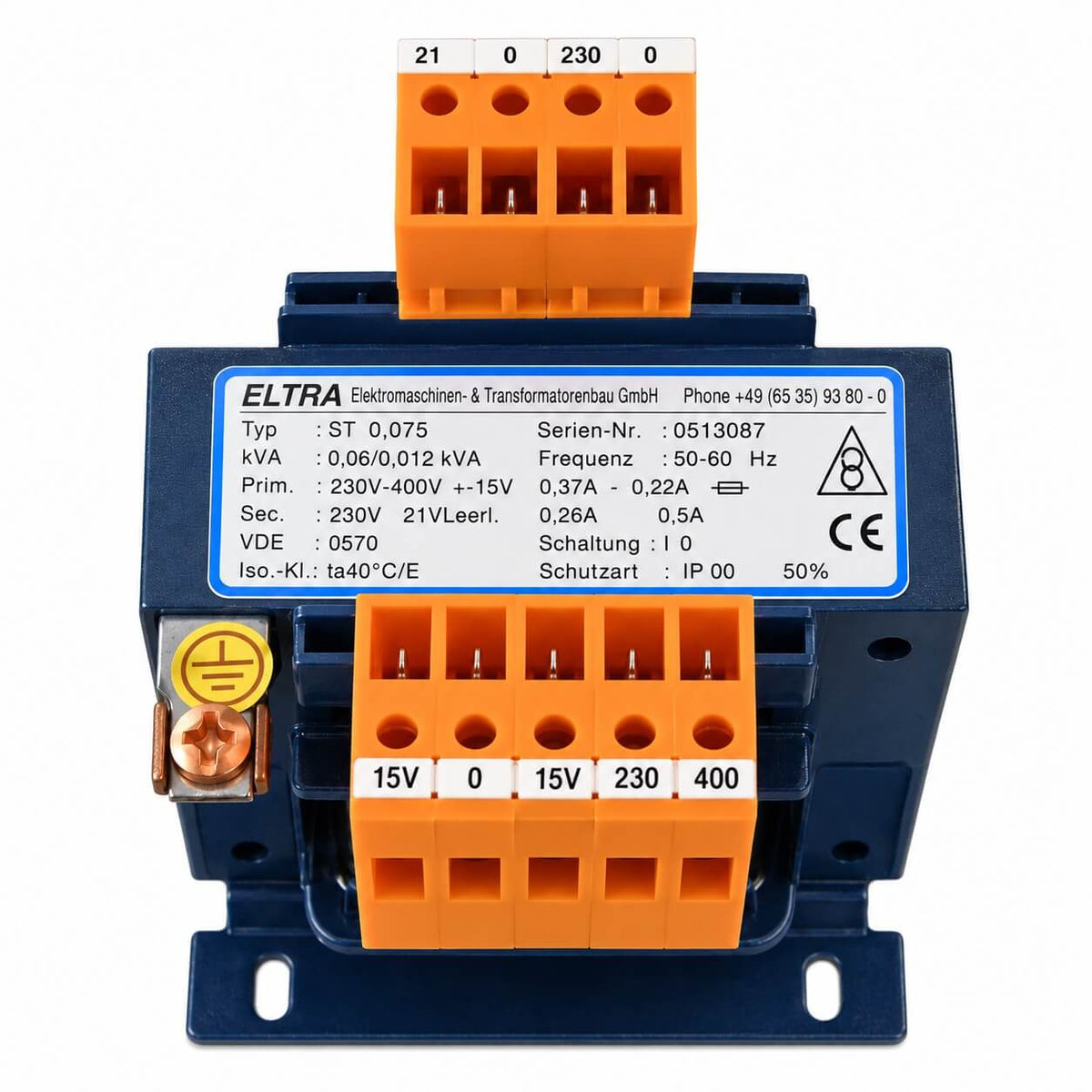

For sale is an as-new ELTRA safety transformer, type ST 0.075.

The transformer is designed for 230 V or 400 V on the primary side and provides 230 V at 0.26 A on the secondary side. The stated power rating is 60 VA / 120 VA. The exact meaning of the two power values must be verified based on the nameplate and the respective operating mode.

The open design with IP00 protection rating is suitable for professional installation in a suitable, touch-protected enclosure or control cabinet.

A safety and function test as well as an insulation measurement according to VDE have been carried out. The transformer has never been installed.

Technical Data

  • Manufacturer: ELTRA
  • Item: Safety transformer
  • Type: ST 0.075
  • Power rating: 60 VA / 120 VA
  • Primary voltage: 230 V / 400 V AC
  • Additional primary specification: ±15 V
  • Primary current: 0.37 A
  • Secondary voltage: 230 V AC
  • Secondary current: 0.26 A
  • Additional secondary specification: "21 V no-load" according to the available description
  • Circuit specification: "liio" according to the available description
  • Protection rating: IP00
  • Standard: VDE 0570
  • Dimensions (L × W × H): approx. 90 × 85 × 95 mm
  • Weight: approx. 1.46 kg
  • Our item number: T9/475

Potential Areas of Application

  • Mechanical and plant engineering
  • Control and automation technology
  • Industrial control cabinets
  • Galvanic isolation of suitable circuits
  • Replacement and repair applications

Important Technical Notes

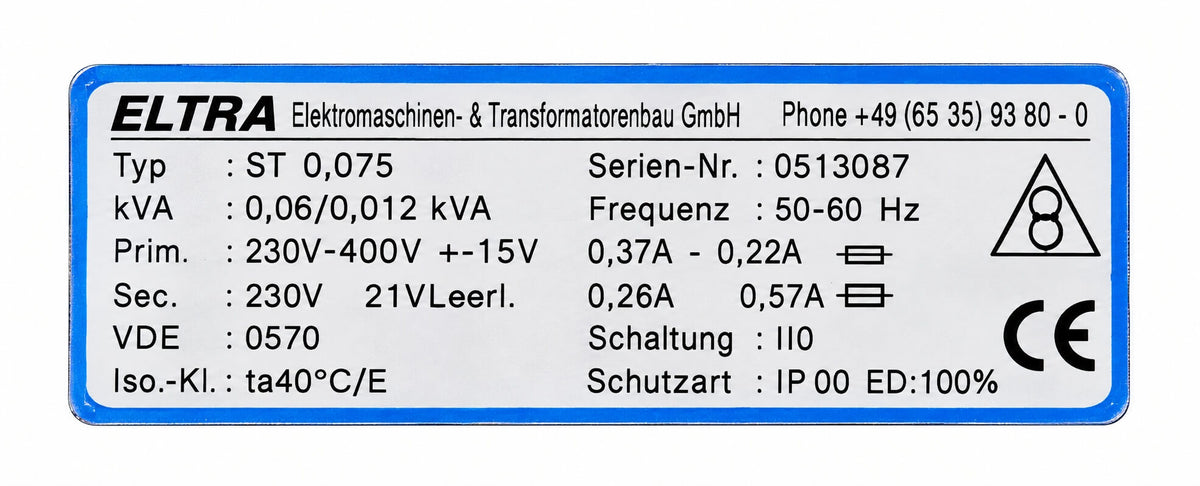

The specifications 60 VA / 120 VA, ±15 V, "21 V no-load", and "liio" cannot be clearly assigned to an operating mode or connection configuration based on the information provided. Before installation, these specifications must be verified directly on the nameplate.

Due to the IP00 protection rating, the transformer does not have touch protection. Installation must only be carried out in a suitable enclosure or control cabinet.

Testing

  • Safety test performed according to VDE
  • Function test performed
  • Insulation measurement performed

Condition

As-new and never installed.

Traces from storage may be present. The exact visual condition can be seen in the product images.

Scope of Delivery

  • 1 × ELTRA safety transformer ST 0.075
Further information
  • Manufacturer: ELTRA
  • Installation length:
  • Condition: As new, never installed
  • Pipe connection:
