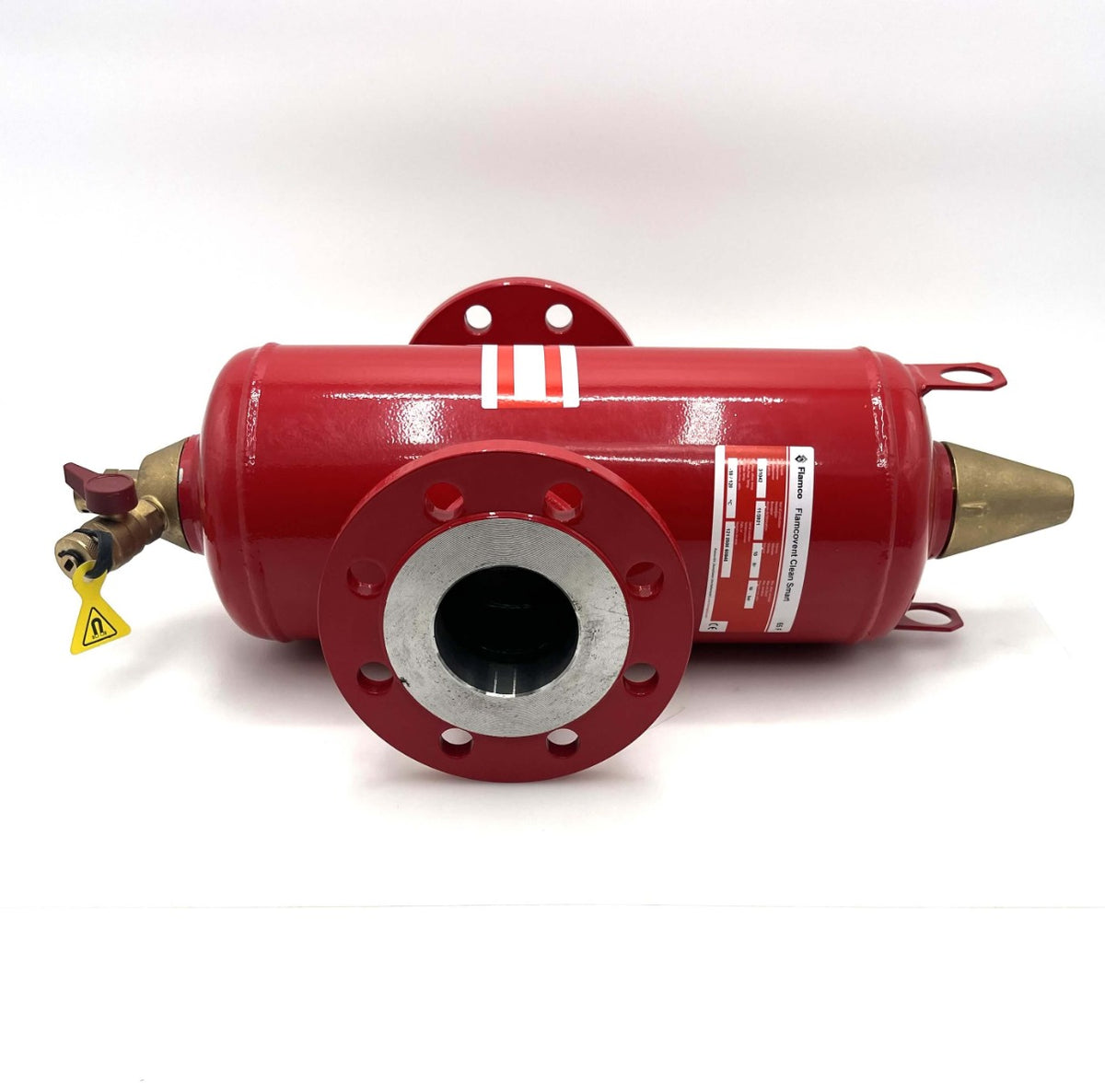

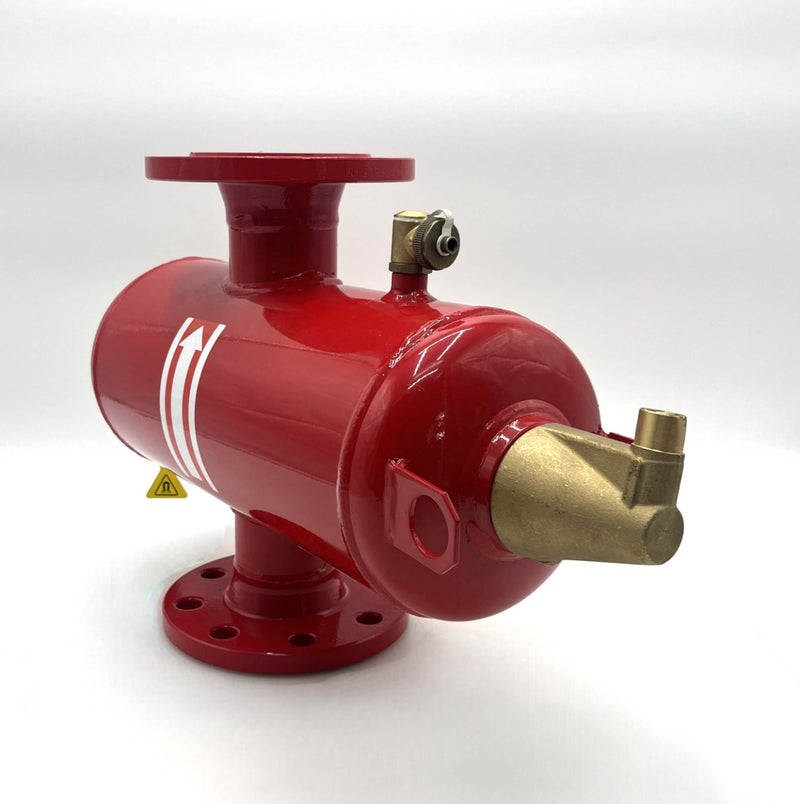

Flamco Air and Dirt Separator Flamcovent Clean Smart 65 F 31042 Flange Connection P26/17

Flamco Air and Dirt Separator Flamcovent Clean Smart 65 F Flanged Connection

Flamco air and dirt separator Flamco Flamcovent Clean Smart 65 F (10 bar) made of steel for removing the smallest dirt particles and microbubbles from heating and cooling systems.

Approved in accordance with EU Pressure Equipment Directive 2014/68/EU.

Flamcovent Clean Smart prevents the accumulation of dirt particles in the boiler, removes even the smallest dirt particles and microbubbles from the system water, and thus extends the service life of pumps, control units, and other system accessories.

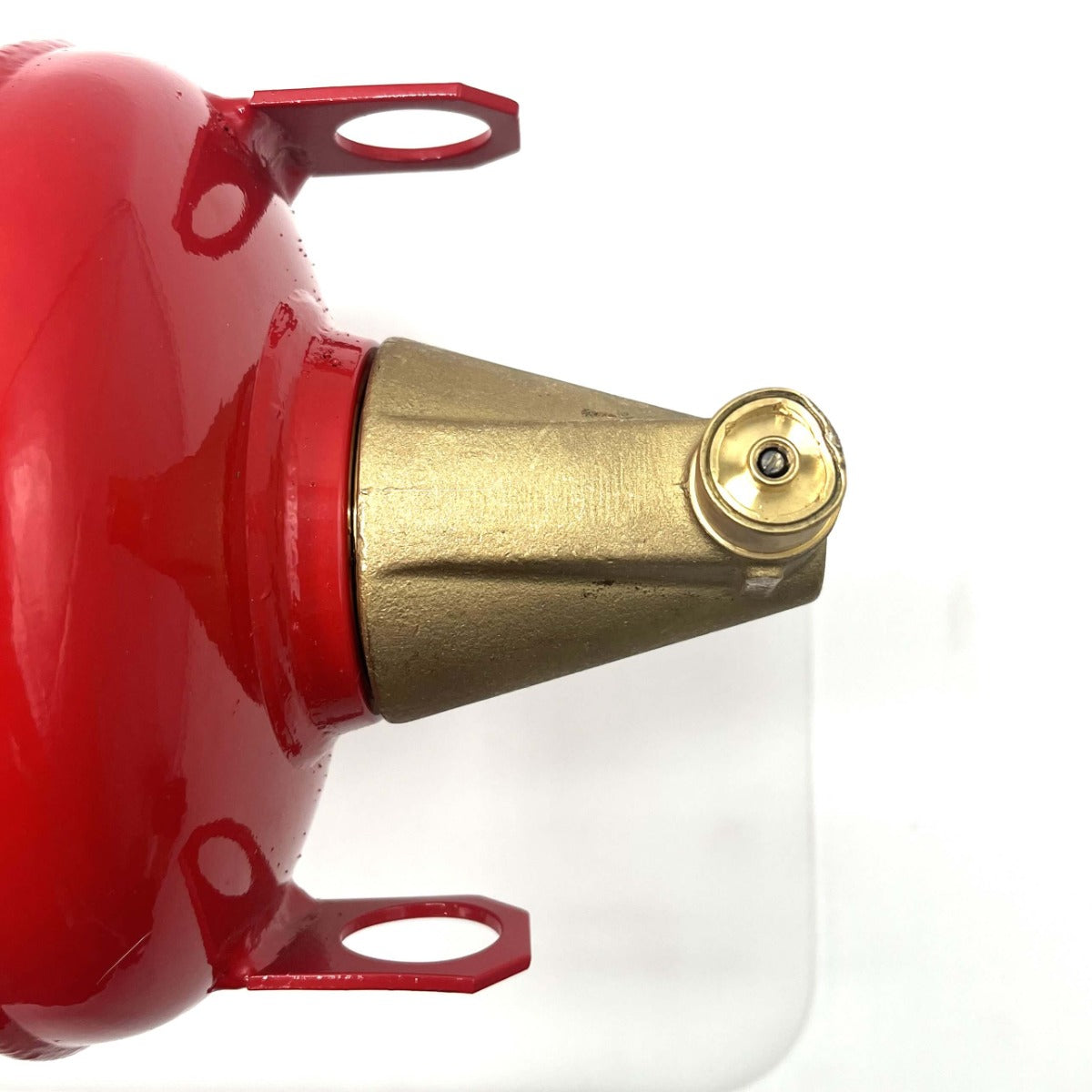

The Flamcovent Clean Smart includes 25 neodymium supermagnets for magnetite separation, integrated into the dirt trap unit, as well as an automatic 2" large air vent.

No interfering components in the main volume flow, resulting in low flow resistance and high efficiency.

Can be used up to a flow velocity of 3 m/s.

Technical Data

• Type: Flamcovent Clean Smart 65 F (10 bar)
• Dimension: DN 65

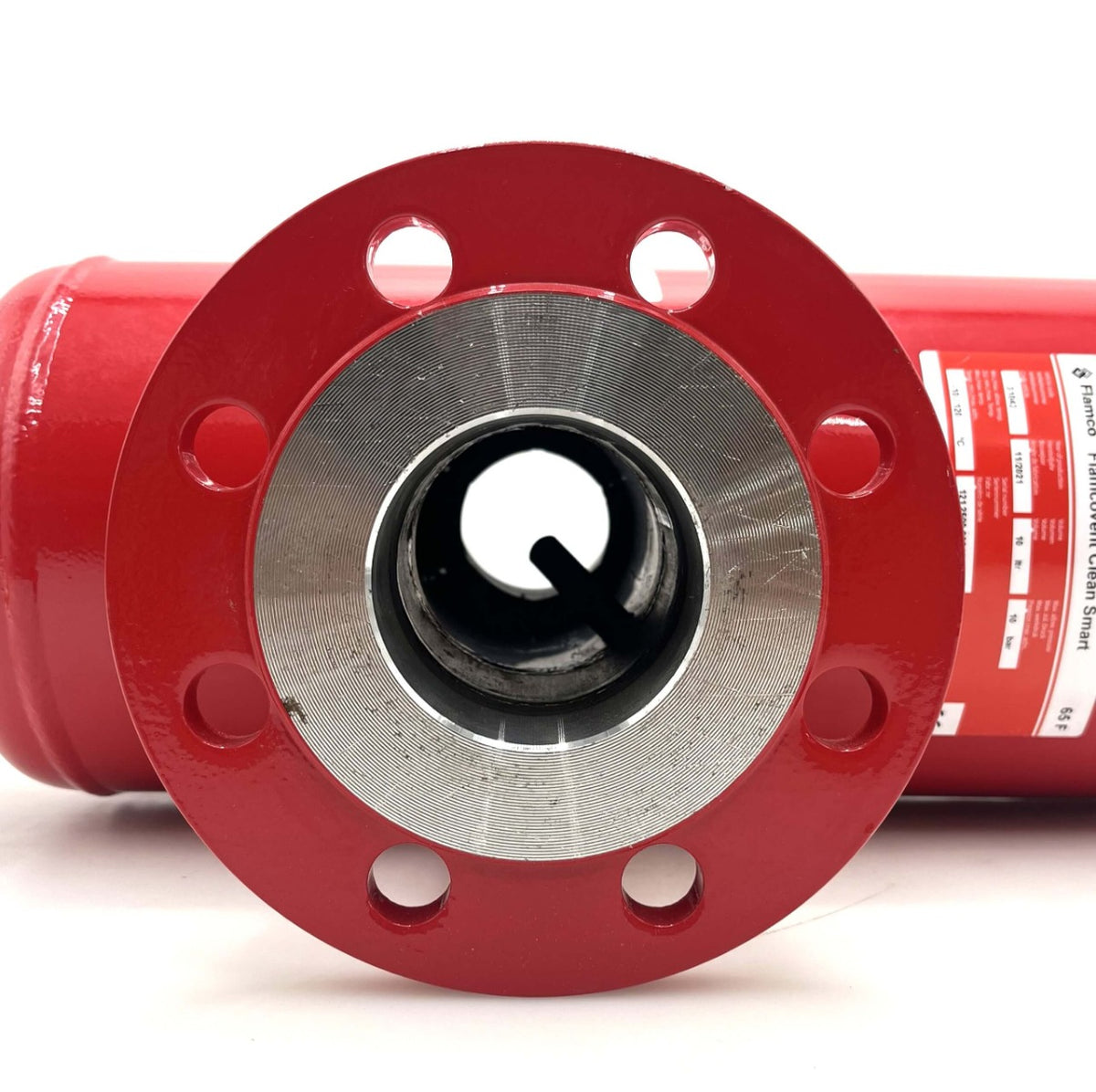

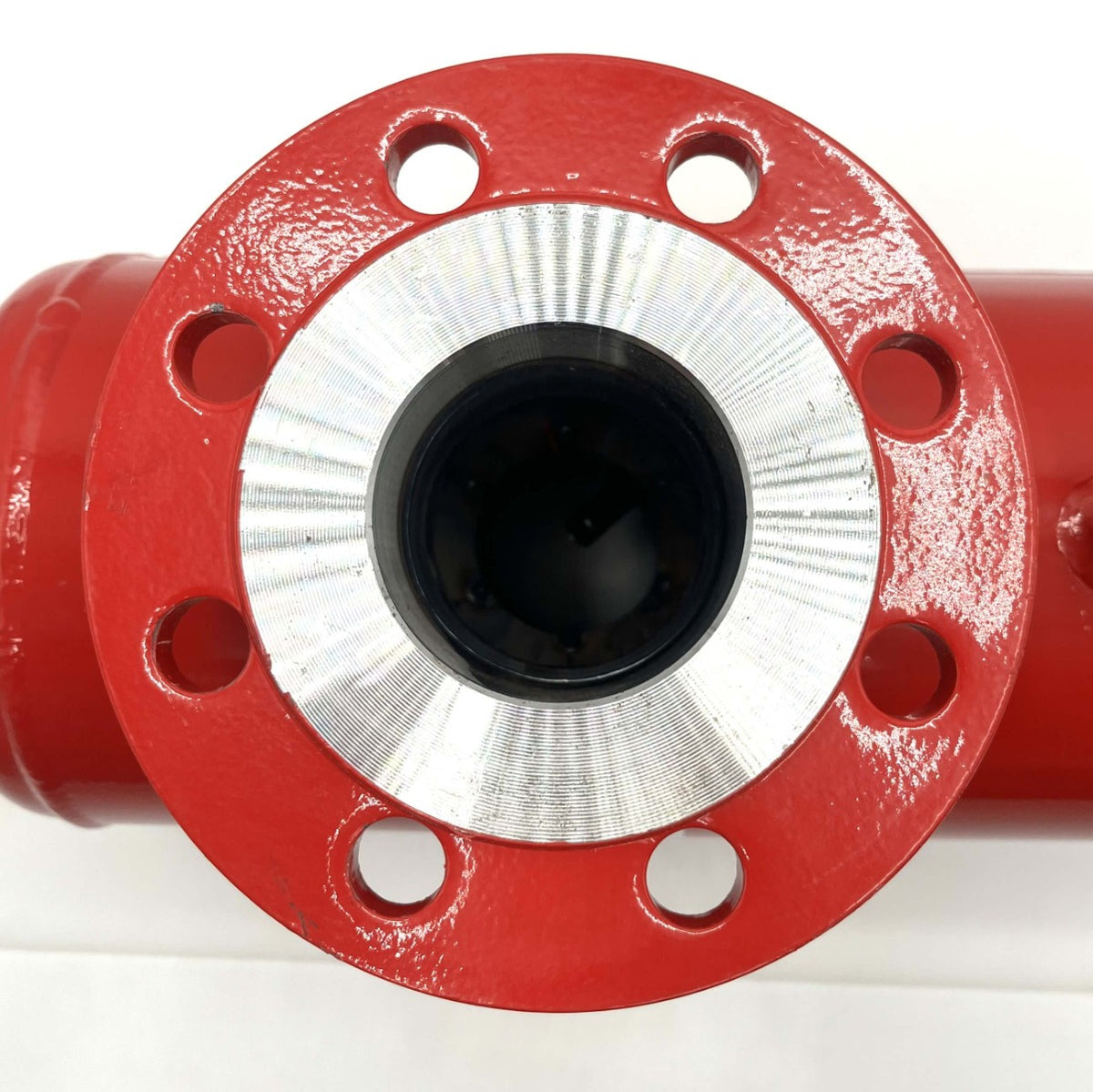

• Connection: Flanged connection 76.1 mm
• Installation length: 350 mm
• Installation height: 603 mm
• Installation position: horizontal pipe run
• Nominal volume: 10 liters
• Glycol content medium: up to 50%
• Maximum operating pressure: 10 bar
• Maximum operating temperature: 120°C
• Flow KVS value: approx. 14.0 m³/h at 1 m/s flow velocity
• Weight: 17.0 kg
• Article number: 31042

Condition: new (slight dent near vent, no functional impairment)

• Our article number: P26/17
