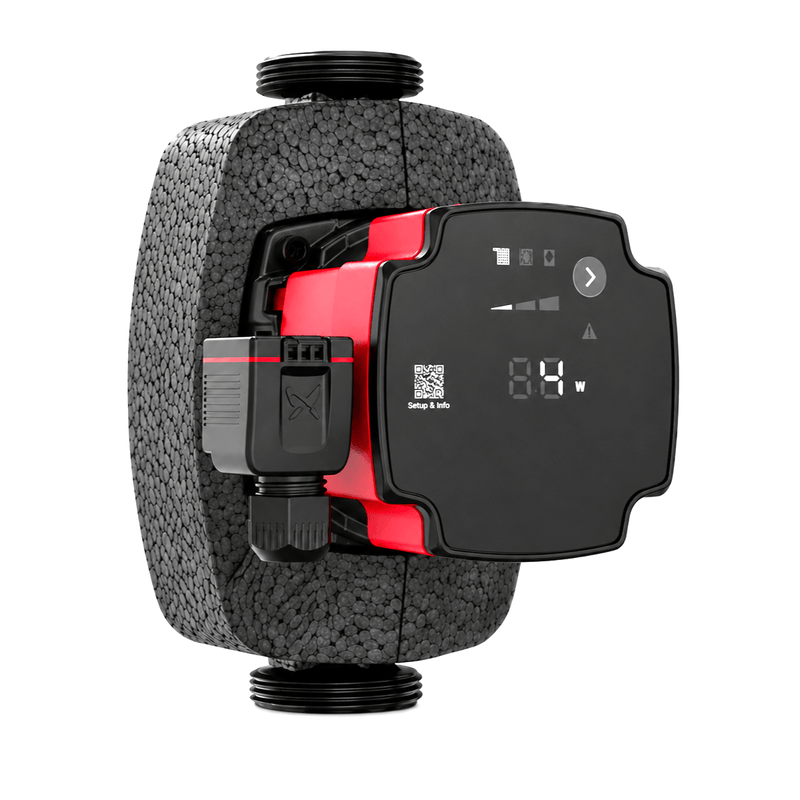

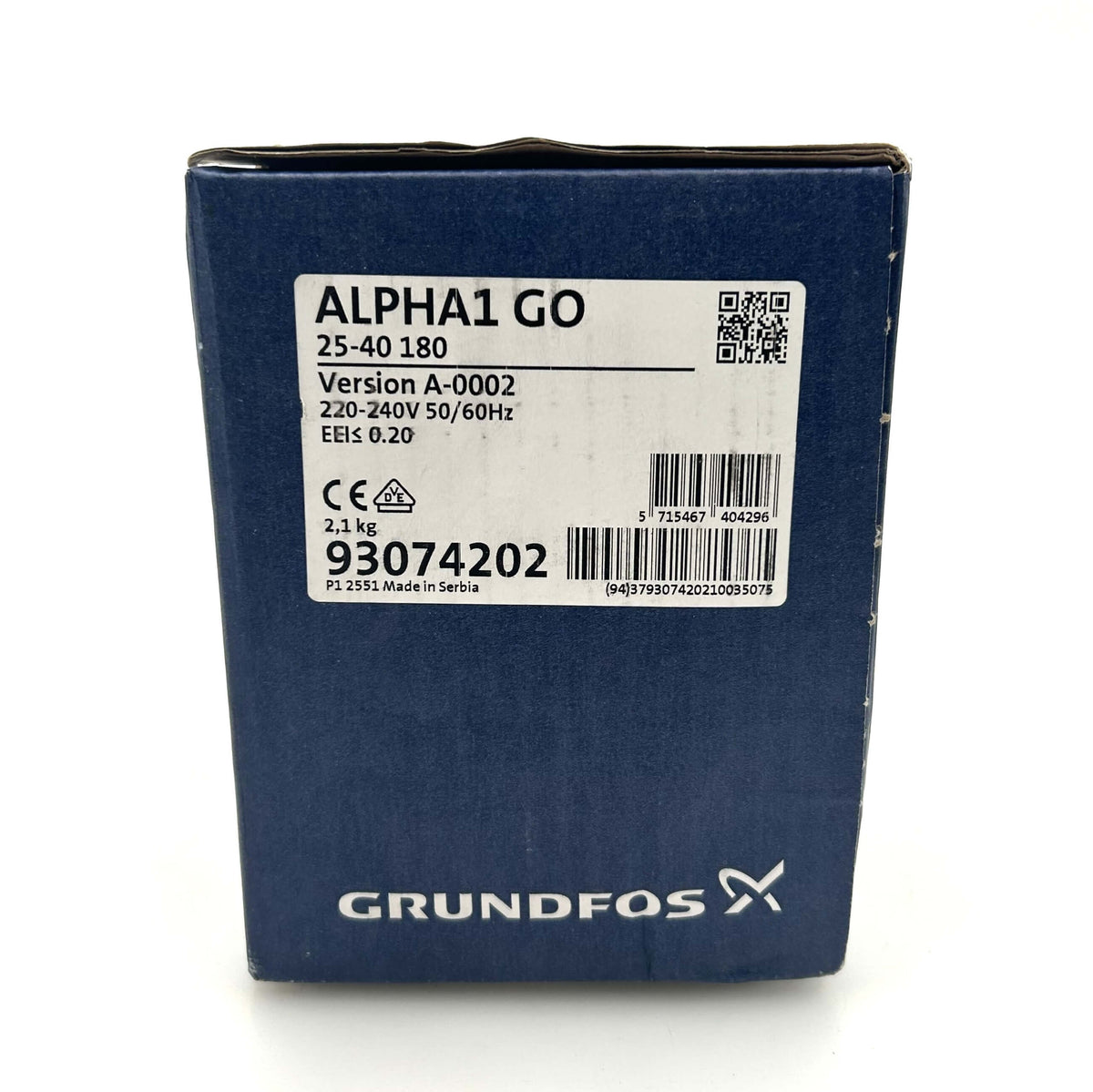

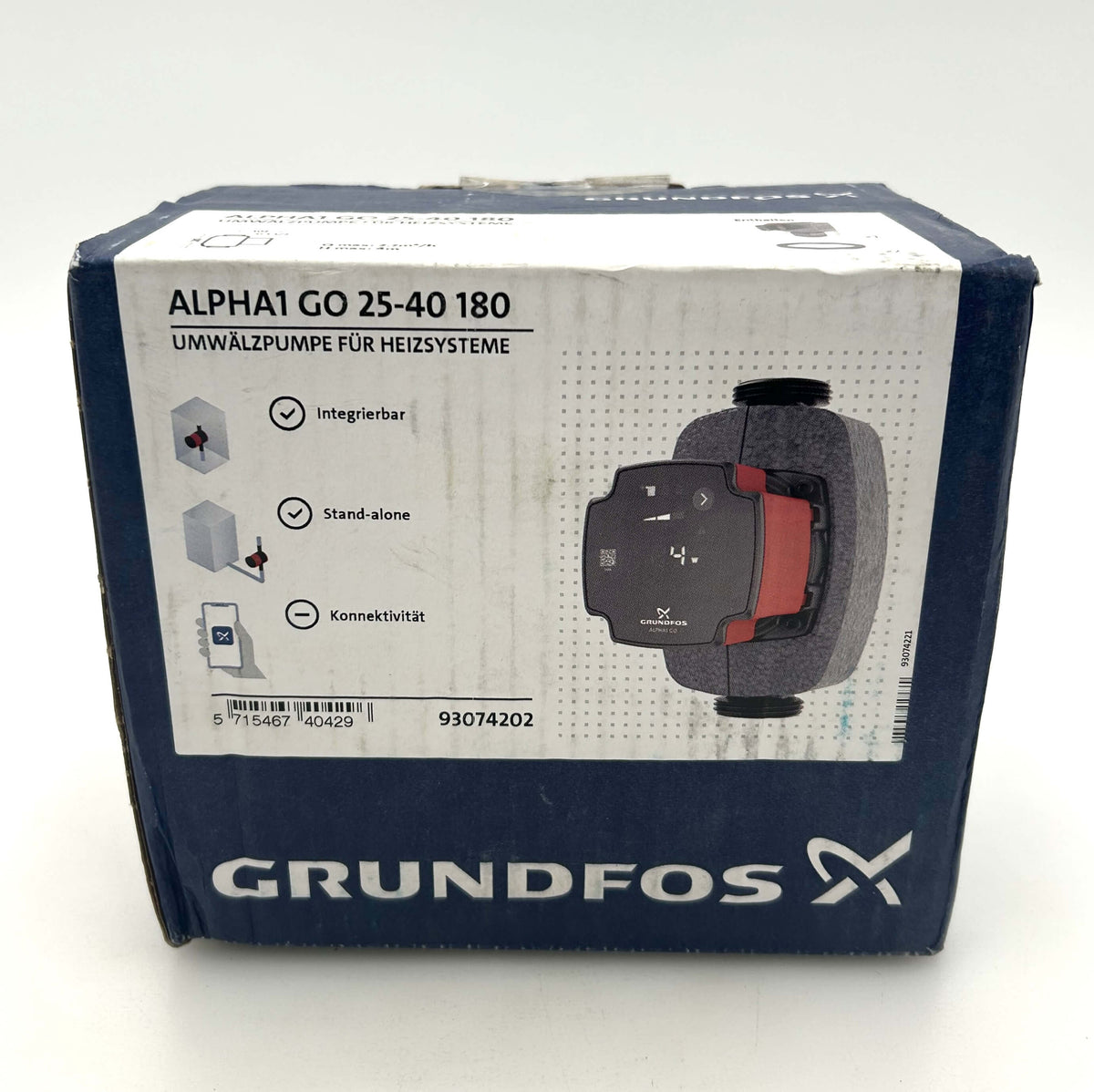

Grundfos ALPHA1 L 25-40 180 High-efficiency pump 1x230V Heating pump 93074202 P26/25
- A few left in stock!
Grundfos ALPHA1 GO 25-40 180
- Manufacturer: Grundfos
- Product number: 93074202
- EAN number: 379307420210035075
Technical data
Hydraulic data
- Rated flow: 1.65 m³/h
- Rated head: 1.89 m
- Maximum head: 40 dm
Temperature
- Temperature class: 110
- Liquid temperature range: 2 … 110 °C
- Liquid temperature during data acquisition: 60 °C
- Density of pumped liquid: 998.2 kg/m³
- Ambient temperature: 0 … 40 °C
Pressure / Installation
- Max. operating pressure: 10 bar
- Pressure rating: PN 10
- Connection type: G
- Connection size: 2"
- Port-to-port length: 180 mm
- Approvals: CE, VDE
Materials
- Pump housing: Cast iron
- Material standards: EN 1561 EN-GJL-150 / ASTM A48M-150B
- Impeller: Composite
- Impeller material: PES 30% GF + PESU-GF20%
Electrical data
- Power input P1: 27 W
- Minimum power input: 4 W
- Mains frequency: 50 / 60 Hz
- Rated voltage: 1 × 230 V
- Current consumption: 0.04 … 0.44 A
- Enclosure class: IPX4D (IEC 34-5)
- Insulation class: F (IEC 85)
- Motor protection: none
- Thermal protection: ELEC
Control
- Control type: Automatic night setback – No
Other
- Energy efficiency index (EEI): 0.20
- Net weight: 2.01 kg
- Condition: New (original packaging)
- Our item number: P26/25
Couldn't load pickup availability
Further information
- Manufacturer: Grundfos
- Installation length: 180 mm
- Condition: new
- Pipe connection: G 1 1/2" (47.8mm)
