Grundfos Magna3 65-100 F 340mm Energy-Saving Pump Heating Pump 1x230V P25/33

€1.979,00 EUR
€1.979,00 EUR
Shipping calculated at checkout.
  • A few left in stock!
  • Inventory on the way
  • Grundfos Magna3 65-100 F Heating Pump
  • P/N: 97924297
  • Voltage: 1 × 230 V
  • Mains frequency: 50 / 60 Hz
  • Max. speed: 3,630 rpm
  • Power consumption: 21 … 600 W
  • Pumped medium: Water (–10 … +110 °C)
  • Nominal flow rate: 23.65 m³/h
  • Nominal head: 6.31 m
  • Max. operating pressure: 10 bar
  • Installation length: 340 mm
  • Connection: DN 65, PN 6/10
  • Weight: 21.5 kg (net)

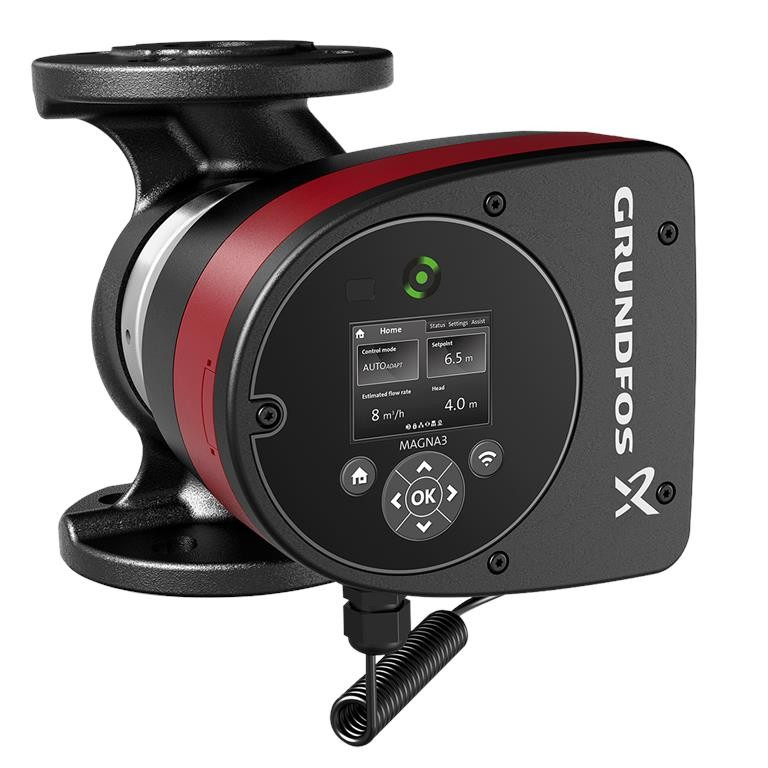

  • High-efficiency glandless pump MAGNA3


The MAGNA3 is an advanced, electronically controlled wet-runner pump with an energy efficiency index (EEI) of ≤ 0.18. It uses high-efficiency EC permanent magnet motor technology, which minimizes energy consumption and allows for precise control.

Ideal for heating, ventilation, and air conditioning systems, the MAGNA3 offers numerous intelligent functions such as AutoAdapt, FlowLimit, and the option for wireless communication in twin pump operating modes.

Materials

  • Pump housing: Cast iron
  • Pump casing: EN 1561 EN-GJL-200
  • Pump housing (ASTM): A48-200B
  • Impeller material: Composite material
  • Pumped liquid:
  • Liquid temperature range: -10 .. 110 °C
  • Liquid temperature during operation: 60 °C
  • Density: 983.2 kg/m³

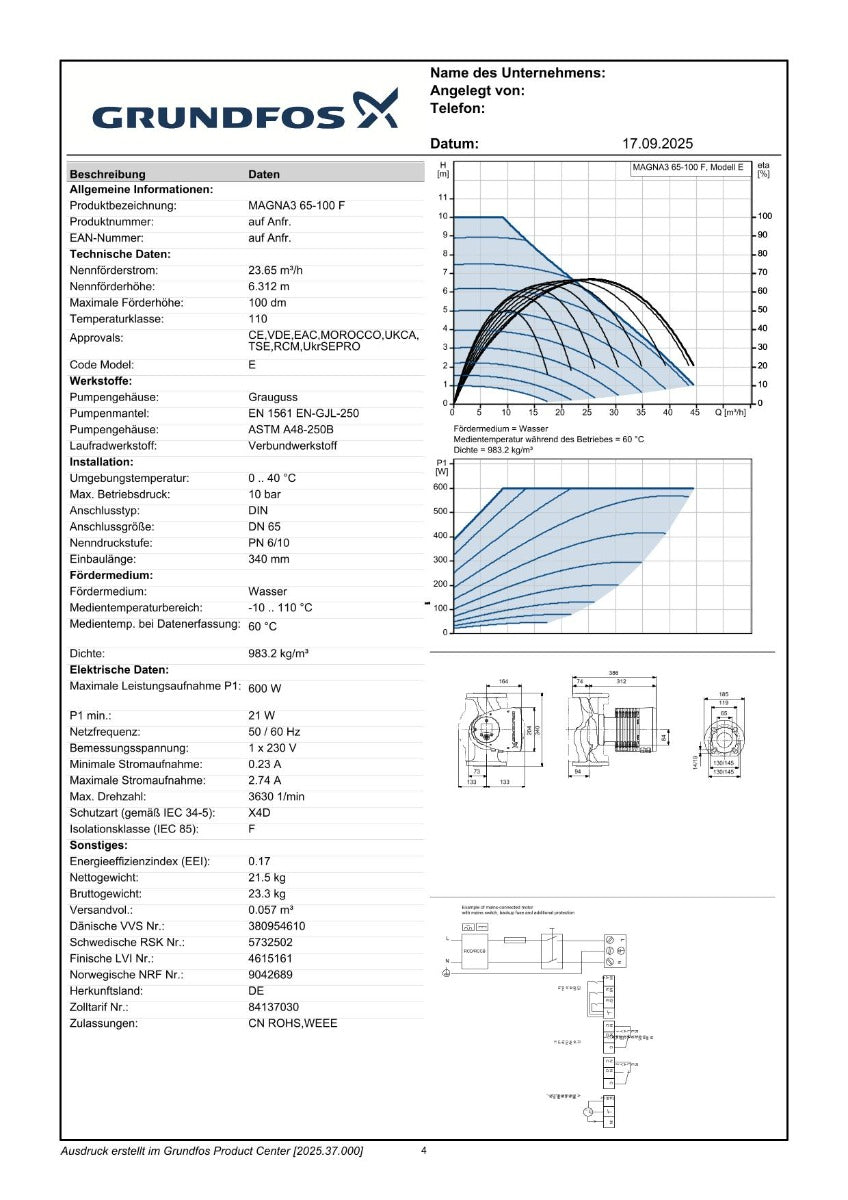

Please refer to the datasheet for all other technical data.

  • Condition: new (original packaging)
  • Our item number: P25/33
Further information
  • Manufacturer: Grundfos
  • Installation length: 340 mm
  • Condition: new
  • Pipe connection: DN 65
