Grundfos MAGNA3 25-100 N 1x230V PK25/169
- A few left in stock!

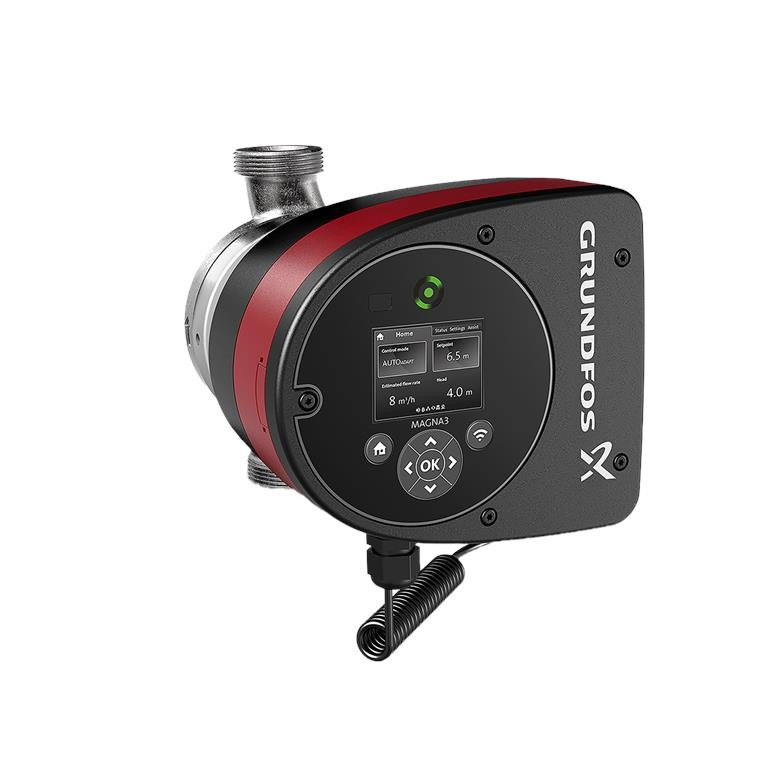

High-efficiency wet-running pump MAGNA3 25-100 N
Electronically controlled high-efficiency wet-running pump with an energy efficiency index (EEI) ≤ 0.18 – Best in Class.
Product Information
- Product name: MAGNA3 25-100 N
- Product number: 97924719
- EAN: 5710626497980
Technical Data
- Rated flow: 5.43 m³/h
- Rated head: 6.273 m
- Maximum head: 100 dm
- Temperature class: 110
- Approvals: CE, VDE
- Drinking water approvals: WRAS, ACS, UBA
Materials
- Pump housing: Stainless steel
- Pump casing: EN 1.4308
- Pump housing (ASTM): A351-CF8
- Impeller material: Composite
Installation
- Ambient temperature: 0 to 40 °C
- Max. operating pressure: 10 bar
- Connection type: G
- Connection size: 1 1/2 inch
- Nominal pressure rating: PN 10

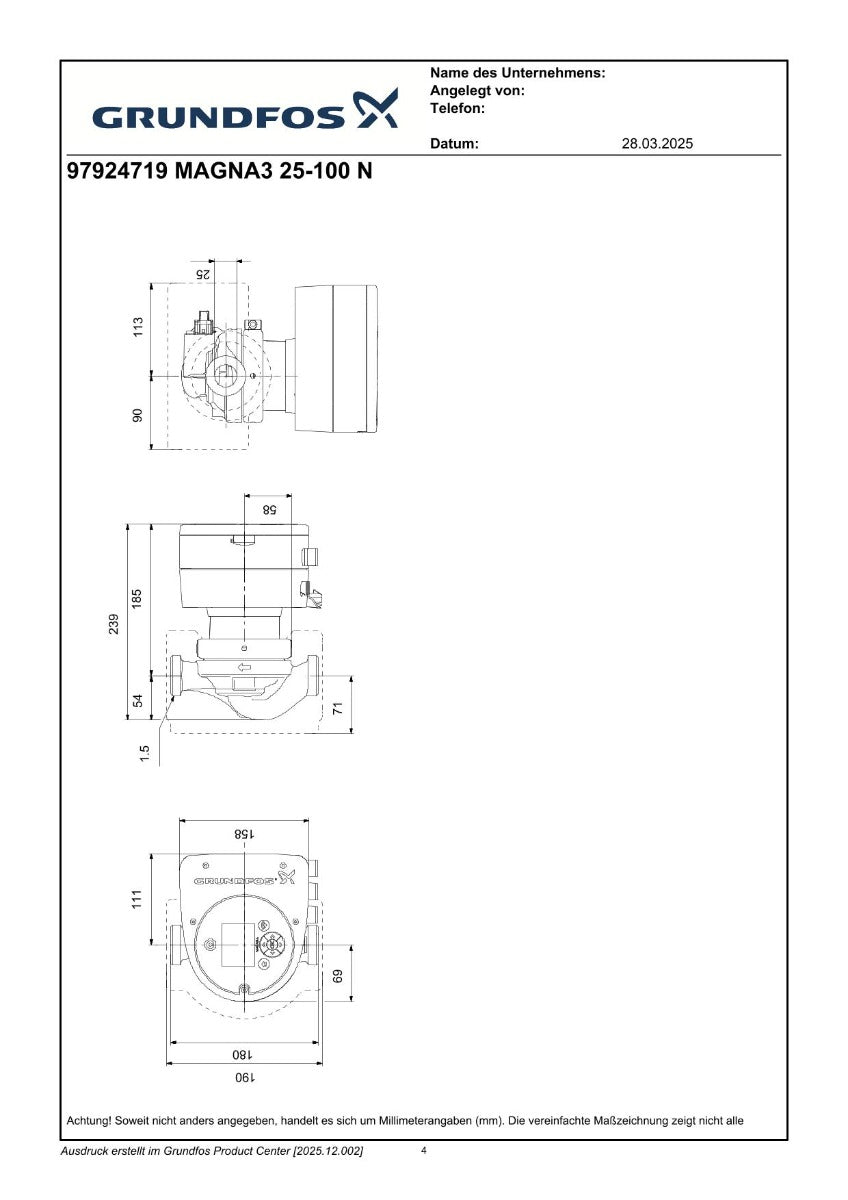

- Installation length: 180 mm
Pumped Liquid
- Medium: Water
- Liquid temperature range: -10 to 110 °C
- Operating temperature: 60 °C
- Density: 983.2 kg/m³
Electrical Data
- Max. power consumption (P1): 153 W
- Min. power consumption (P1): 9 W
- Mains frequency: 50 / 60 Hz
- Rated voltage: 1 x 230 V
- Min. current consumption: 0.09 A
- Max. current consumption: 1.33 A
- Max. speed: 4530 rpm
- Protection class (IEC 34-5): X4D
- Insulation class (IEC 85): F
Further Information
- Energy efficiency index (EEI): 0.18
- Net weight: 5.3 kg
- Gross weight: 6.04 kg
- Shipping volume: 0.015 m³
- Country of origin: DE
- Customs tariff number: 84137030
- Approval: WEEE

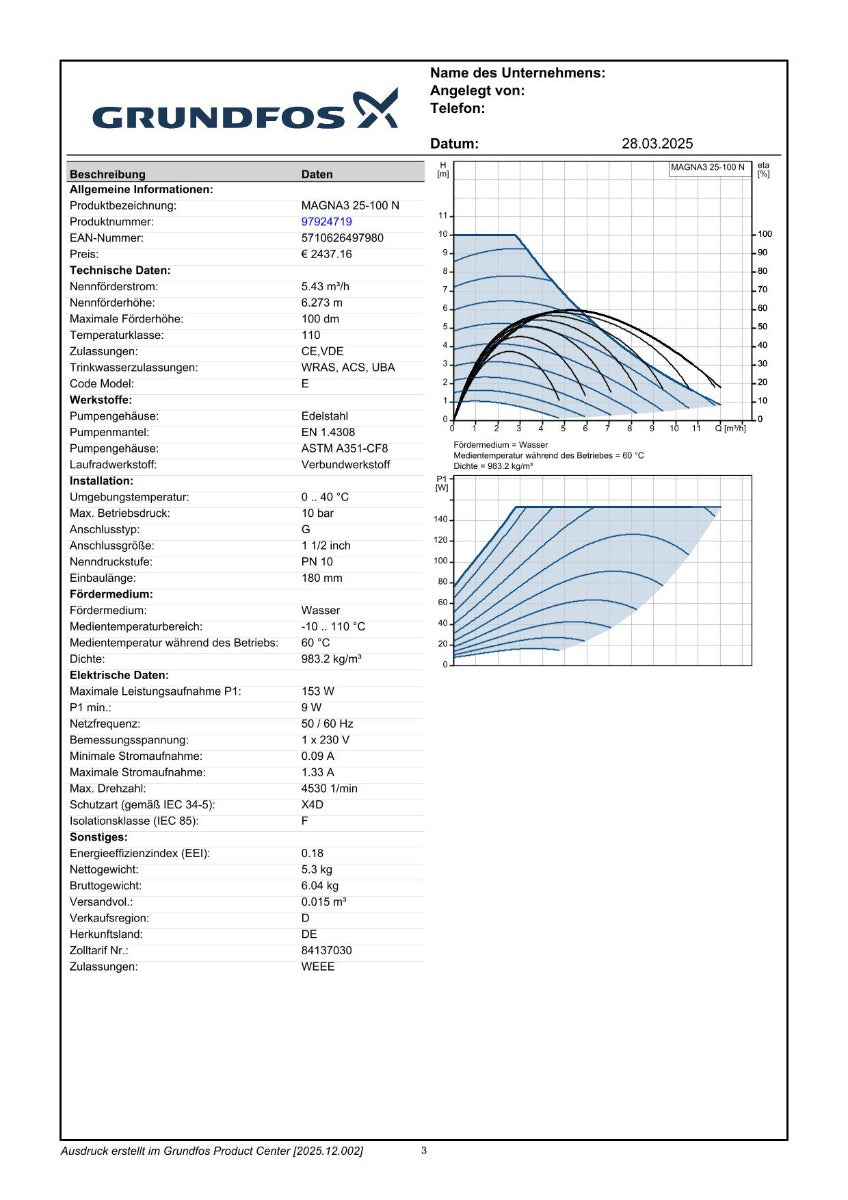

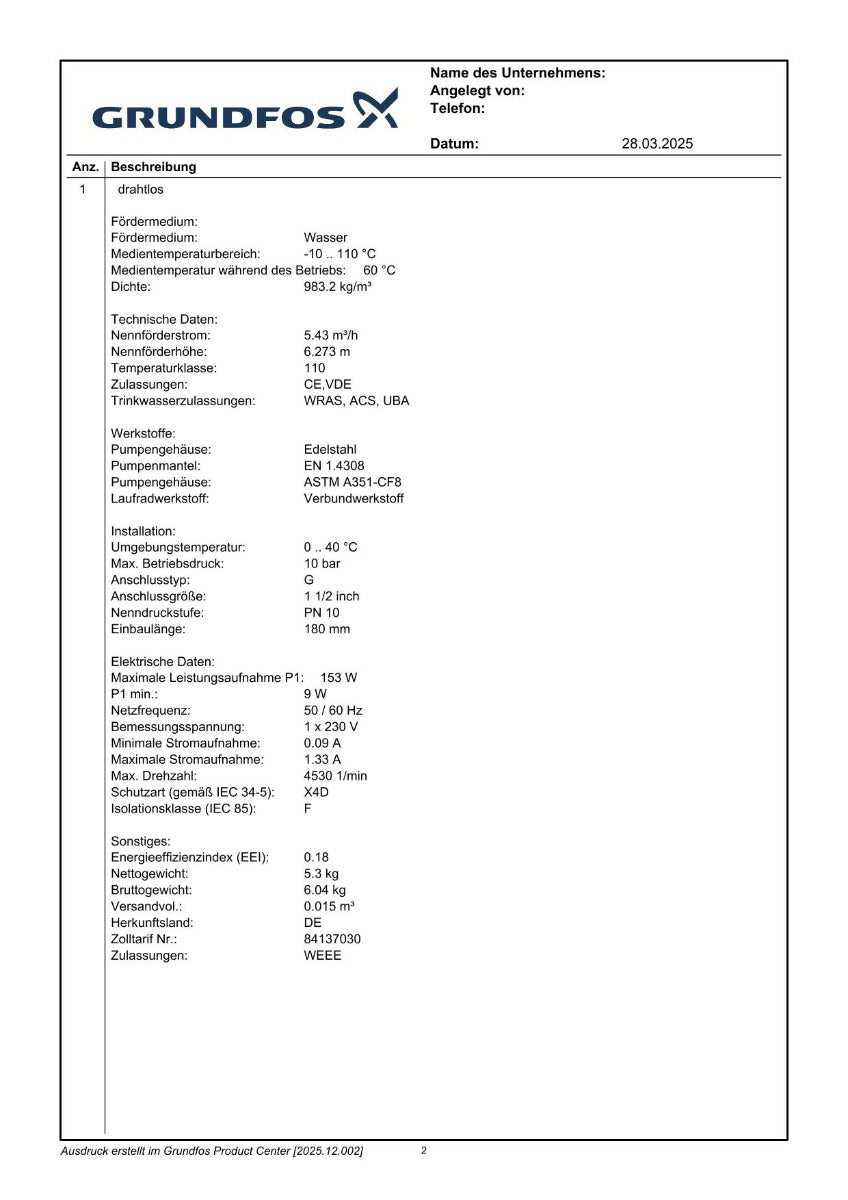

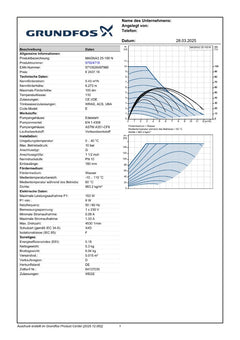

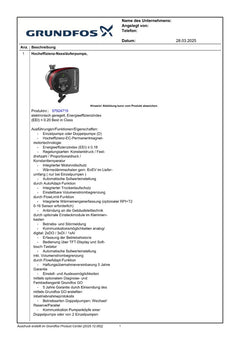

For all other technical data, please refer to the data sheet.
- Condition: New (original packaging)
- Our item number: PK 25/169
Couldn't load pickup availability
Further information
- Manufacturer: Grundfos
- Installation length: 180 mm
- Condition: new
- Pipe connection: G 2" (59.6mm)
