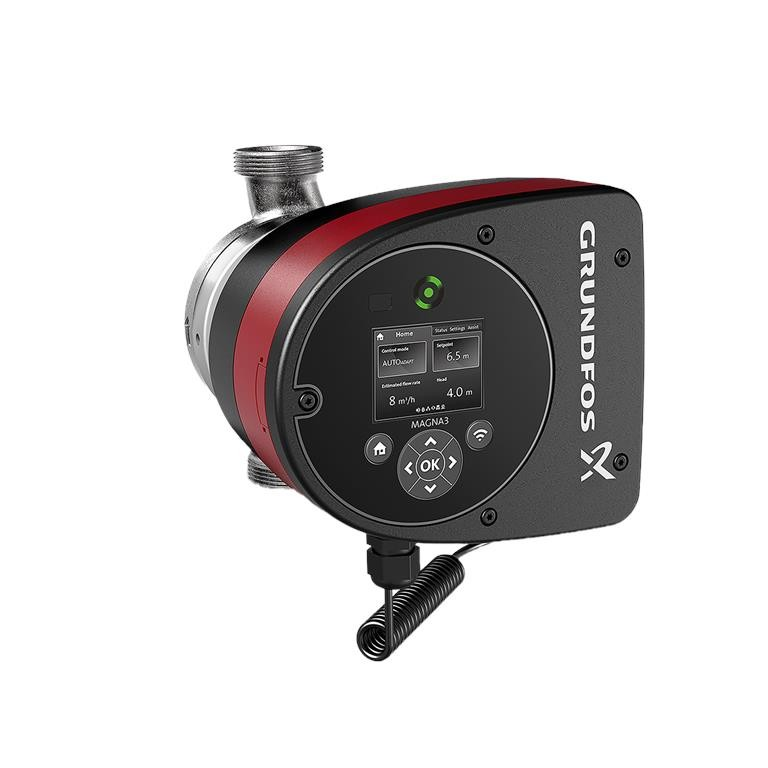

High-Efficiency Wet-Running Pump MAGNA3 25-40 N

Electronically controlled high-efficiency wet-running pump with an energy efficiency index (EEI) ≤ 0.18 – Best in Class.

Product Information

  • Product Name: MAGNA3 25-40 N
  • Product Number: 97924716
  • EAN: 5710626497959

Technical Data

  • Nominal Flow Rate: 3.71 m³/h
  • Nominal Head: 2.73 m
  • Maximum Head: 40 dm
  • Temperature Class: 110
  • Approvals: CE, VDE
  • Drinking Water Approvals: WRAS, ACS, UBA

Materials

  • Pump Housing: Stainless Steel
  • Pump Casing: EN 1.4308
  • Pump Housing (ASTM): A351-CF8
  • Impeller Material: Composite

Installation

  • Ambient Temperature: 0 to 40 °C
  • Max. Operating Pressure: 10 bar
  • Connection Type: G
  • Connection Size: 1 1/2 inch
  • Nominal Pressure Rating: PN 10
  • Installation Length: 180 mm

Pumped Liquid

  • Medium: Water
  • Medium Temperature Range: -10 to 110 °C
  • Operating Temperature: 60 °C
  • Density: 983.2 kg/m³

Electrical Data

  • Max. Power Input (P1): 50 W
  • Min. Power Input (P1): 9 W
  • Mains Frequency: 50 / 60 Hz
  • Rated Voltage: 1 x 230 V
  • Min. Current Consumption: 0.09 A
  • Max. Current Consumption: 0.46 A
  • Max. Speed: 2880 1/min
  • Enclosure Class (IEC 34-5): X4D
  • Insulation Class (IEC 85): F

Further Information

  • Energy Efficiency Index (EEI): 0.18
  • Net Weight: 5.3 kg
  • Gross Weight: 6.08 kg
  • Shipping Volume: 0.015 m³
  • Country of Origin: DE
  • Customs Tariff Number: 84137030
  • Approval: WEEE

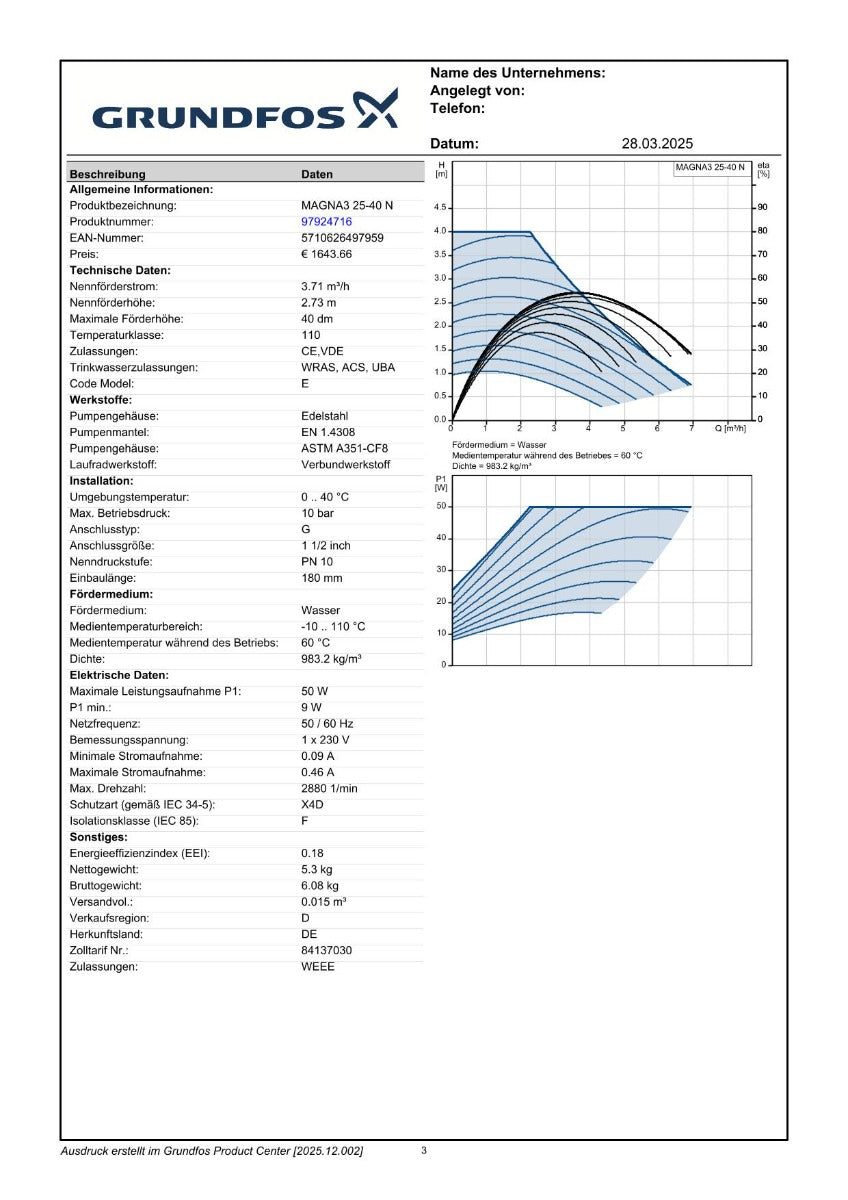

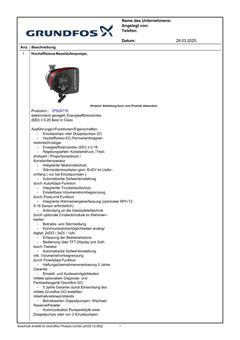

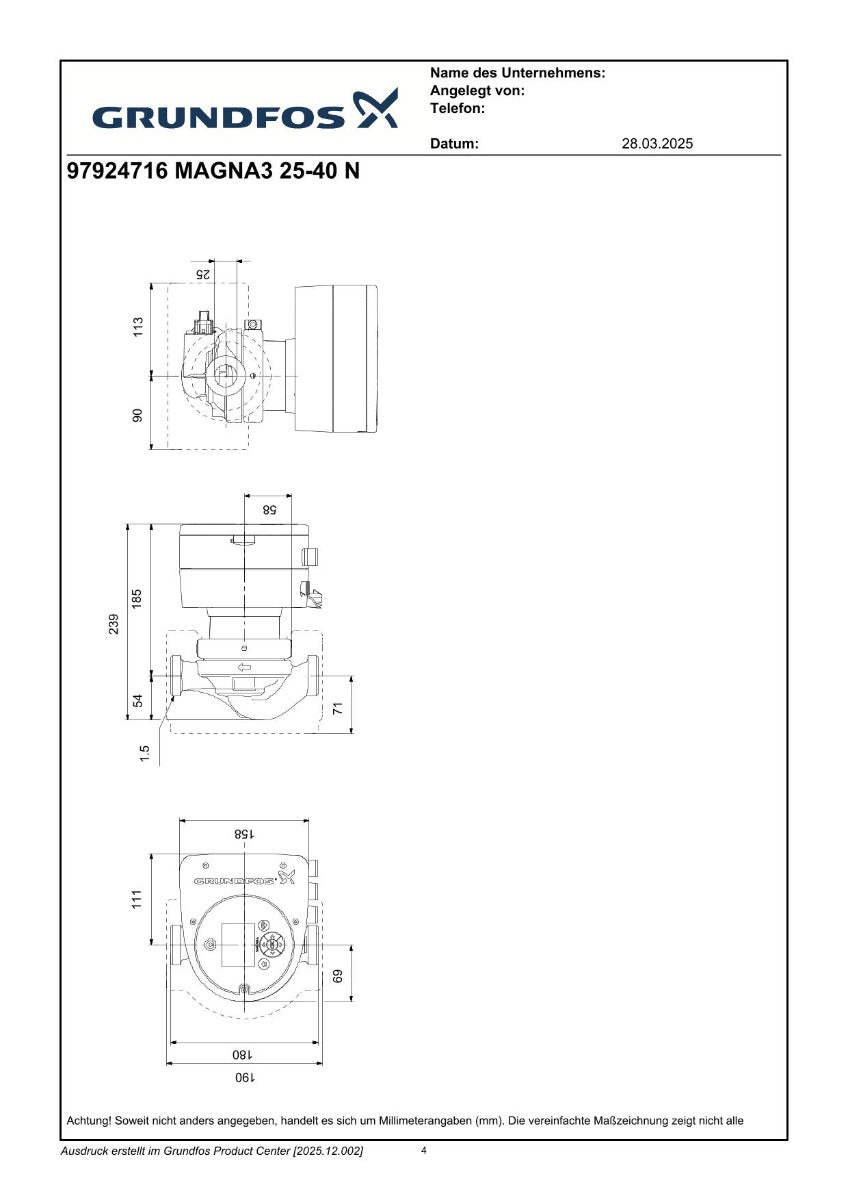

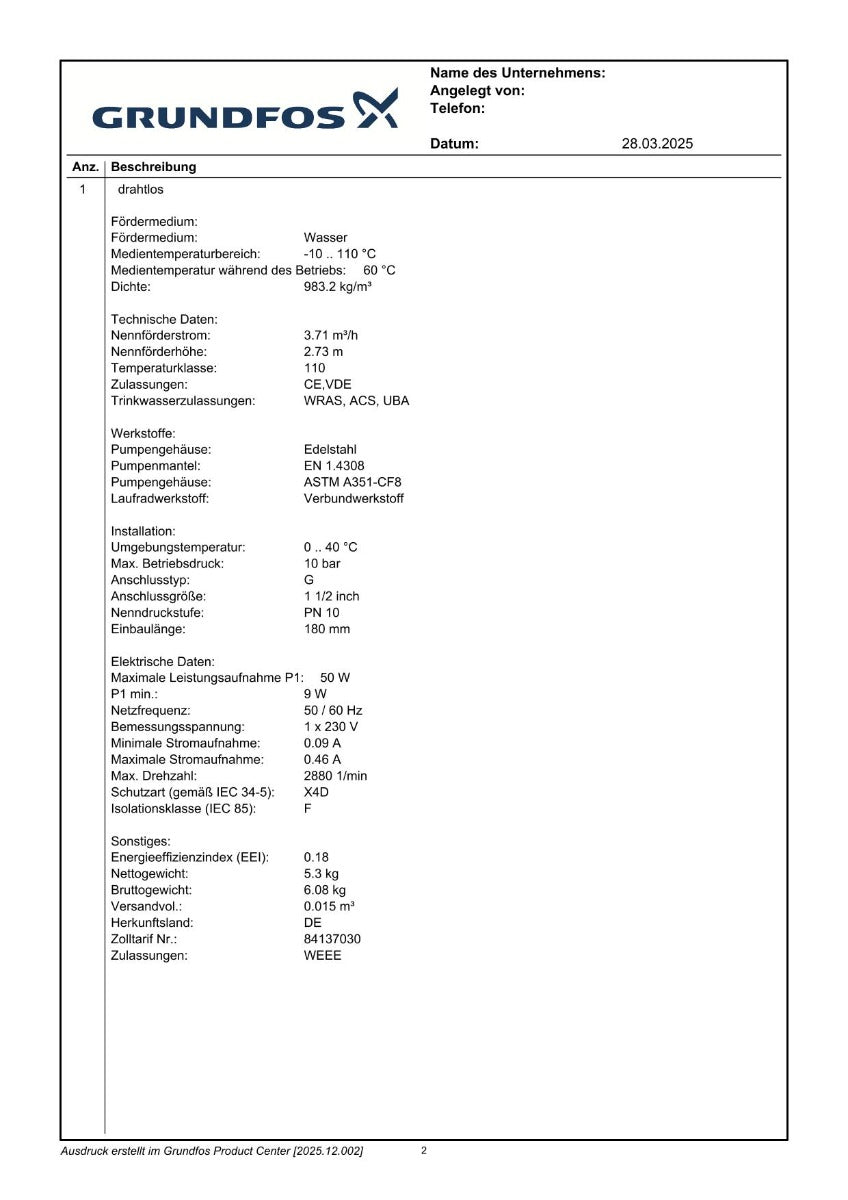

All further technical data can be found in the data sheet.

  • Condition: New (OVP)
  • Our Article Number: PK 25/166
