Grundfos MAGNA3 32-60 N 1x230V PK25/174
- A few left in stock!
High-efficiency wet rotor pump MAGNA3 32-60 N
Electronically controlled high-efficiency wet rotor pump with an energy efficiency index (EEI) ≤ 0.18 – Best in Class.
Product information
- Product name: MAGNA3 32-60 N
- Product number: 97924722
- EAN: 5710626498017
Technical data
- Nominal flow rate: 4.71 m³/h
- Nominal head: 4.77 m
- Maximum head: 60 dm
- Temperature class: 110
- Approvals: CE, VDE
- Drinking water approvals: WRAS, ACS, UBA
Materials
- Pump casing: Stainless steel
- Pump housing: EN 1.4308
- Pump casing (ASTM): A351-CF8
- Impeller material: Composite
Installation
- Ambient temperature: 0 to 40 °C
- Max. operating pressure: 10 bar
- Connection type: G
- Connection size: 2 inch
- Nominal pressure rating: PN 10

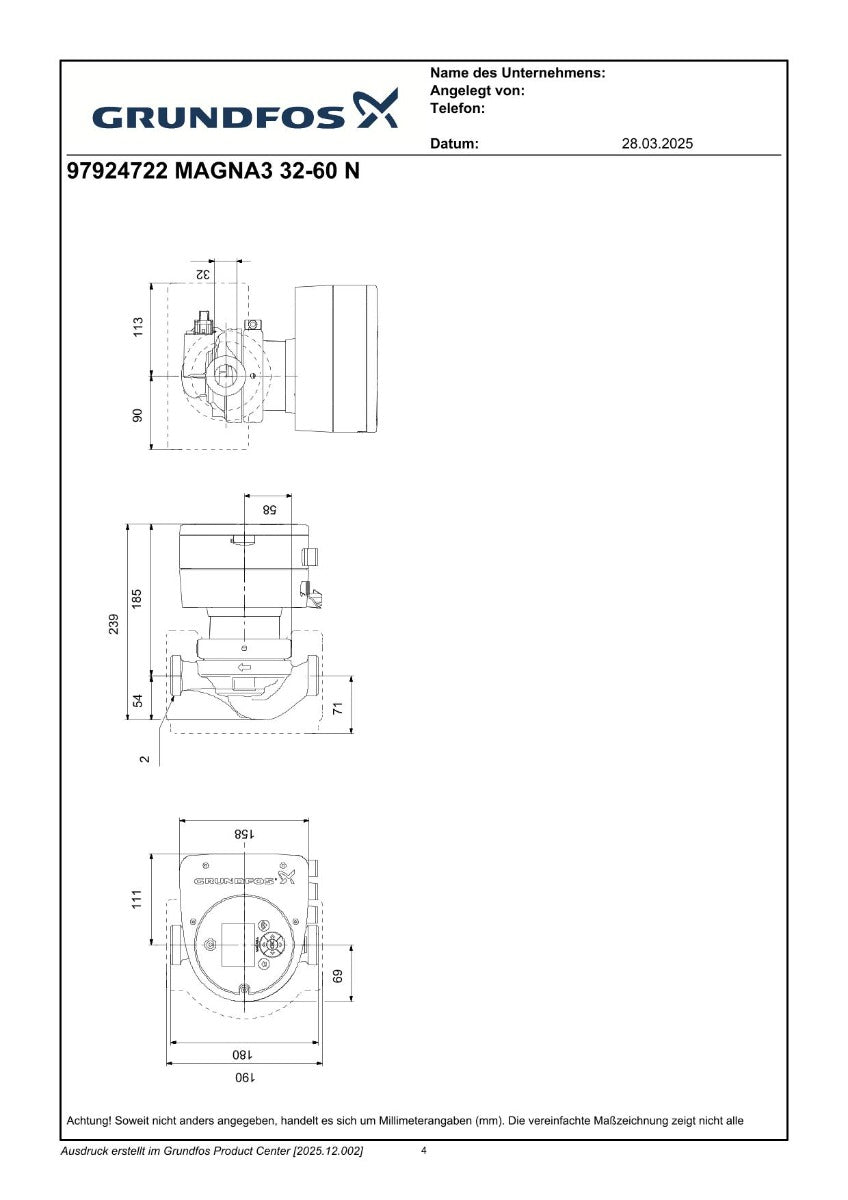

- Port-to-port length: 180 mm
Pumped liquid
- Medium: Water
- Liquid temperature range: -10 to 110 °C
- Operating temperature: 60 °C
- Density: 983.2 kg/m³
Electrical data
- Max. power input (P1): 103 W
- Min. power input (P1): 9 W
- Mains frequency: 50 / 60 Hz
- Rated voltage: 1 x 230 V
- Min. current consumption: 0.09 A
- Max. current consumption: 0.91 A
- Max. speed: 3510 1/min
- Enclosure class (IEC 34-5): X4D
- Insulation class (IEC 85): F
Further information
- Energy efficiency index (EEI): 0.18
- Net weight: 5.51 kg
- Gross weight: 6.16 kg
- Shipping volume: 0.015 m³
- Country of origin: DE
- Customs tariff number: 84137030
- Approval: WEEE

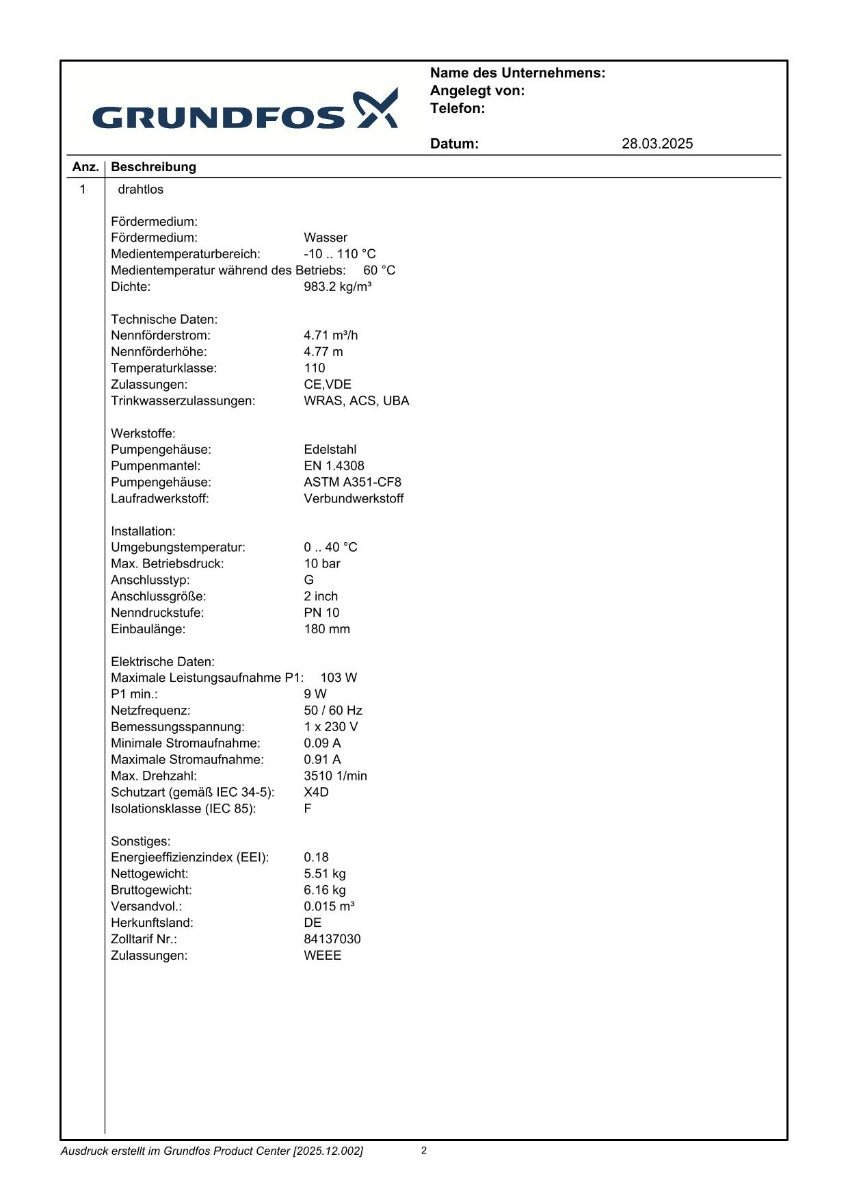

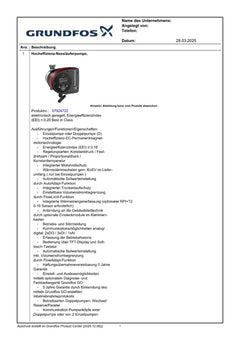

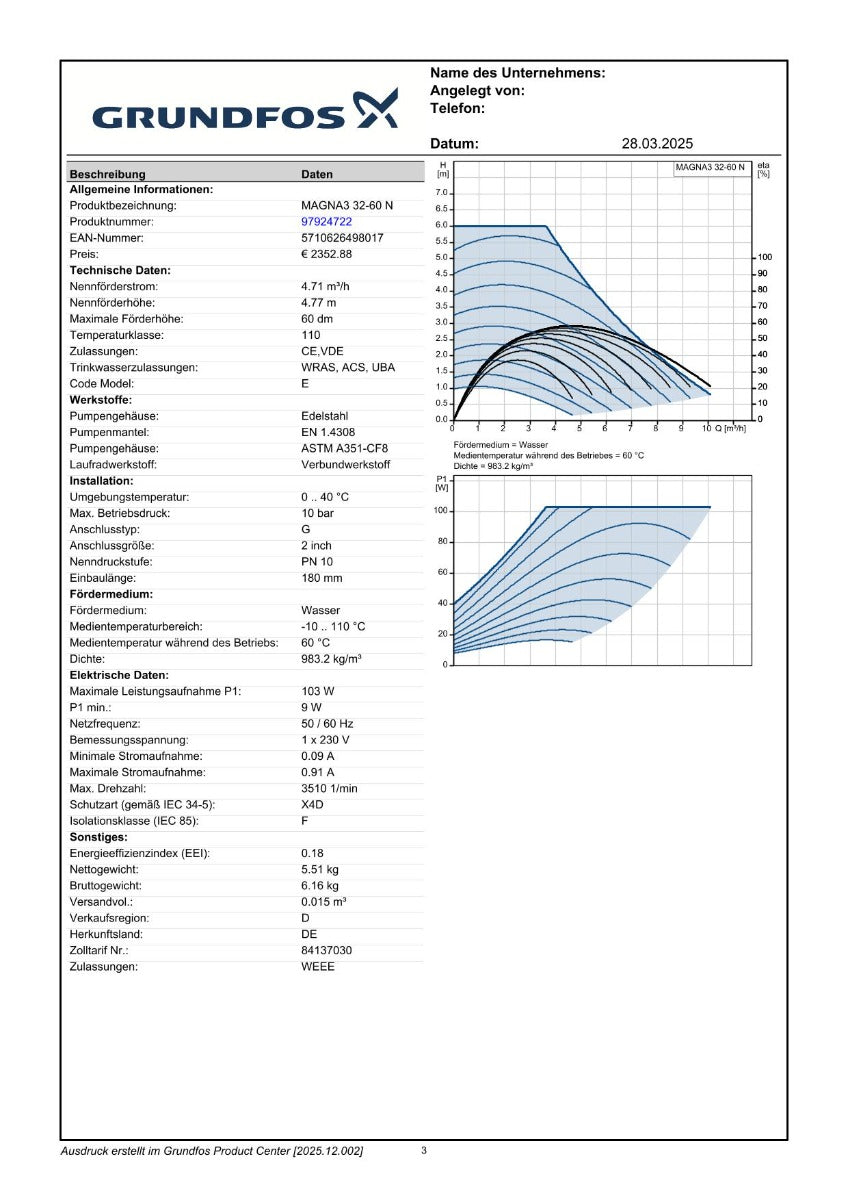

All other technical data can be found in the data sheet.
- Condition: New (Original packaging)
- Our item number: PK 25/174
Couldn't load pickup availability
Further information
- Manufacturer: Grundfos
- Installation length: 180 mm
- Condition: new
- Pipe connection: G 2" (59.6mm)
