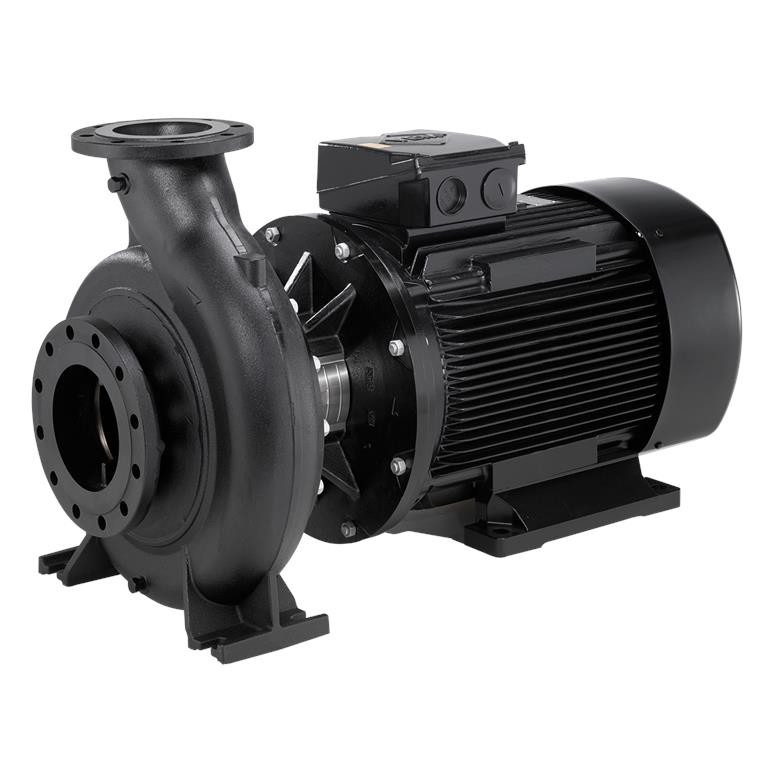

Grundfos NB 32-200/176 A-F2-A-BQQE End-suction, single-stage centrifugal pump 3 x 380-415V 4 kW PK25/105

• Grundfos NB 32-200/176 AAF2AESBQQEKW1

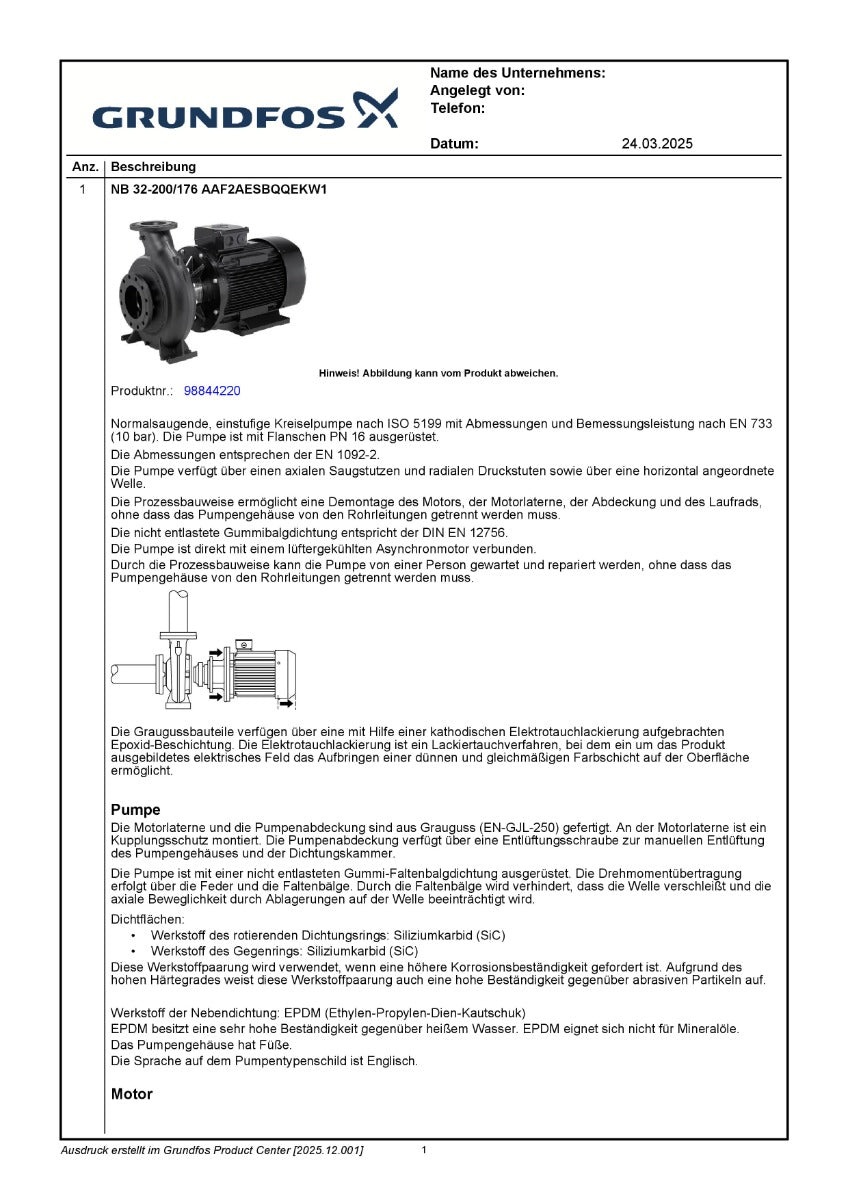

Norm-suction, single-stage centrifugal pump according to ISO 5199 with dimensions and rated performance according to EN 733 (10 bar). The pump is equipped with PN 16 flanges. The dimensions comply with EN 1092-2. The pump has an axial suction port and radial discharge port, as well as a horizontally arranged shaft. The back pull-out design allows for removal of the motor, motor lantern, cover, and impeller without disconnecting the pump housing from the piping. The unbalanced rubber bellows seal conforms to DIN EN 12756. The pump is directly connected to a fan-cooled asynchronous motor.

Control Type

• Frequency converter: none
• Pressure sensor: no

Pumped Liquid

• Medium: Water
• Temperature range: -25 to 120 °C
• Operating temperature: 60 °C
• Density: 983.2 kg/m³

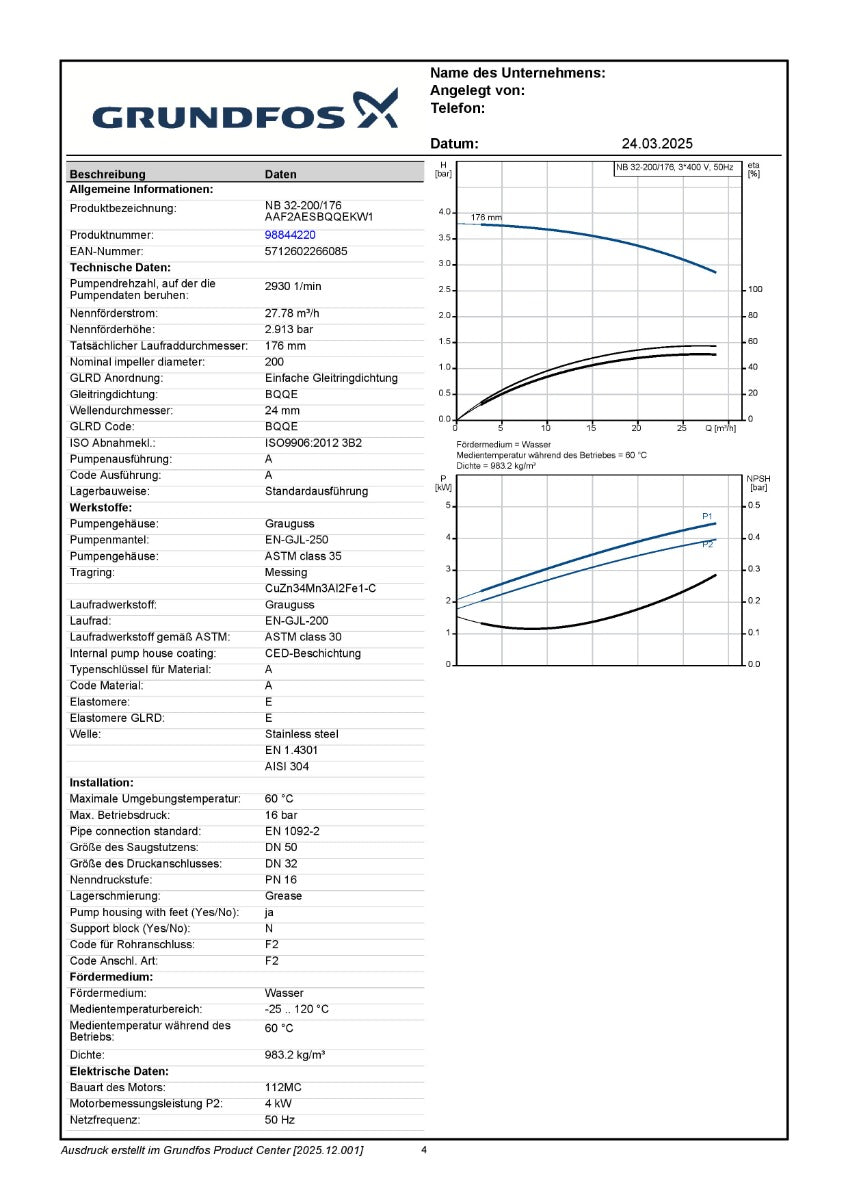

Technical Data

• Pump speed: 2930 rpm
• Rated flow: 27.78 m³/h
• Rated head: 30.22 m
• Impeller diameter: 176 mm (nominal: 200 mm)
• Mechanical seal: BQQE (single mechanical seal)
• ISO acceptance class: ISO9906:2012 3B2
• Bearing design: Standard design

Materials

• Pump housing: Cast iron (EN-GJL-250 / ASTM class 35)
• Wear ring: Brass (CuZn34Mn3AI2Fe1-C)
• Impeller: Cast iron (EN-GJL-200 / ASTM class 30)
• Internal coating: CED coating
• Shaft: Stainless steel (EN 1.4301 / AISI 304)

Installation

• Maximum ambient temperature: 60 °C
• Max. operating pressure: 16 bar
• Pipe connection standard: EN 1092-2
• Suction connection: DN 50
• Discharge connection: DN 32
• Nominal pressure rating: PN 16
• Bearing lubrication: Grease
• Pump housing with feet: Yes
• Support block: No

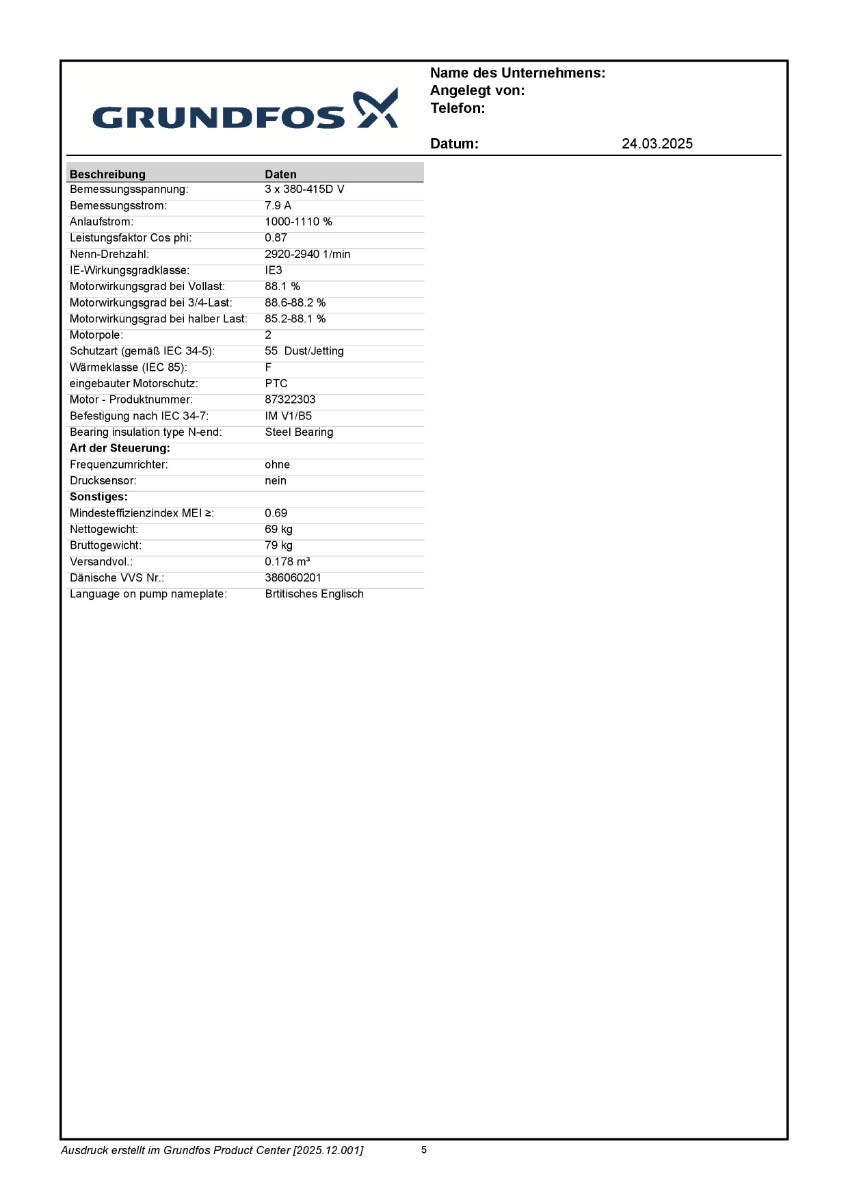

Electrical Data

• Motor type: 112MC
• Motor power: 4 kW
• Mains frequency: 50 Hz
• Voltage: 3 x 380-415D V
• Rated current: 7.9 A
• Starting current: 1000-1110 %
• Power factor Cos φ: 0.87
• Rated speed: 2920-2940 rpm
• IE efficiency class: IE3
• Motor efficiency:
  • Full load: 88.1 %
  • 3/4 load: 88.6-88.2 %
  • Half load: 85.2-88.1 %
• Motor poles: 2
• Enclosure class: IP55 (Dust & jet-proof)
• Thermal class: F
• Motor product number: 87322303
• Bearing insulation (N-end): Steel bearings

Other

• Minimum efficiency index (MEI): ≥ 0.69
• Net weight: 69 kg
• Gross weight: 79 kg
• Shipping volume: 0.178 m³
• Danish VVS No.: 386060201
• Language on nameplate: British English

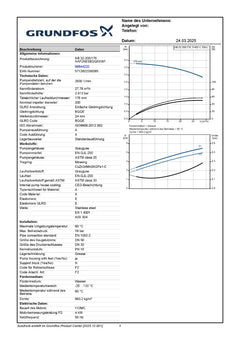

For all other data, please refer to the data sheet.

• Condition: New (OVP)
• Our article number: PK 25/105
