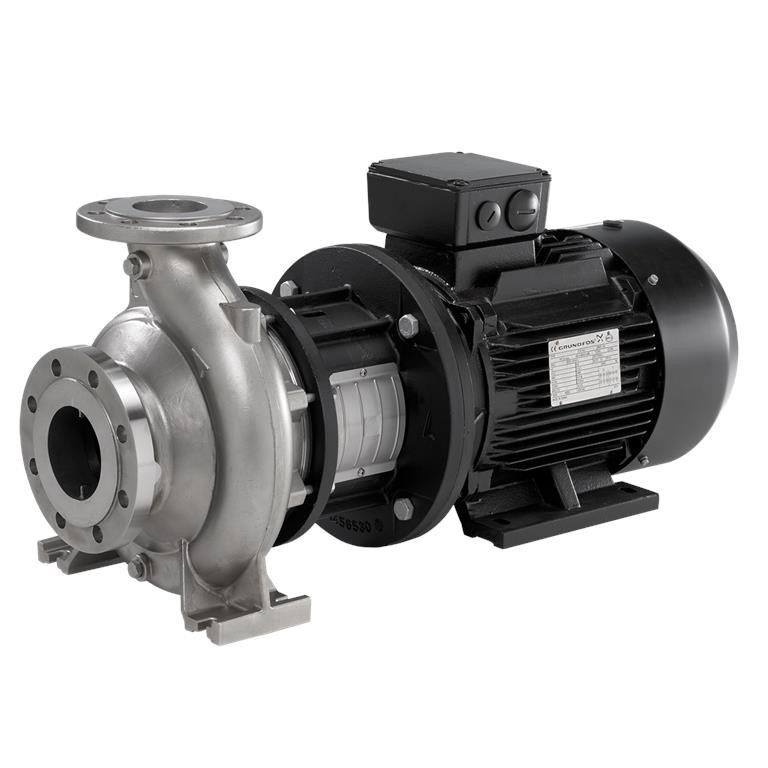

Grundfos NB 50-160/175 AAF2KESBQQEHW3 Centrifugal Pump 1.5 kW 3x380-420V DN65/50 PN16 PK25/103

Grundfos NB 50-160/175 AAF2KESBQQEHW3

Normally-priming, single-stage centrifugal pump according to ISO 5199 with dimensions and rated performance according to EN 733 (10 bar). The pump is equipped with PN 16 flanges. The dimensions comply with EN 1092-1. The pump has an axial suction port and a radial discharge port, as well as a horizontally arranged shaft. The back pull-out design allows for removal of the motor, motor lantern, cover, and impeller without disconnecting the pump casing from the piping. The unbalanced rubber bellows seal complies with DIN EN 12756. The pump is directly connected to a fan-cooled asynchronous motor.

Pumped liquid

• Liquid: Water
• Temperature range: -25 to 120 °C
• Operating temperature: 60 °C
• Density: 983.2 kg/m³

Technical Data

• Flow rate: 45.04 m³/h
• Head (rated): 9.137 m
• Pump speed: 1445 rpm
• Impeller diameter: 175 mm (nominal: 160 mm)
• Mechanical seal: BQQE (single mechanical seal)
• ISO acceptance class: ISO9906:2012 3B2
• Bearing design: Standard design

Materials

• Pump housing: Stainless steel (EN 1.4408 / ASTM CF8M)
• Pump casing: EN 1.4408
• Impeller: Stainless steel (EN 1.4408 / ASTM CF8M)
• Wear ring: Stainless steel (EN 1.4517 / ASTM CD4MCuN)
• Shaft: Stainless steel (EN 1.4401 / AISI 316)
• Internal coating: No coating

Installation

• Max. ambient temperature: 55 °C
• Max. operating pressure: 16 bar
• Pipe connection standard: EN 1092-1
• Suction connection: DN 65
• Discharge connection: DN 50
• Nominal pressure rating: PN 16
• Bearing lubrication: Grease
• Pump casing with feet: Yes
• Support block: No

Electrical Data

• Motor design: INNOMOTICS
• Motor power: 1.5 kW
• Mains frequency: 50 Hz
• Voltage: 3 x 220-240D/380-420Y V
• Rated current: 5.5/3.15 A
• Starting current: 730 %
• Power factor Cos φ: 0.8
• Rated speed: 1445 rpm
• Efficiency class: IE3
• Motor efficiency:
  • Full load: 85.3 %
  • 3/4 load: 86 %
  • Half load: 85.2 %
• Motor poles: 4
• Protection class: IP55
• Thermal class: F
• Motor product number: 83V02206
• Bearing insulation (N-end): No

Miscellaneous

• Minimum Efficiency Index (MEI): ≥ 0.70
• Net weight: 58 kg
• Gross weight: 68 kg
• Shipping volume: 0.178 m³

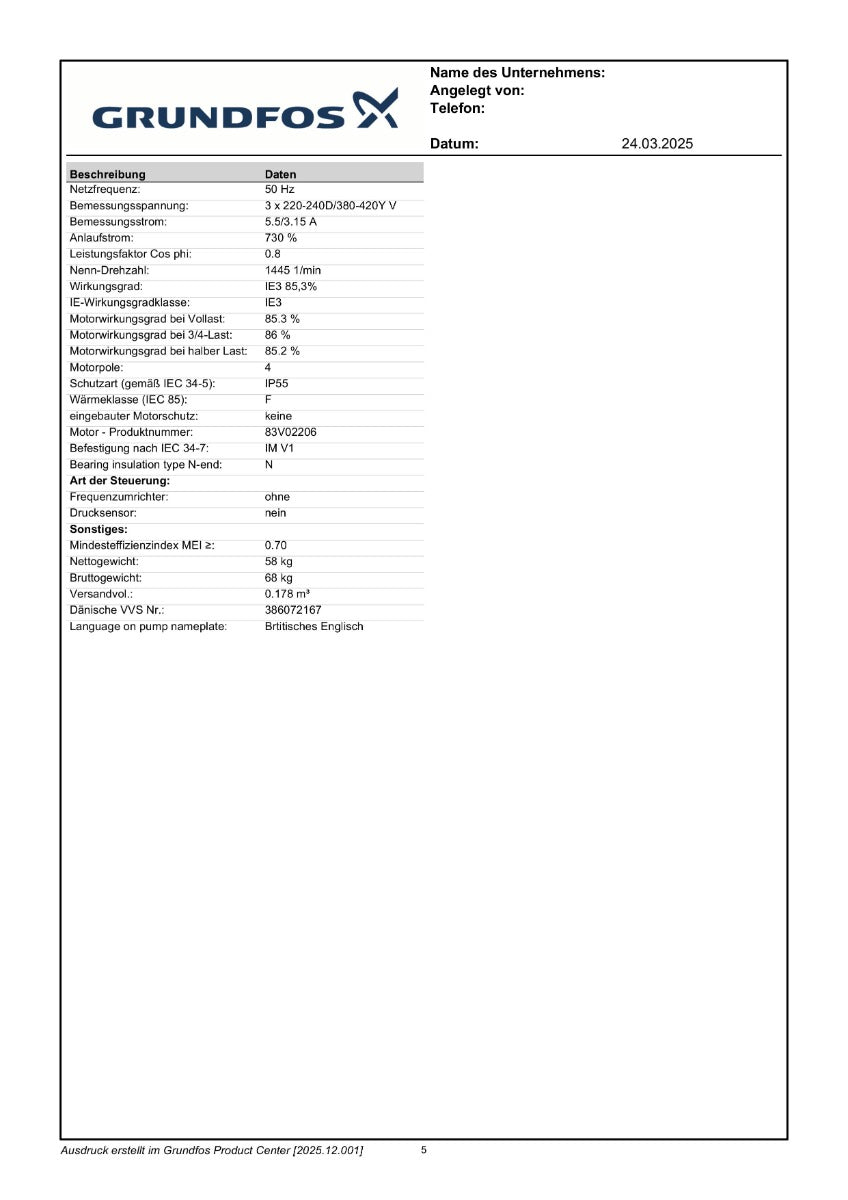

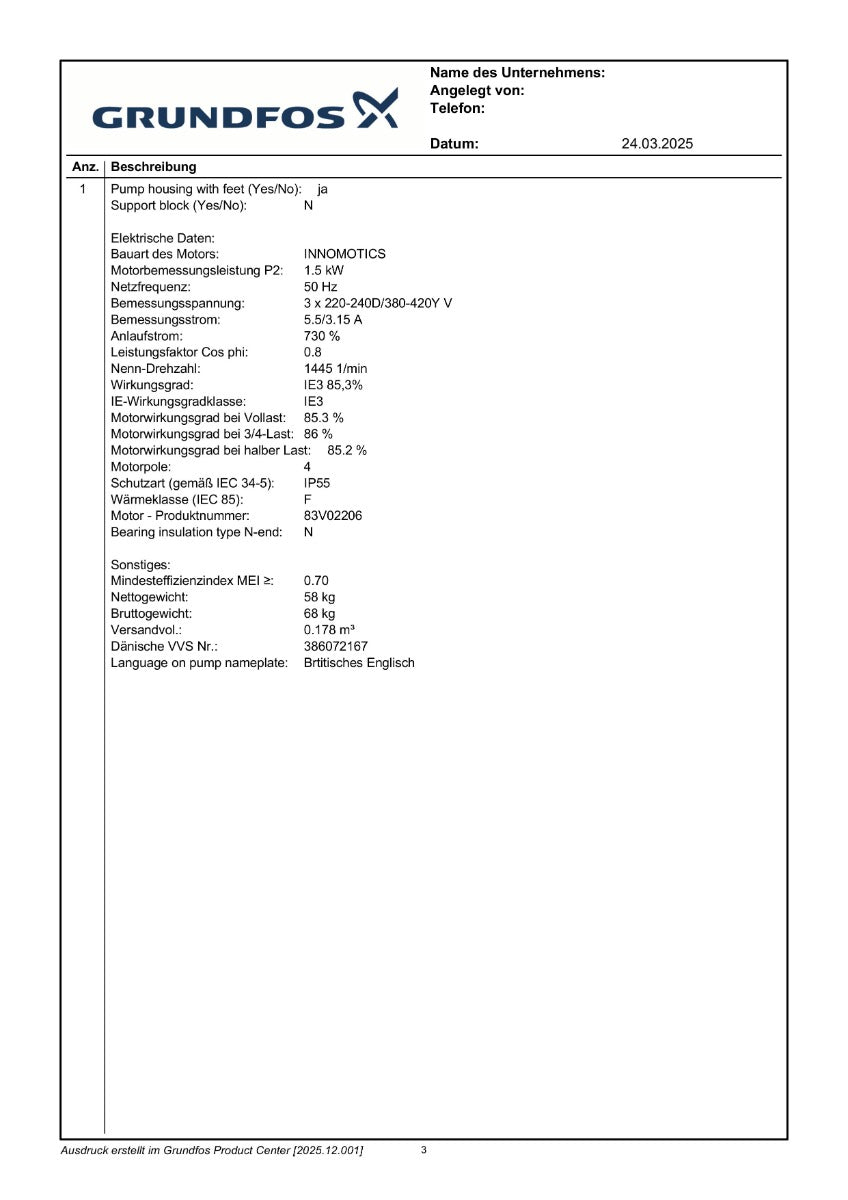

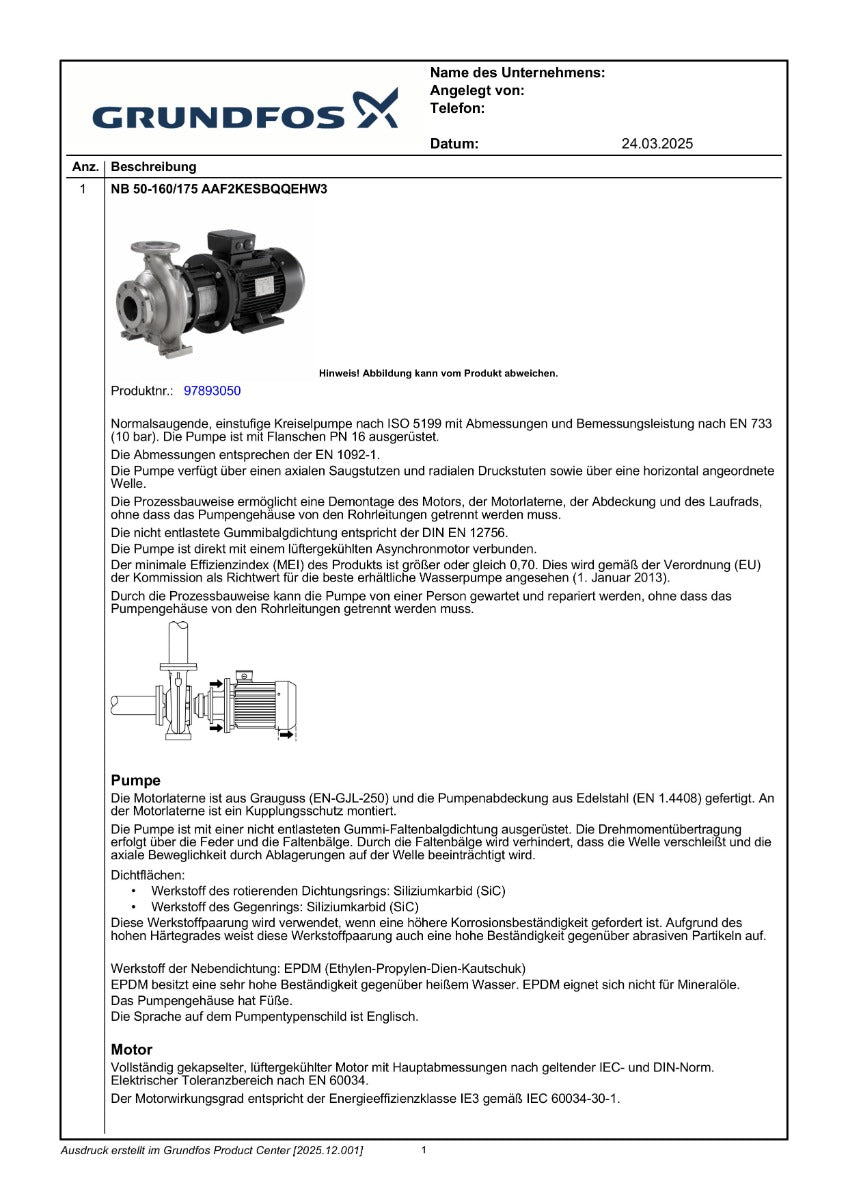

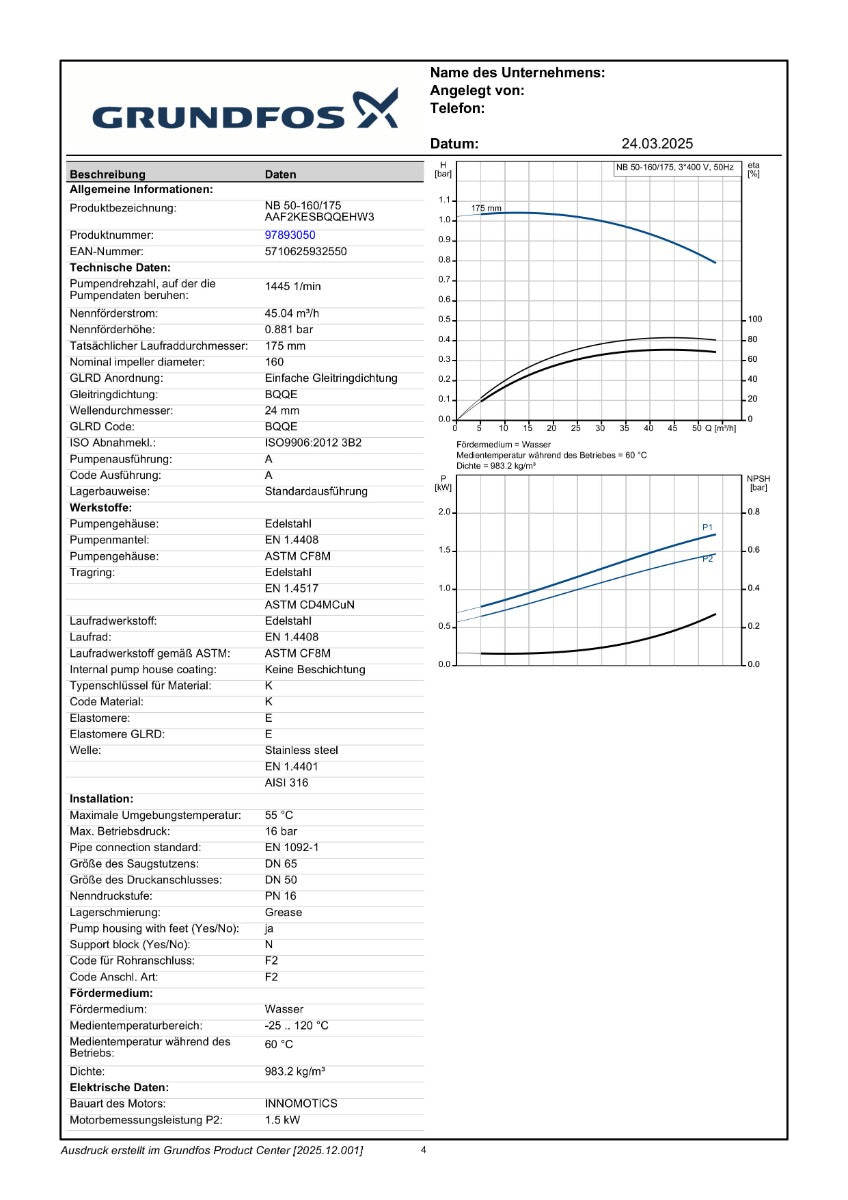

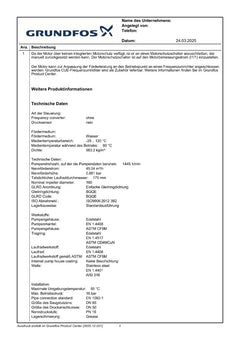

Further data can be found in the data sheet.

• Condition: New (original packaging)
• Our item number: PK 25/103
