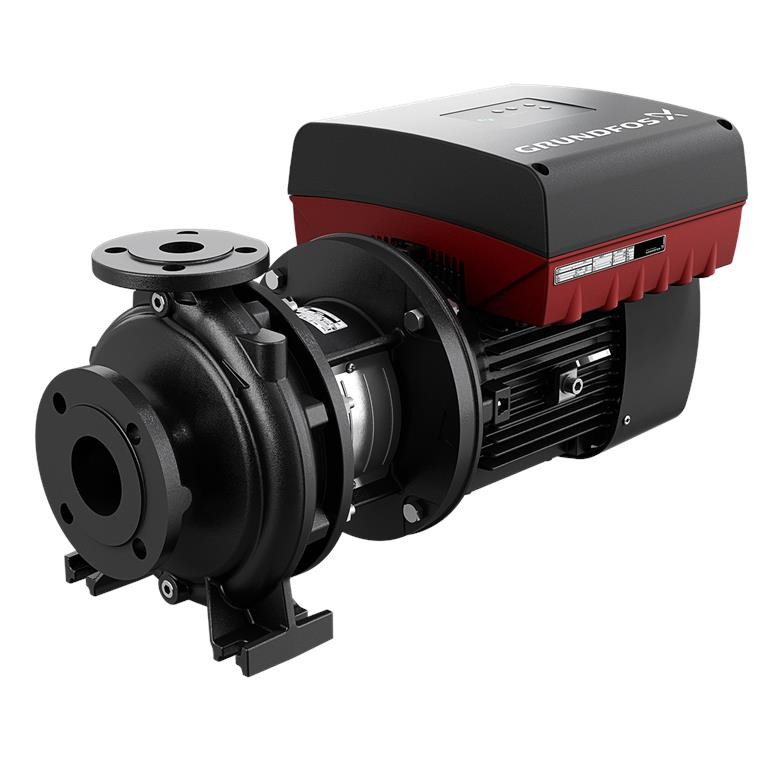

Grundfos NBE 32-125.1/110 AAF2AESBQQEGWB Centrifugal pump 3x380-500V IE5 1.1 kW PK25/104

Grundfos NBE 32-125.1/110 AAF2AESBQQEGWB

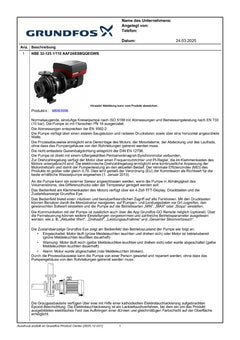

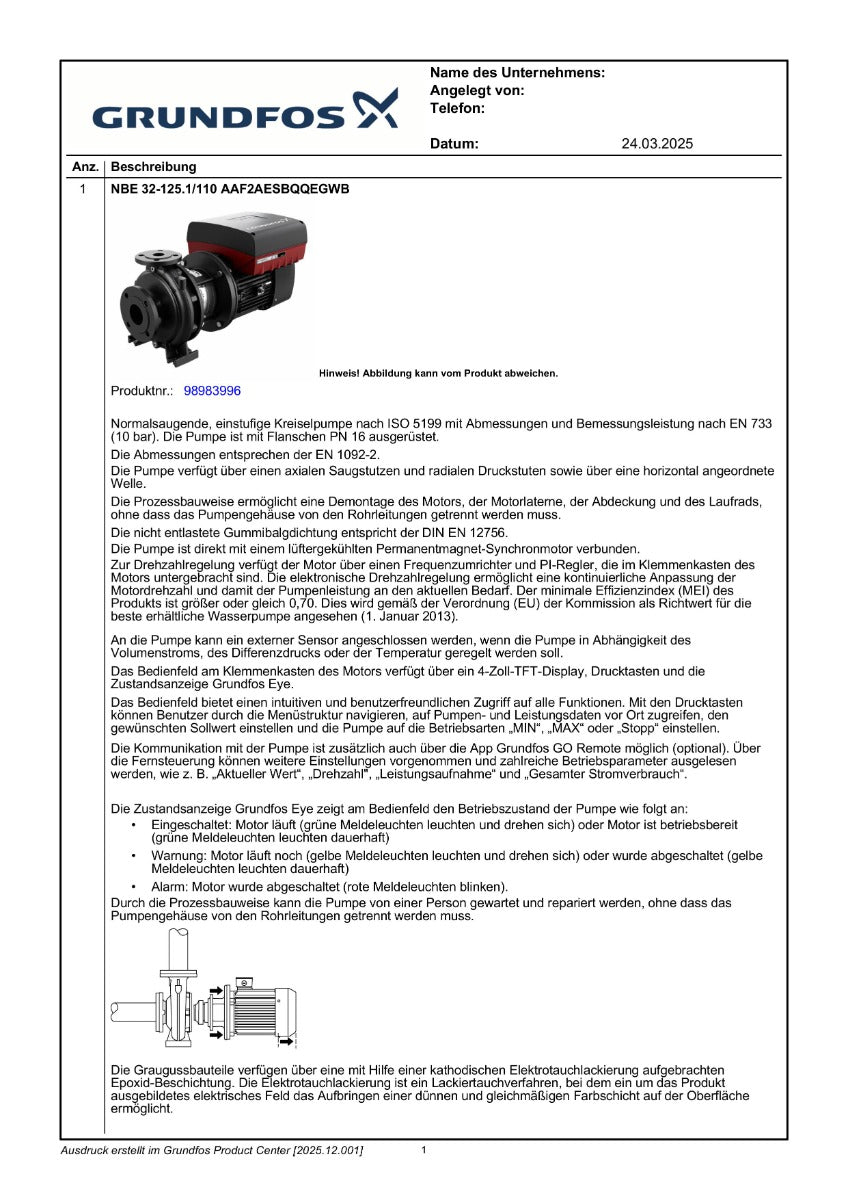

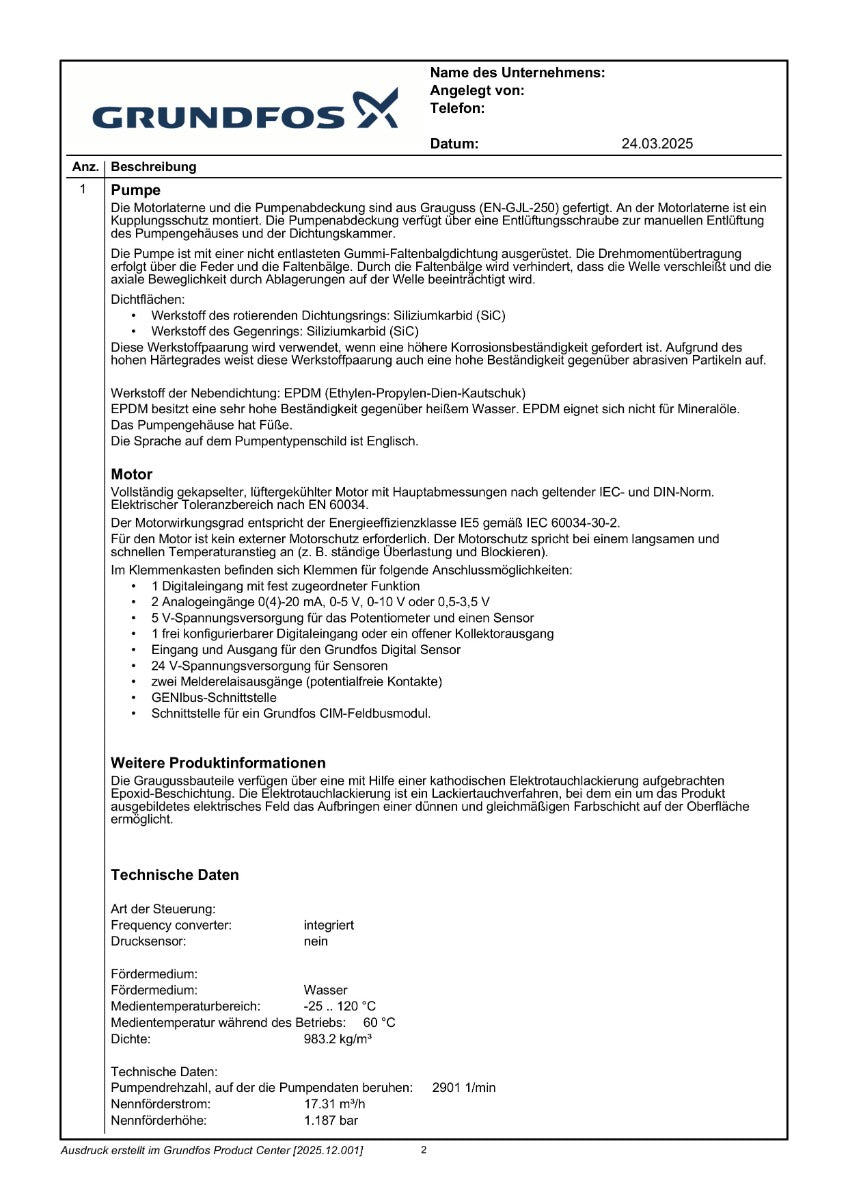

Normal-priming, single-stage centrifugal pump according to ISO 5199 with dimensions and rated performance according to EN 733 (10 bar). The pump is equipped with PN 16 flanges. The dimensions comply with EN 1092-2. The pump has an axial suction port and a radial discharge port, as well as a horizontally arranged shaft. The back pull-out design allows for removal of the motor, motor stool, cover, and impeller without disconnecting the pump casing from the piping. The unbalanced rubber bellows seal complies with DIN EN 12756. The pump is directly connected to a fan-cooled permanent magnet synchronous motor. For speed control, the motor has an inverter and PI controller, which are housed in the motor's terminal box. The electronic speed control enables continuous adjustment of the motor speed and thus the pump performance to the current demand.

Product Details

• Product name: NBE 32-125.1/110 AAF2AESBQQEGWB
• Product number: 98983996
• EAN number: 5712604687116

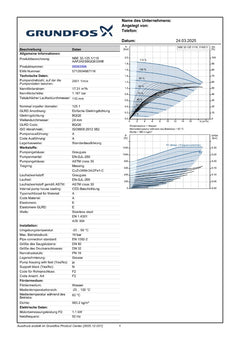

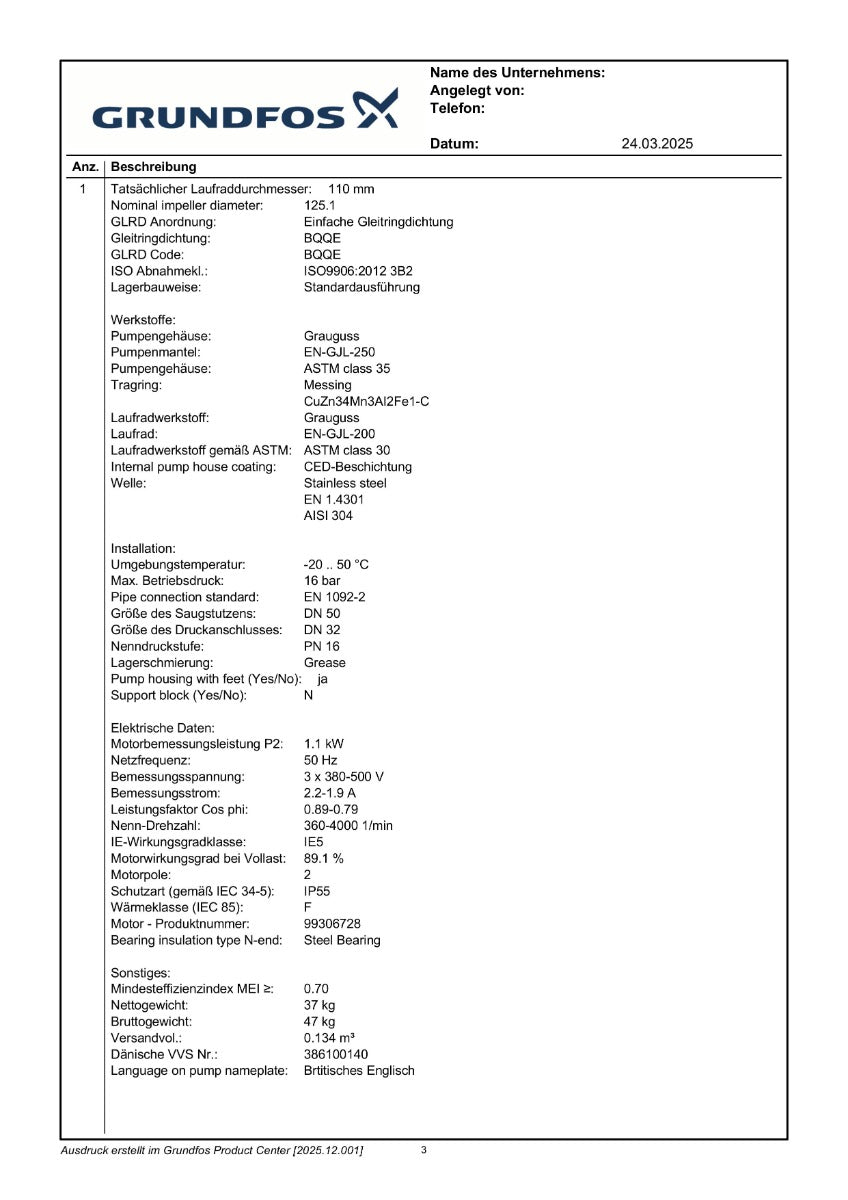

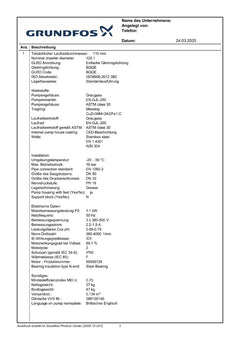

Technical Data

• Pump speed: 2901 1/min
• Rated flow: 17.31 m³/h
• Rated head: 12.31 m
• Impeller diameter: 110 mm (nominal: 125.1 mm)
• Shaft diameter: 24 mm
• Mechanical seal: BQQE (single mechanical seal)
• ISO acceptance class: ISO9906:2012 3B2
• Pump version: A
• Bearing design: Standard design

Materials

• Pump housing: Cast iron (EN-GJL-250 / ASTM class 35)
• Wear ring: Brass (CuZn34Mn3AI2Fe1-C)
• Impeller: Cast iron (EN-GJL-200 / ASTM class 30)
• Internal coating: CED coating
• Shaft: Stainless steel (EN 1.4301 / AISI 304)

Installation

• Ambient temperature: -20 to 50 °C
• Max. operating pressure: 16 bar
• Pipe connection standard: EN 1092-2
• Suction connection: DN 50
• Discharge connection: DN 32
• Nominal pressure rating: PN 16
• Bearing lubrication: Grease
• Pump housing with feet: Yes
• Support block: No

Pumped liquid

• Medium: Water
• Temperature range: -25 to 120 °C
• Operating temperature: 60 °C
• Density: 983.2 kg/m³

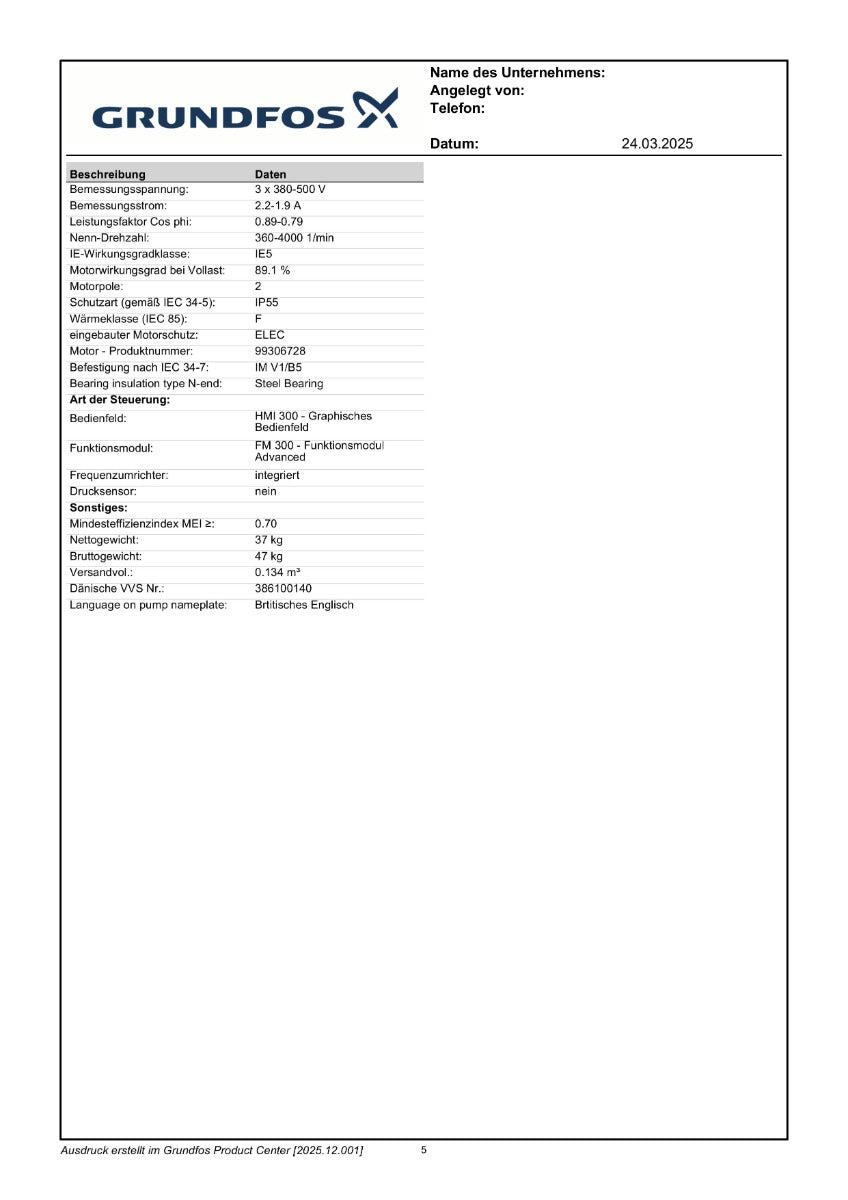

Electrical Data

• Motor power: 1.1 kW
• Mains frequency: 50 Hz
• Voltage: 3 x 380-500 V
• Rated current: 2.2-1.9 A
• Power factor cos φ: 0.89-0.79
• Rated speed: 360-4000 1/min
• IE efficiency class: IE5
• Motor efficiency (full load): 89.1 %
• Motor poles: 2
• Protection class: IP55
• Thermal class: F
• Built-in motor protection: ELEC
• Motor product number: 99306728
• Mounting according to IEC 34-7: IM V1/B5
• Bearing insulation (N-end): Steel bearing

Type of control

• Control panel: HMI 300 - Graphical control panel
• Function module: FM 300 - Advanced function module
• Frequency converter: Integrated
• Pressure sensor: No

Miscellaneous

• Minimum efficiency index (MEI): ≥ 0.70
• Net weight: 37 kg
• Gross weight: 47 kg
• Shipping volume: 0.134 m³

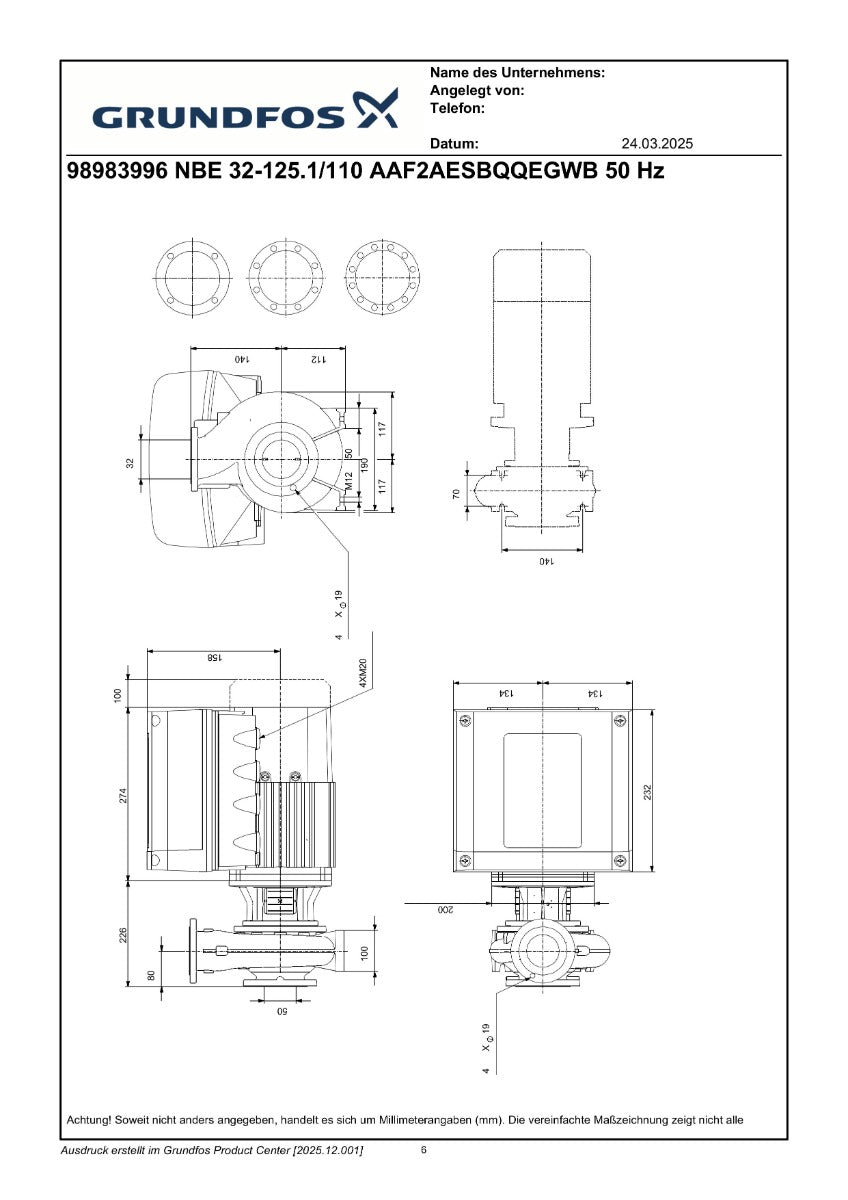

For all other data, please refer to the data sheet.

• Condition: New (Original packaging)
• Our item number: PK 25/104
