Grundfos TP 40-80/2-A-F-I-BUBE In-line Pump 400V Centrifugal Pump 50HZ PK25/107

• Grundfos TP 40-80/2 A-F-I-BUBE

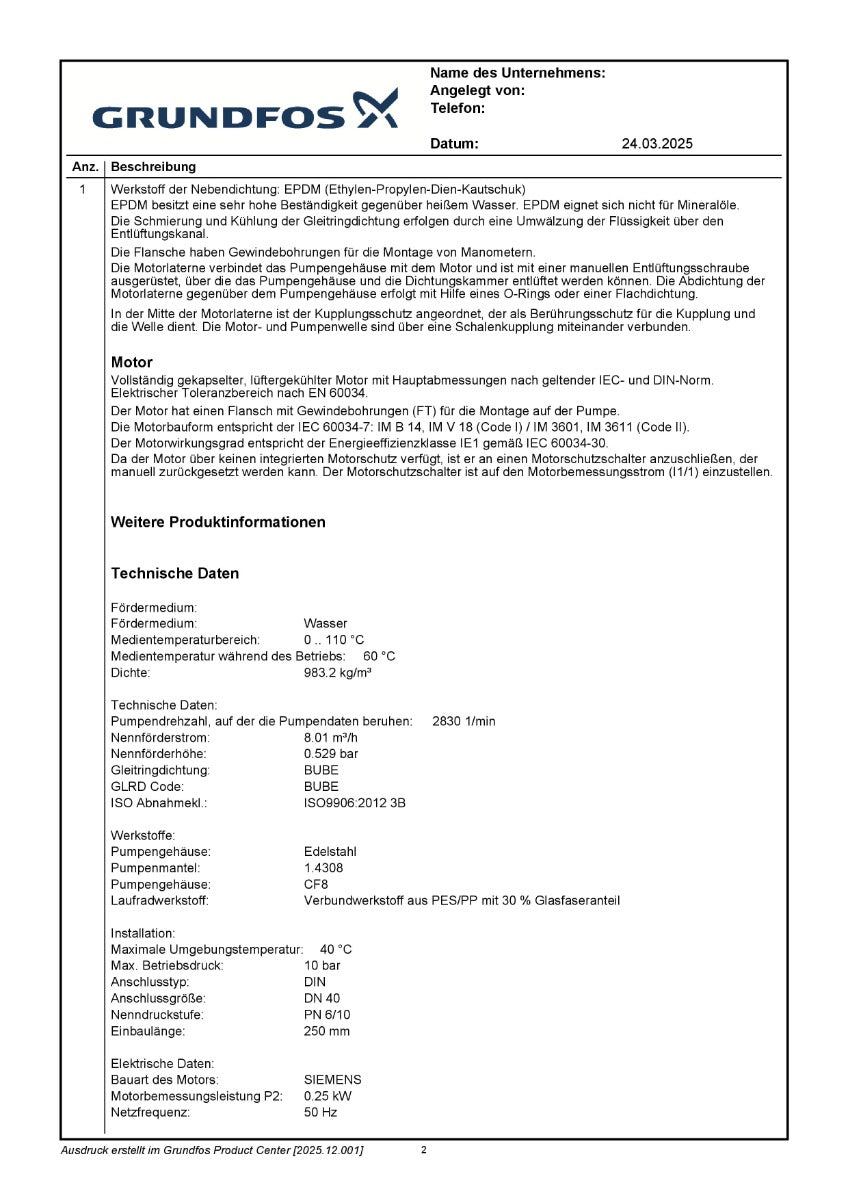

Single-stage volute pump with opposing suction and discharge ports in in-line design. The suction and discharge ports have the same diameter. The pumps are designed according to the Top-Pull-Out principle, meaning the pump head (motor, headpiece, and impeller) can be easily removed for maintenance or service, while the pump casing remains in the piping. The pump is equipped with an unbalanced rubber bellows seal. The mechanical seal complies with EN 12756. Pipeline connection via DIN flanges PN 6/10 according to EN 1092-2 and ISO 7005-2. The pump is equipped with a fan-cooled asynchronous motor.

Product information

• Product designation: TP 40-80/2 A-F-I-BUBE
• Product number: 98346627
• EAN number: 5711493380283

Pumped liquid

• Temperature range: 0 to 110 °C
• Operating temperature: 60 °C
• Density: 983.2 kg/m³

Technical data

• Pump speed: 2830 1/min
• Rated flow: 8.01 m³/h
• Rated head: 5.49 m
• Maximum head: 80 dm
• Mechanical seal: BUBE
• GLRD Code: BUBE
• ISO acceptance class: ISO9906:2012 3B
• Pump version: A
• Code version: A

Materials

• Pump housing: Stainless steel (1.4308 / CF8)
• Impeller: Composite material of PES/PP with 30% glass fiber content
• Material code: I

Installation

• Maximum ambient temperature: 40 °C
• Max. operating pressure: 10 bar
• Connection type: DIN
• Connection size: DN 40
• Pressure rating: PN 6/10

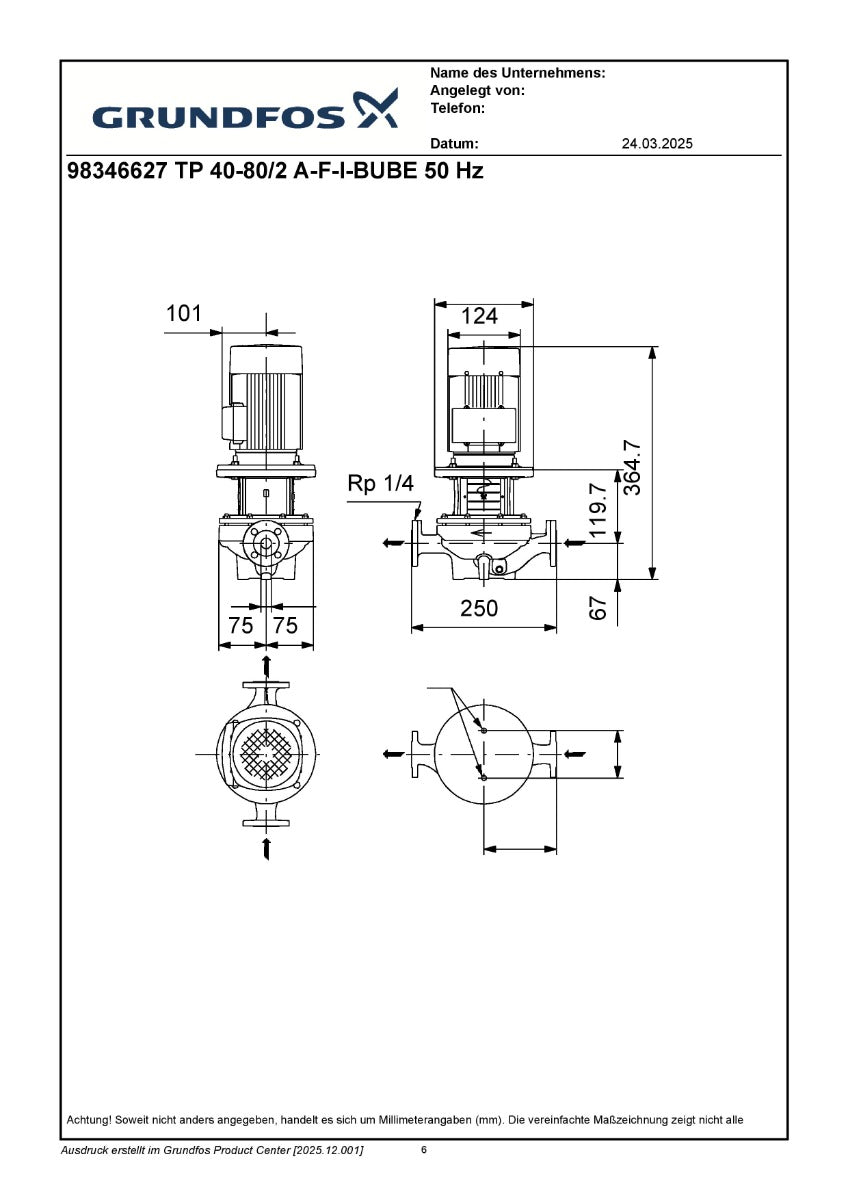

• Installation length: 250 mm
• Pipe connection code: F
• Connection type code: F

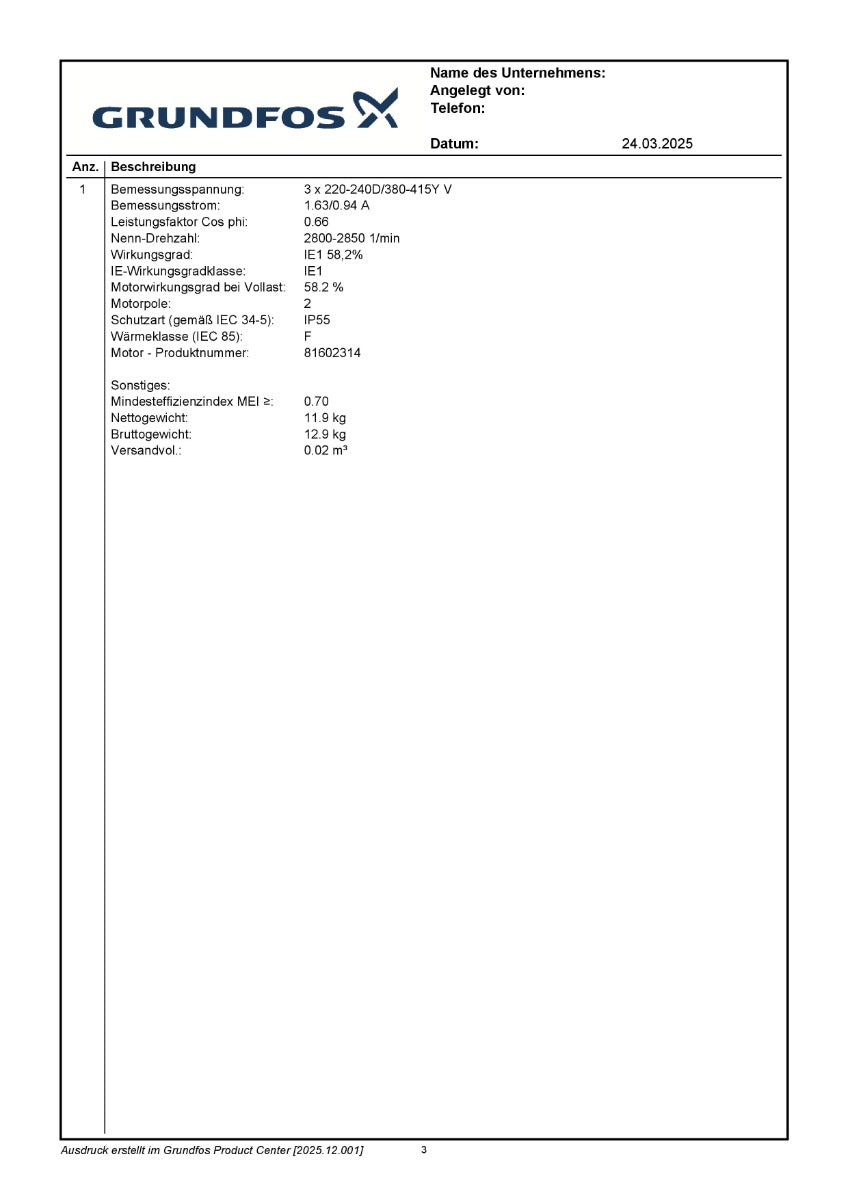

Electrical data

• Motor type: SIEMENS
• Motor power (P2): 0.25 kW
• Mains frequency: 50 Hz
• Voltage: 3 x 220-240D/380-415Y V
• Rated current: 1.63/0.94 A
• Power factor Cos φ: 0.66
• Rated speed: 2800-2850 1/min
• IE efficiency class: IE1
• Efficiency at full load: 58.2 %
• Motor poles: 2
• Protection class: IP55
• Thermal class: F
• Motor protection: none
• Motor product number: 81602314

Other

• Minimum efficiency index (MEI): ≥ 0.70
• Net weight: 11.9 kg
• Gross weight: 12.9 kg

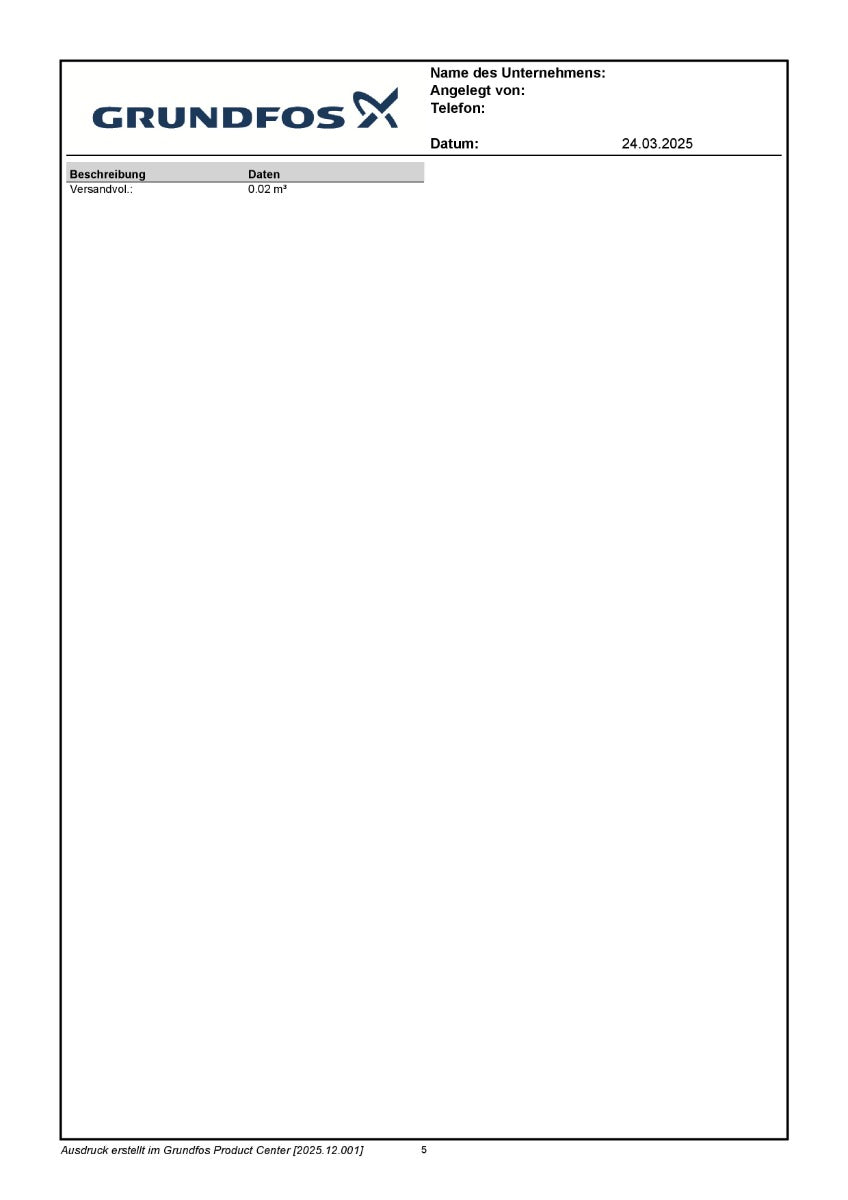

• Shipping volume: 0.02 m³

All further data can be found in the data sheet.

• Condition: New (original packaging)
• Our item number: PK 25/107
