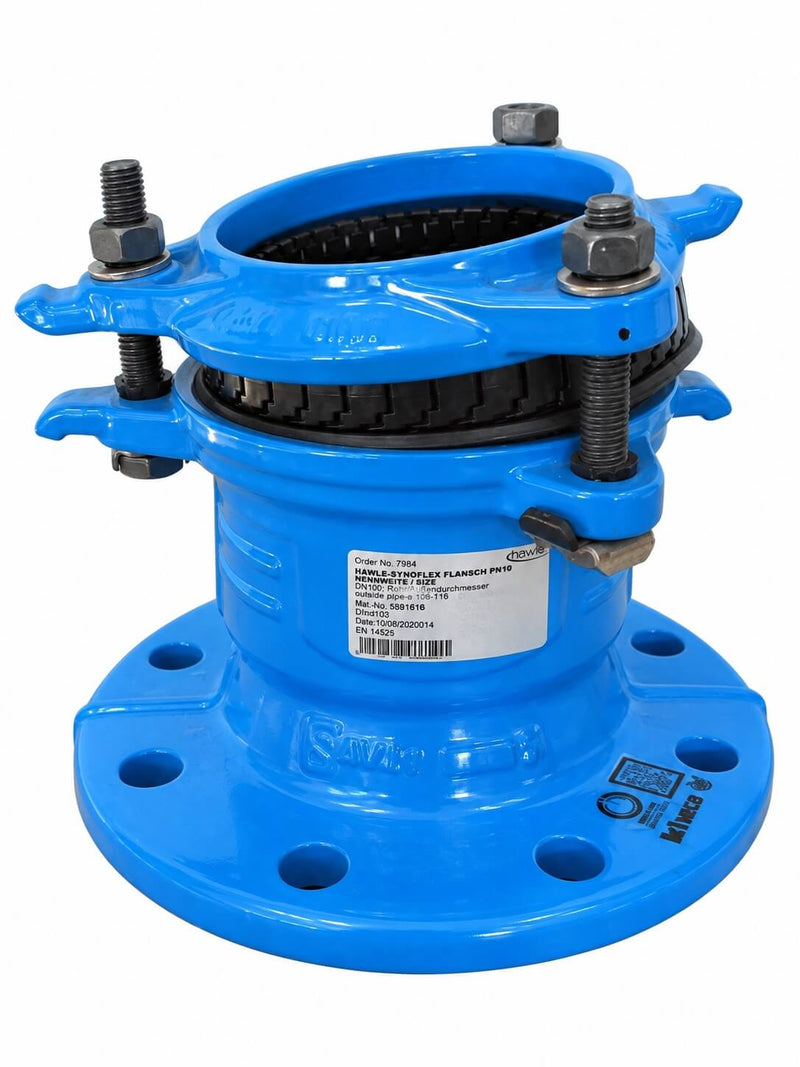

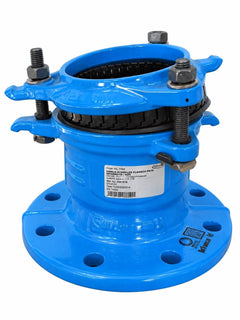

Hawle Synoflex Flange PN 16 DN 85-105 Reducer DN 100–80 K18/519

Hawle Synoflex Flange PN 16 DN 85–105 – Reducer

Original Hawle Synoflex flange / dismantling joint for the tensile-resistant connection of various types of pipes in water supply systems. Suitable for DN 100–80 and pipe diameters DN 85–105, pressure rating PN 16.

The Synoflex socket connection enables the tensile-resistant joining of common pipe types such as steel, cast iron, PE, PVC, and AC. The connection is corrosion-protected and features a flexible sealing ring and Synoflex ring.

Technical data

• Manufacturer: Hawle
• Design: Synoflex flange / dismantling joint
• Mat. No.: 5005197
• Order No.: 7994
• Nominal width: DN 100–80
• Pipe range: DN 85–105
• Pressure rating: PN 16
• Material: Steel / Iron
• Bolt hole spacing: 70 mm
• Tightening torque DN 80: 70 Nm or 60 Nm depending on pipe material
• Suitable for: PE / PVC / AC as well as steel and cast iron
• Standard: EN 14525
• Condition: New
• Our order number: K18/519

Features

• Tensile-resistant connection of various common pipe types
• Flexible seal
• Flexible Synoflex ring
• Corrosion-protected restraint system
• Bolting can be reversed by 180°
• Angular deflection up to max. 8° (±4° per socket)
• Support element and restraint element firmly connected to each other
• For PE pipes PE ≥ SDR 17, a support bush No. 6035 is required

Important note: When connecting AC pipes, tensile resistance cannot be guaranteed. The clamping elements do not need to be removed during installation.

Scope of delivery: 1 × Hawle Synoflex flange / dismantling joint
