KSB Calio 25-60 Wet Rotor Pump 1x230V 180 mm PK25/208
- A few left in stock!

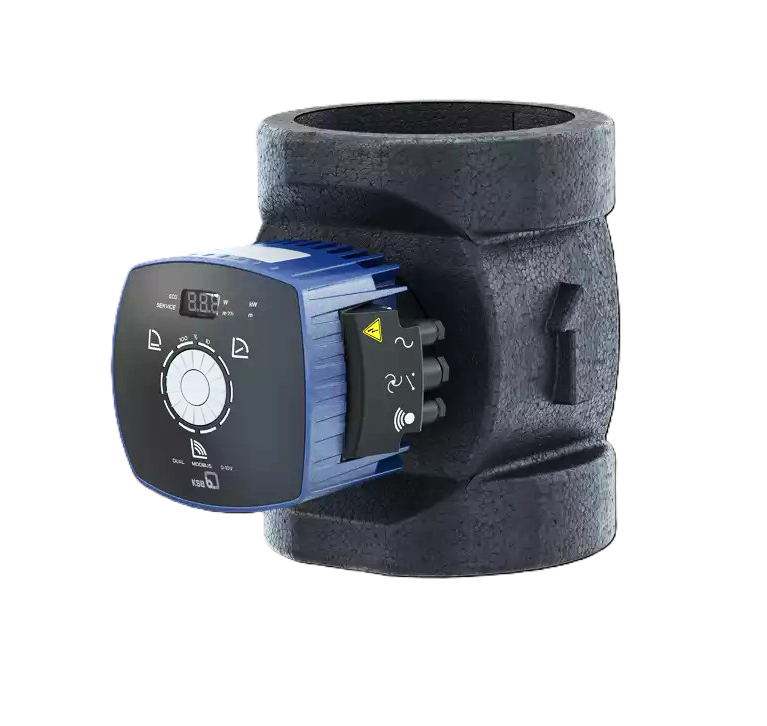

High-efficiency wet-runner pump KSB Calio 25-60
- Item number: 29134912
- Manufacturer: KSB
- Type: Calio 25-60
- Design: Wet-runner pump
- Weight: approx. 5.3 kg
- Installation length: 180 mm
- Pipe connection: G 1 ½"
- Rated power (Pn): 0.18 kW
- Speed: 3500 rpm
- Dry-installed pump KSB Calio
Maintenance-free, high-efficiency wet-runner pump with screw connection, high-efficiency electric motor and stepless differential pressure control.
Main applications
- Heating, ventilation, air conditioning, refrigeration systems and circulation systems
- 1-pipe systems and 2-pipe systems
- Underfloor heating
- Boiler circuits or primary circuits
Technical data:
- Max. current consumption: 0.91 A
- Max. operating temperature medium: 110 °C
- Permissible temperature range: -10 °C to +110 °C
- Max. ambient temperature: 40 °C
- Max. operating pressure: 33.420 lbf/ft²
- Mains connection: 1~230 V ±10 %, 50 Hz
- Protection class: IPX4D
Materials
- Casing: Grey cast iron, KTL-coated (EN-GJL-200)
- Shaft: Stainless steel 1.4034
- Impeller: Plastic (PSU-GF30) with glass fiber content
- Bearings: Ceramic/Carbon
- Canning: Stainless steel 1.4301
- Thermal insulation shells: Polypropylene (PP)
Integrated functions
- Stepless differential pressure control
- Constant pressure control
- Soft start & inrush current limitation
- Automatic deaeration function
- Automatic setback operation (deactivatable)
- Dynamic Control
- Energy and flow rate counter
- Display of delivery head, flow rate & electrical power
- Error code display on screen
- Operating interface with symbols & display
Communication & control interfaces
- Modbus RTU (via terminal pair)
- External analog signal (0–10 VDC)
- On/off function external
- Dual pump operation
- Configurable relays for operating & collective fault
Standards & directives
-
Electromagnetic compatibility:
- EN 55014-1, EN 61000-3-2/-3-3 (P1 < 400W)
- EN 61800-3 (P1 > 400W)
- EN 55014-2 (Immunity)
Scope of delivery
- Pump incl. two-part thermal insulation shell according to EnEV

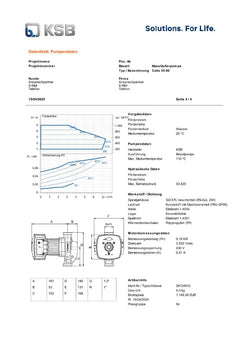

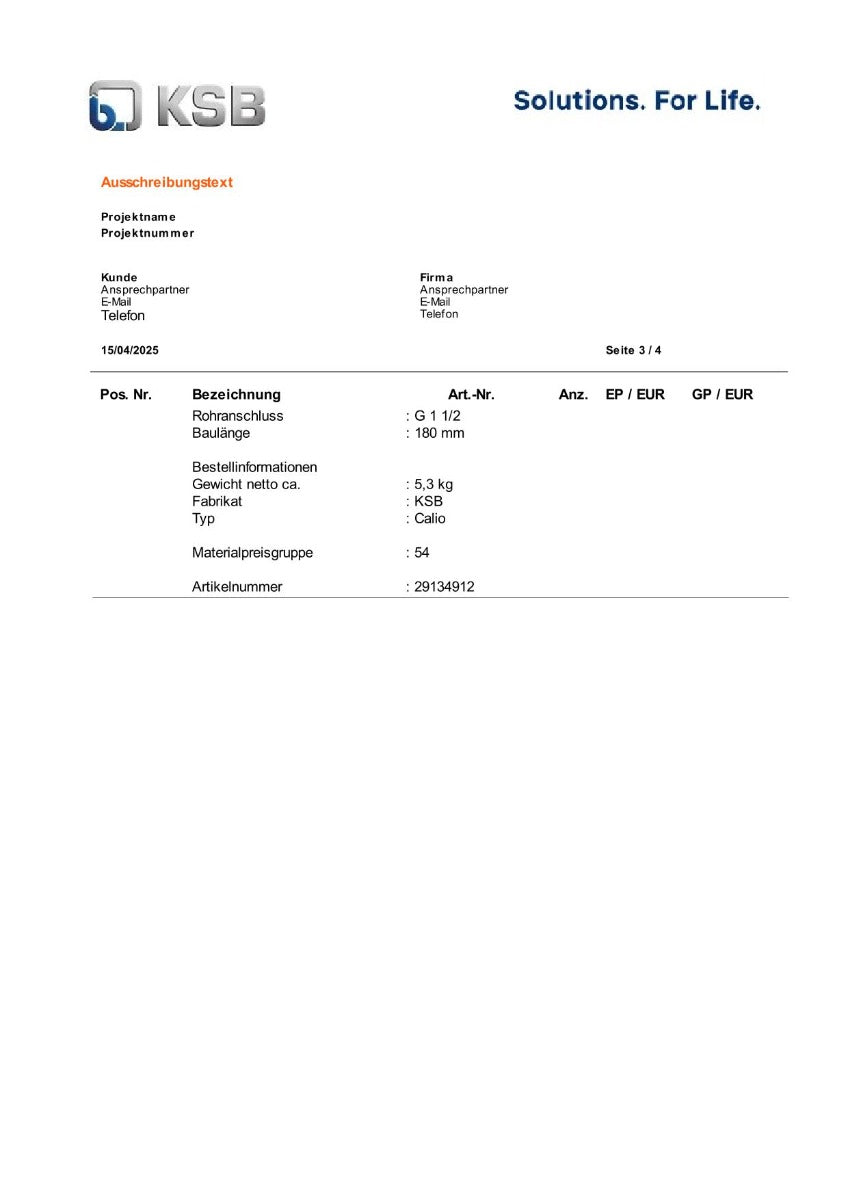

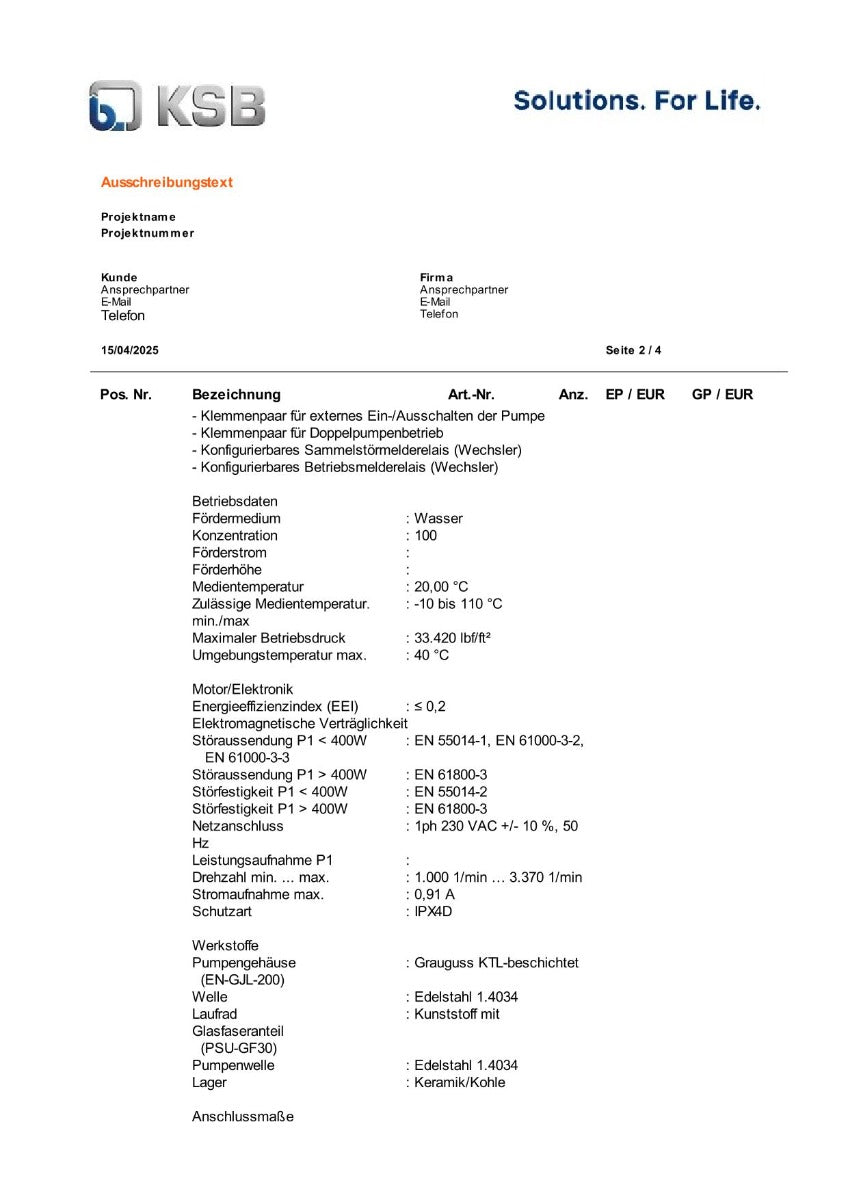

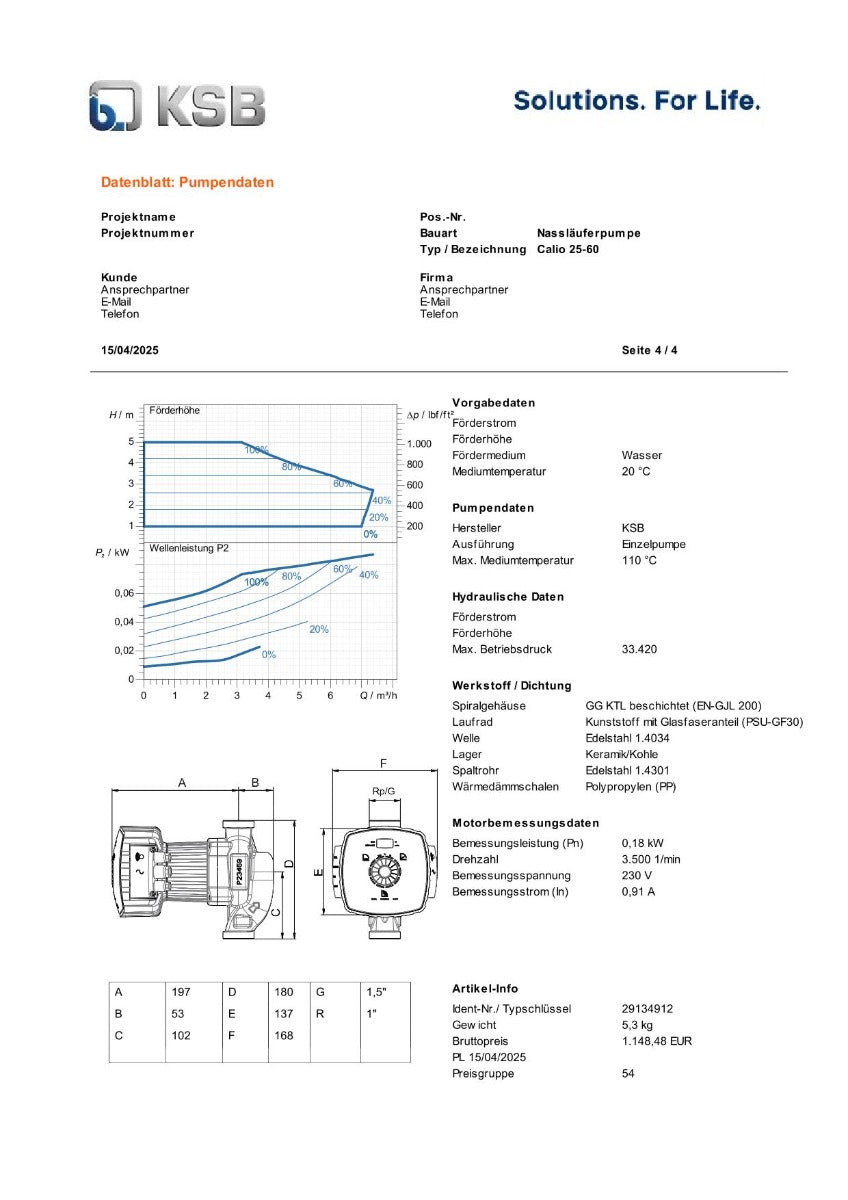

All other data can be found in the data sheet.
- Condition: NEW (OVP)
- Our item number: PK25/208
Couldn't load pickup availability
Further information
- Manufacturer: KSB
- Installation length: 180 mm
- Condition: new
- Pipe connection: G 1 1/2" (47.8mm)
