KSB Calio 30-100 Wet Runner Pump 1x230V 180 mm PK25/214

Price on request
Shipping calculated at checkout.
  • A few left in stock!
  • Inventory on the way

Highly Efficient Wet Runner Pump KSB Calio 30-100

  • Article Number: 29134918
  • Manufacturer: KSB
  • Type: Calio 30-100
  • Design: Wet Runner Pump
  • Weight: approx. 5.5 kg
  • Installation Length: 180 mm
  • Pipe Connection: G 2
  • Rated Power (Pn): 0.21 kW
  • Rated Current: 1.02 A
  • Rotational Speed: 4500 1/min
  • Dry-Installed Pump KSB Calio

Maintenance-free, highly efficient wet runner pump with screwed connection or flange connection, highly efficient electric motor, and stepless differential pressure control.

Main Applications

  • Heating, ventilation, air conditioning, refrigeration systems, and circulation systems
  • 1-pipe systems and 2-pipe systems
  • Underfloor heating
  • Boiler circuits or primary circuits

Technical Data:

  • Max. Operating Temperature Medium: 110 °C
  • Permissible Temperature Range: -10 °C to +110 °C
  • Max. Ambient Temperature: 40 °C
  • Max. Operating Pressure: 33.420 lbf/ft²
  • Mains Connection: 1~230 V ±10 %, 50 Hz
  • Protection Class: IPX4D

Materials

  • Casing: Grey cast iron, KTL-coated (EN-GJL-200)
  • Shaft: Stainless steel 1.4034
  • Impeller: Plastic (PSU-GF30) with glass fiber content
  • Bearing: Ceramic/Carbon
  • Rotor Can: Stainless steel 1.4301
  • Thermal Insulation Shells: Polypropylene (PP)

Integrated Functions

  • Stepless differential pressure control
  • Constant pressure control
  • Soft start & inrush current limitation
  • Automatic de-aeration function
  • Automatic setback operation (deactivatable)
  • Dynamic Control
  • Energy and flow rate counter
  • Display of head, flow rate & electrical power
  • Error code display on screen
  • Operating interface with symbols & display

Communication & Control Interfaces

  • Modbus RTU (via terminal pair)
  • External analog signal (0–10 VDC)
  • External on/off function
  • Dual pump operation
  • Configurable relays for operating & collective fault

Standards & Guidelines

  • Electromagnetic Compatibility:
    • EN 55014-1, EN 61000-3-2/-3-3 (P1 < 400W)
    • EN 61800-3 (P1 > 400W)
    • EN 55014-2 (Immunity)

Scope of Delivery

  • Pump incl. two-part thermal insulation shell according to EnEV

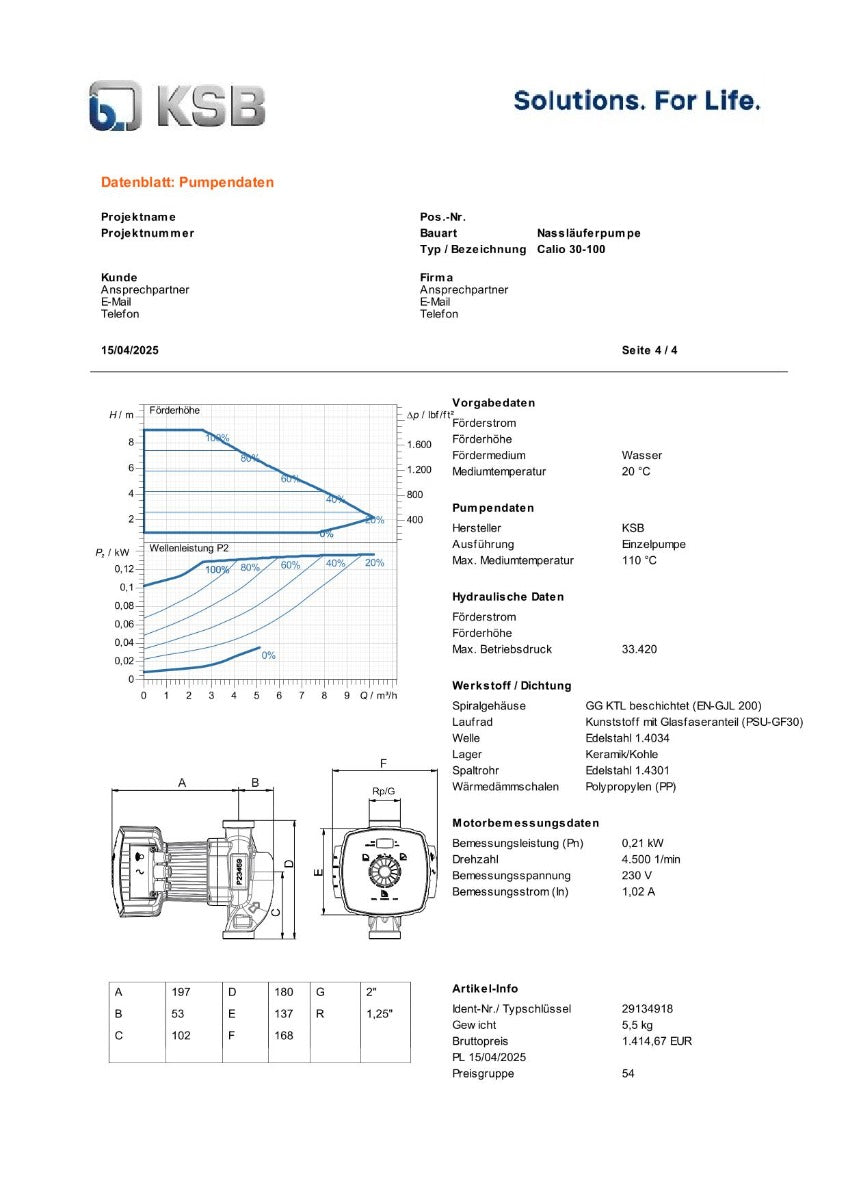

All other data can be found in the data sheet.

  • Condition: NEW (OVP)
  • Our Item Number: PK25/214
Further information
  • Manufacturer: KSB
  • Installation length: 180 mm
  • Condition: new
  • Pipe connection: G 2" (59.6mm)
Secure shopping

All electrical equipment has undergone a VDE safety inspection.

Delivery & Shipping
  • Austria: 1-2 working days
  • Germany: 2–3 working days
  • Europe-wide: 3–5 working days

Note:
For freight forwarding goods from 40 kg, the delivery time is 3–5 working days.

More about our delivery and shipping conditions
