KSB Calio 30-80 Wet Rotor Pump 1x230V 180 mm PK25/213
- A few left in stock!
High-efficiency glandless pump KSB Calio 30-80
- Article number: 29134917
- Manufacturer: KSB
- Type: Calio 30-80
- Design: Glandless pump
- Weight: approx. 5.5 kg
- Installation length: 180 mm
- Pipe connection: G 2
- Rated power (Pn): 0.18 kW
- Rated current: 0.99A
- Rotational speed: 3500 1/min
- Dry-installed pump KSB Calio
Maintenance-free, high-efficiency glandless pump with screw connection, high-efficiency electric motor and stepless differential pressure control.
Main applications
- Heating, ventilation, air conditioning, refrigeration systems and circulation systems
- 1-pipe systems and 2-pipe systems
- Underfloor heating
- Boiler circuits or primary circuits
Technical data:
- Max. operating temperature of medium: 110 °C
- Permissible temperature range: -10 °C to +110 °C
- Max. ambient temperature: 40 °C
- Max. operating pressure: 33.420 lbf/ft²
- Mains connection: 1~230 V ±10 %, 50 Hz
- Protection class: IPX4D
Materials
- Casing: Grey cast iron, KTL-coated (EN-GJL-200)
- Shaft: Stainless steel 1.4034
- Impeller: Plastic (PSU-GF30) with glass fibre content
- Bearings: Ceramic/carbon
- Rotor can: Stainless steel 1.4301
- Thermal insulation shells: Polypropylene (PP)
Integrated functions
- Stepless differential pressure control
- Constant pressure control
- Soft start & current surge limitation
- Automatic de-aeration function
- Automatic setback operation (deactivatable)
- Dynamic Control
- Energy and flow rate counter
- Display of head, flow rate & electrical power
- Error code display on screen
- Operating interface with symbols & display
Communication & control interfaces
- Modbus RTU (via terminal pair)
- External analogue signal (0–10 VDC)
- External on/off function
- Twin pump operation
- Configurable relays for operating & collective fault signals
Standards & guidelines
-
Electromagnetic compatibility:
- EN 55014-1, EN 61000-3-2/-3-3 (P1 < 400W)
- EN 61800-3 (P1 > 400W)
- EN 55014-2 (Immunity)
Scope of delivery
- Pump incl. two-part thermal insulation shell according to EnEV

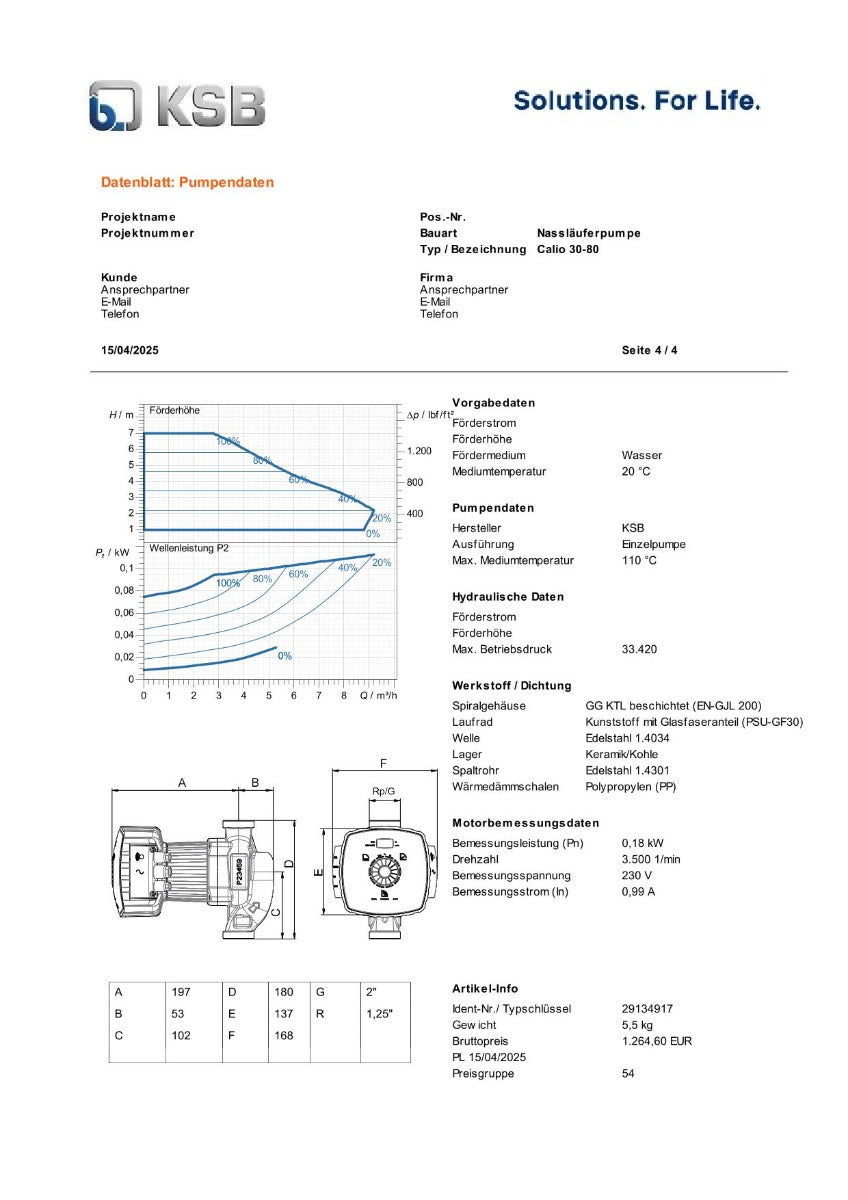

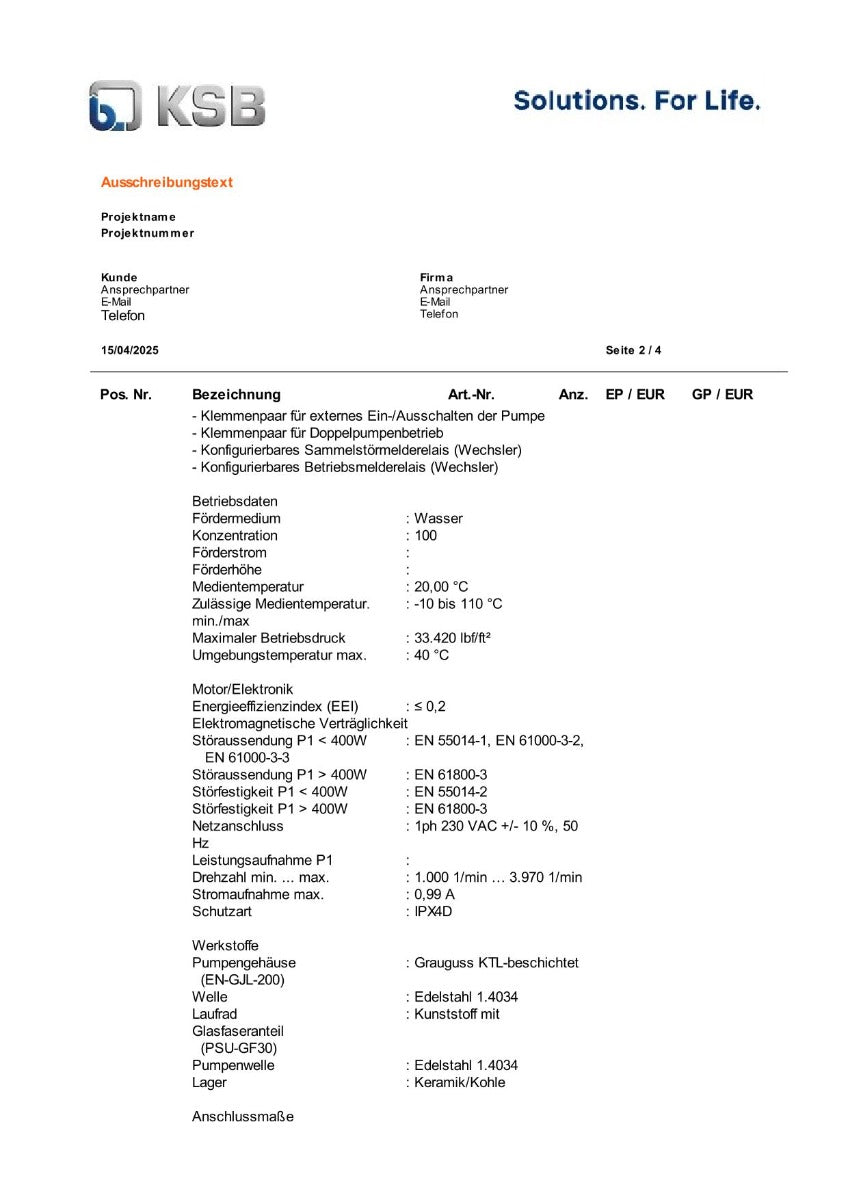

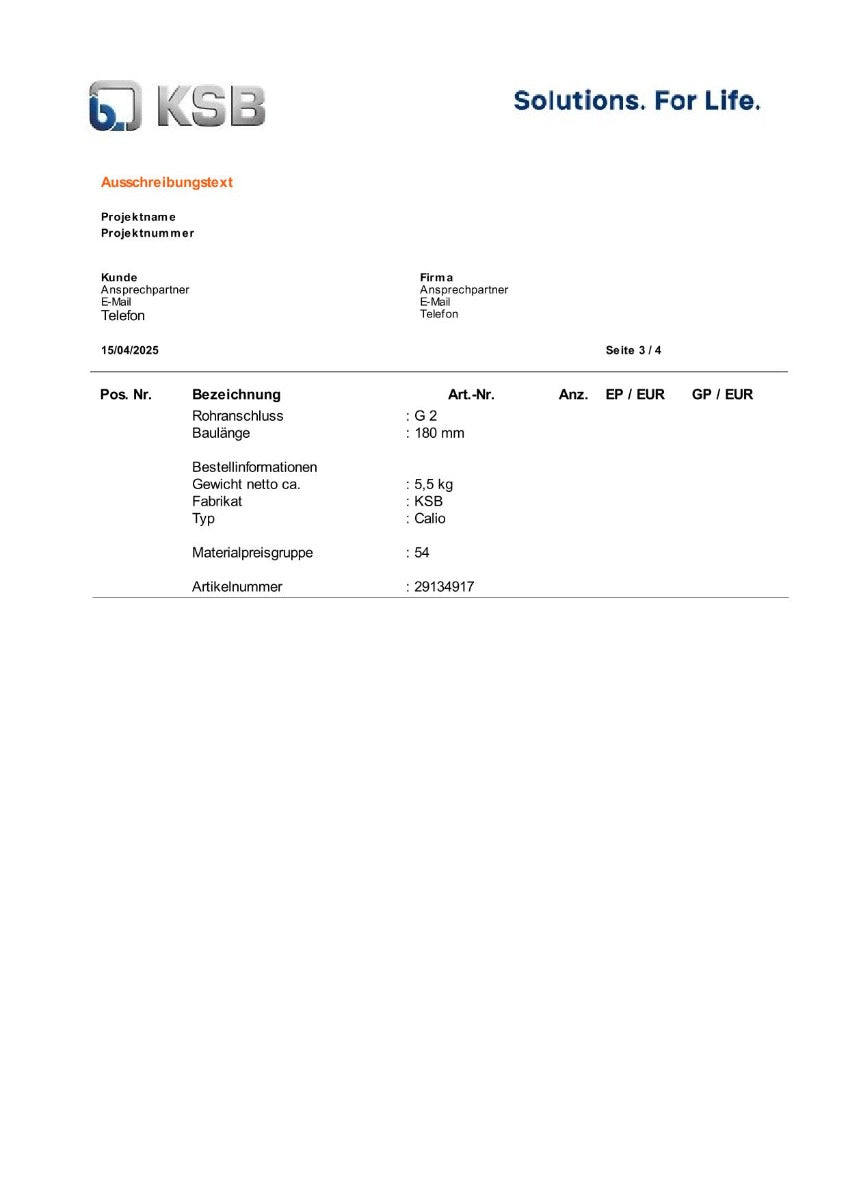

All other data can be found in the datasheet.
- Condition: NEW (OVP)
- Our article number: PK25/213
Couldn't load pickup availability
Further information
- Manufacturer: KSB
- Installation length: 180 mm
- Condition: new
- Pipe connection: G 2" (59.6mm)
