KSB Calio 32-40 Wet Runner Pump 1x230V 220 mm PK25/216
- A few left in stock!
Highly efficient glandless pump KSB Calio 32-40
- Article number: 29135102
- Manufacturer: KSB
- Type: Calio 32-40
- Design: Glandless pump
- Weight: 9.62 kg
- Installation length: 220 mm
- Connection: DN32
- Rated power (Pn): 0.075 kW
- Rated current: 0.91 A
- Speed: 2900 rpm
- Dry-installed pump KSB Calio
Maintenance-free, highly efficient glandless pump with flange connection, highly efficient electric motor and stepless differential pressure control.
Main applications
- Heating, ventilation, air conditioning, refrigeration systems and circulation systems
- 1-pipe systems and 2-pipe systems
- Underfloor heating systems
- Boiler circuits or primary circuits
Technical data:
- Max. operating temperature medium: 110 °C
- Permissible temperature range: -10 °C to +110 °C
- Max. ambient temperature: 40 °C
- Max. operating pressure: 33.420 lbf/ft²
- Mains connection: 1~230 V ±10 %, 50 Hz
- Protection class: IPX4D
Materials
- Casing: Grey cast iron, KTL-coated (EN-GJL-200)
- Shaft: Stainless steel 1.4034
- Impeller: Plastic (PSU-GF30) with glass fibre content
- Bearing: Ceramic/carbon
- Rotor can: Stainless steel 1.4301
- Thermal insulation shells: Polypropylene (PP)
Integrated functions
- Stepless differential pressure control
- Constant pressure control
- Soft start & inrush current limitation
- Automatic deaeration function
- Automatic setback operation (deactivatable)
- Dynamic Control
- Energy and flow rate counter
- Display of head, flow rate & electrical power
- Error code display on screen
- Operating interface with symbols & display
Communication & control interfaces
- Modbus RTU (via terminal pair)
- External analog signal (0–10 VDC)
- External on/off function
- Twin pump operation
- Configurable relays for operating & collective fault
Standards & directives
-
Electromagnetic compatibility:
- EN 55014-1, EN 61000-3-2/-3-3 (P1 < 400W)
- EN 61800-3 (P1 > 400W)
- EN 55014-2 (immunity)
Scope of delivery
- Pump incl. two-part thermal insulation shell according to EnEV

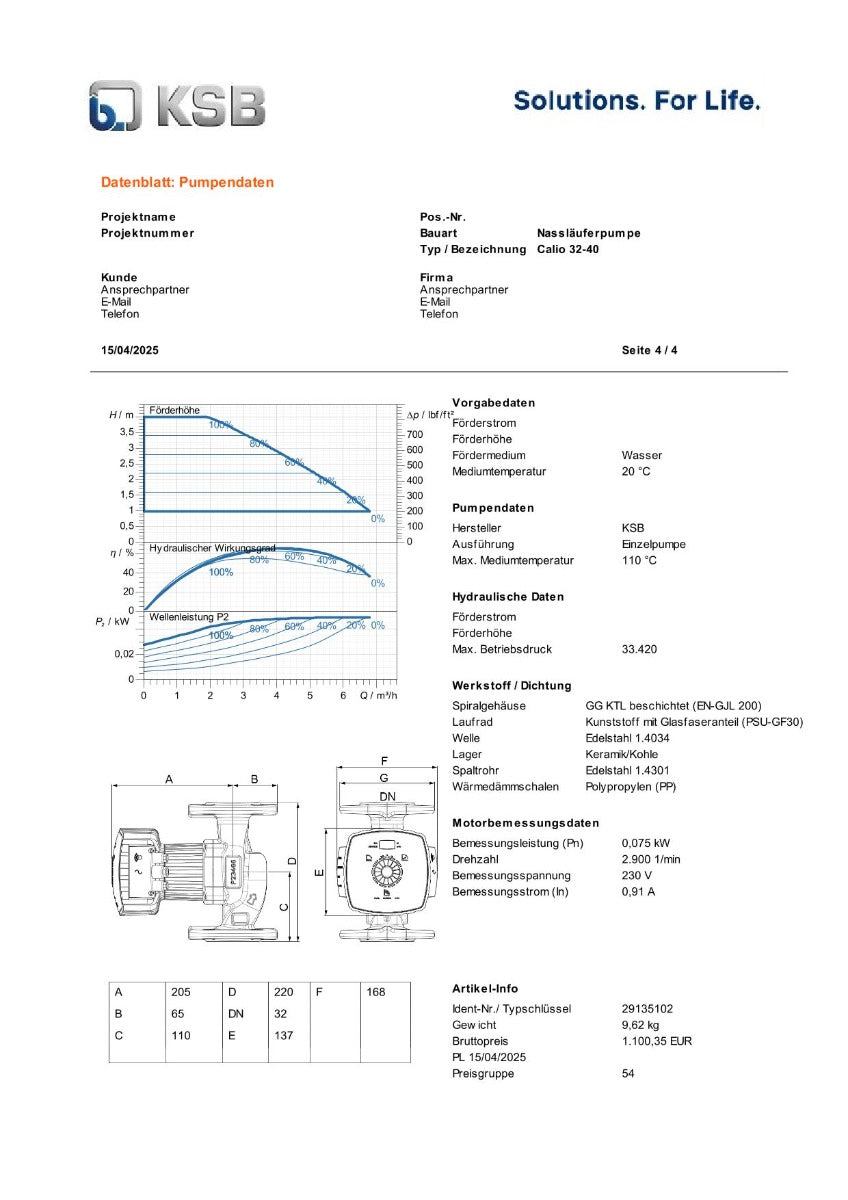

All other data can be found in the data sheet.
- Condition: NEW (original packaging)
- Our item number: PK25/216
