KSB Calio 65-120 Glandless Pump 1x230V 340 mm PK25/235
- A few left in stock!
High-Efficiency Wet Rotor Pump KSB Calio 65-120
- Item number: 29134868
- Manufacturer: KSB
- Type: Calio 65-120
- Design: Wet rotor pump
- Weight: 29.7 kg
- Installation length: 340 mm
- Connection: DN65
- Rated power (Pn): 0.82 kW
- Rated current: 0.82 A
- Speed: 3200 1/min
- Dry-installed pump KSB Calio
Maintenance-free, high-efficiency wet rotor pump with flange connection, high-efficiency electric motor and stepless differential pressure control.
Main Applications
- Heating, ventilation, air conditioning, refrigeration systems and circulation systems
- 1-pipe systems and 2-pipe systems
- Underfloor heating
- Boiler circuits or primary circuits
Technical Data:
- Max. operating temperature of medium: 110 °C
- Permissible temperature range: -10 °C to +110 °C
- Max. ambient temperature: 40 °C
- Max. operating pressure: 33.420 lbf/ft²
- Mains connection: 1~230 V ±10 %, 50 Hz
- Protection class: IPX4D
Materials
- Casing: Grey cast iron, KTL coated (EN-GJL-200)
- Shaft: Stainless steel 1.4034
- Impeller: Plastic (PSU-GF30) with glass fiber content
- Bearings: Ceramic/Carbon
- Rotor can: Stainless steel 1.4301
- Thermal insulation shells: Polypropylene (PP)
Integrated Functions
- Stepless differential pressure control
- Constant pressure control
- Soft start & inrush current limitation
- Automatic ventilation function
- Automatic reduced operation (deactivatable)
- Dynamic Control
- Energy and flow rate counter
- Display of head, flow rate & electrical power
- Error code display on screen
- Operating interface with symbols & display
Communication & Control Interfaces
- Modbus RTU (via terminal pair)
- External analog signal (0–10 VDC)
- External on/off function
- Dual pump operation
- Configurable relays for operational & collective fault
Standards & Guidelines
-
Electromagnetic compatibility:
- EN 55014-1, EN 61000-3-2/-3-3 (P1 < 400W)
- EN 61800-3 (P1 > 400W)
- EN 55014-2 (Immunity)
Scope of Delivery
- Pump including two-piece thermal insulation shell according to EnEV

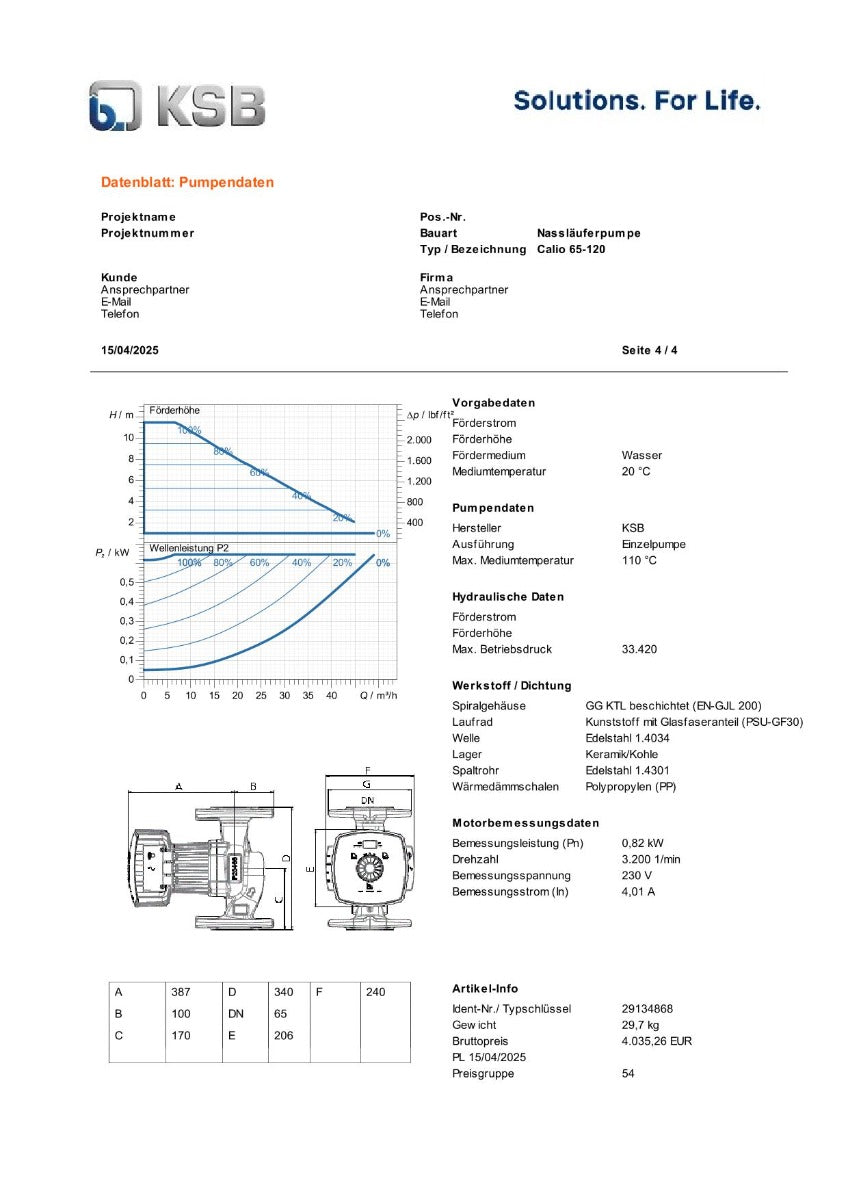

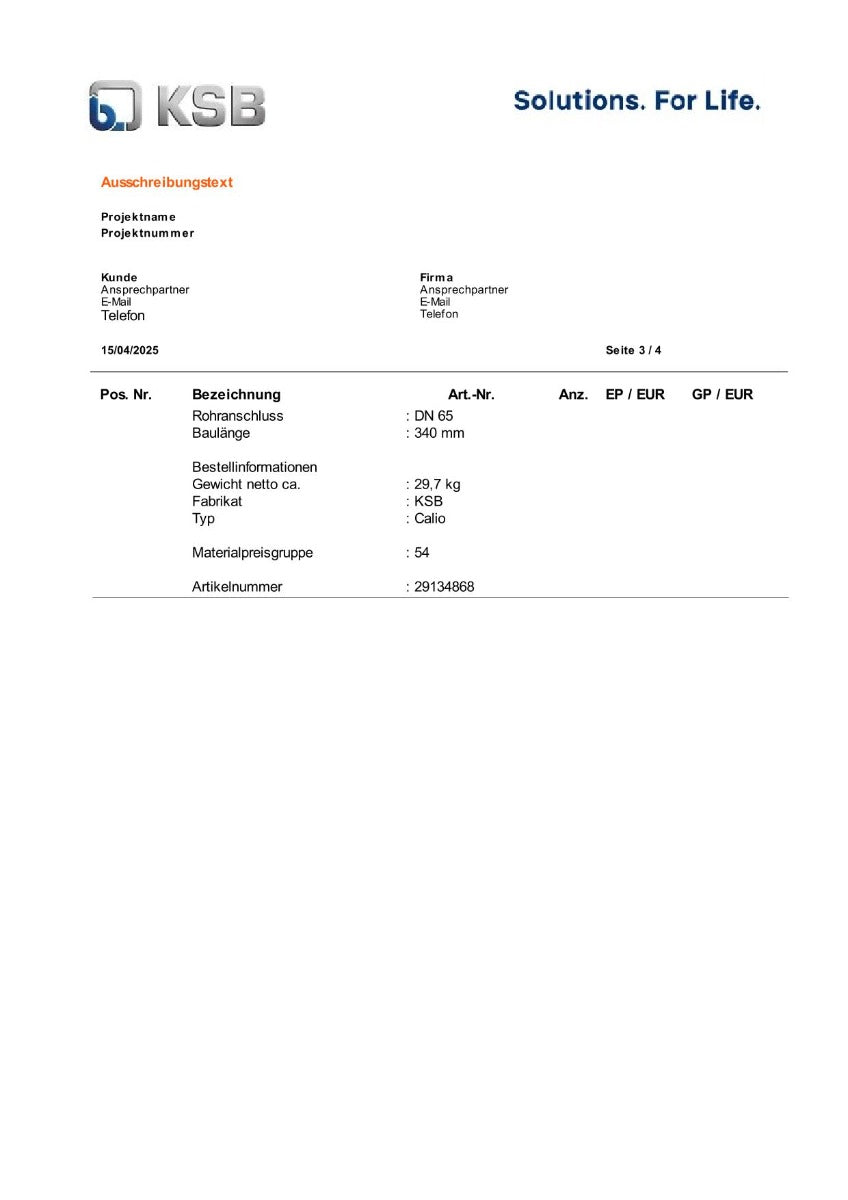

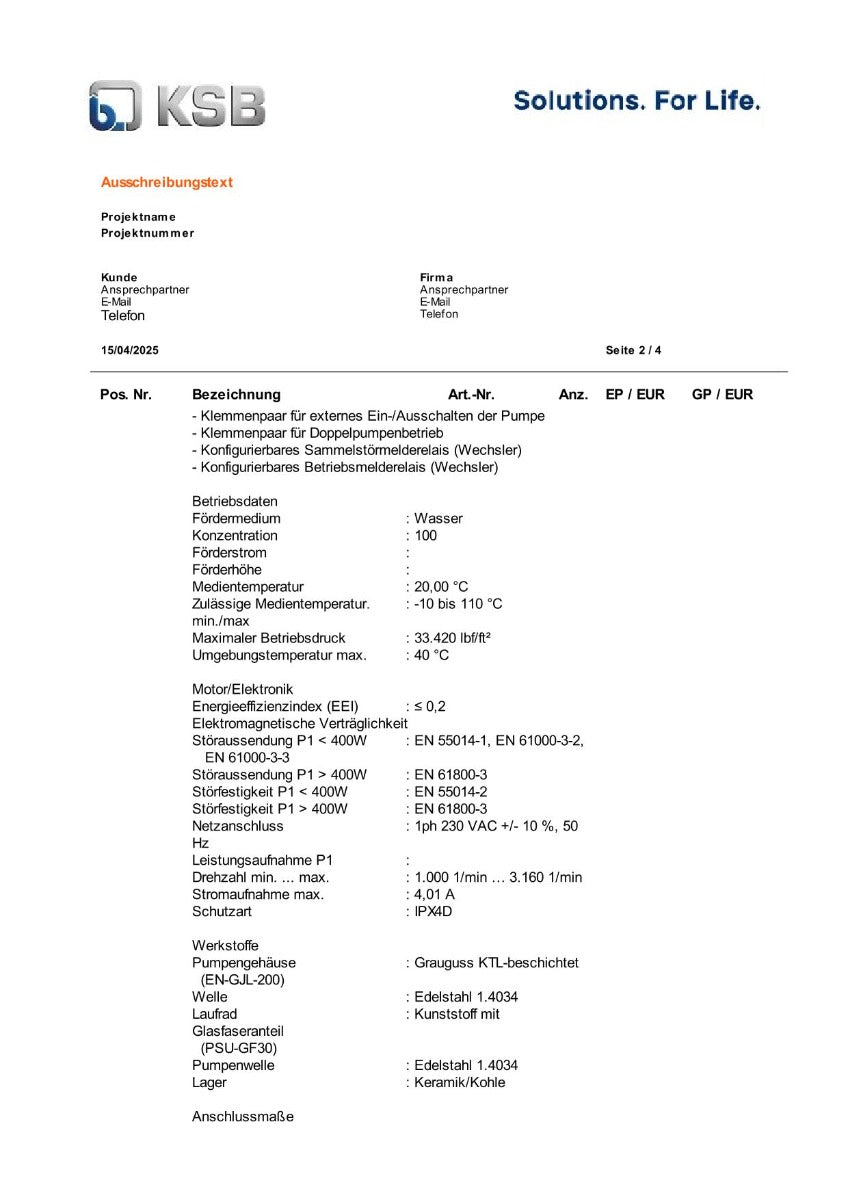

All other data can be found in the data sheet.
- Condition: NEW (OVP)
- Our item number: PK25/235
Couldn't load pickup availability
Further information
- Manufacturer: KSB
- Installation length: 340 mm
- Condition: new
- Pipe connection: DN 65
