KSB Calio Pro 25-40 Wet Runner Pump 1x230V G 1 1/2" 180 mm PK25/240
- A few left in stock!

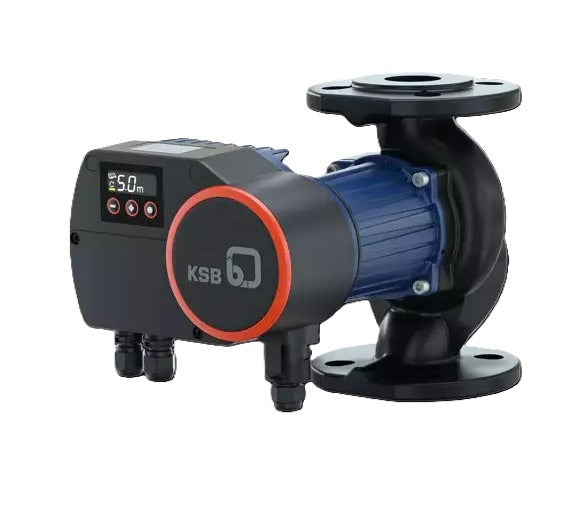

Highly efficient wet-running pump KSB Calio Pro 25-40
- Item number: 29135107
- Manufacturer: KSB
- Type: Calio Pro 25-40
- Design: Wet-running pump
- Weight: 5.4 kg
- Installation length: 180 mm
- Connection: RP 1
- Rated power (Pn): 0.08 kW
- Rated current: 0.8 A
- Speed: 3200 rpm
KSB Calio Pro
Highly efficient heating circulator pump
Maintenance-free, highly efficient wet-running pump with block-current-proof synchronous motor based on ECM technology. Equipped with stepless differential pressure control for optimal system adaptation.
Main applications
- Heating, ventilation, air conditioning and refrigeration systems
- Circulation systems
- 1-pipe systems and 2-pipe systems
- Surface heating systems such as underfloor heating
- Boiler circuits or primary circuits
Operating modes
- Constant pressure control
- Proportional pressure control
- DynamicControl Mode – dynamically adjusted differential pressure
- Fixed speed operation with manually selectable speed
Functions
- Set point setting in meters head
- Operating interface with symbols & plain text display for operating mode and set point
- Error code display on the screen
- Activatable de-aeration function
- Soft start with startup current limitation
- Deblocking function for blocked shaft
- Integrated motor protection
Communication & Control
- Terminal pair for twin pump operation
- Common fault relay (potential-free changeover contact)
Technical data – Operating range
- Pumped medium: Water (Concentration: 100 %)
- Medium temperature: 20 °C (permissible: -10 °C to +110 °C)
- Max. operating pressure: 33.420 lbf/ft²
- Max. ambient temperature: 40 °C
Motor & Electronics
- Mains connection: 1~230 V ±10 %, 50 Hz
- Protection class: IPX4D
Electromagnetic compatibility
- Emissions: EN 55014-1, EN 61000-3-2, EN 61000-3-3
- Immunity: EN 55014-2
- Emission limit: ≤ 0.2
Materials
- Pump casing: Grey cast iron, KTL-coated (EN-GJL-200)
- Shaft: Stainless steel 1.4034
- Impeller: Plastic PSU-GF30 (with glass fiber content)
- Bearings: Ceramic/Carbon
Scope of delivery
- Pump including two-part thermal insulation shell according to EnEV
- KSB connection plug
- Installation and operating instructions

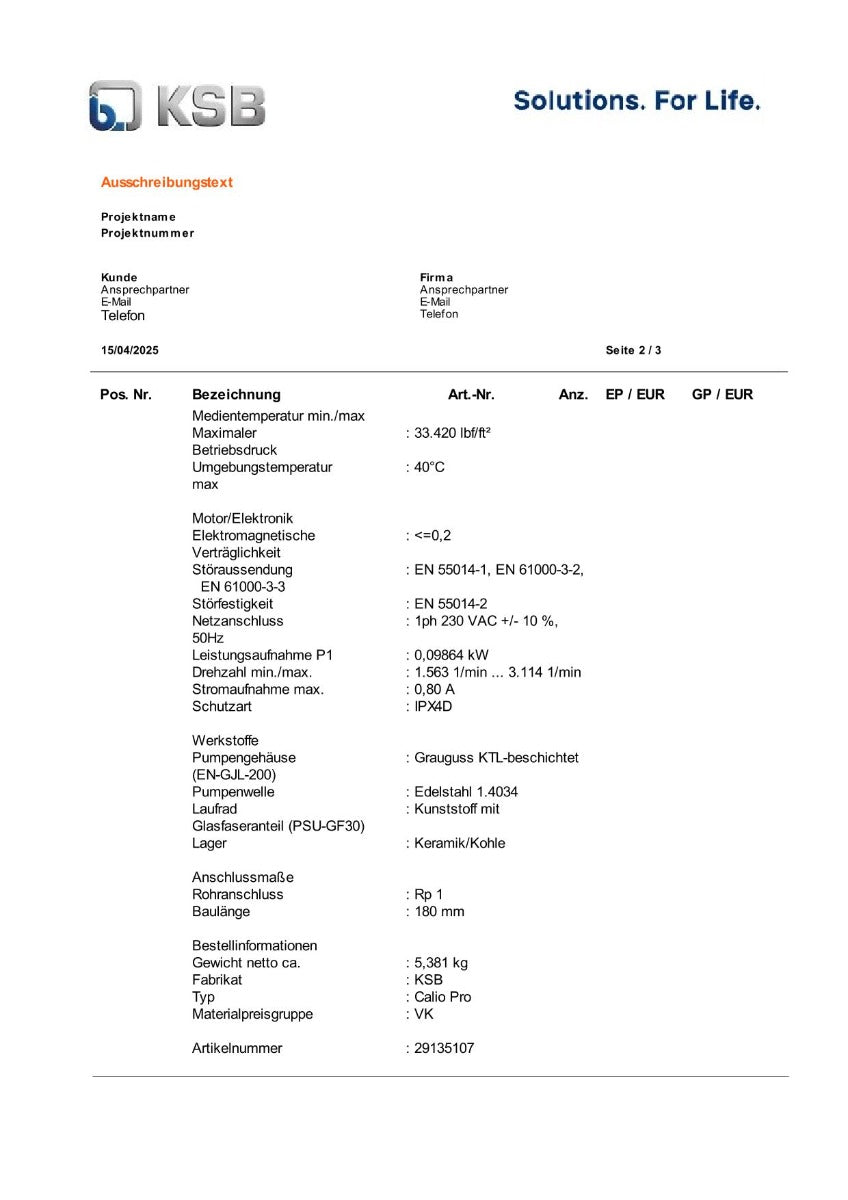

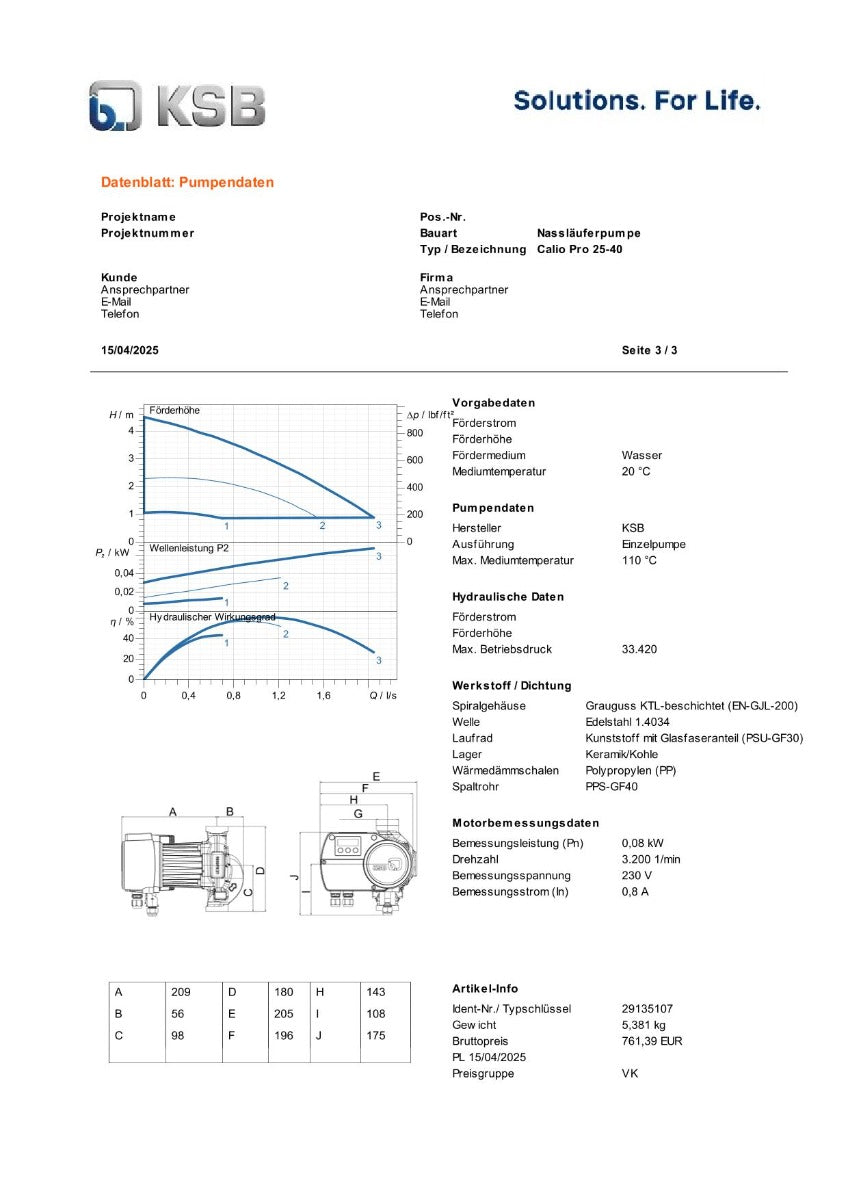

All other data can be found in the data sheet.
- Condition: NEW (OVP)
- Our item number: PK25/240
Couldn't load pickup availability
Further information
- Manufacturer: KSB
- Installation length: 180 mm
- Condition: new
- Pipe connection: G 1 1/2" (47.8mm)
