KSB Calio Pro 25-60 Wet Rotor Pump 1x230V G 1 1/2" 180 mm PK25/241
- A few left in stock!
Highly Efficient Wet Runner Pump KSB Calio Pro 25-60
- Article Number: 29135108
- Manufacturer: KSB
- Type: Calio Pro 25-60
- Design: Wet Runner Pump
- Weight: 5.4 kg
- Installation Length: 180 mm
- Connection: RP 1, G 1 1/2"
- Rated Power (Pn): 0.08 kW
- Rated Current: 0.125 A
- Speed: 3700 rpm
KSB Calio Pro
Highly Efficient Heating Circulation Pump
Maintenance-free, highly efficient wet runner pump with a current-blocking synchronous motor based on ECM technology. Equipped with stepless differential pressure control for optimal system adaptation.
Main Applications
- Heating, ventilation, air conditioning, and refrigeration systems
- Circulation systems
- 1-pipe systems and 2-pipe systems
- Surface heating systems such as underfloor heating
- Boiler circuits or primary circuits
Operating Modes
- Constant pressure control
- Proportional pressure control
- DynamicControl Mode – dynamically adjusted differential pressure
- Fixed speed operation with manually selectable speed
Functions
- Setpoint input in meters head
- Operating interface with symbols & plain text display for operating mode and setpoint
- Error code display on the screen
- Activatable venting function
- Soft start with inrush current limitation
- Deblocking function for blocked shaft
- Integrated motor protection
Communication & Control
- Terminal pair for twin pump operation
- Collective fault relay (potential-free changeover contact)
Technical Data – Operating Range
- Pumped Medium: Water (Concentration: 100 %)
- Medium Temperature: 20 °C (permissible: -10 °C to +110 °C)
- Max. Operating Pressure: 33.420 lbf/ft²
- Max. Ambient Temperature: 40 °C
Motor & Electronics
- Mains Connection: 1~230 V ±10 %, 50 Hz
- Protection Class: IPX4D
Electromagnetic Compatibility
- Emission: EN 55014-1, EN 61000-3-2, EN 61000-3-3
- Immunity: EN 55014-2
- Emission Limit: ≤ 0.2
Materials
- Pump Casing: Grey cast iron, KTL-coated (EN-GJL-200)
- Shaft: Stainless steel 1.4034
- Impeller: Plastic PSU-GF30 (with glass fiber content)
- Bearings: Ceramic/Carbon
Scope of Delivery
- Pump incl. two-part thermal insulation shell according to EnEV
- KSB connection plug
- Installation and operating instructions

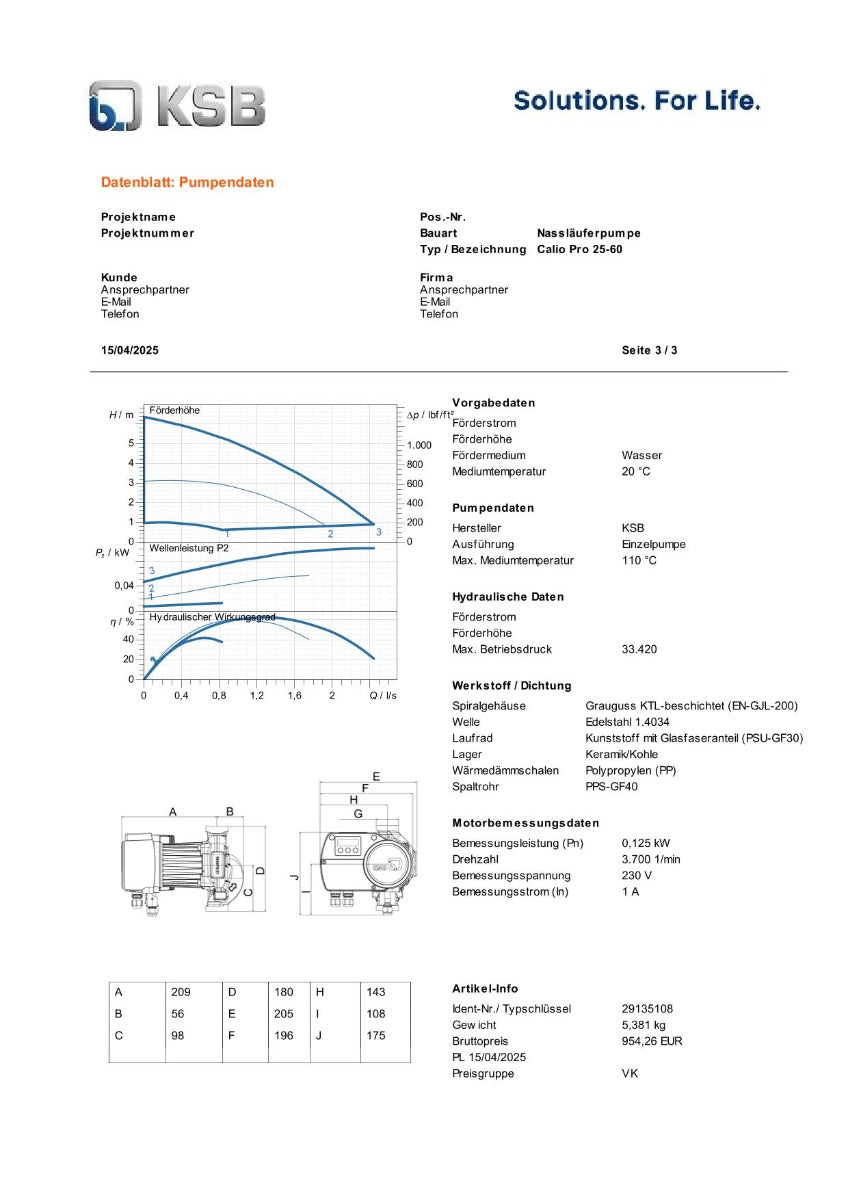

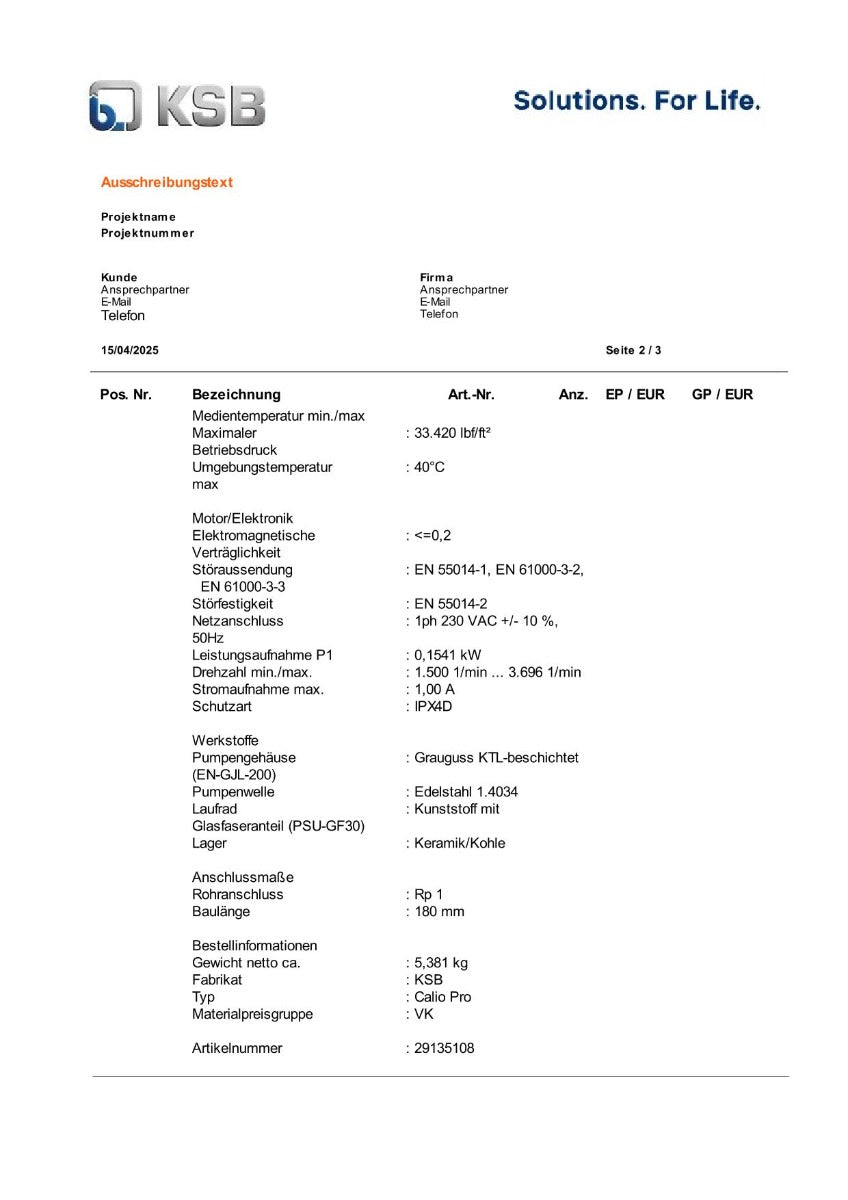

Further data can be found in the data sheet.
- Condition: NEW (Original Packaging)
- Our Article Number: PK25/241
