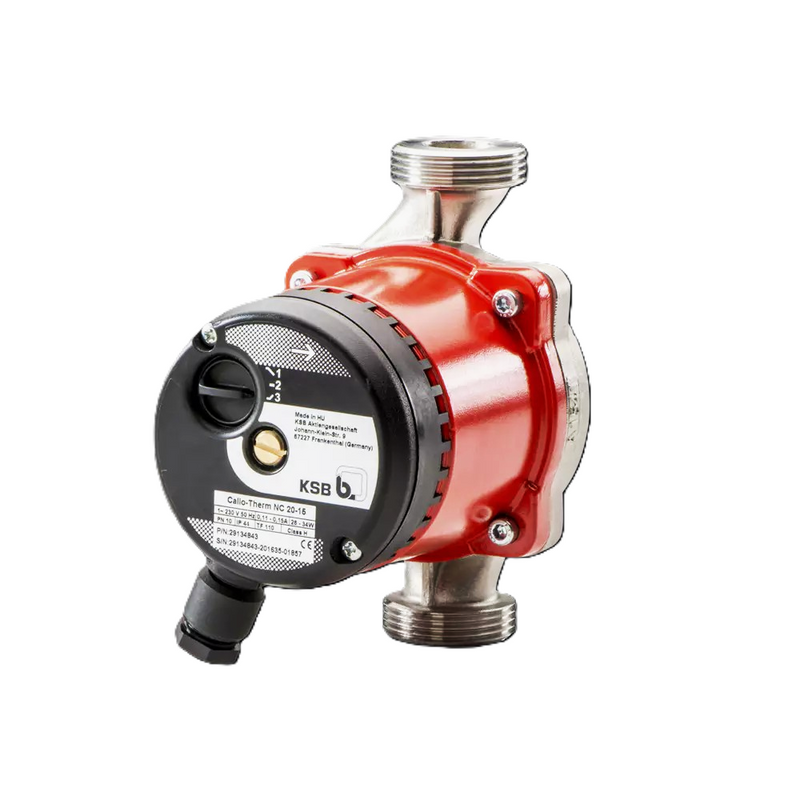

KSB CALIO-THERM NC 20-30 High-efficiency drinking water pump 1x230V RP 3/4 G 1 1/4 150 mm PK25/291

Price on request
Shipping calculated at checkout.
  • A few left in stock!
  • Inventory on the way

Calio-Therm NC 20-30

  • Connection: Rp ¾, Pump G 1 ¼
  • Installation length: 150 mm
  • PN: 10 bar
  • Speed range: 1300–2800 rpm
  • Power consumption: 28–37 W
  • Rated current consumption: 0.12–0.15 A
  • Weight: 2.7 kg
  • Article number: 29134844


For medium circulation systems with moderate head. Ideal for smaller apartment buildings or central hot water systems.

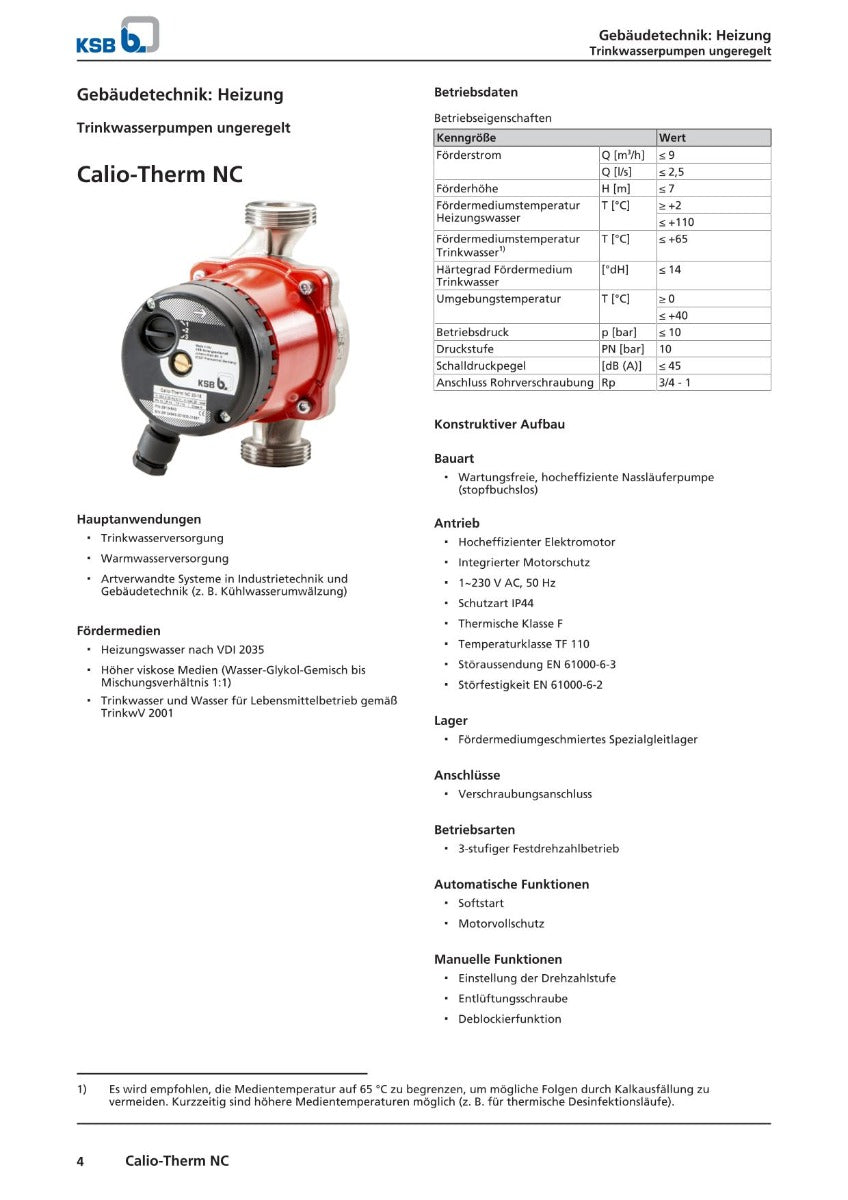

Highly efficient drinking water pump KSB Calio-Therm NC

The Calio-Therm NC is a maintenance-free, uncontrolled wet-running pump for applications in heating and drinking water supply. It is particularly suitable for use in building services and for related industrial applications such as cooling water circulation.

Main applications

  • Drinking water supply
  • Hot water supply
  • Related systems in industrial technology and building services (e.g., cooling water circulation)

Pumped media

  • Heating water according to VDI 2035
  • Higher viscosity media (water-glycol mixture up to mixing ratio 1:1)
  • Drinking water and water for food processing according to TrinkwV 2001

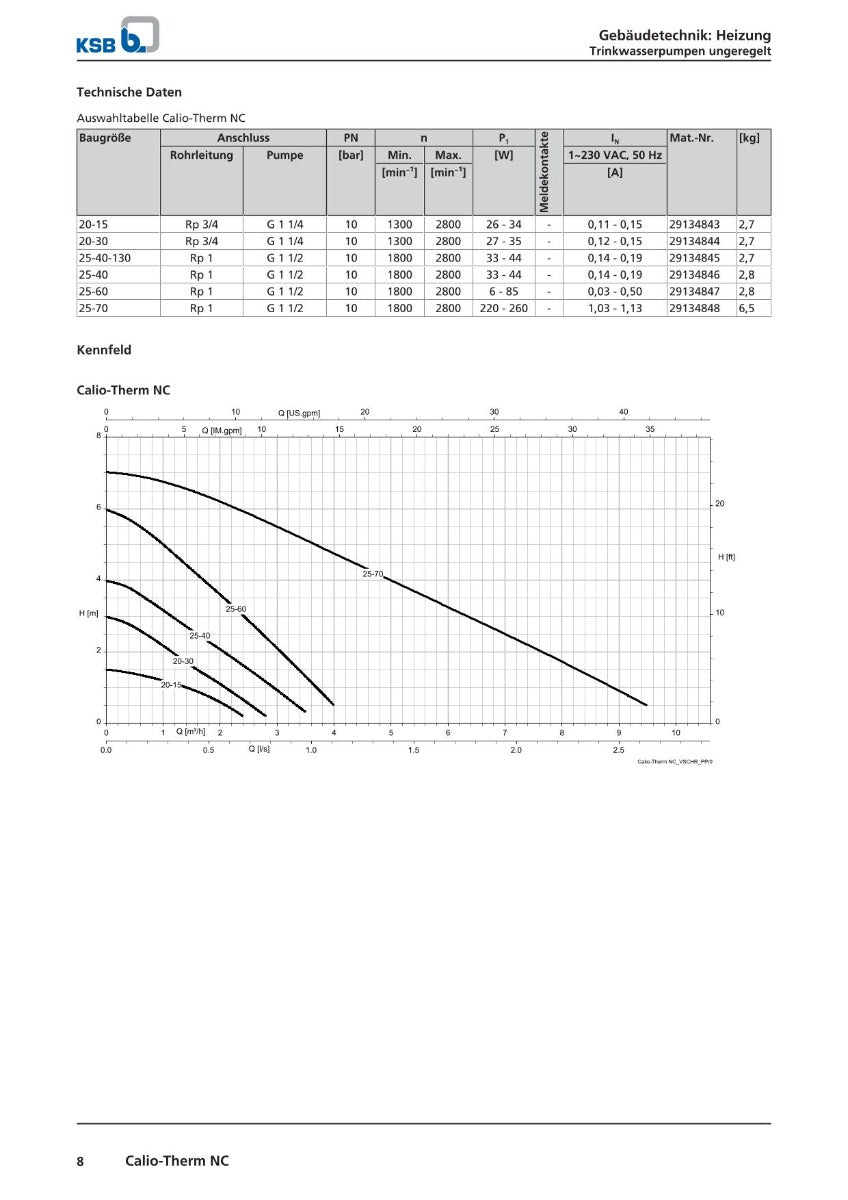

Technical data

  • Flow rate: up to 9 m³/h (up to 2.5 l/s)
  • Head: up to 7 m
  • Media temperature heating water: +2 °C to +110 °C
  • Media temperature drinking water: up to +65 °C
  • Hardness of drinking water: max. 14 °dH
  • Ambient temperature: 0 °C to +40 °C
  • Max. operating pressure: 10 bar
  • Pressure rating: PN 10
  • Sound pressure level: ≤ 45 dB(A)
  • Connection: Pipe union Rp ¾ – 1

Construction

Maintenance-free, highly efficient wet-running pump (glandless)

Drive

  • Highly efficient electric motor
  • Integrated motor protection
  • Mains connection: 1~230 V AC, 50 Hz
  • Protection class: IP44
  • Thermal class: F
  • Temperature class: TF 110
  • Electromagnetic emissions: EN 61000-6-3
  • Immunity to interference: EN 61000-6-2

Bearings

Special plain bearing lubricated by the pumped medium

Connections

  • Screwed connection

Operating modes

  • 3-stage fixed speed operation

Automatic functions

  • Soft start
  • Full motor protection

Manual functions

  • Speed stage setting
  • Ventilation screw
  • Deblocking function
  • Condition: NEW (OVP)
  • Our item number: PK25/291
Further information
  • Manufacturer: KSB
  • Installation length: 150 mm
  • Condition: new
  • Pipe connection: G 1 1/4" (41.9mm)
