KSB CALIO-THERM NC 25-40 130 High-efficiency drinking water pump 1x230V RP 1 G 1 1/2 130 mm PK25/293

Price on request
Shipping calculated at checkout.
  • A few left in stock!
  • Inventory on the way

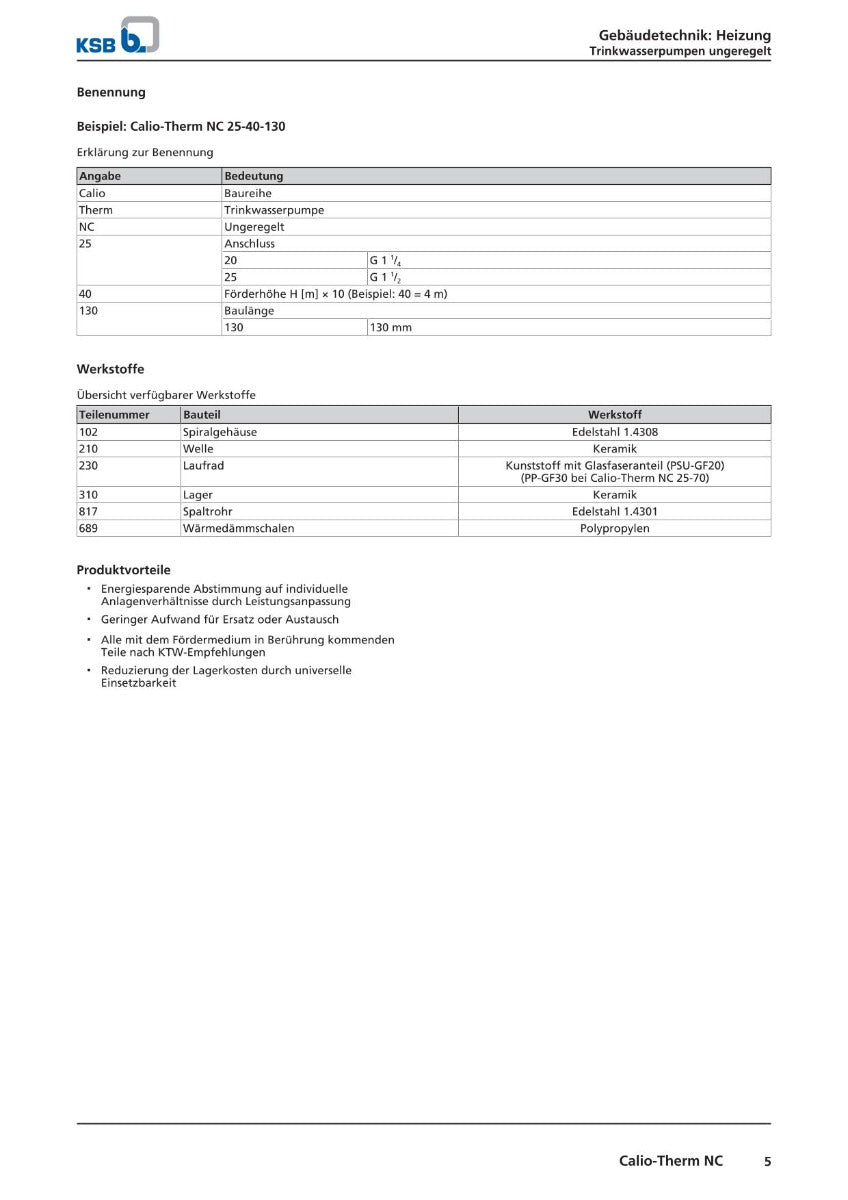

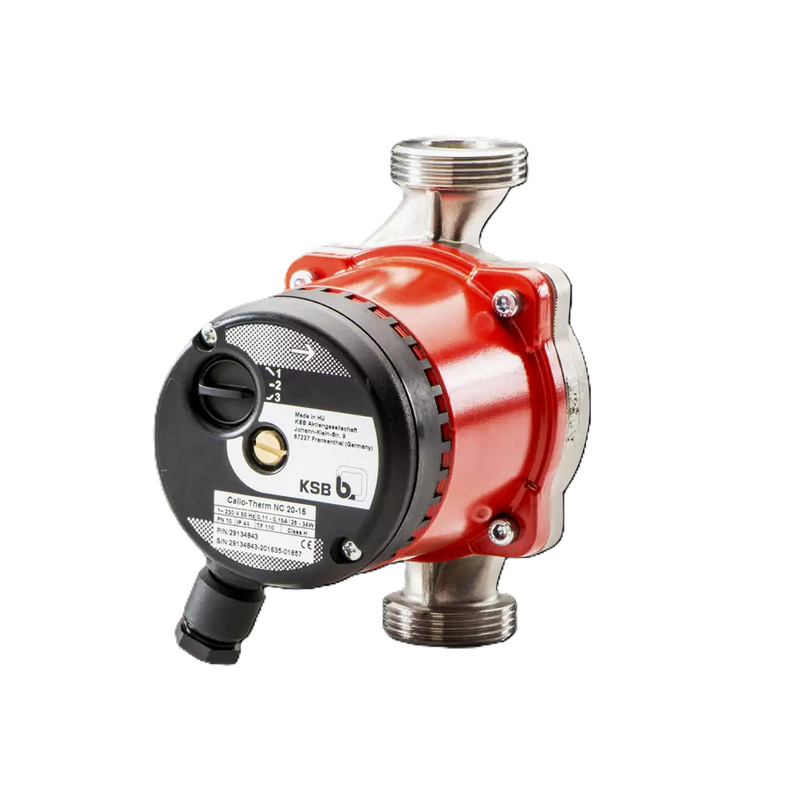

Calio-Therm NC 25-40 130

  • Connection: Rp 1, pump G 1 ½

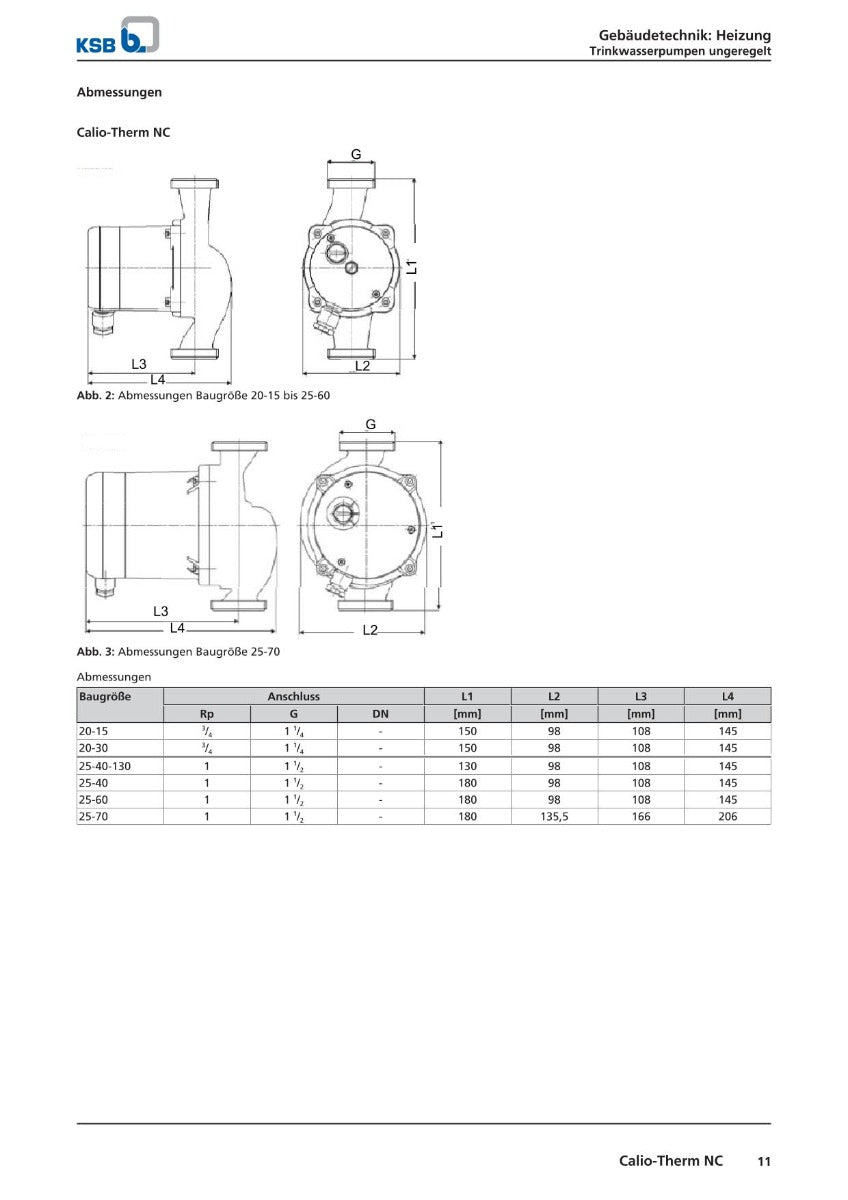

  • Installation length: 130mm
  • PN: 10 bar
  • Speed range: 1300–2800 min⁻¹
  • Power consumption: 33–44 W
  • Rated current consumption: 0.14–0.19 A
  • Weight: 2.8 kg
  • Item number: 29134845

Universal pump for conventional heating and hot water systems. The 130 mm size allows space-saving installation in standard systems.

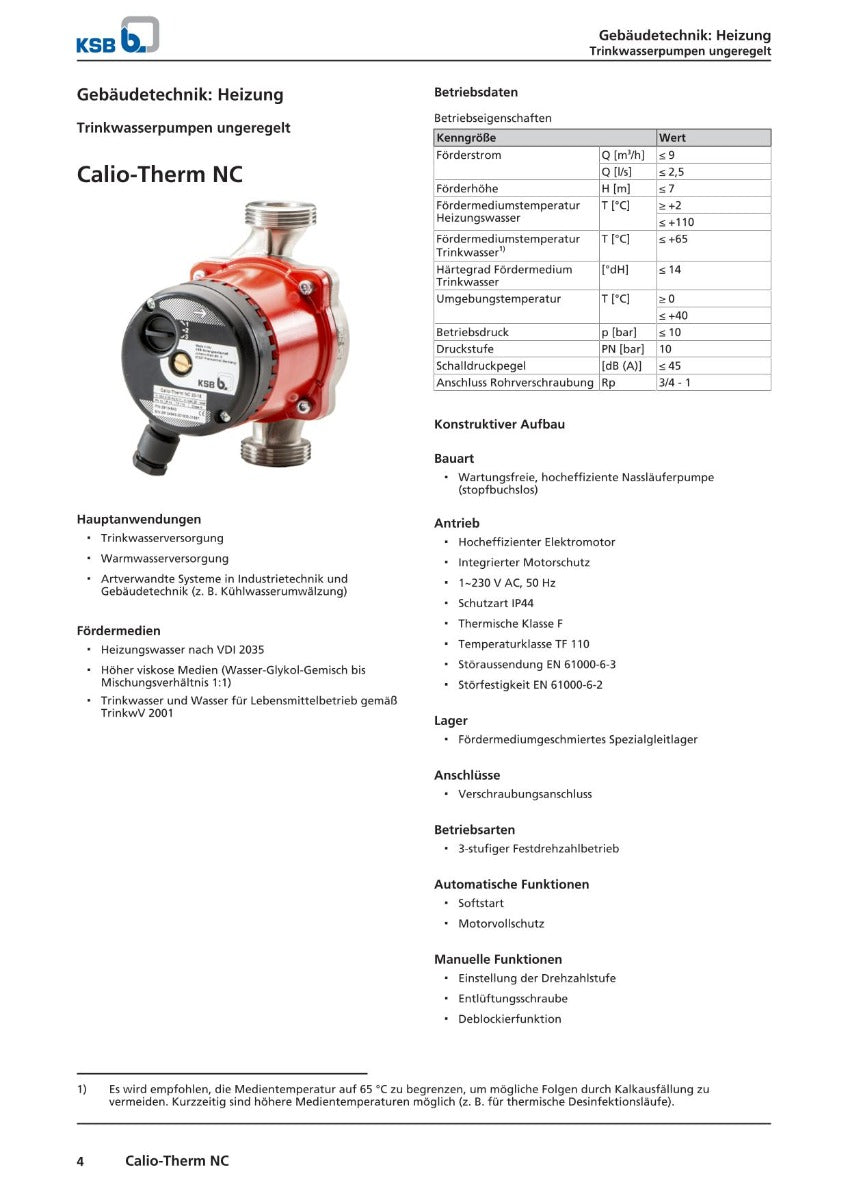

High-efficiency potable water pump KSB Calio-Therm NC

The Calio-Therm NC is a maintenance-free, unregulated glandless pump for applications in heating and potable water supply. It is particularly suitable for use in building services engineering as well as for related industrial applications such as cooling water circulation.

Main applications

  • Potable water supply
  • Hot water supply
  • Related systems in industrial engineering and building services (e.g. cooling water circulation)

Pumped fluids

  • Heating water according to VDI 2035
  • Higher viscosity media (water-glycol mixture up to 1:1 mixing ratio)
  • Potable water and water for food operations according to TrinkwV 2001

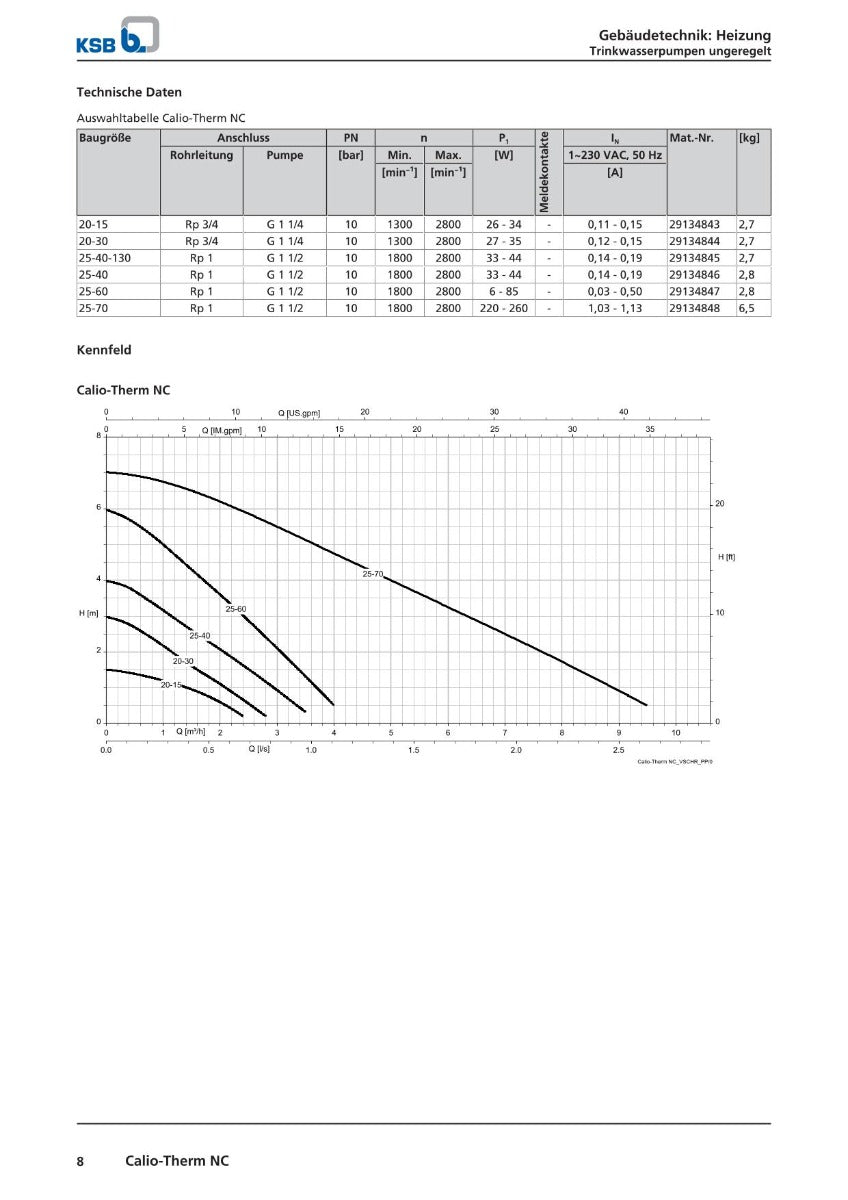

Technical data

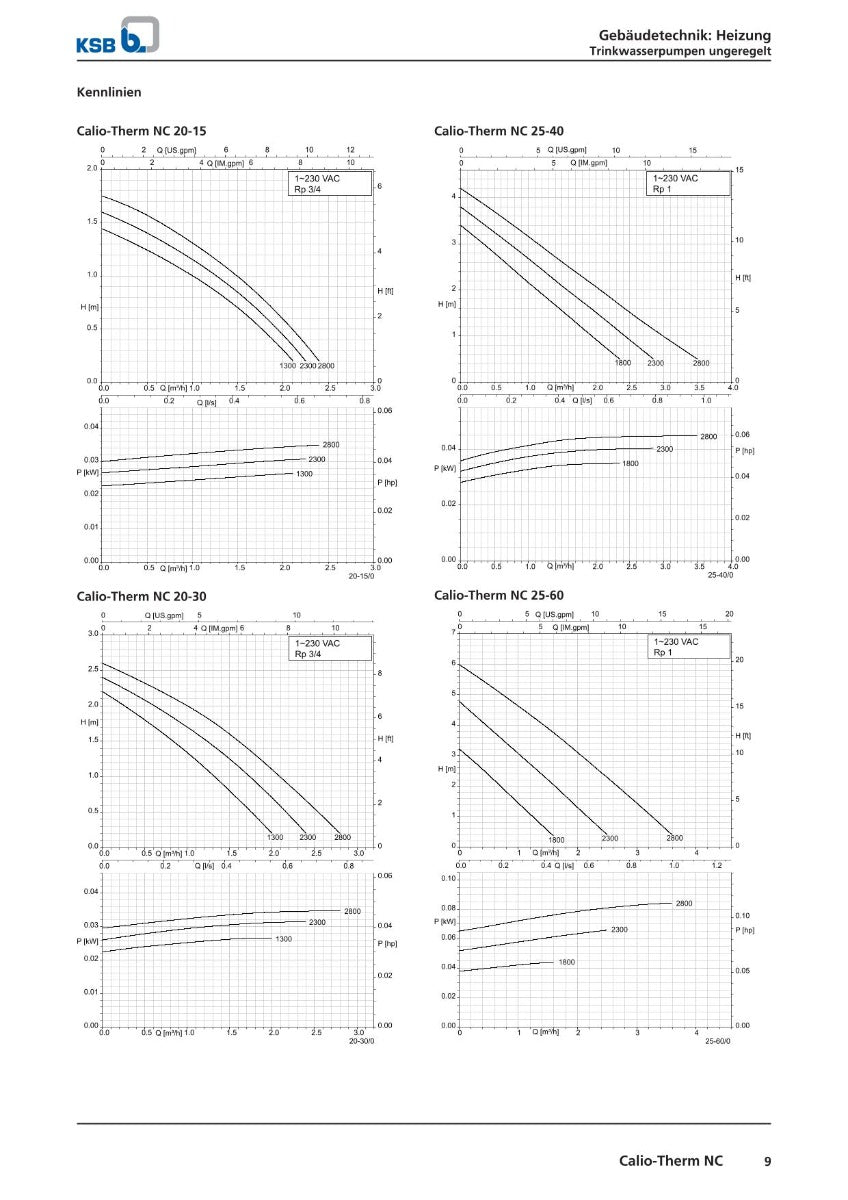

  • Flow rate: up to 9 m³/h (up to 2.5 l/s)
  • Head: up to 7 m

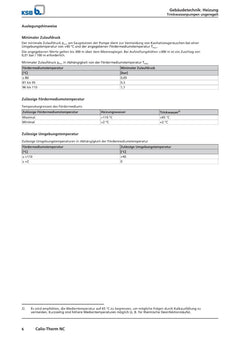

  • Fluid temperature heating water: +2 °C to +110 °C
  • Fluid temperature potable water: up to +65 °C
  • Hardness of potable water: max. 14 °dH
  • Ambient temperature: 0 °C to +40 °C
  • Max. operating pressure: 10 bar
  • Pressure rating: PN 10
  • Sound pressure level: ≤ 45 dB(A)
  • Connection: Pipe union Rp ¾ – 1

Design

Maintenance-free, high-efficiency glandless pump

Drive

  • High-efficiency electric motor
  • Integrated motor protection
  • Mains connection: 1~230 V AC, 50 Hz
  • Protection class: IP44
  • Thermal class: F
  • Temperature class: TF 110
  • Emissions: EN 61000-6-3
  • Immunity: EN 61000-6-2

Bearings

Special plain bearings lubricated by the pumped fluid

Connections

  • Union connection

Operating modes

  • 3-stage fixed speed operation

Automatic functions

  • Soft start
  • Full motor protection

Manual functions

  • Speed stage setting
  • Bleed screw
  • Deblocking function
  • Condition: NEW (original packaging)
  • Our item number: PK25/293
Further information
  • Manufacturer: KSB
  • Installation length: 130 mm
  • Condition: new
  • Pipe connection: G 1 1/2" (47.8mm)
