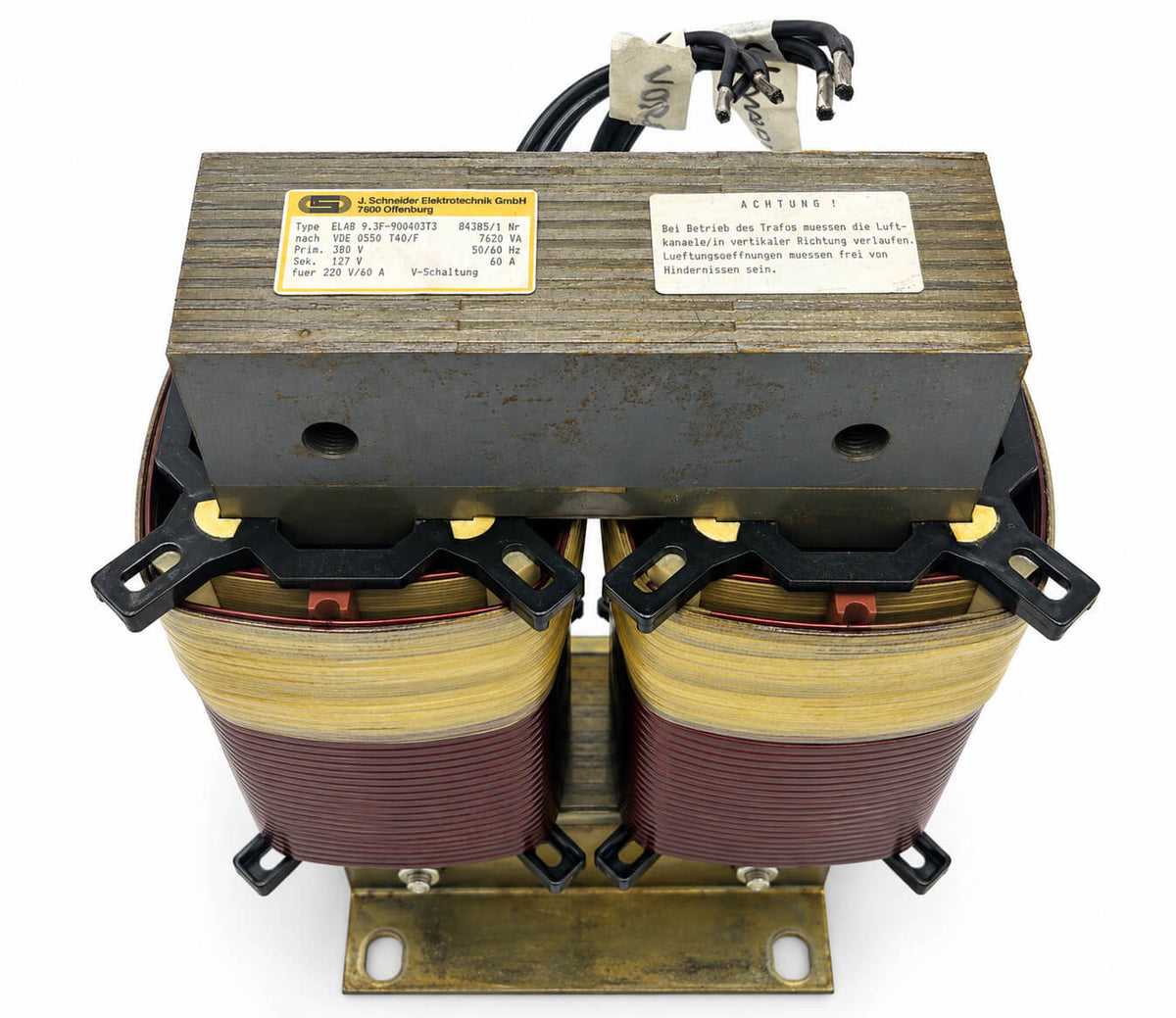

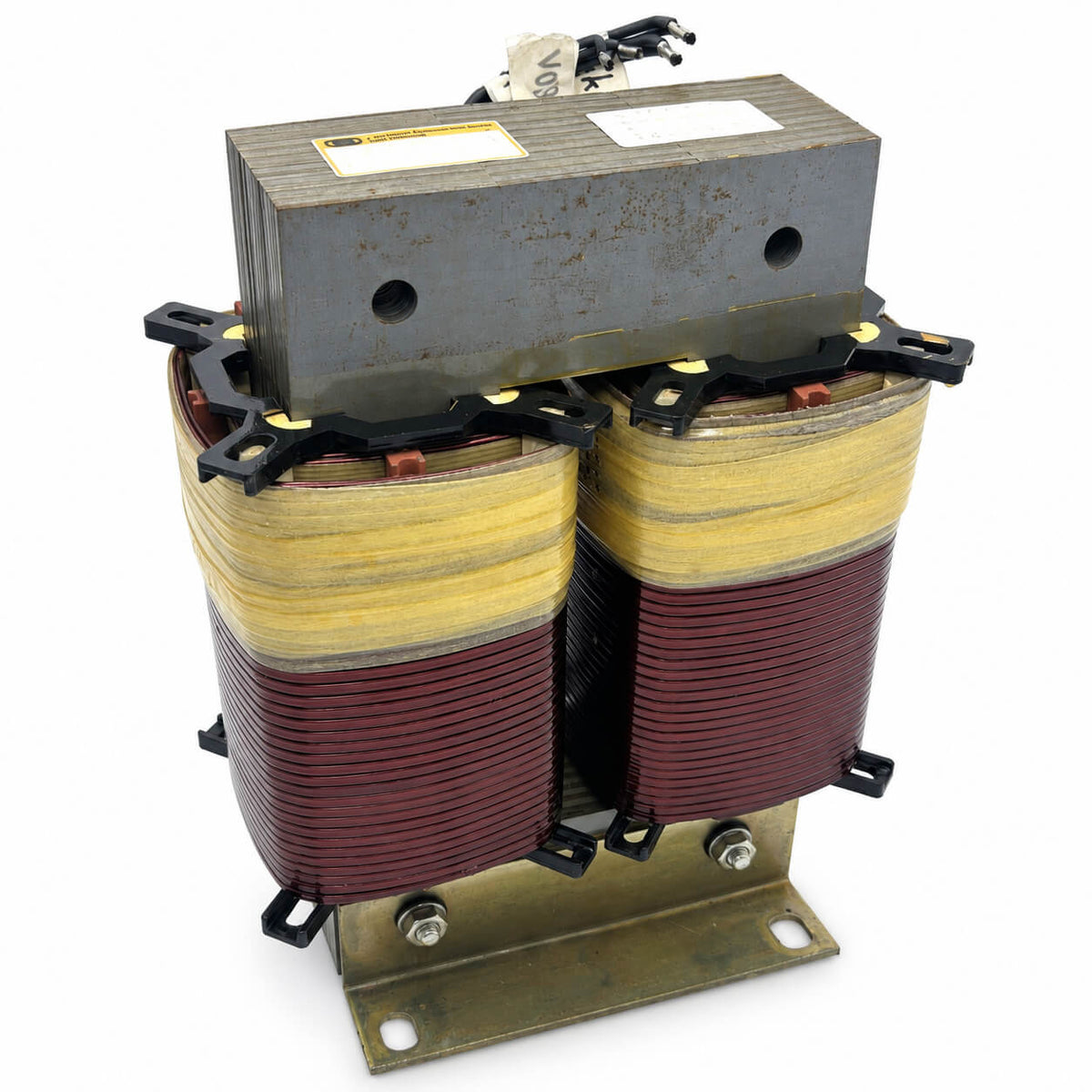

Schneider ELAS 9.3 F-900 40 3T3 Transformer – 380 V to 127/220 V – 7.62 kVA
- A few left in stock!
For sale is a used Schneider transformer, type ELAS 9.3 F-900 40 3T3.
The transformer is designed primarily for 380 V in a two-phase configuration. On the secondary side, it provides 127 V at 60 A. This results in a nominal power output of 7,620 VA or 7.62 kVA.

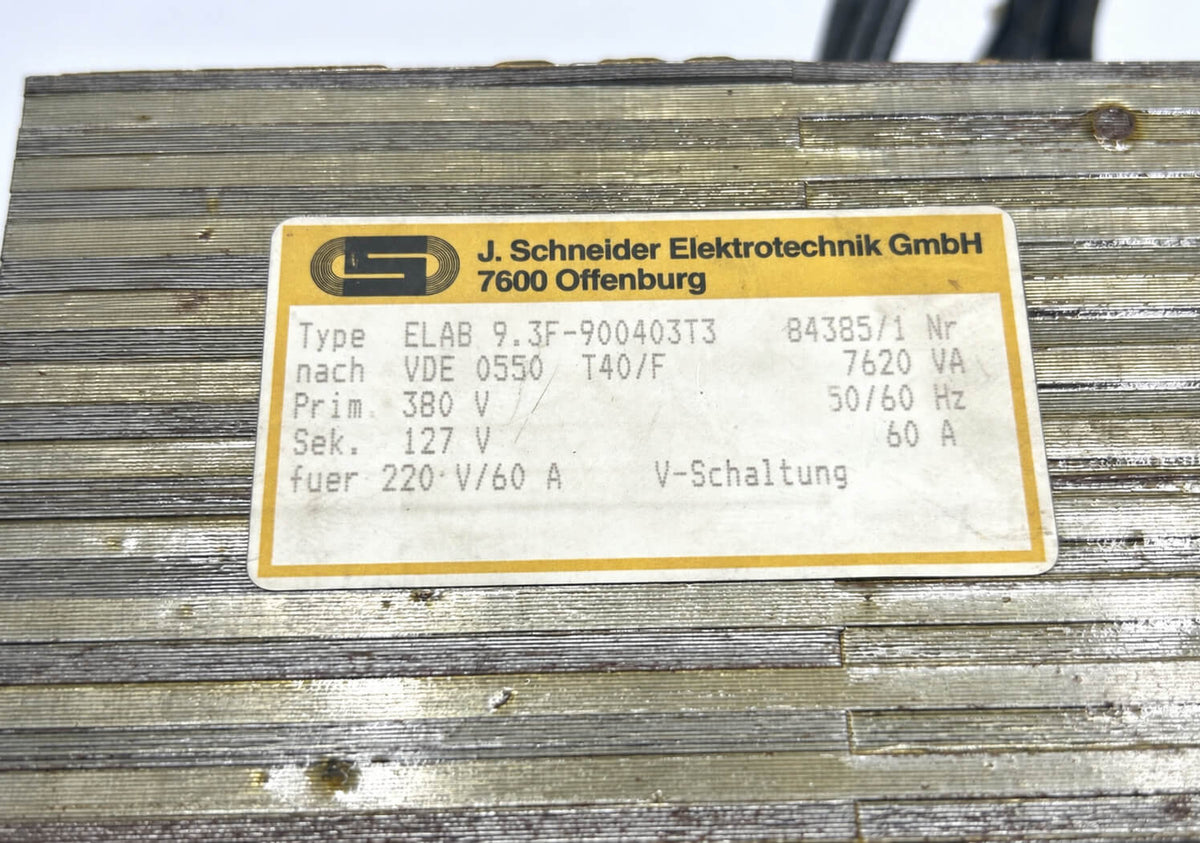

According to the information provided, an output voltage of 220 V is also possible using an appropriate V-connection. The circuit required for this, the available output current, and the permissible load must be verified via the nameplate and circuit diagram prior to commissioning.
The transformer was manufactured according to VDE 0550. A safety and functional test, as well as an insulation measurement according to VDE, have been performed.
Due to the high weight and electrical power, transport, connection, and commissioning must be carried out exclusively by appropriately qualified specialized personnel.
Technical Data
- Manufacturer: Schneider
- Item: Power transformer or voltage converter
- Type: ELAS 9.3 F-900 40 3T3
- Nominal power: 7,620 VA or 7.62 kVA
- Primary voltage: 380 V
- Primary configuration: two-phase
- Secondary voltage: 127 V
- Secondary current: 60 A
- Alternative secondary voltage according to specifications: 220 V via V-connection
- Standard: VDE 0550
- Dimensions (L × W × H): approx. 210 × 172 × 360 mm
- Weight: approx. 38 kg
- Our item number: T9/430
Important Technical Note
The power rating is mathematically consistent for operation at 127 V and 60 A:
127 V × 60 A = 7,620 VA
For operation at 220 V via V-connection, the permissible output current, available power, and exact connection layout are not specified. These values must be determined from the manufacturer's documentation or the nameplate before connection.
Potential Areas of Application
- Industrial machines and systems
- Machine and system controls
- High-performance power supply
- Control cabinet and system construction
- Replacement and repair applications
Testing
- Safety test performed according to VDE
- Functional test performed
- Insulation measurement performed
Condition
Used and in very good condition.
The visual condition and possible signs of wear are visible in the product images.
Scope of Delivery
- 1 × Schneider transformer ELAS 9.3 F-900 40 3T3
