Safety isolating transformer – 220 V to 24 V AC – 16.7 A – approx. 400 VA T9/45

For sale is a used safety isolating transformer with a primary voltage of 220 V and a secondary voltage of 24 V AC.

The output current is 16.7 A. This results in a calculated power of approximately 401 VA.

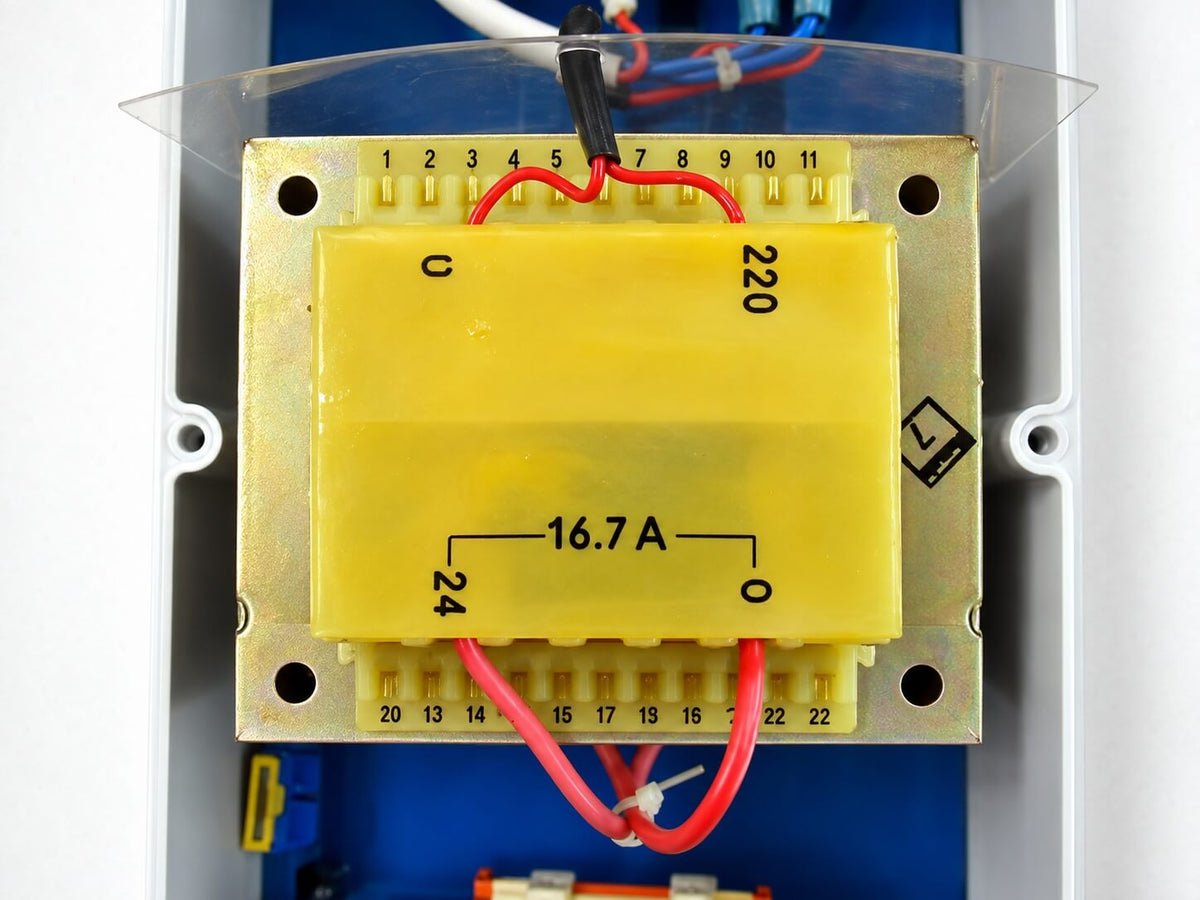

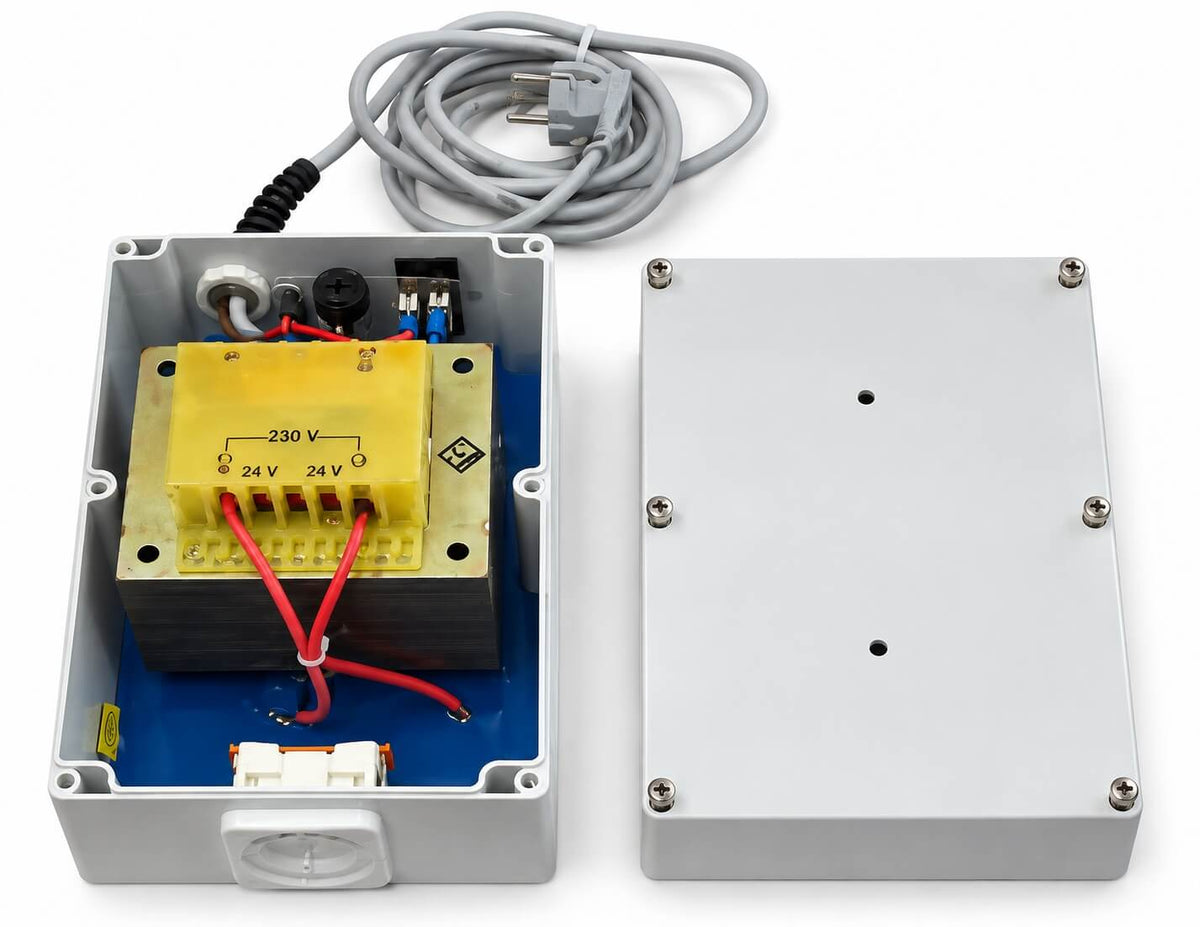

The transformer has a stable base plate that is encapsulated in casting resin. The safety-insulated housing ensures a secure design. On the secondary side, there is a Perco socket for connecting a suitable plug.

The corresponding plug is not part of this offer, but can be offered separately if required.

A safety and functional test as well as an insulation measurement according to VDE have been carried out. Installation and commissioning must only be performed by a qualified electrician.

Technical Data

• Item: Safety isolating transformer
• Manufacturer: not specified
• Primary voltage: 220 V
• Secondary voltage: 24 V AC
• Secondary current: 16.7 A
• Calculated power: approx. 401 VA
• Secondary connection: Perco socket
• Housing: safety-insulated
• Design: Base plate encapsulated in casting resin
• Dimensions (L × W × H): approx. 235 × 160 × 127 mm
• Weight: approx. 7.16 kg
• Our item number: T9/45

Features and Benefits

• Galvanic isolation between primary and secondary side
• Safety-insulated housing
• Encapsulated base plate
• 24 V AC output with high current capacity
• Secondary-side Perco socket
• Robust design for workshop and industry

Testing

• Safety test carried out according to VDE
• Functional test carried out
• Insulation measurement carried out

Condition

Used and in very good condition.

The visual condition and possible signs of use are visible in the product images.

Scope of Delivery

• 1 × safety isolating transformer with Perco socket
