Siemens Electric Motor 1LA7096-4AA96-Z | 1.8 kW | 3×575 V | B35 | IP55 | 1715 rpm P10/257
- A few left in stock!

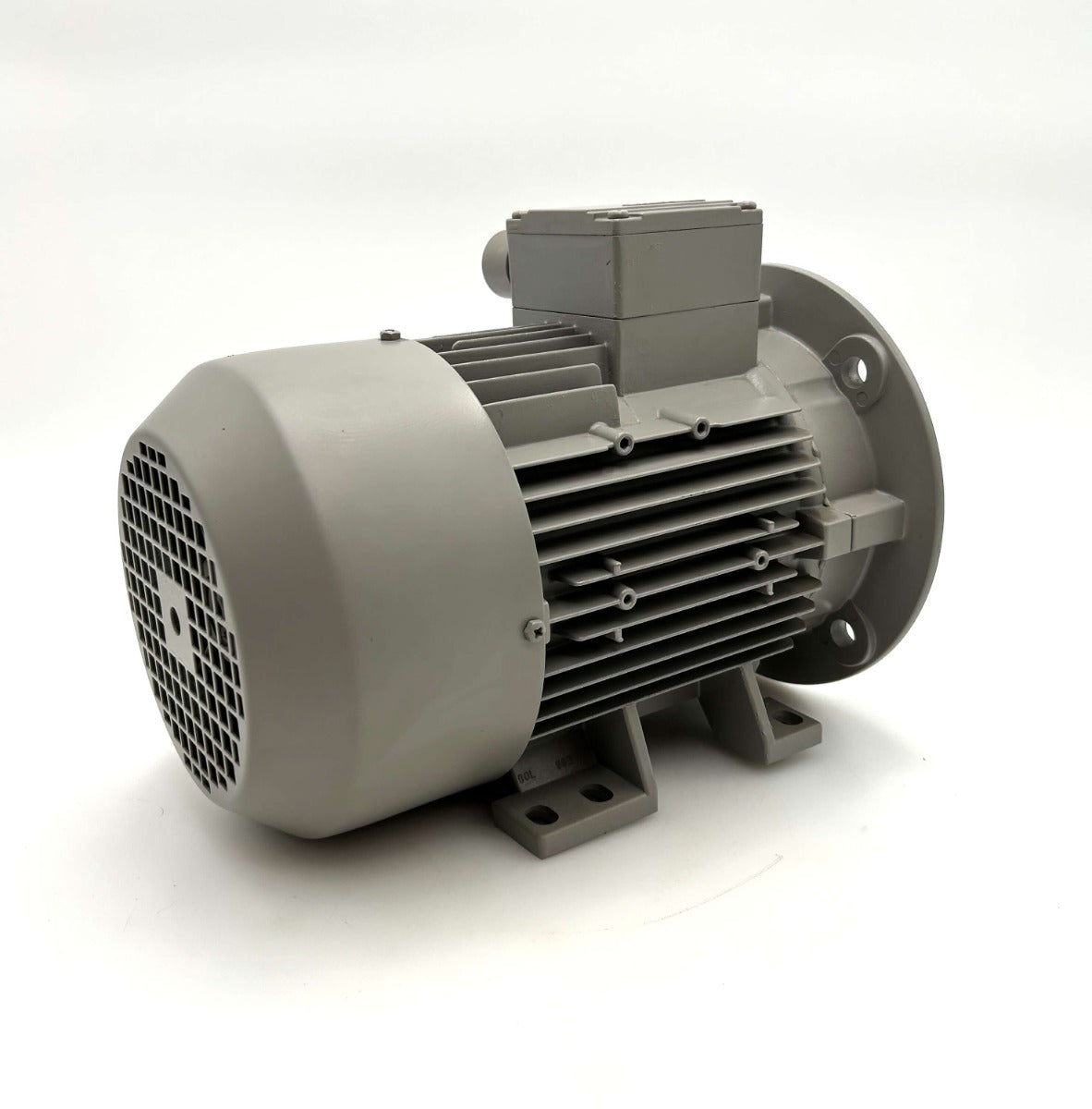

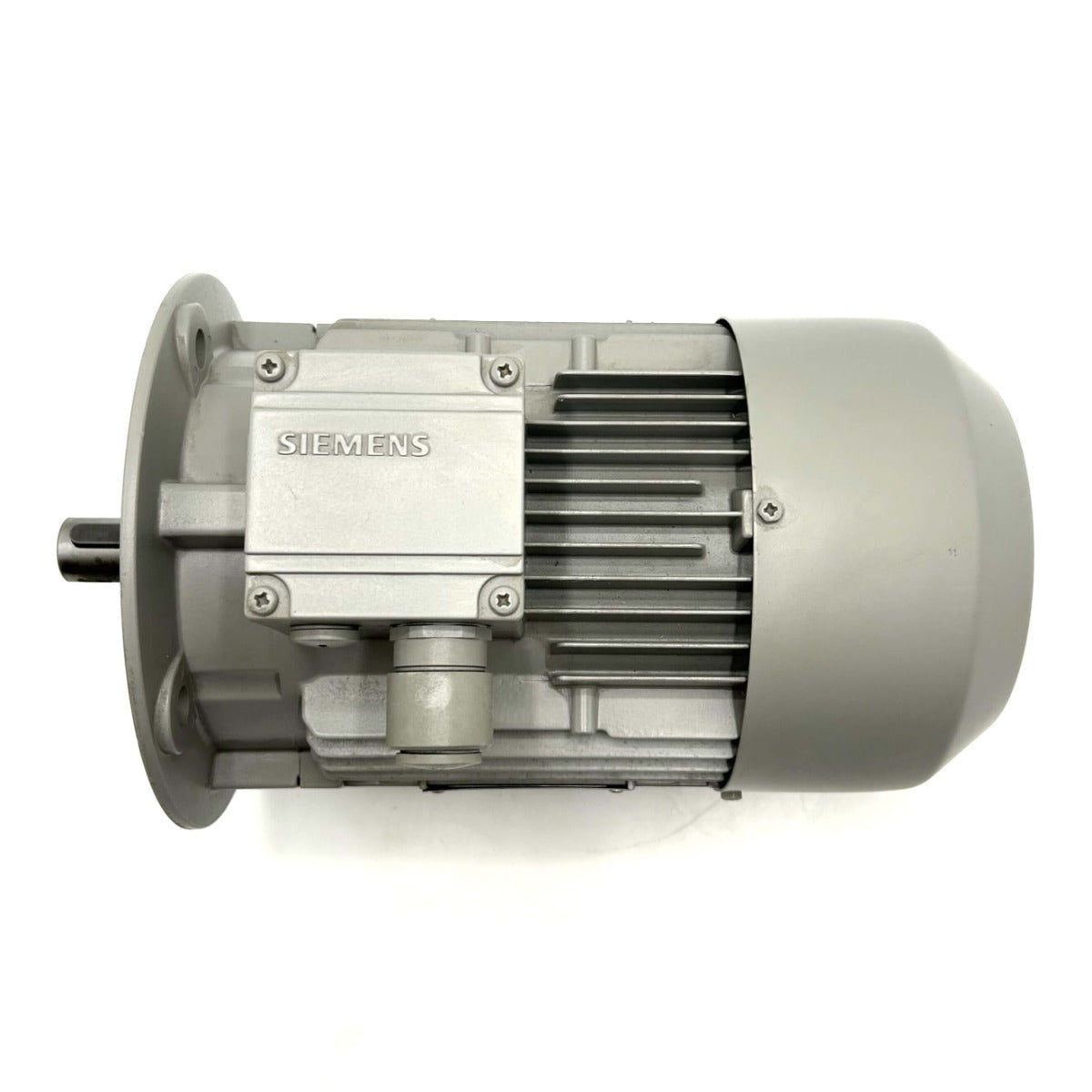

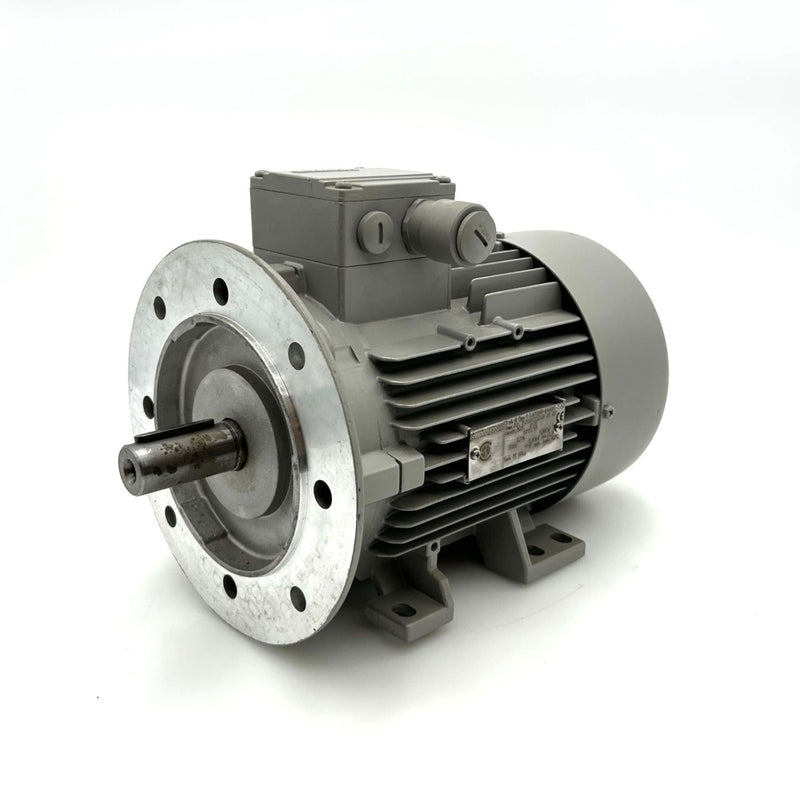

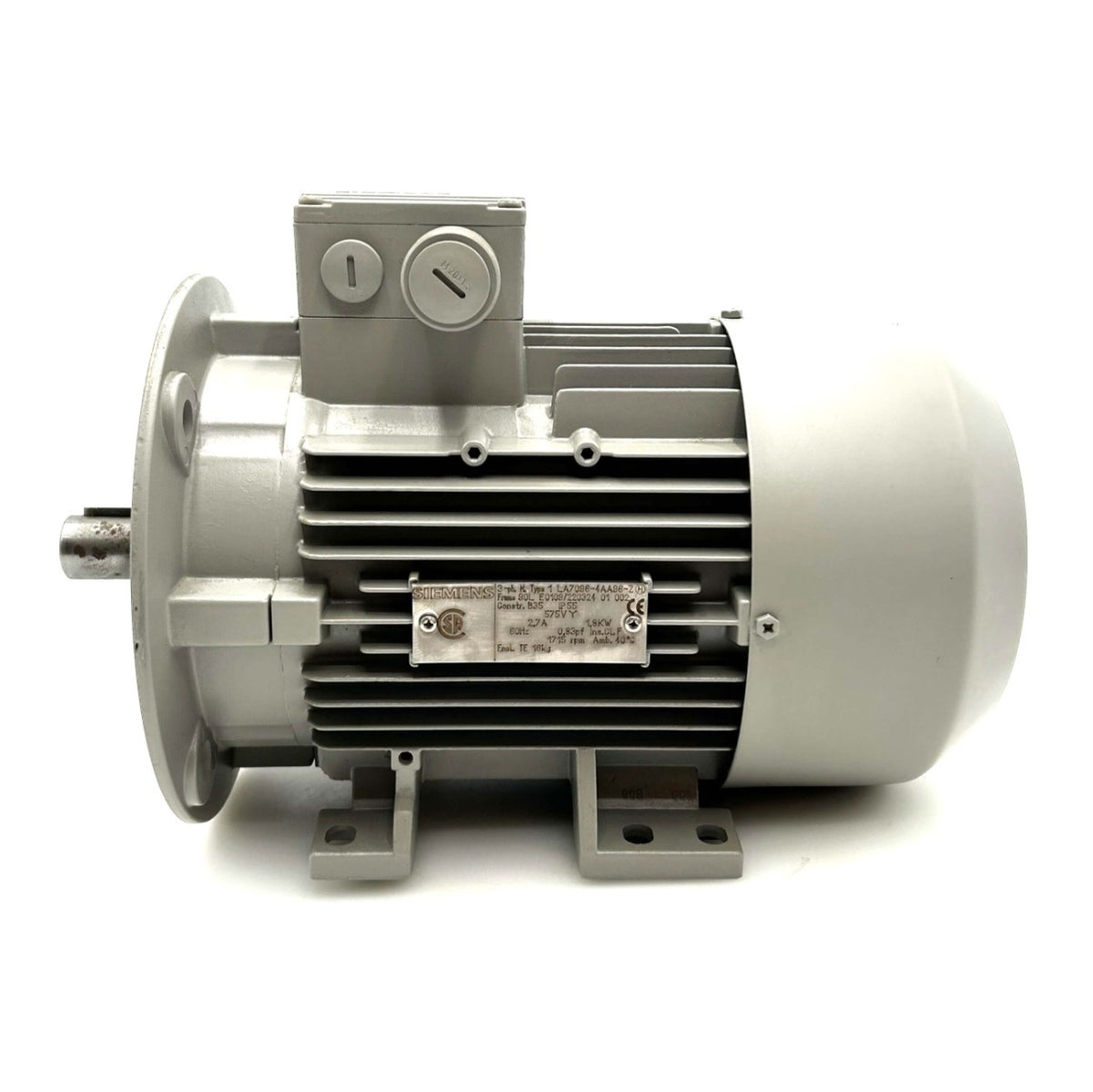

Siemens Electric Motor Type 1LA7096-4AA96-Z
Technical Data
- Voltage: 3 × 575 V (Star connection)
- Power: 1.8 kW
- Frequency: 60 Hz
- Speed: 1715 rpm
- Power factor (cos φ): 0.83
- Mounting: B35 (Flange and foot mounted)
- Protection class: IP55
- Ambient temperature: max. 40 °C
- Weight: approx. 16 kg
- Mechanical Data:
- Frame size: 90L
- Overall length: 280 mm
- Flange (center/center hole spacing): 115 mm
- Flange bore: 4 × Ø11 mm
- Shaft diameter: 24 mm
- Base dimensions (L × W): 165 × 141 mm
- Flange diameter outer/inner: 190 mm / 130 mm
- Note on operation:
- The motor can also be operated on a 3 × 500 V / 50 Hz mains.
- In this case, the speed is approx. 1500 rpm, and the power is slightly reduced.
- Condition: New, original packaging (OVP)
- Our item number: P10/257
