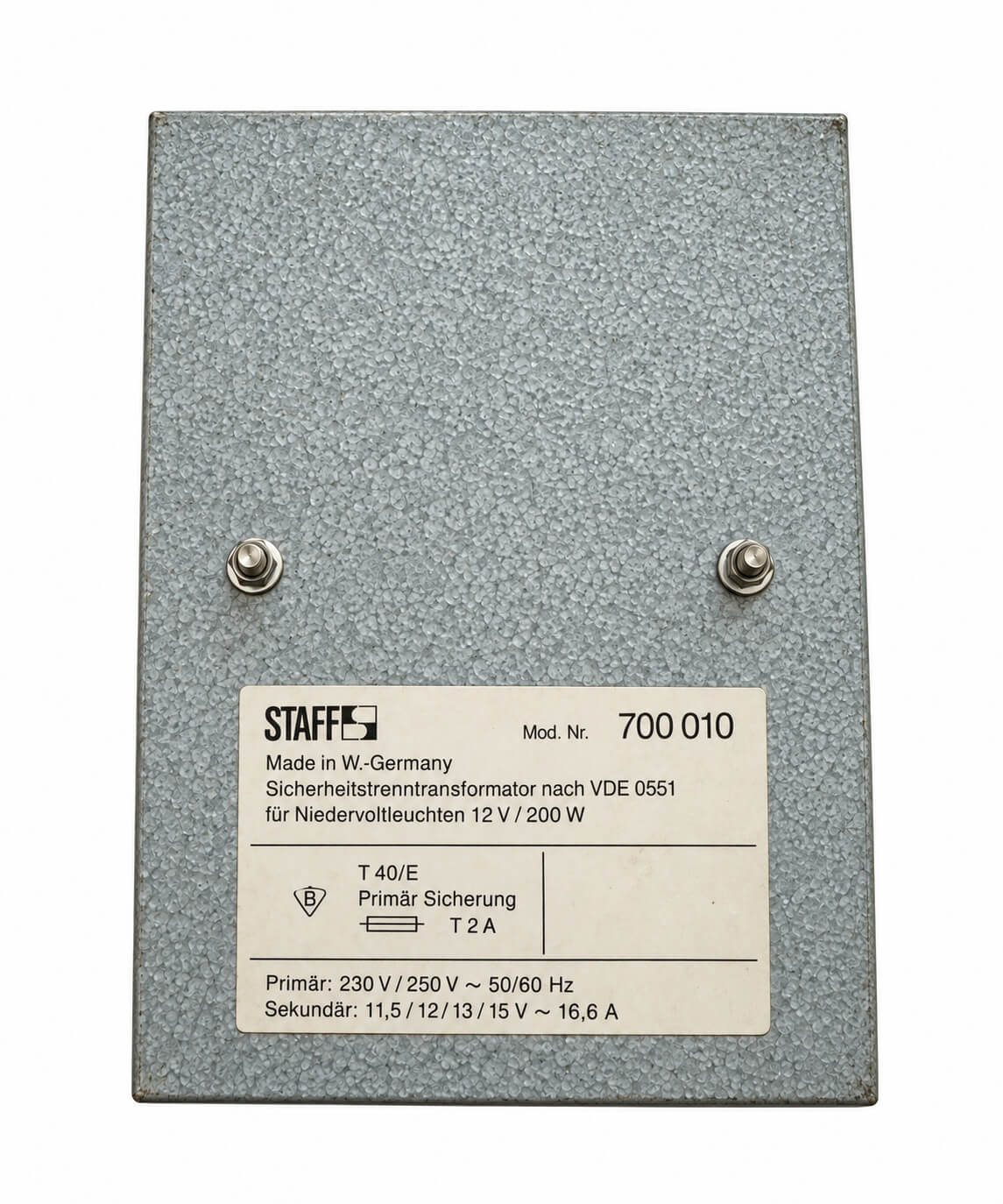

STAFF 700 010 safety transformer – 200 VA – 220/250 V to 11.5/12/13/15 V – as new T9/460

For sale is a mint-condition STAFF safety transformer type 700 010 with multiple selectable secondary voltages.

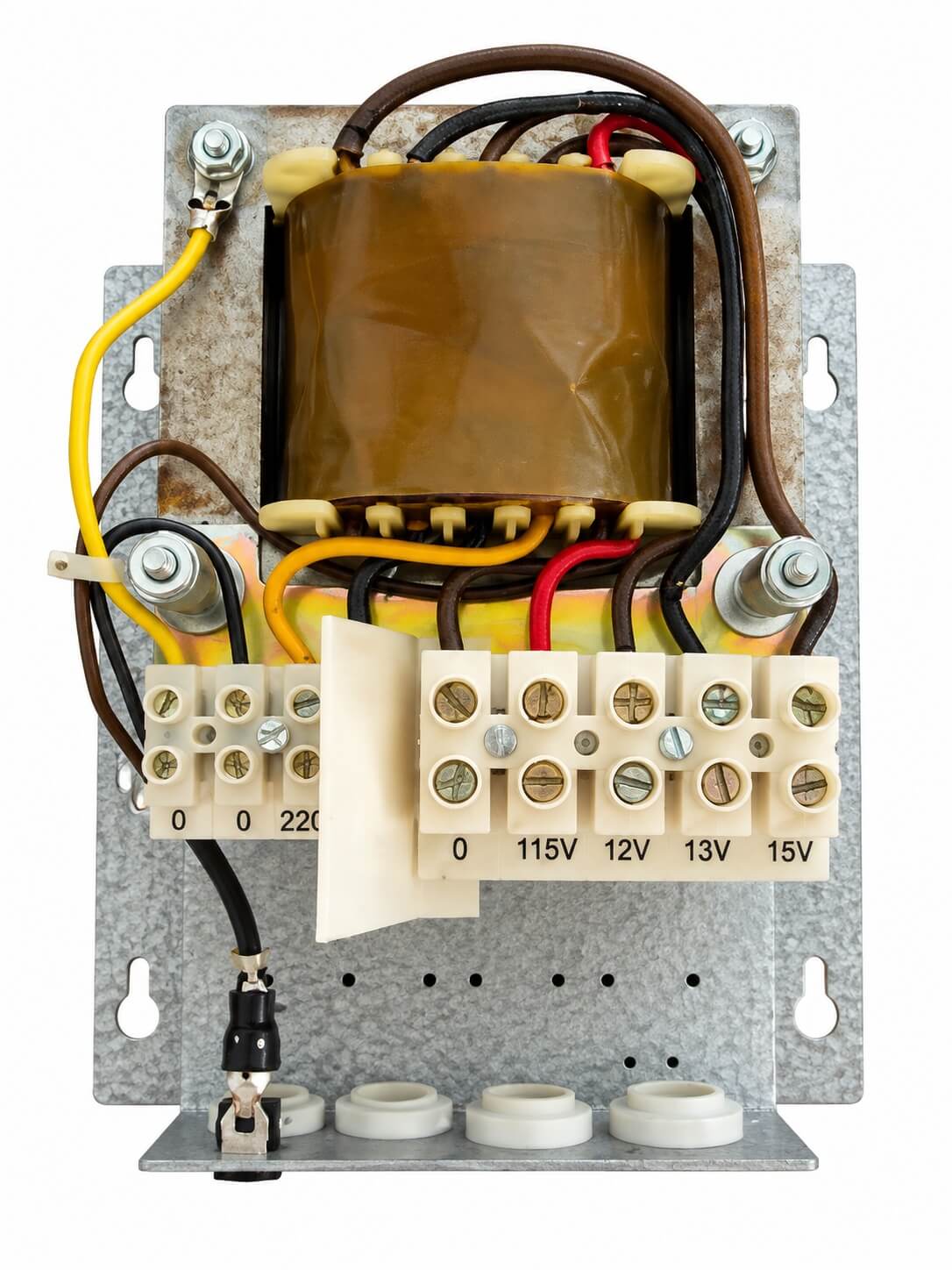

The transformer is suitable for low-voltage applications such as 12 V halogen lighting. Its various secondary connections allow for output voltages of 11.5 V, 12 V, 13 V, or 15 V. This allows the output voltage to be selected according to the intended application and the existing voltage drop.

The nominal power is 200 VA. At 12 V, a secondary current of 16.6 A is specified. The transformer has never been installed and is in mint condition.

Technical Data

• Manufacturer: STAFF
• Item: Safety or halogen transformer
• Type: 700 010
• Nominal power: 200 VA
• Primary voltage according to description: 220 V / 250 V AC
• Secondary voltages: 11.5 V / 12 V / 13 V / 15 V AC
• Secondary current: 16.6 A at 12 V
• Dimensions (L × W × H): 200 × 195 × 160 mm
• Weight: approx. 6 kg
• Standard: VDE 0551
• Our item number: T9/460

Important note regarding primary voltage

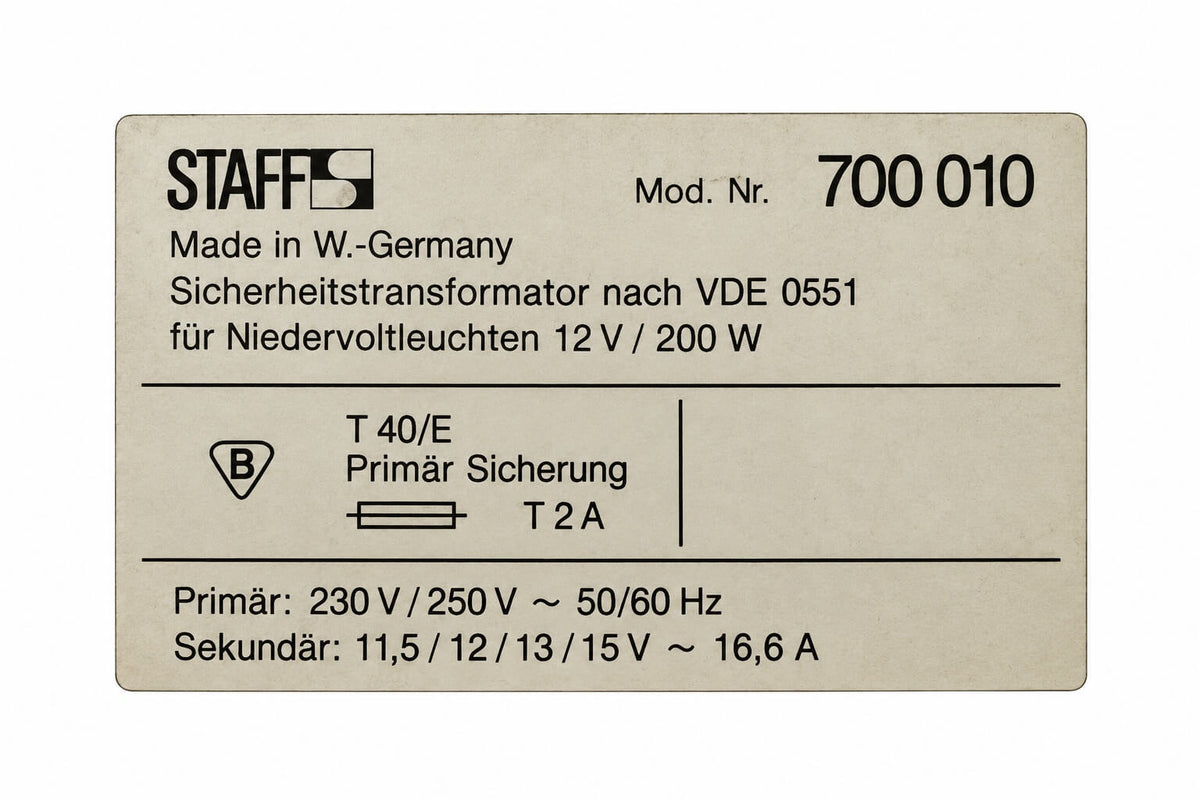

The heading mentioned a primary voltage of 230/250 V, whereas the technical data states 220/250 V. Therefore, before connecting and commissioning, the actual pin assignment must be checked against the nameplate.

Testing

• Safety test performed according to VDE
• Functional test performed
• Insulation measurement performed

Condition

Mint and never installed.

Storage-related marks may be present. The product images are authoritative.

Scope of delivery

• 1 × STAFF safety transformer 700 010
