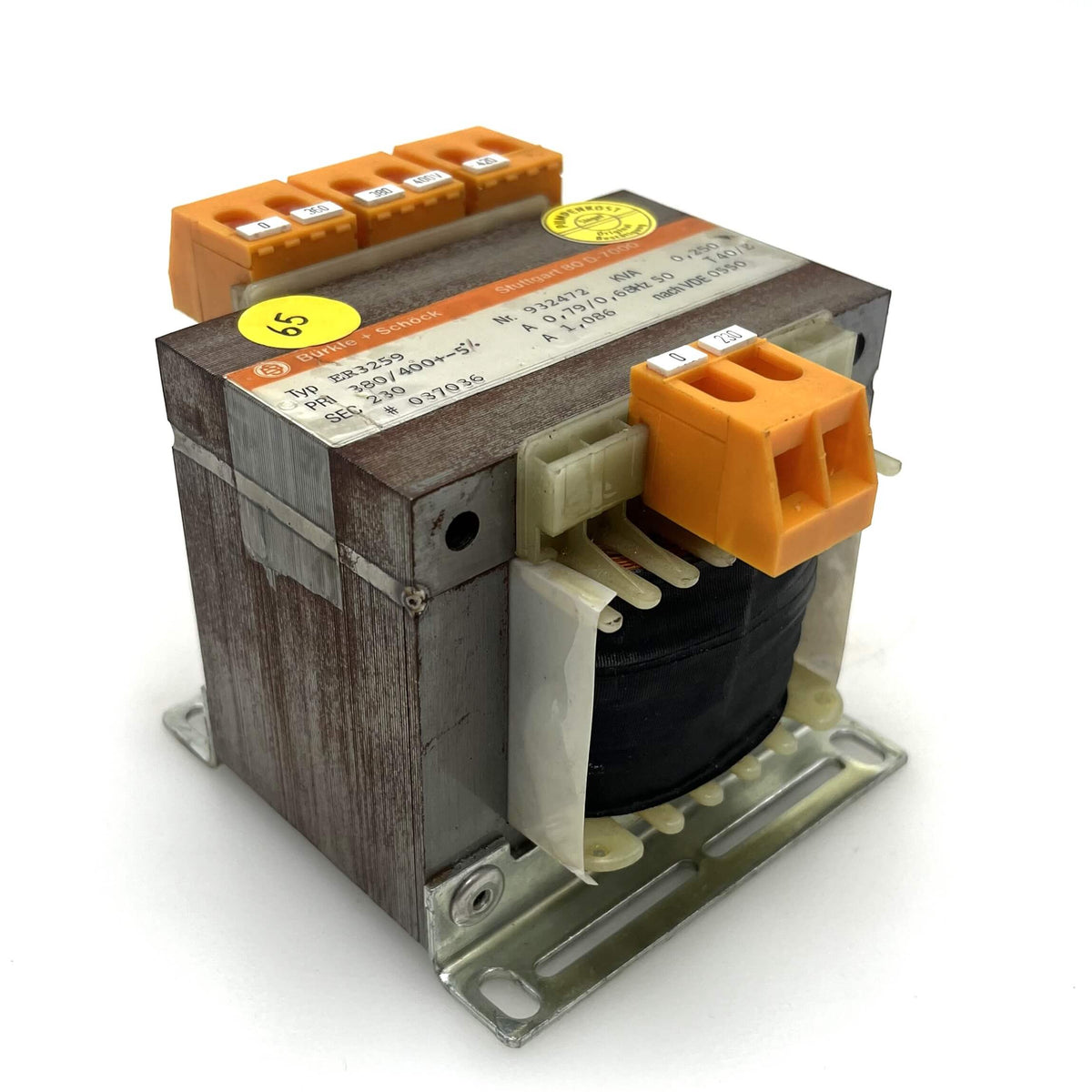

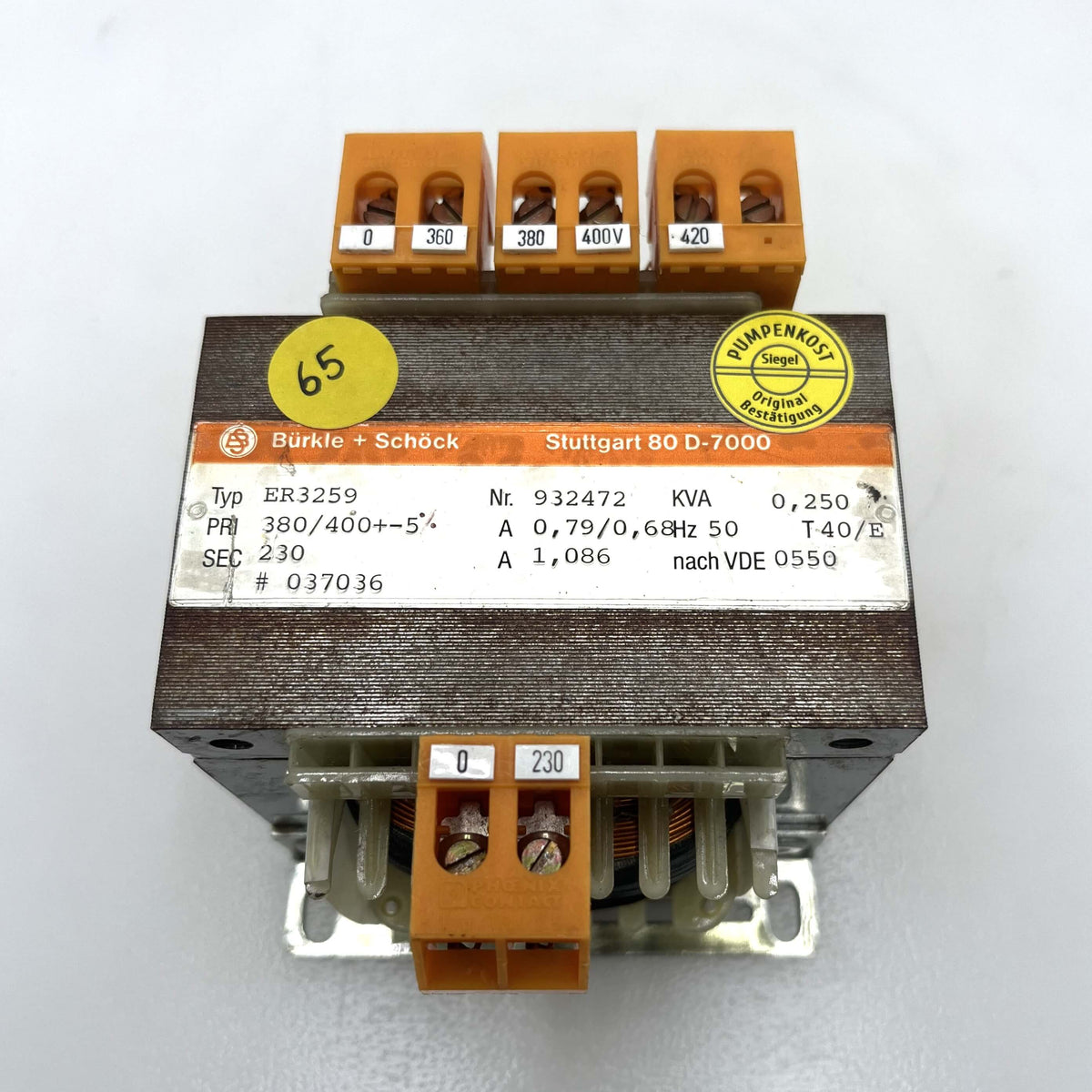

Bürkle + Schöck ER 3259 transformer – 360–420 V to 230 V – 250 VA

Up for sale is a used Bürkle + Schöck transformer, type ER 3259, with a rated power of 250 VA.

The industrial transformer features selectable primary voltages of 360 V, 380 V, 400 V, and 420 V AC. On the secondary side, it provides 230 V AC at a rated current of 1.086 A.

Thanks to its robust and compact design, the transformer is suitable for applications including machine controls, industrial systems, and workshop and control cabinet construction.

A safety and functional test as well as an insulation measurement according to VDE have been performed. Connection may only be carried out by a qualified electrician.

Technical data

• Manufacturer: Bürkle + Schöck
• Type: ER 3259
• Serial number: 932472
• Item: Industrial transformer
• Rated power: 250 VA
• Primary voltages: 360/380/400/420 V AC
• Primary current: 0.79–0.68 A
• Secondary voltage: 230 V AC
• Secondary current: 1.086 A
• Dimensions (L × W × H): approx. 100 × 96 × 100 mm
• Weight: approx. 3.5 kg
• Our item number: T8/65

Fields of application

• Machine controls
• Industrial systems
• Workshop technology
• Control cabinet construction
• Spare part for compatible electrical systems

Testing

• Safety test according to VDE performed
• Functional test performed
• Insulation measurement performed
• Technically functional

Condition

Used, tested, and in very good condition.

The visual condition and any signs of wear are visible in the product images.

Scope of delivery

• 1 × Bürkle + Schöck transformer ER 3259
