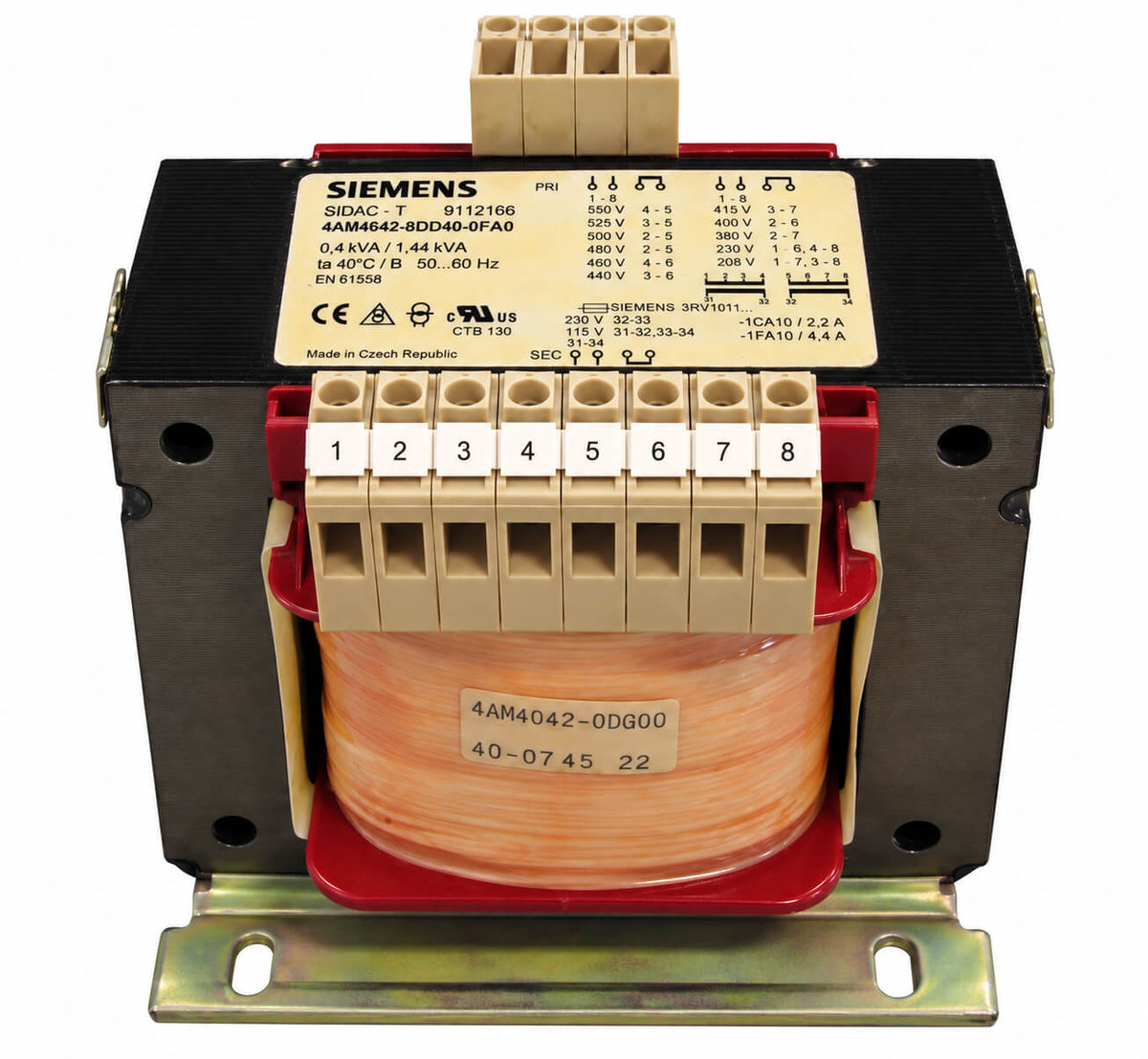

Siemens transformer – 208–550 V to 115/230 V – 400 VA

For sale is a used Siemens transformer with multiple selectable primary and secondary voltages.

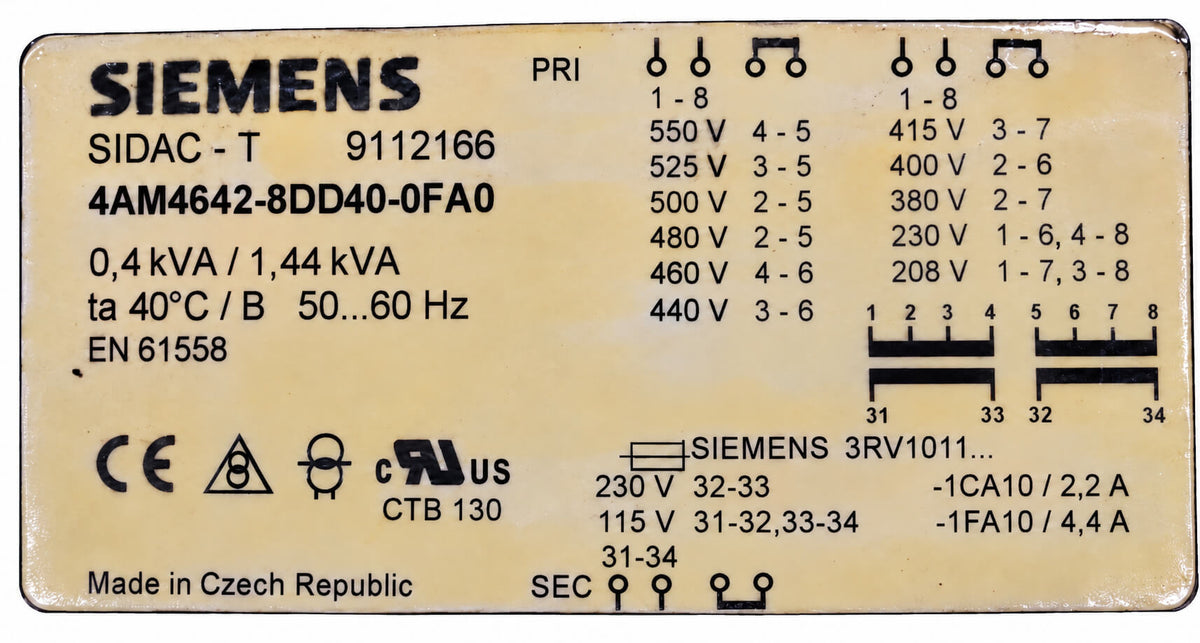

On the primary side, connections for 208, 230, 380, 400, 415, 440, 460, 480, 500, 525, and 550 V are available. On the secondary side, the transformer provides either 230 V at 2.2 A or 115 V at 4.4 A.

The power rating is stated as 0.4/1.44 kVA. Since the meaning of the two power values, such as continuous and intermittent power, is not described in detail, the permissible load must be checked against the nameplate before connection.

The transformer is suitable as a spare or replacement part for compatible machine controls, control cabinets, and industrial systems.

Technical Data

• Manufacturer: Siemens
• Item: Transformer
• Primary voltages: 208/230/380/400/415/440/460/480/500/525/550 V
• Secondary voltage 1: 230 V
• Secondary current at 230 V: 2.2 A
• Secondary voltage 2: 115 V
• Secondary current at 115 V: 4.4 A
• Power rating: 0.4/1.44 kVA
• Nominal power according to item description: 400 VA
• Dimensions (L × W × H): approx. 120 × 100 × 120 mm
• Weight: approx. 5.34 kg
• Our item number: T9/389

Testing

• Safety test performed according to VDE
• Functional test performed
• Insulation measurement performed

Condition

Used and in very good condition.

Signs of age and use may be present. The product images are definitive for the visual condition.

Scope of delivery

• 1 × Siemens transformer
