Lütze NG 24/15 Three-phase power supply unit – 3×380 V AC to 24 V DC – 15 A T9/443

For sale is a used Lütze transformer power supply unit of type NG 24/15.

The unit is designed for a three-phase input voltage of 3 × 380 V AC and provides 24 V DC at 15 A on the output side. This results in a calculated output power of 360 W.

Due to the DC output, this is not just a transformer, but a power supply unit with corresponding rectification. The power supply unit is suitable as a spare or replacement part for compatible machine controls, industrial plants, control cabinets, and automation systems.

A safety and functional test as well as an insulation measurement according to VDE have been performed.

Before ordering, please compare the full type designation, input and output values, pin assignment, and dimensions with your existing device. Installation and commissioning must be carried out exclusively by a qualified electrician.

Technical Data

• Manufacturer: Lütze
• Item: Three-phase power supply unit or transformer power supply unit
• Type: NG 24/15
• Primary voltage: 3 × 380 V AC
• Secondary voltage: 24 V DC
• Secondary current: 15 A
• Calculated output power: 360 W
• Standard: according to VDE
• Dimensions (L × W × H): approx. 180 × 115 × 210 mm
• Weight: approx. 7.52 kg
• Our item number: T9/443

Possible areas of application

• 24 V DC control power supply
• Machine and plant controls
• Automation and control technology
• Industrial control cabinets
• Replacement and repair applications

Testing

• Safety test according to VDE performed
• Functional test performed
• Insulation measurement performed

Condition

Used and in very good condition.

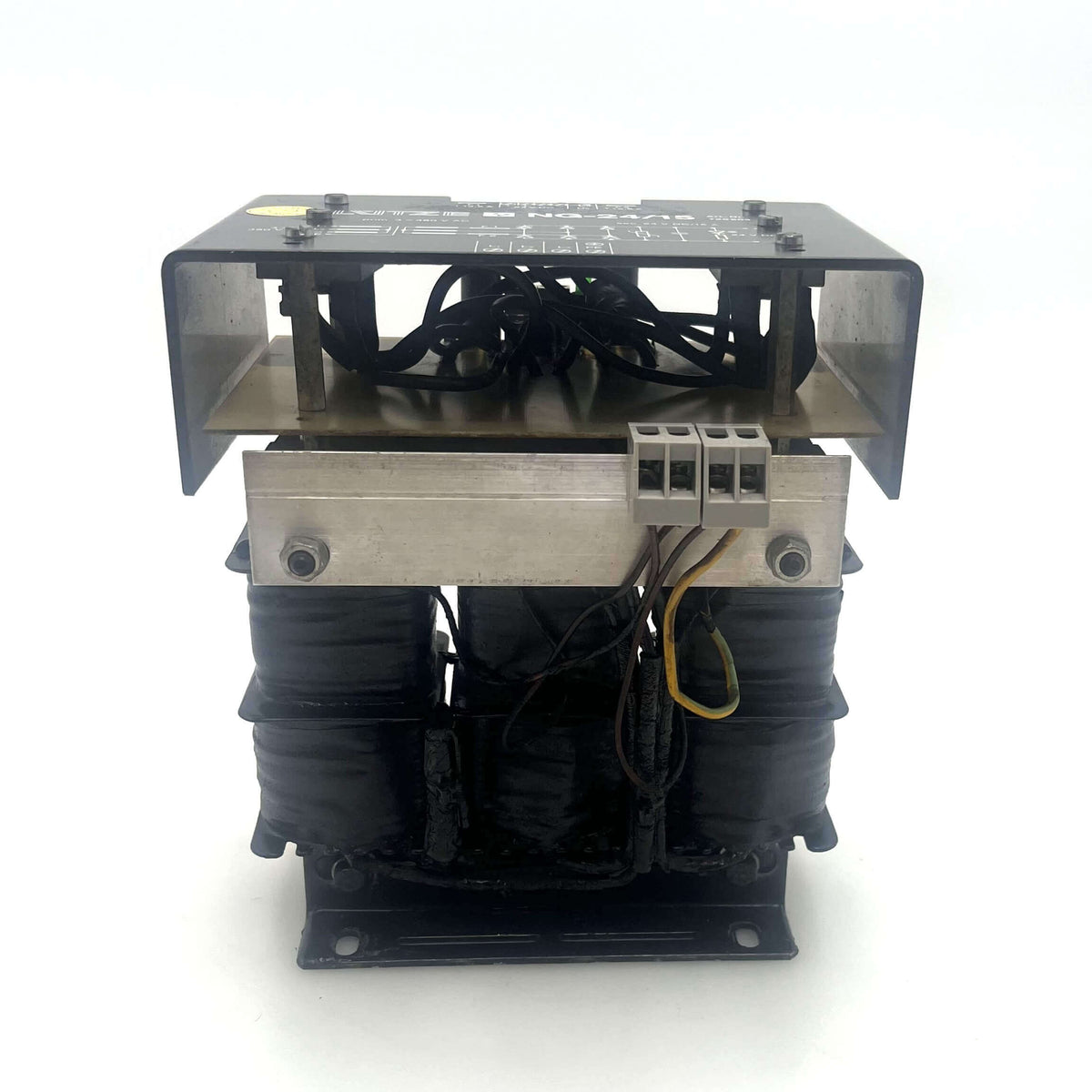

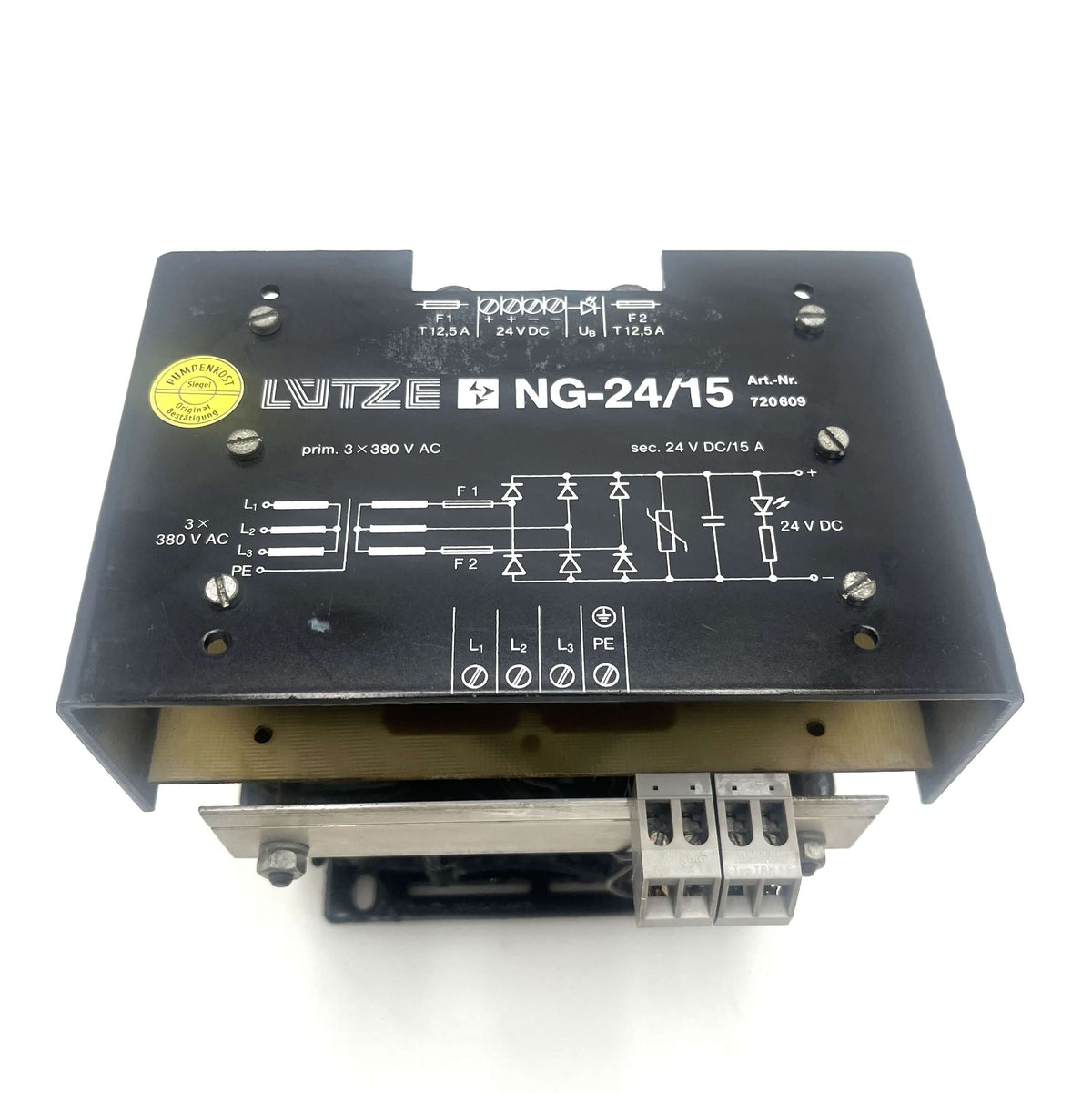

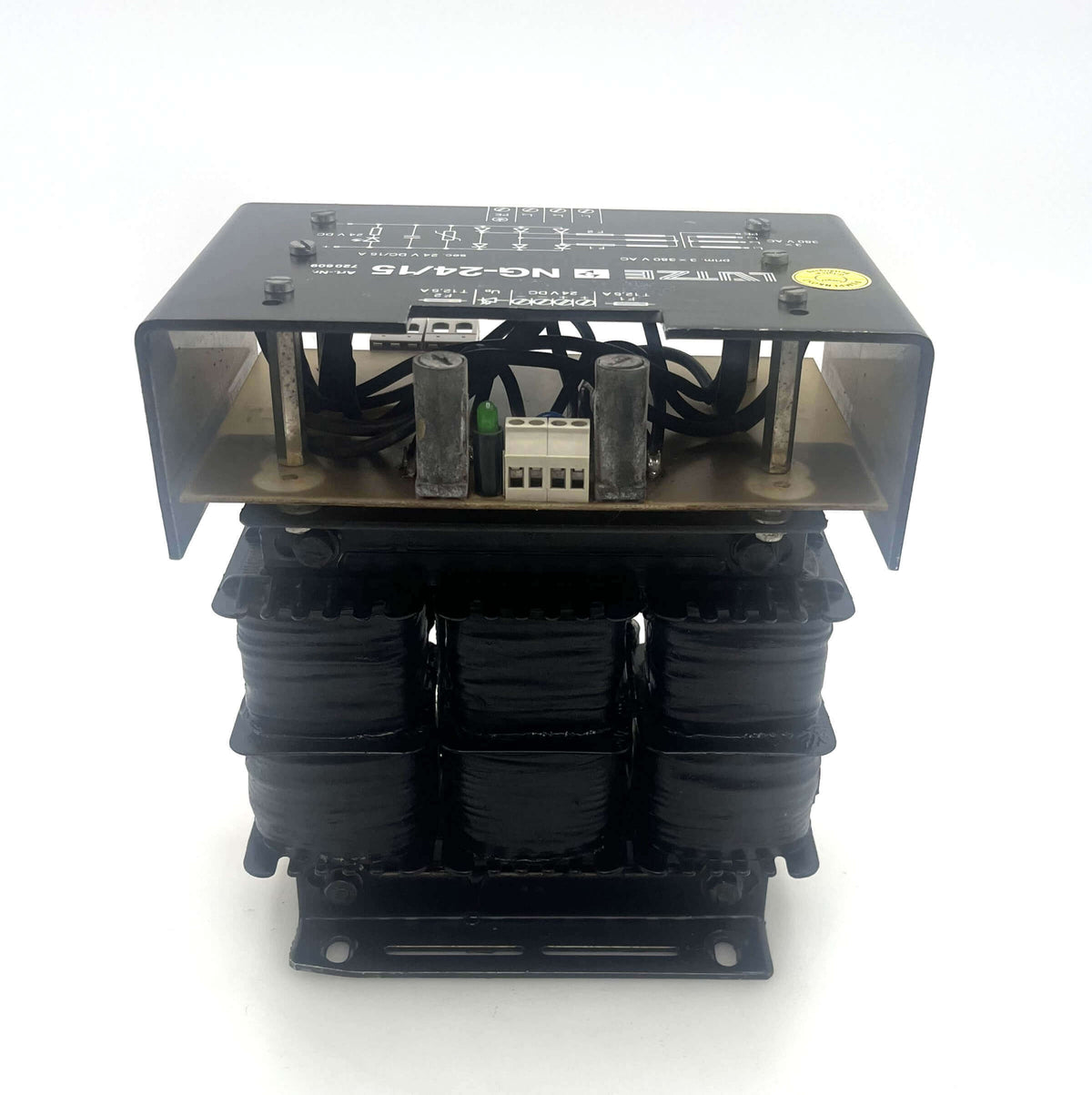

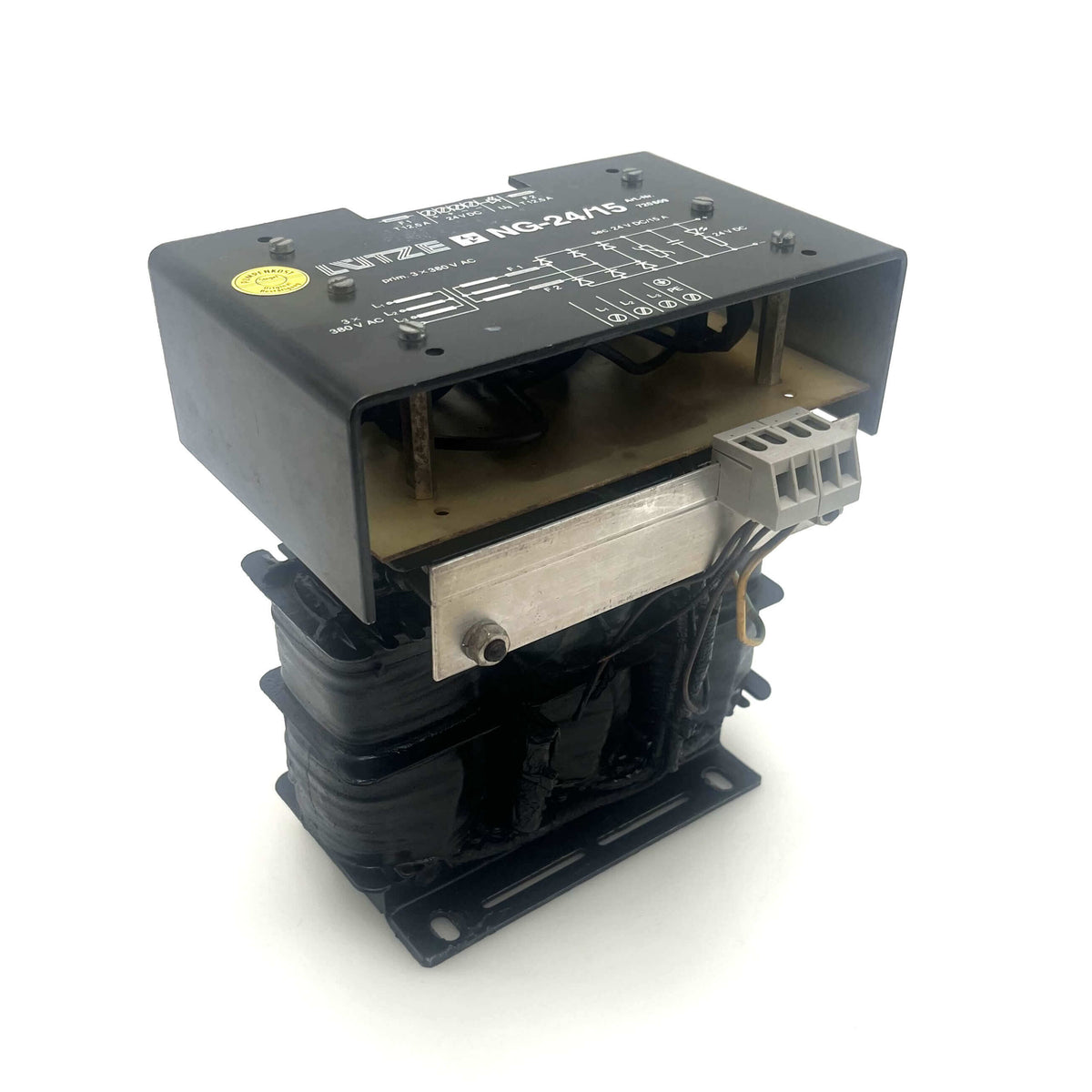

The visual condition and possible signs of wear are visible in the product images.

Scope of delivery

• 1 × Lütze power supply unit NG 24/15
