Control Isolation Transformer Marx GDSC 0.5 – 3x400V to 24V DC 20A T9/3

€134,00 EUR
€134,00 EUR
Shipping calculated at checkout.
  • A few left in stock!
  • Inventory on the way

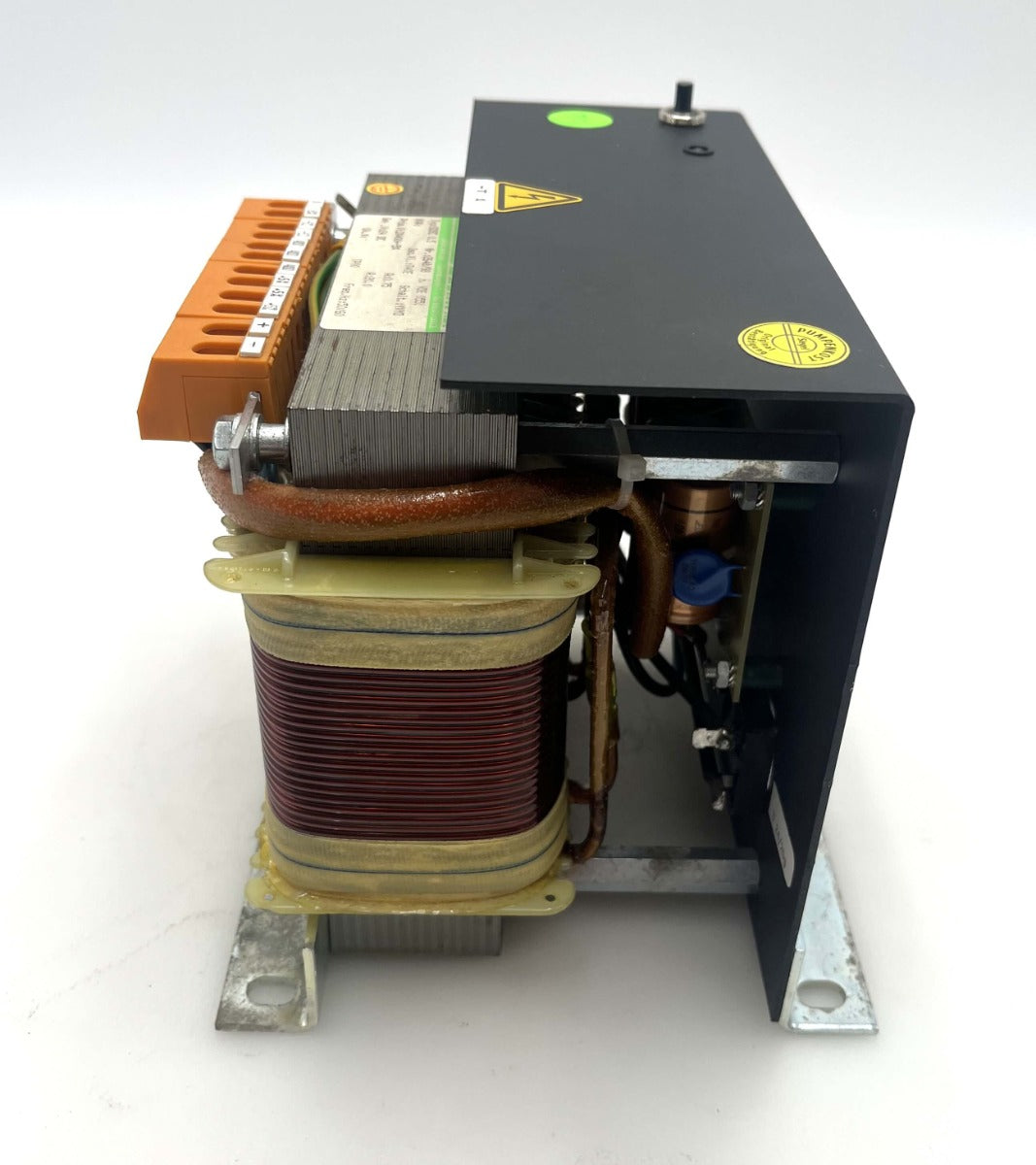

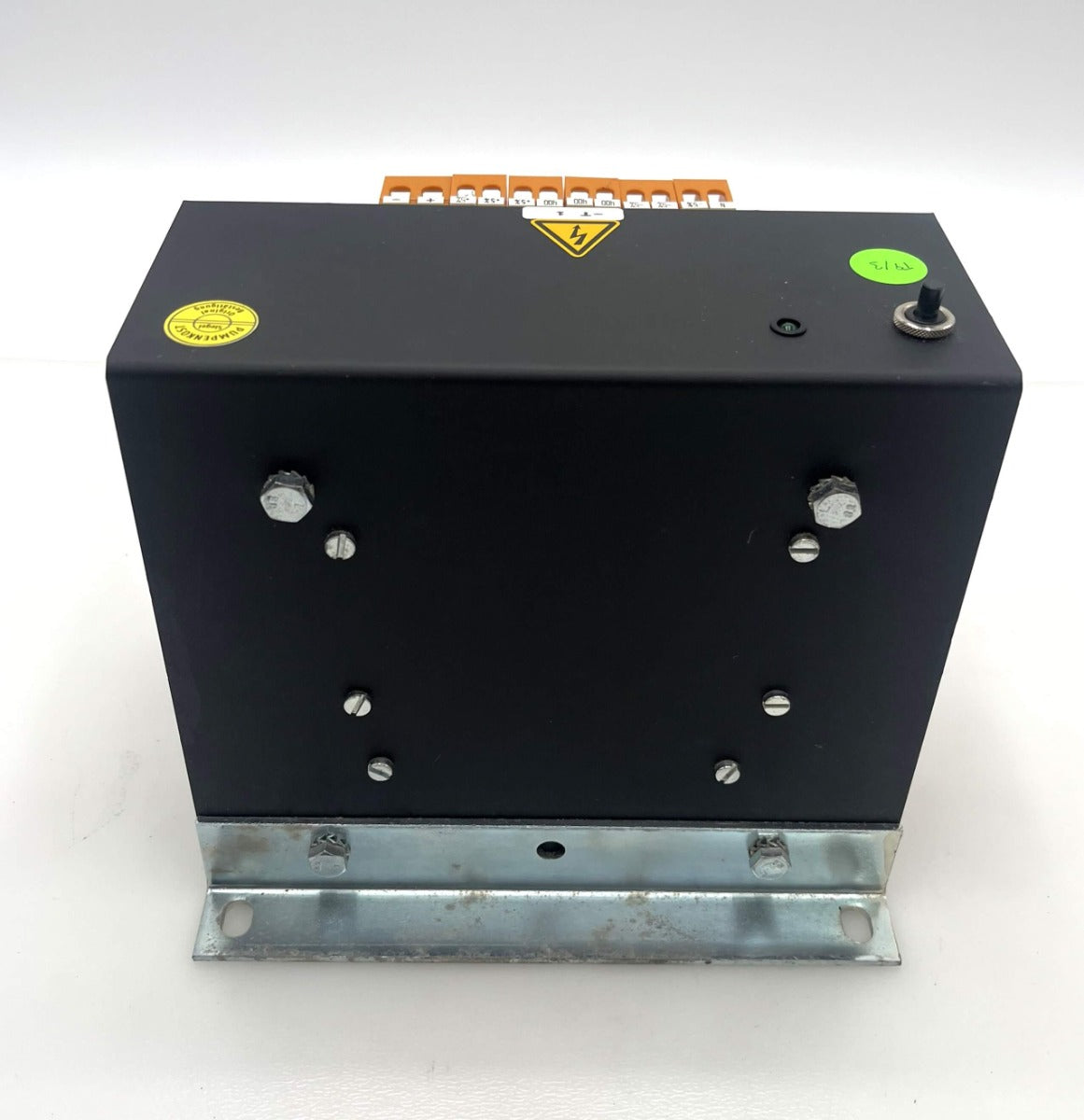

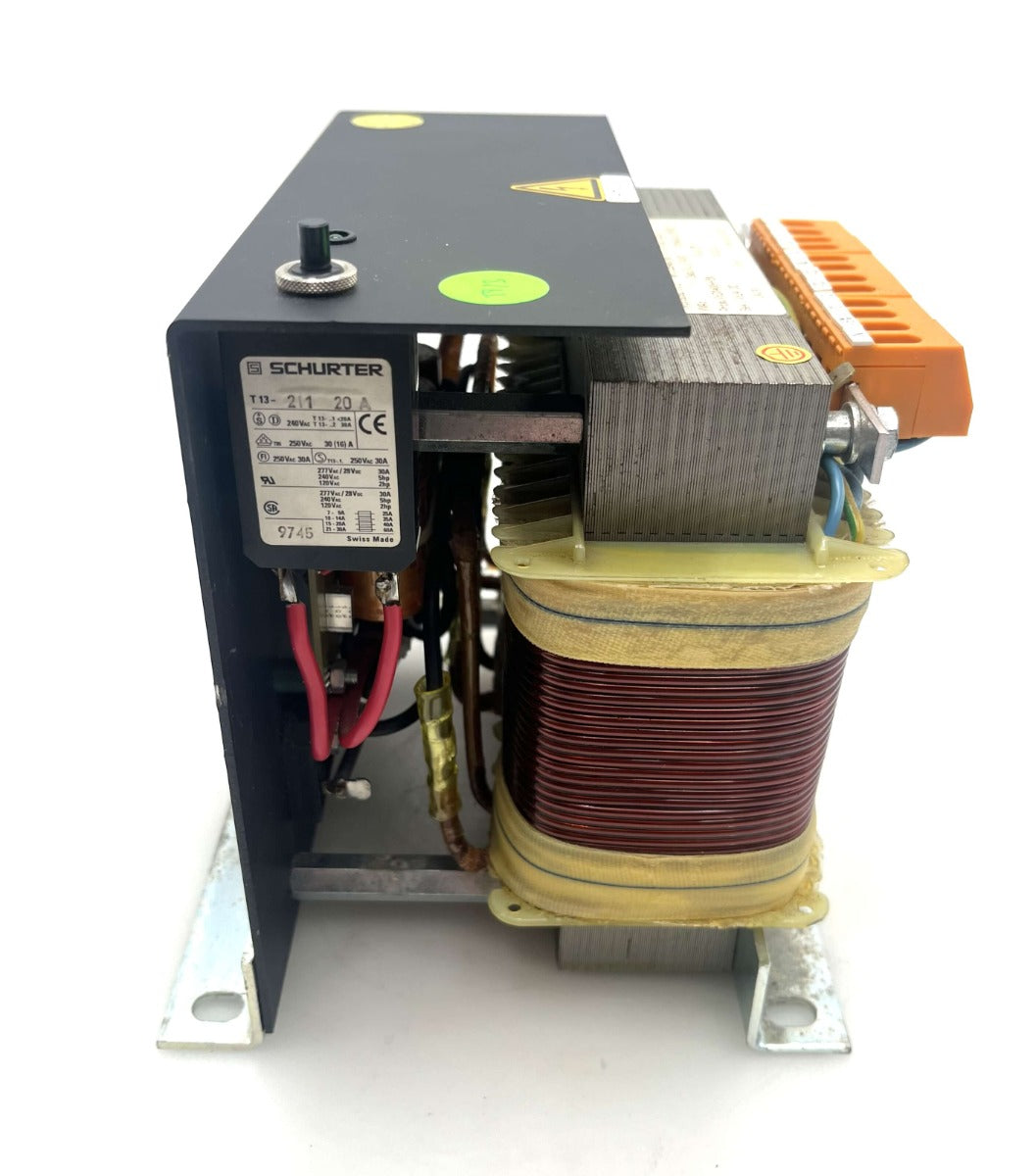

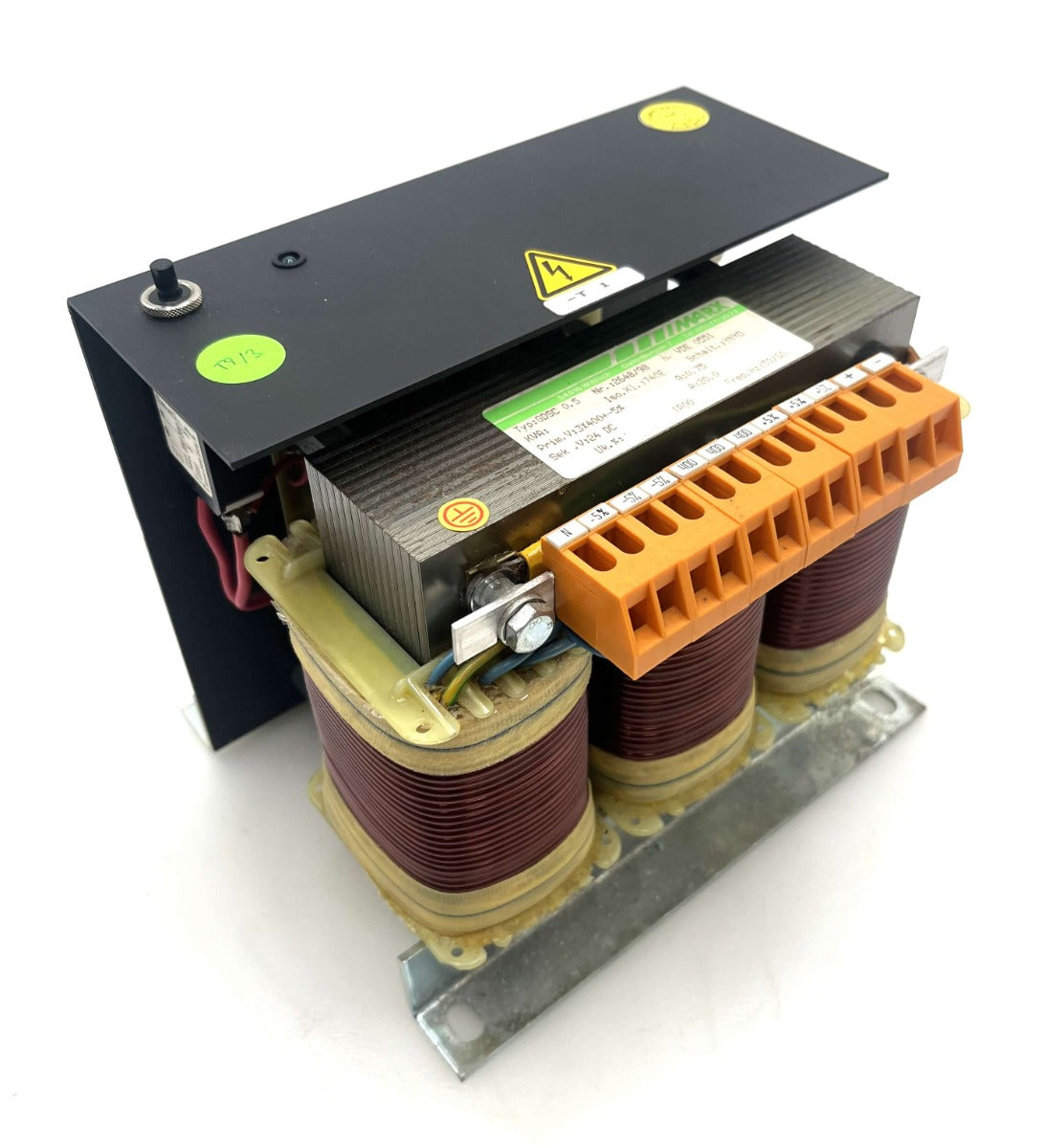

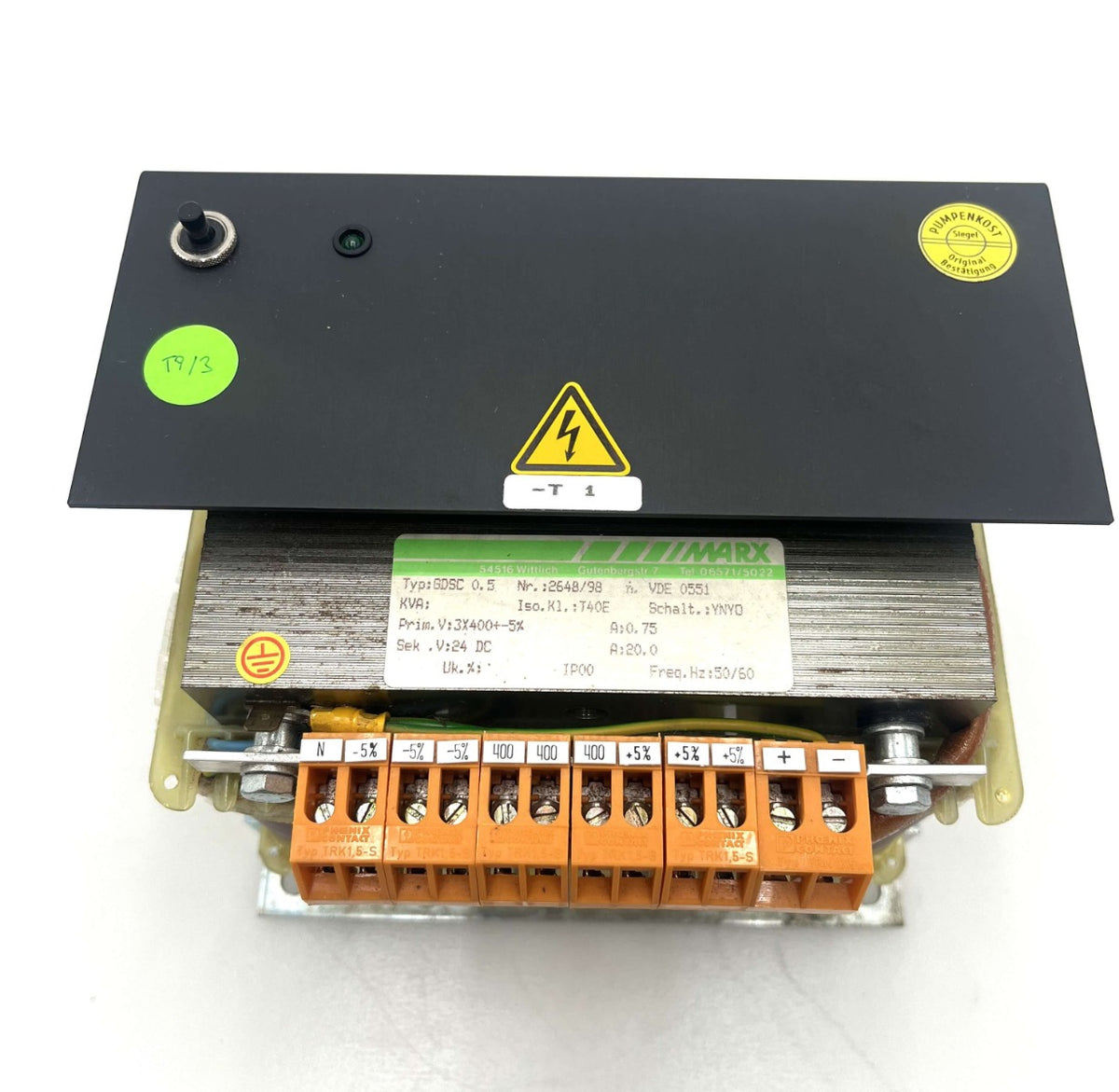

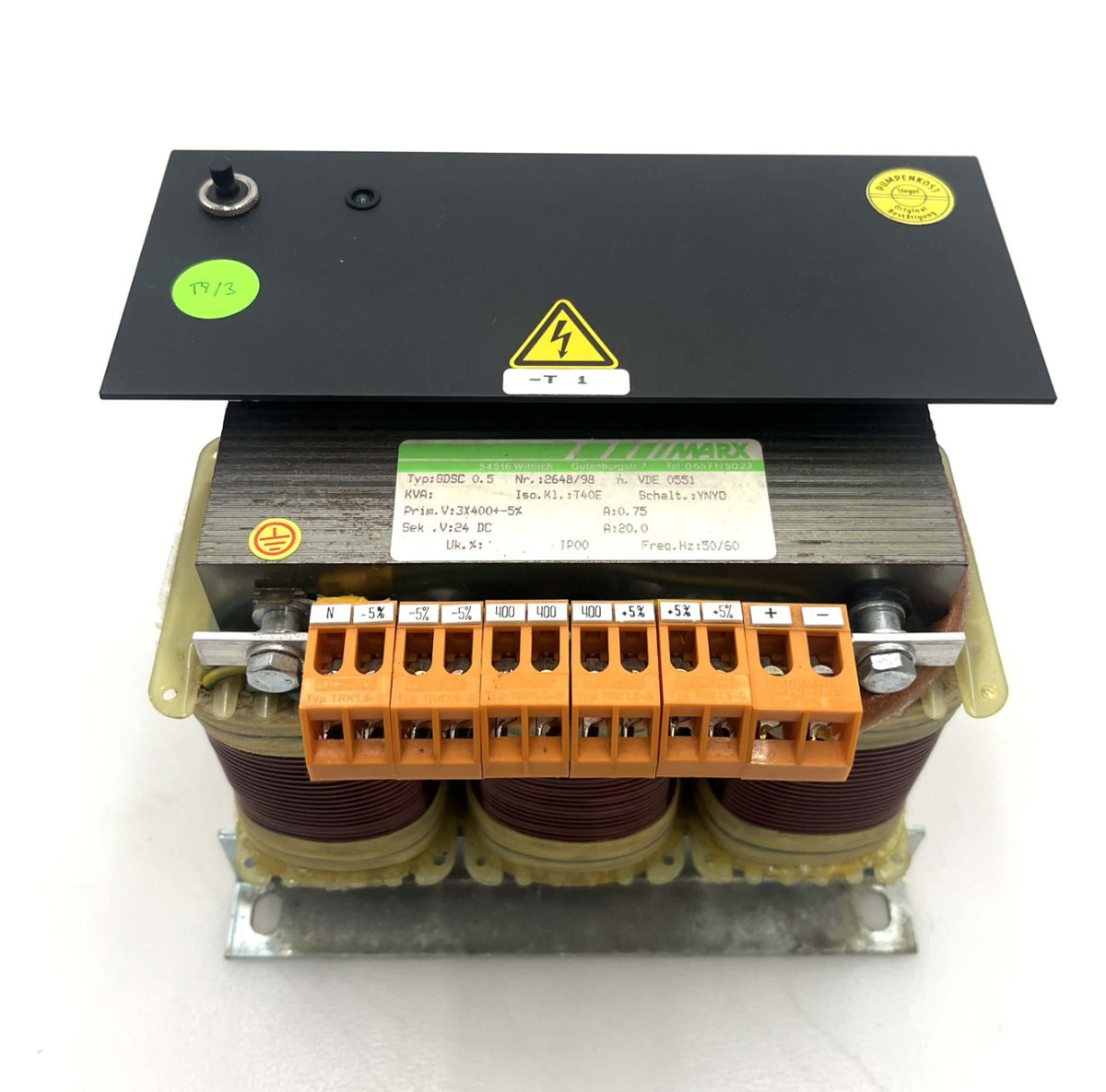

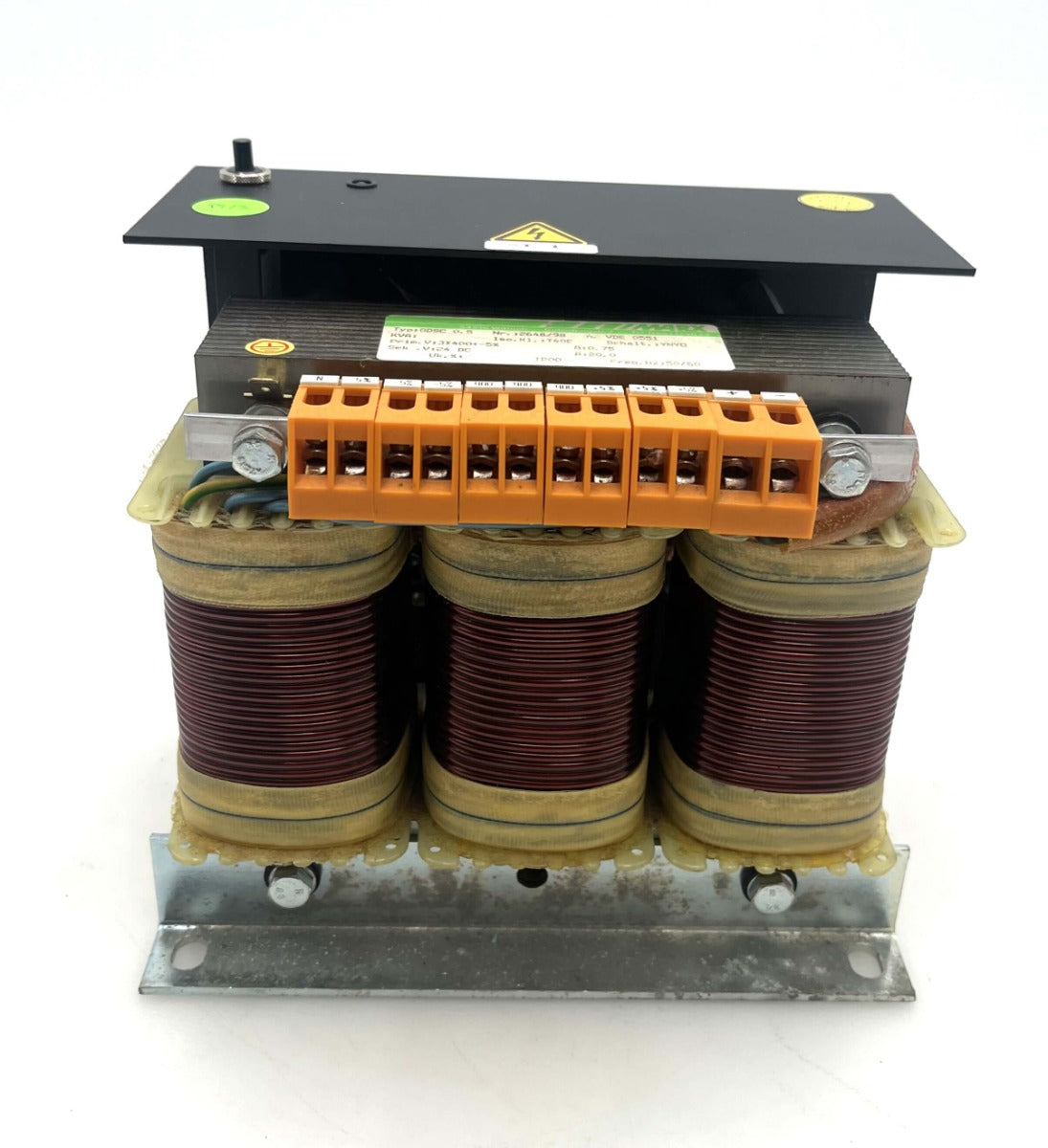

Control Isolation Transformer Marx GDSC 0.5 – 3x400V to 24V DC 20A

The control isolation transformer from Marx, type GDSC 0.5, is a high-quality industrial transformer for reliable voltage conversion and galvanic isolation in control and power supply applications.

The device converts a primary voltage of 3x400 V ±5 % at 0.75 A into a stable secondary voltage of 24 V DC with 20 A. The integrated rectifier with smoothing element ensures a uniform DC voltage and safe operation of connected loads.

The transformer is manufactured in accordance with VDE 0551 and features a 20 A circuit breaker, which provides additional protection against overload.

Despite being used, the device is in very good technical and optical condition and is fully functional.

Technical Data:

  • Manufacturer: Marx
  • Type: GDSC 0.5
  • No. 2648/98
  • Primary voltage: 3x400 V ±5 %, 0.75 A
  • Secondary voltage: 24 V DC, 20 A
  • Standard: VDE 0551
  • Protection: Rectifier with smoothing + 20 A circuit breaker
  • Weight: 8.52 kg
  • Dimensions (LxWxH): 190 x 160 x 175 mm
  • Condition: used, very good
  • Article number: T9/3
Further information
  • Manufacturer: Marx
  • Installation length:
  • Condition: used
  • Pipe connection:
