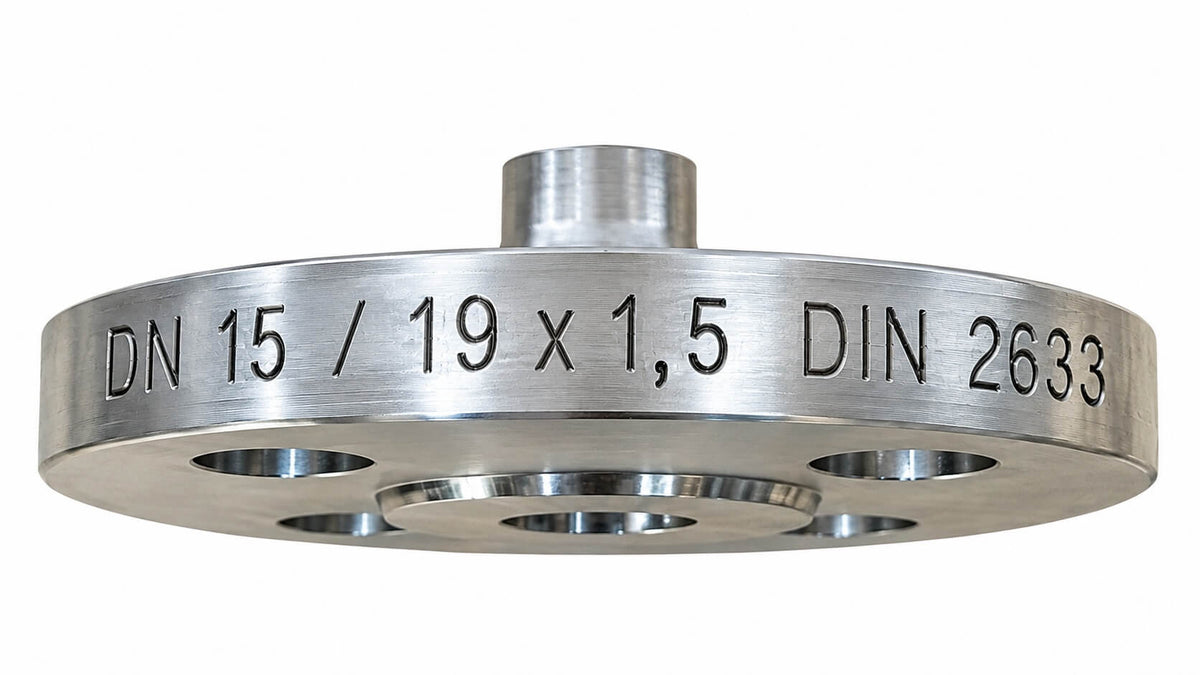

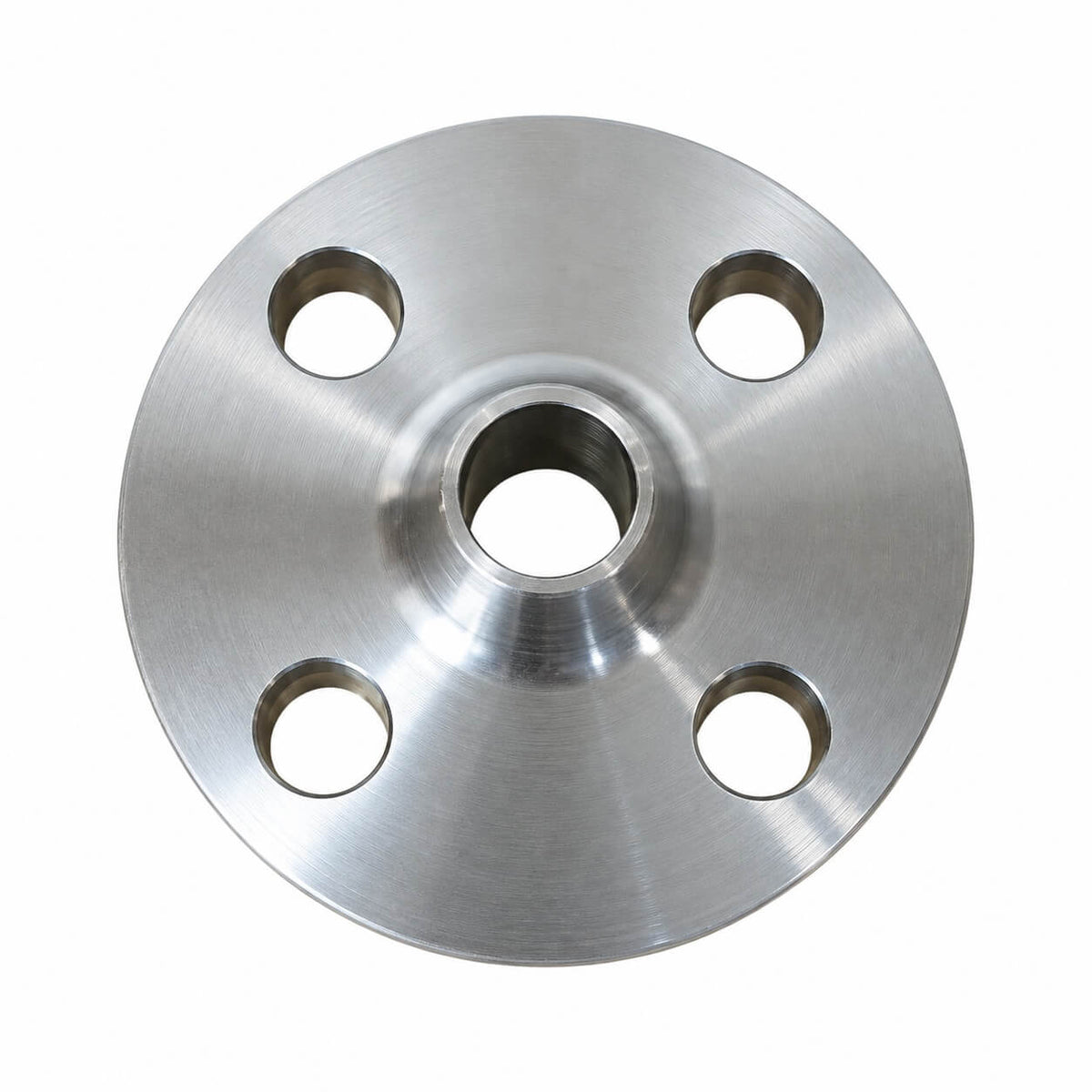

Weld neck flange DN 15 19 x 1.5 DIN 2633 PN 16 stainless steel 1.4541 S16/80
- A few left in stock!
Weld neck flange DN 15 / 19 x 1.5 DIN 2633 PN 16 – Stainless steel
As-new weld neck flange DN 15 made of 1.4541 stainless steel according to DIN 2633, PN 16. The flange has never been installed.
Technical specifications
- Design: Weld neck flange
- Nominal size: DN 15
- Dimensions: 19 × 1.5 mm
- Standard: DIN 2633
- Pressure rating: PN 16
- Material: Stainless steel 1.4541 / 8904 / SA 182 F321
- CH: 14076
- Flange: 4-hole
- Holes: 4 × Ø 14 mm
- Bolt hole spacing: 45 mm
- Flange thickness: 11 mm
- Total diameter: 95 mm
- Sealing face: outside 45 mm / inside 15 mm
- Condition: As-new, never installed
- Our order number: S16/80
Scope of delivery: 1 × Weld neck flange DN 15 / 19 × 1.5 DIN 2633 PN 16
Please compare the specified dimensions, standard, and pressure rating with the required flange before purchasing.
Couldn't load pickup availability
Further information
- Manufacturer:
- Installation length:
- Condition: As new – never installed
- Pipe connection: DN 15 / 19 x 1.5 mm
