Stainless steel welding neck flange DN 65/76.1 – DIN 2633 – PN 16 – 1.4571 K17/162
- A few left in stock!

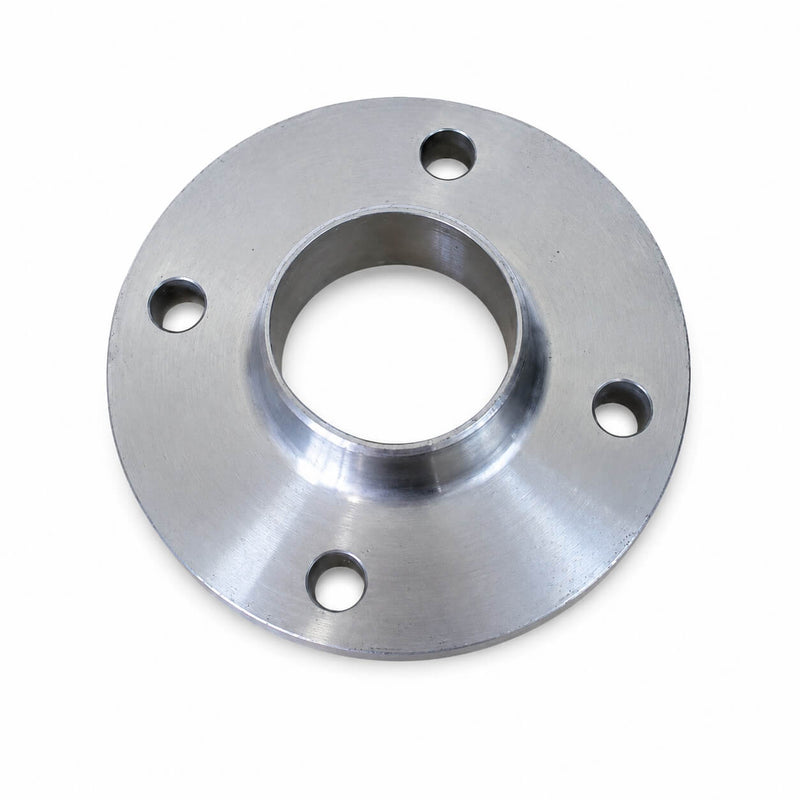

For sale is a new stainless steel welding neck flange DN 65/76.1 with the designation DIN 2633, pressure rating PN 16, and material 1.4571.
The flange has an outer diameter of 185 mm and an inner diameter of 69 mm. It is intended for welding onto appropriately designed piping systems.
Please compare the material specification, pressure rating, and all connection dimensions with your system before ordering.
Technical Data
- Item: Welding neck flange
- Nominal diameter: DN 65
- Pipe dimension according to marking: 76.1 mm
- Standard designation: DIN 2633
- Pressure rating: PN 16
- Material: Stainless steel 1.4571
- Additional marking: 686
- Outer diameter: 185 mm
- Inner diameter: 69 mm
- Hole spacing center to center, measured laterally: approx. 105 mm
- Hole spacing measured diagonally: approx. 145 mm
- Our item number: K17/162
Condition
New and never installed.
Scope of Delivery
- 1 × stainless steel welding neck flange DN 65/76.1, DIN 2633, PN 16
