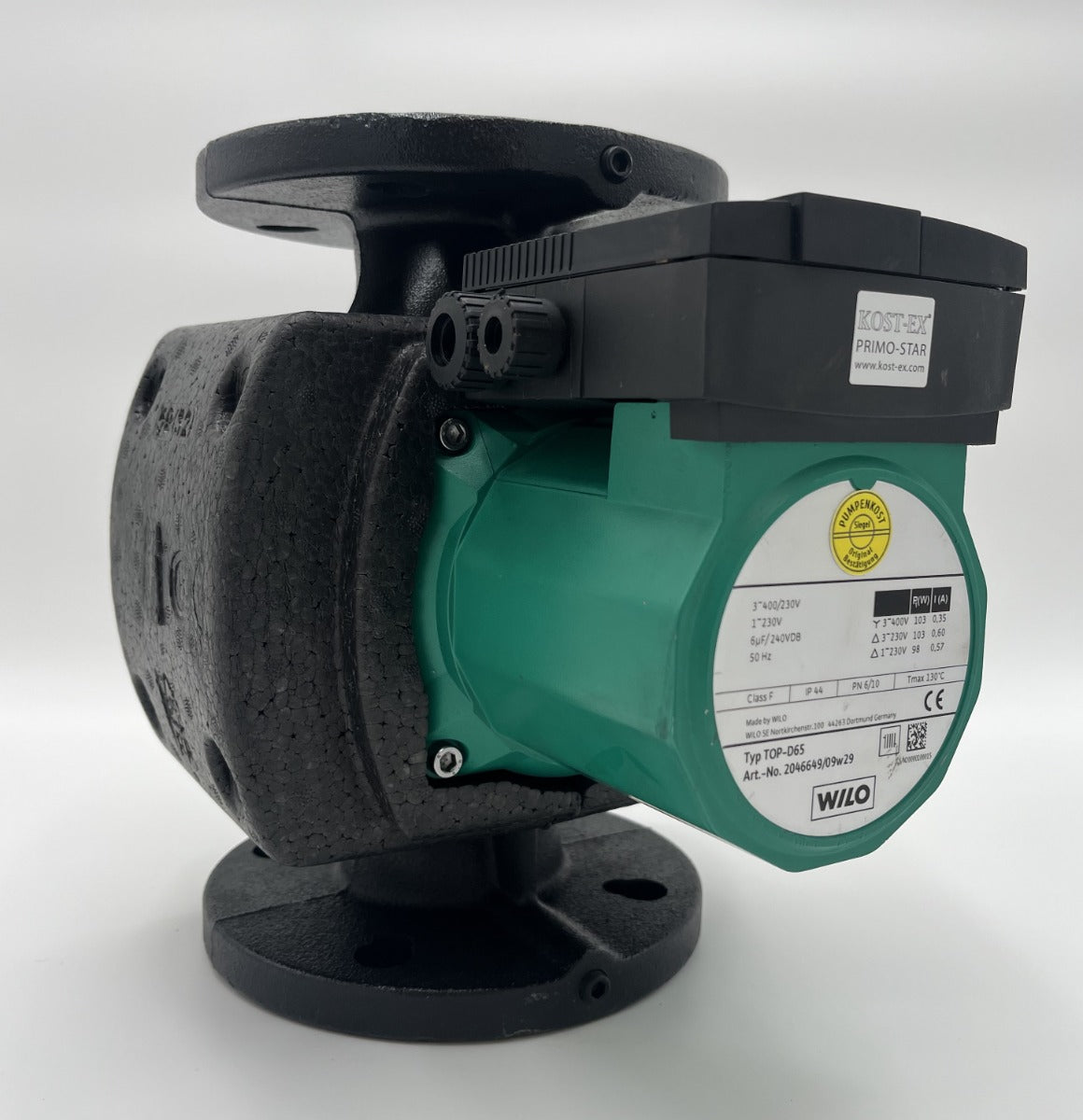

Wilo Top-D 65 Heating Pump 3x400V Circulation Pump 280mm P13/1115
- A few left in stock!
Wilo Top-D 65 Heating Pump
The pump is currently delivered configured for 3 x 400 V (star connection). A switch to 1 x 230 V is possible at the terminal board – please refer to the wiring diagram in the cover.
For operation with 230 V, a capacitor with 6 µF is required.

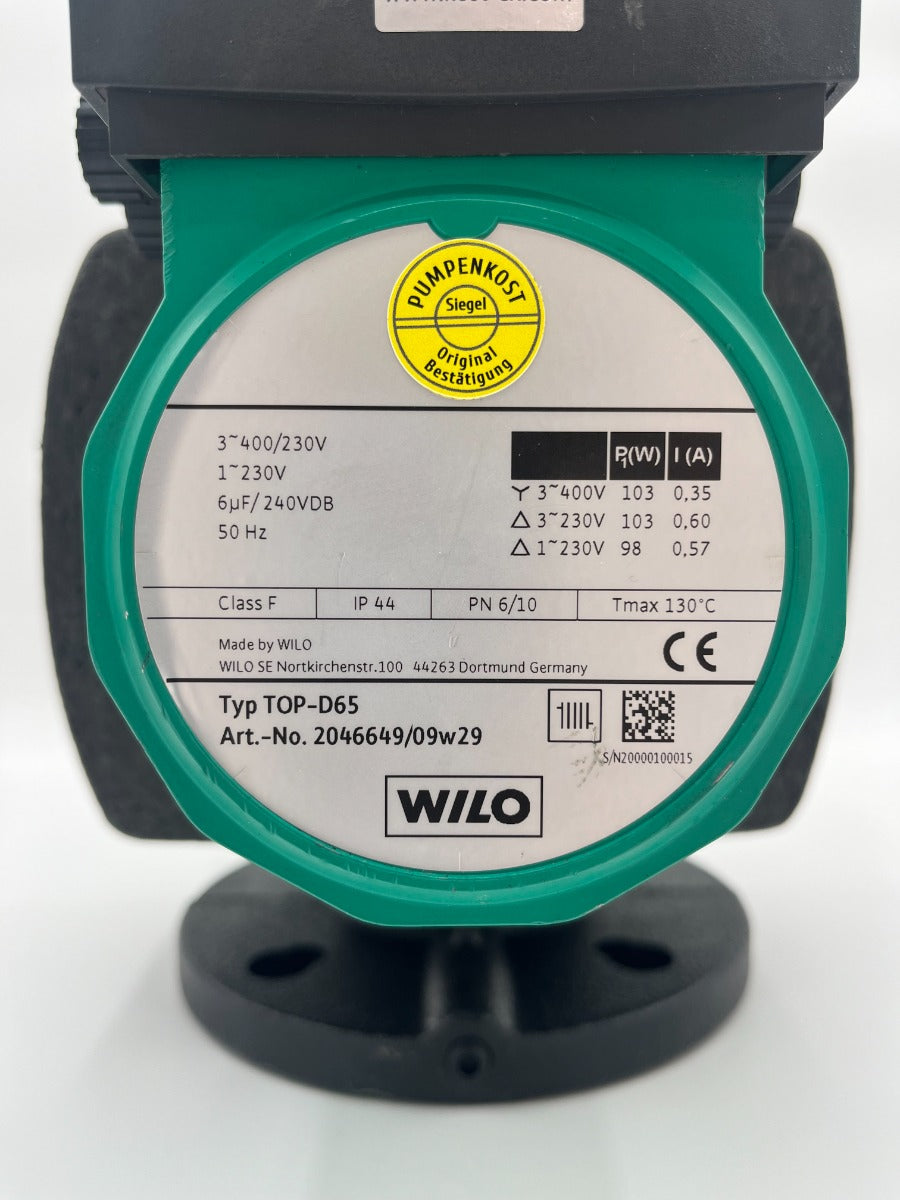

Technical Data
- Voltage: 3 x 400 V
- Power consumption: 103 W
- Nominal pressure: PN 6/10

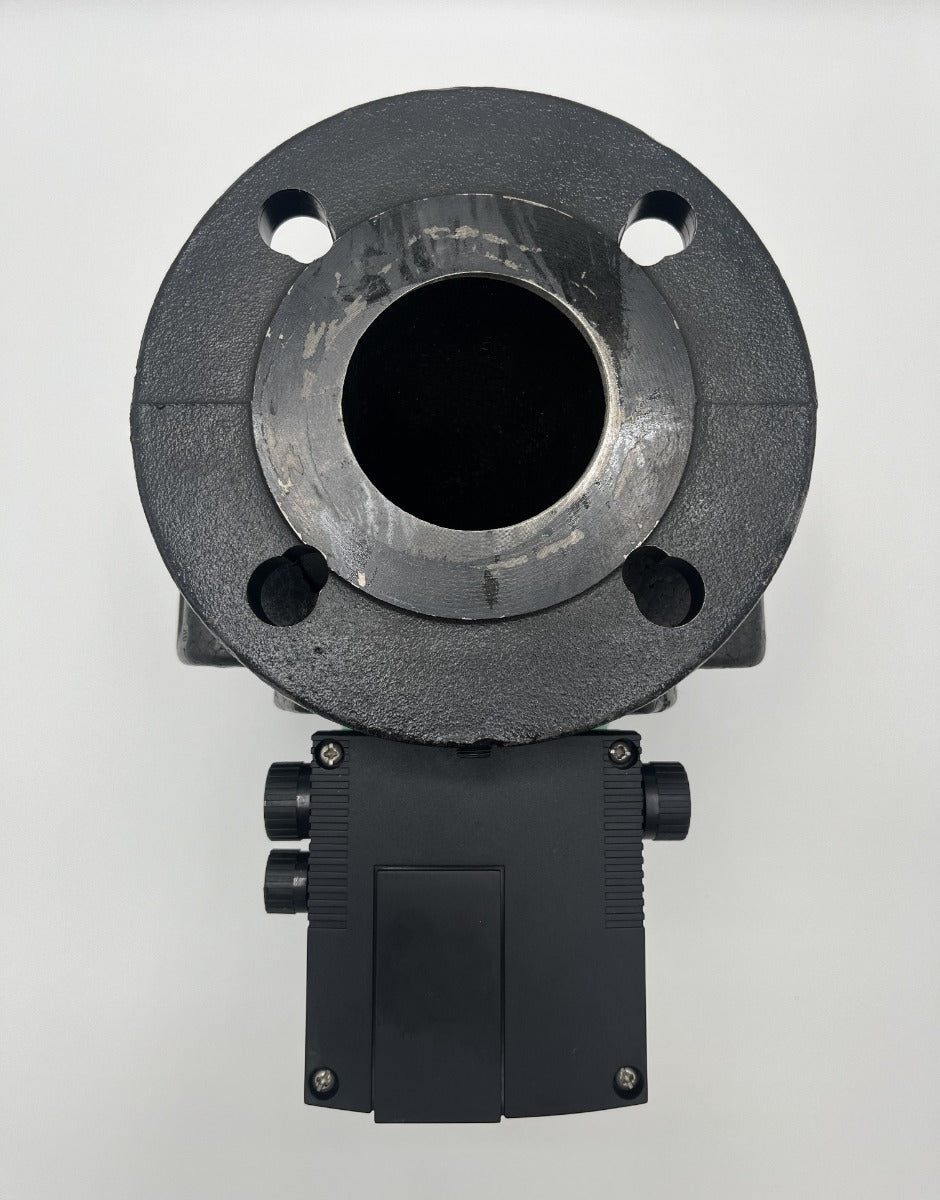

- Nominal diameter: DN 65
- Installation length: 280 mm
- Flange hole spacing: 90 mm and 105 mm (universal drilling)
- Condition: used (excellent condition)
- Our item number: P13/1115
Couldn't load pickup availability
Further information
- Manufacturer: Wilo
- Installation length: 280 mm
- Condition: used
- Pipe connection: DN 65
